1-41 — FUEL PIPING; CHASSIS (#58328) — 77 parça

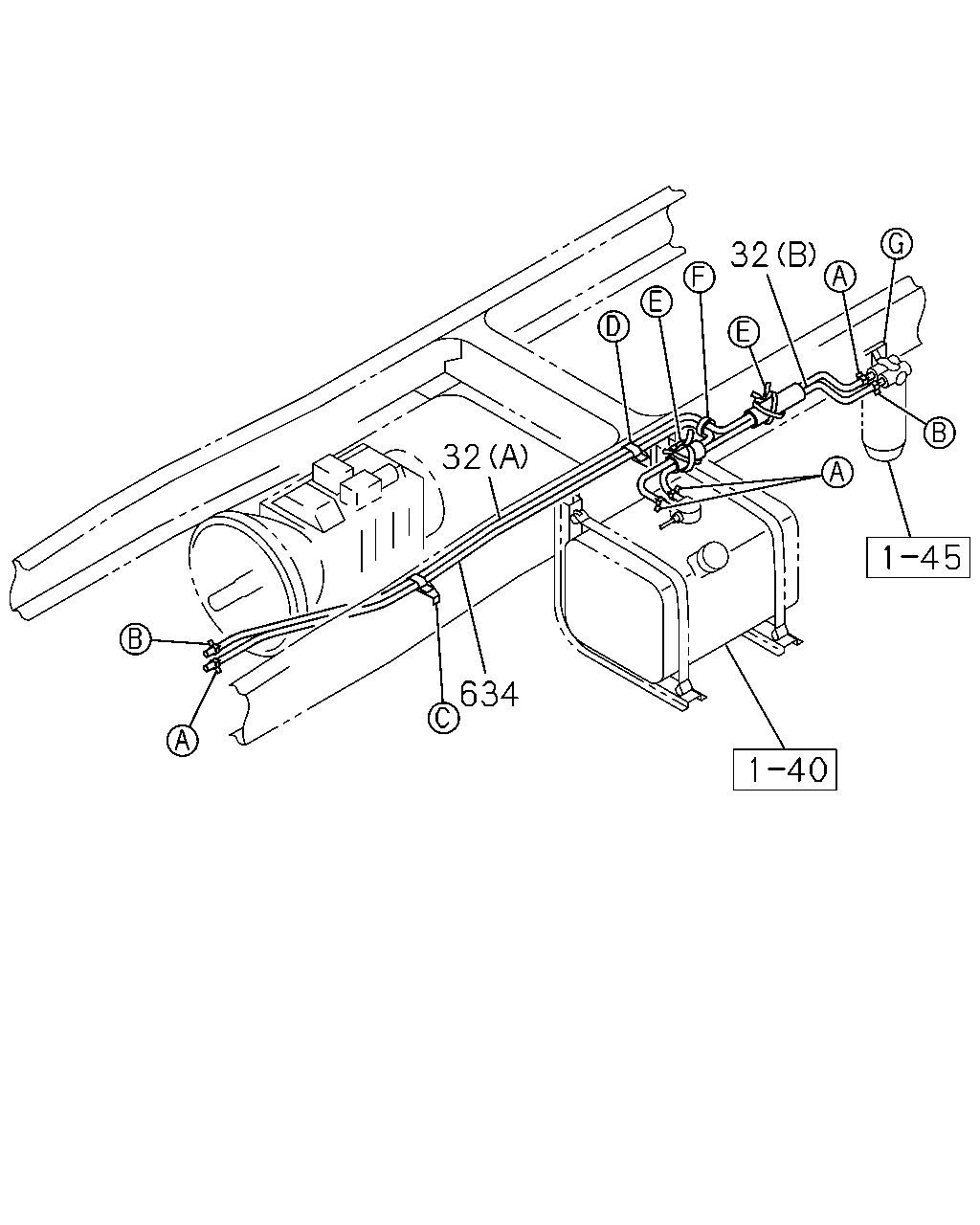

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) L=1200 SERVICED BY L=3000	0-01262-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1008-
634	HOSE; RUBBER RETURN FUEL TANK 550L<EDP> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1008-

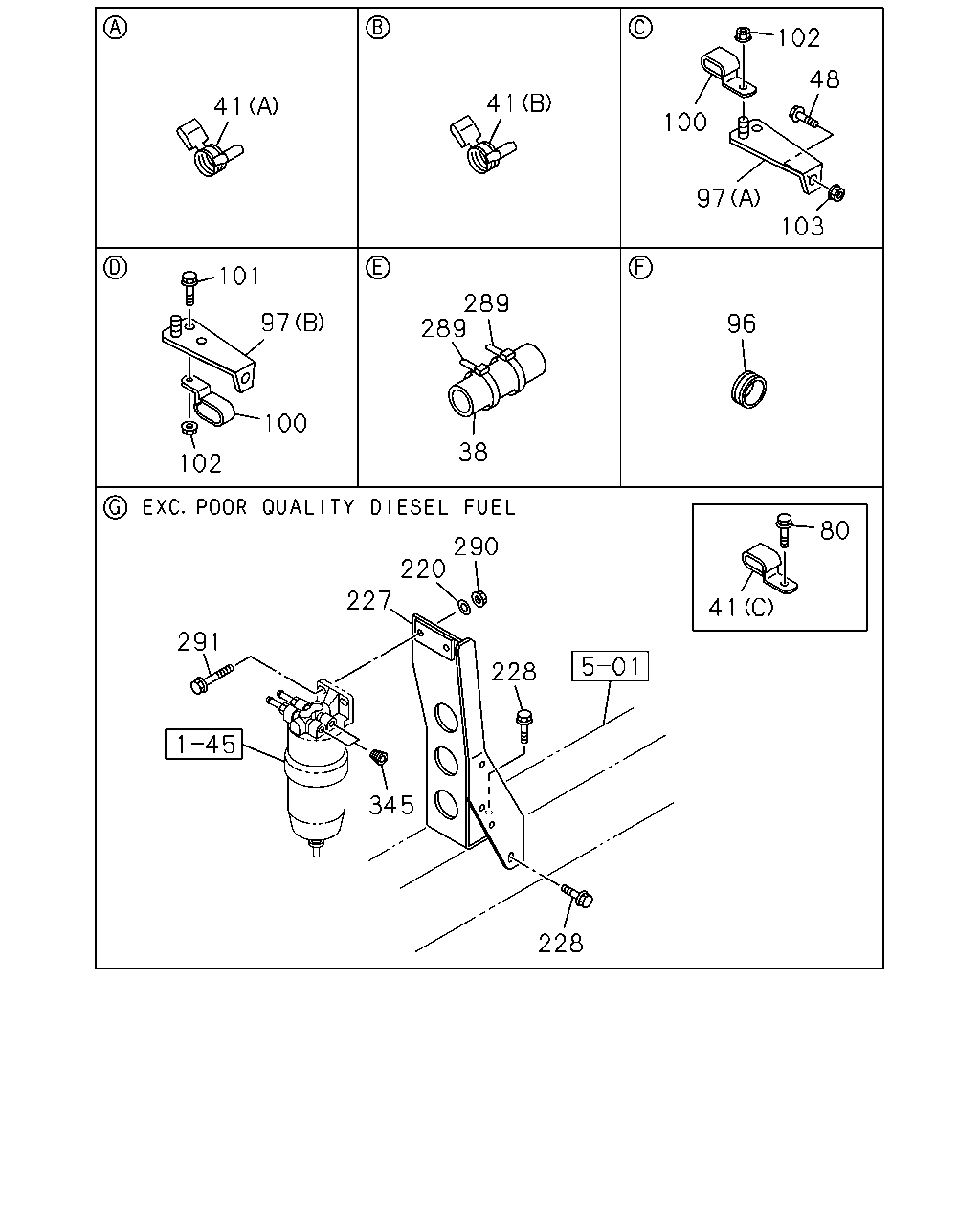

102 48 41 41 100 97 103 101 289 289 97 96 100 38 102 80 290 220 41 227 291 228 345 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1106-
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1008-1105
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1106-
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1106-
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1008-1105
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1106-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1008-1105
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1106-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1008-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1008-
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1008-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1008-1105
80	BOLT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	01	1	1106-
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1008-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (C)	8-98189-648-0	01	1	1106-
97	BRACKET; CLIP (B)	1-47471-283-0	01	1	1008-
97	BRACKET; CLIP (A)	8-98172-058-0	01	1	1008-
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1008-
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1008-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1008-
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1008-
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1108-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1008-1107
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> ID=10.5 OD=26	0-91614-710-0	04	1	1108-
227	BRACKET; FUEL SEDIMENTER	8-98144-953-0	01	1	1008-1107
227	BRACKET; FUEL SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98144-953-0	01	1	1108-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28650-825-0	02	1	1106-
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28051-040-0	03	1	1008-1107
228	BOLT; BRKT,SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	03	1	1108-
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1106-
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	1008-1105
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1106-
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=250	5-09707-030-1	04	1	1106-
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> L=250	5-09707-030-1	04	1	1008-1105
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	06	1	1106-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1107
290	NUT; FILTER TO BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> M10 FLANGE	0-91180-210-0	02	1	1108-
290	NUT; FILTER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1108-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1008-1107
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1108-
345	PLUG RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) NPTF3/8-18	8-97329-623-0	02	1	1009-1109
345	PLUG RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1110-

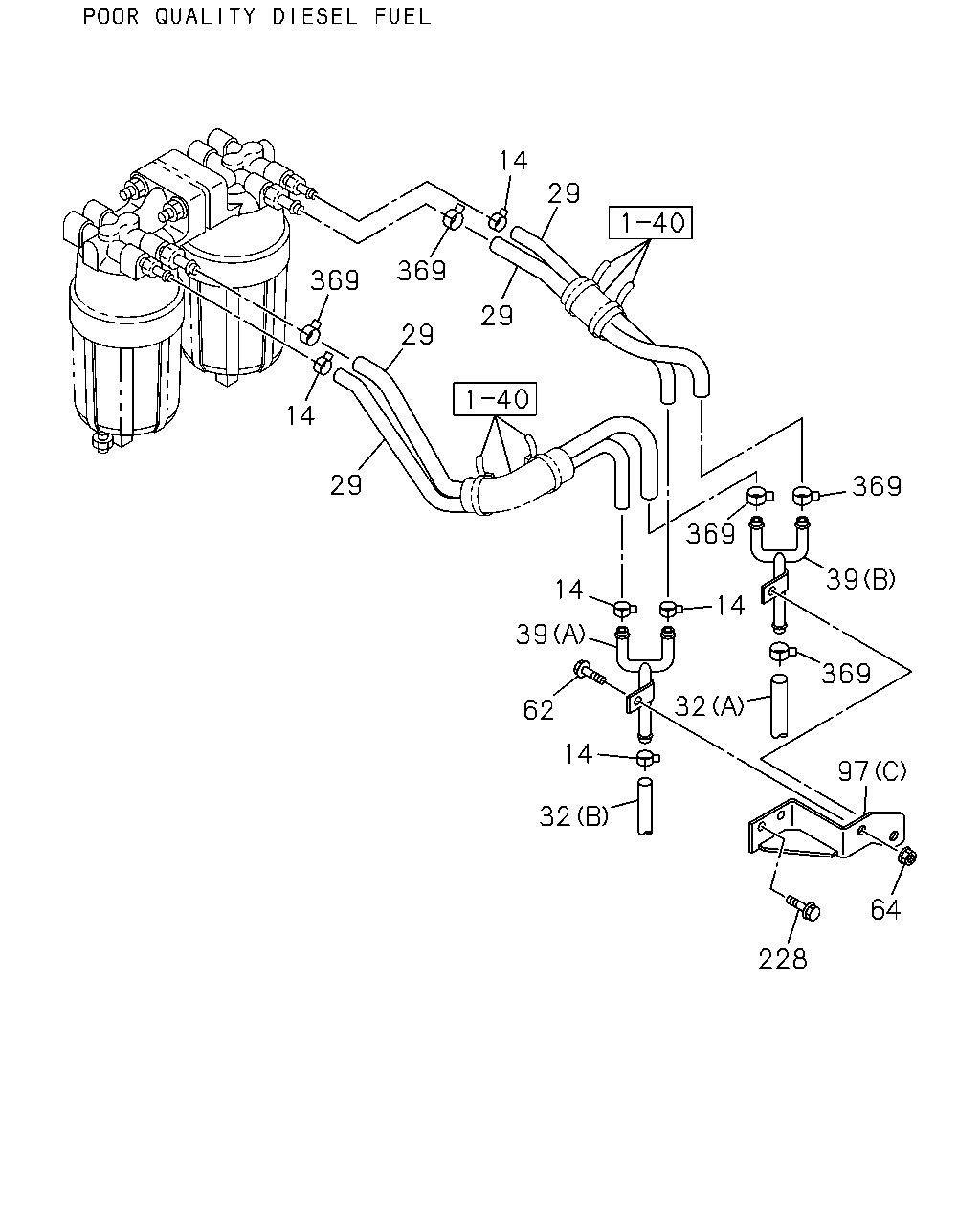

14 29 369 369 29 29 14 29 369 369 39 14 14 39 369 32 62 14 97 32 64 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1106-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> L=330 OD=14.5	8-98188-444-0	02	1	1106-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> L=350 OD=19	8-98188-464-0	01	1	1106-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> L=350 OD=19	8-98188-464-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (A) L=1200 SERVICED BY L=3000	0-01262-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1106-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1106-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1106-
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1106-
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1106-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (C)	8-98189-648-0	01	1	1106-
97	BRACKET; CLIP (B)	1-47471-283-0	01	1	1008-
97	BRACKET; CLIP (A)	8-98172-058-0	01	1	1008-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28650-825-0	02	1	1106-
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28051-040-0	03	1	1008-1107
228	BOLT; BRKT,SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	03	1	1108-
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1106-
