1-40 — FUEL TANK (#58327) — 93 parça

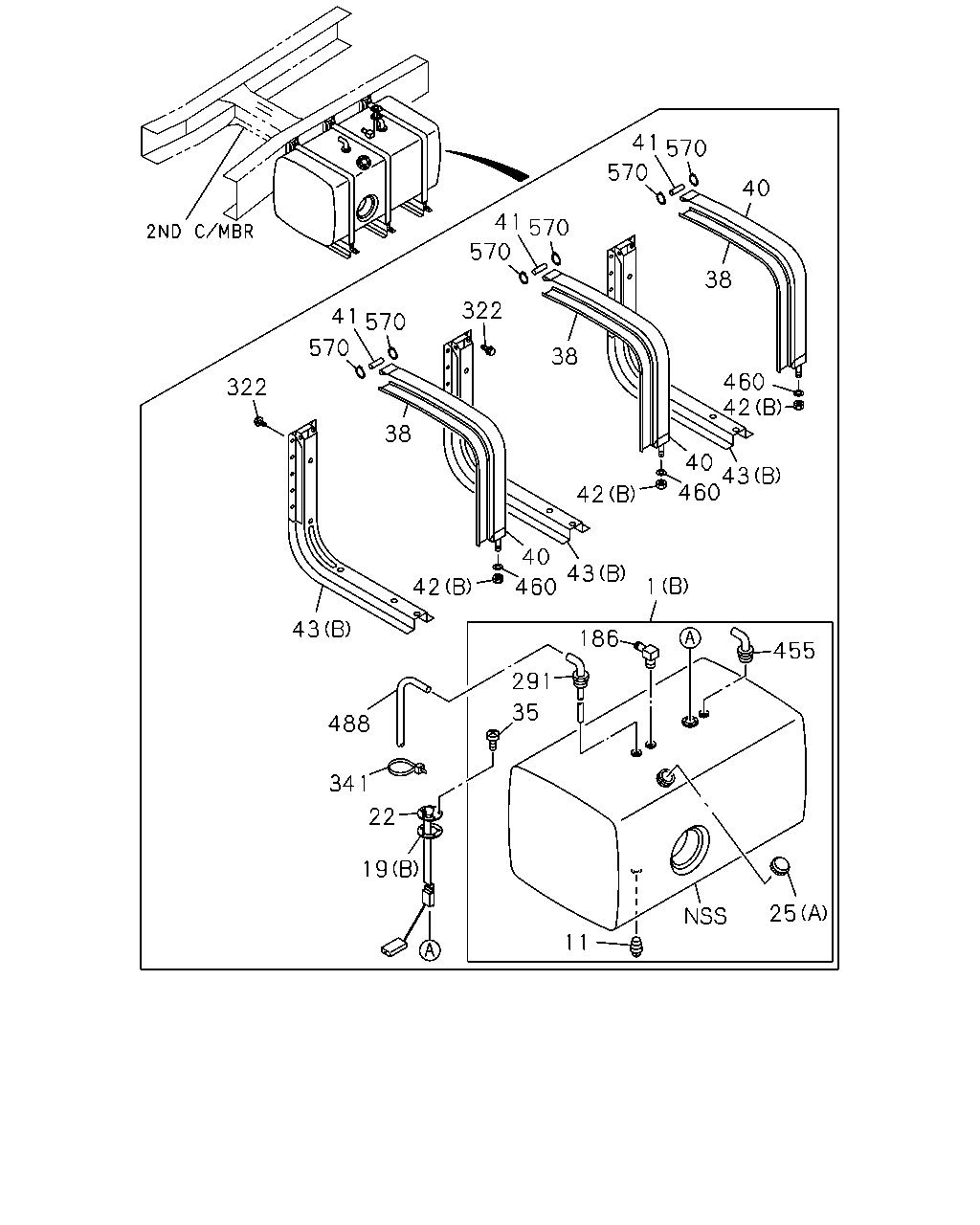

41 570 570 40 41 570 570 38 322 41 570 570 38 460 42 322 38 40 43 460 42 40 43 460 1 42 43 186 455 291 35 488 341 22 19 25 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L	1-87411-699-1	01	1	1008-1109
1	TANK; FUEL FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (C) 1050X680X625 400L	1-87412-299-1	01	1	1110-
1	TANK; FUEL FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L	1-87412-050-4	01	1	1008-
1	TANK; FUEL FUEL TANK 550L<EDP> (B) 1280X700X700 550L	8-98140-322-0	01	1	1008-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) M18X12	0-92002-418-0	01	1	1211-1304
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1305-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>	8-98154-085-0	02	1	1008-
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (C) ID=54.5	8-98299-580-0	01	1	1211-1304
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (C) ID=54.5	8-98299-580-0	01	1	1305-
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (A) ID=58	1-83149-005-0	01	1	1008-1210
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A) ID=58	1-83149-005-0	01	1	1211-1304
19	GASKET; FUEL TANK UNIT FUEL TANK 550L<EDP> (B) ID=45 OD=67	1-83149-003-0	01	1	1008-
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	1008-1210
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2)	1-83141-132-0	01	1	1211-1304
22	UNIT; FUEL TANK FUEL TANK 550L<EDP>	1-83141-150-1	01	1	1008-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> (A)	1-22440-057-2	01	1	1008-
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1008-1210
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (B)	8-98108-595-0	01	1	1211-
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (B)	8-98108-595-0	01	1	1211-
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	1008-1109
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A)	8-98182-306-0	01	1	1110-
35	SCREW; FUEL TANK UNIT FUEL TANK 550L<EDP>	8-98168-468-0	05	1	1008-
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1008-
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	1008-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	1-22550-261-0	02	1	1008-1110
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1111-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	1008-
41	PIN; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-491-0	03	1	1008-
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> (A) M10	0-91110-510-0	04	1	1008-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP> (B)	1-22559-027-0	03	1	1008-
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (A)	1-53461-525-1	02	1	1008-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (B)	8-98110-151-0	03	1	1008-
186	VALVE; GT,FUEL TANK FUEL TANK 550L<EDP>	8-98154-029-0	01	1	1008-
291	PIPE; FUEL,SUCTION FUEL TANK 550L<EDP>	8-98154-021-0	01	1	1008-
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1008-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> M12X45 FLANGE	0-28051-245-0	18	1	1008-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	01	1	1008-
341	CLIP; BAND,RUBBER HOSE FUEL TANK 550L<EDP> L=350	1-09707-183-0	02	1	1008-
455	PIPE; FUEL,RETURN FUEL TANK 550L<EDP>	8-98154-022-0	01	1	1008-
460	WASHER; PL,BRKT FUEL TANK 550L<EDP> ID=17 OD=32	9-09160-616-0	03	1	1008-
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98134-936-0	01	1	1008-
488	HOSE; RUBBER FUEL TANK 550L<EDP>	8-98151-246-0	01	1	1008-
570	CLIP; PIN FUEL TANK 550L<EDP>	1-22559-024-0	06	1	1008-

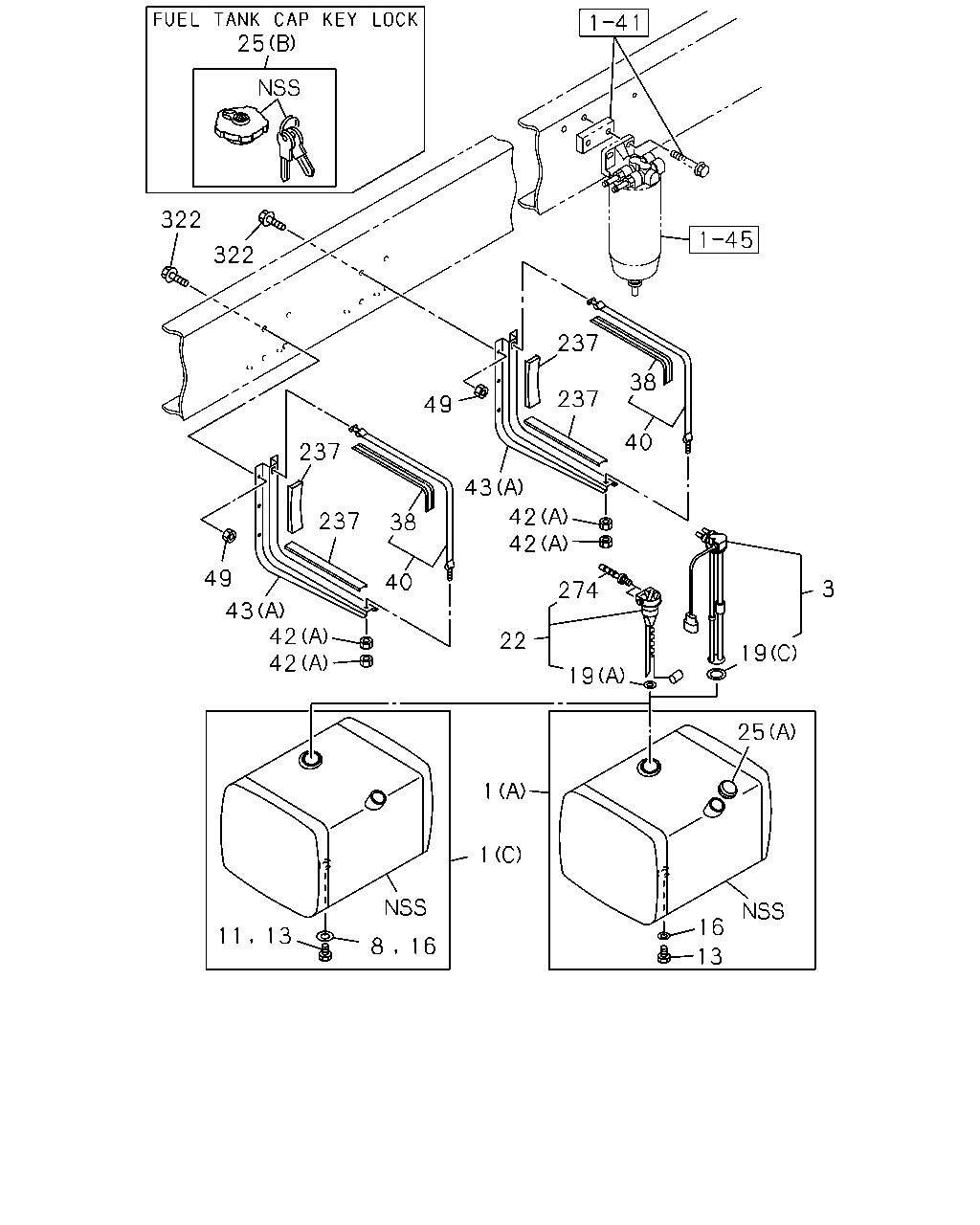

25 322 322 237 237 38 40 49 237 237 38 40 43 42 42 274 3 19 25 19 22 1 1 16 42 42 43 49 11 13 8 16 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L	1-87411-699-1	01	1	1008-1109
1	TANK; FUEL FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (C) 1050X680X625 400L	1-87412-299-1	01	1	1110-
1	TANK; FUEL FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A) 1050X680X625 400L	1-87412-050-4	01	1	1008-
1	TANK; FUEL FUEL TANK 550L<EDP> (B) 1280X700X700 550L	8-98140-322-0	01	1	1008-
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2)	8-98217-749-0	01	1	1211-1304
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1305-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-1304
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	1305-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) M18X12	0-92002-418-0	01	1	1211-1304
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1305-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 550L<EDP>	8-98154-085-0	02	1	1008-
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1008-1210
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) M18X12	0-92002-418-0	01	1	1211-1304
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	1008-1210
16	GASKET; PLUG FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-1304
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (C) ID=54.5	8-98299-580-0	01	1	1211-1304
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (C) ID=54.5	8-98299-580-0	01	1	1305-
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (A) ID=58	1-83149-005-0	01	1	1008-1210
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A) ID=58	1-83149-005-0	01	1	1211-1304
19	GASKET; FUEL TANK UNIT FUEL TANK 550L<EDP> (B) ID=45 OD=67	1-83149-003-0	01	1	1008-
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	1008-1210
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2)	1-83141-132-0	01	1	1211-1304
22	UNIT; FUEL TANK FUEL TANK 550L<EDP>	1-83141-150-1	01	1	1008-
25	CAP; FILLER,FUEL TANK FUEL TANK 550L<EDP> (A)	1-22440-057-2	01	1	1008-
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1008-1210
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> CHINA EQUIPMENT(YT2) (B)	8-98108-595-0	01	1	1211-
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (B)	8-98108-595-0	01	1	1211-
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	1008-1109
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2) (A)	8-98182-306-0	01	1	1110-
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1008-
38	INSULATION; SUPPORT BELT FUEL TANK 550L<EDP>	8-98048-490-0	03	1	1008-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	1-22550-261-0	02	1	1008-1110
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1111-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 550L<EDP>	8-98048-517-0	03	1	1008-
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH> (A) M10	0-91110-510-0	04	1	1008-
42	NUT; SUPPORT BELT FUEL TANK 550L<EDP> (B)	1-22559-027-0	03	1	1008-
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (A)	1-53461-525-1	02	1	1008-
43	BRACKET; FUEL TANK FUEL TANK 550L<EDP> (B)	8-98110-151-0	03	1	1008-
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	08	1	1008-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1008-
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>	1-83149-006-0	02	1	1008-1210
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH> EXC. CHINA EQUIPMENT(YT2)	1-83149-006-0	02	1	1211-1304
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1008-
322	BOLT; BRKT FIX FUEL TANK 550L<EDP> M12X45 FLANGE	0-28051-245-0	18	1	1008-

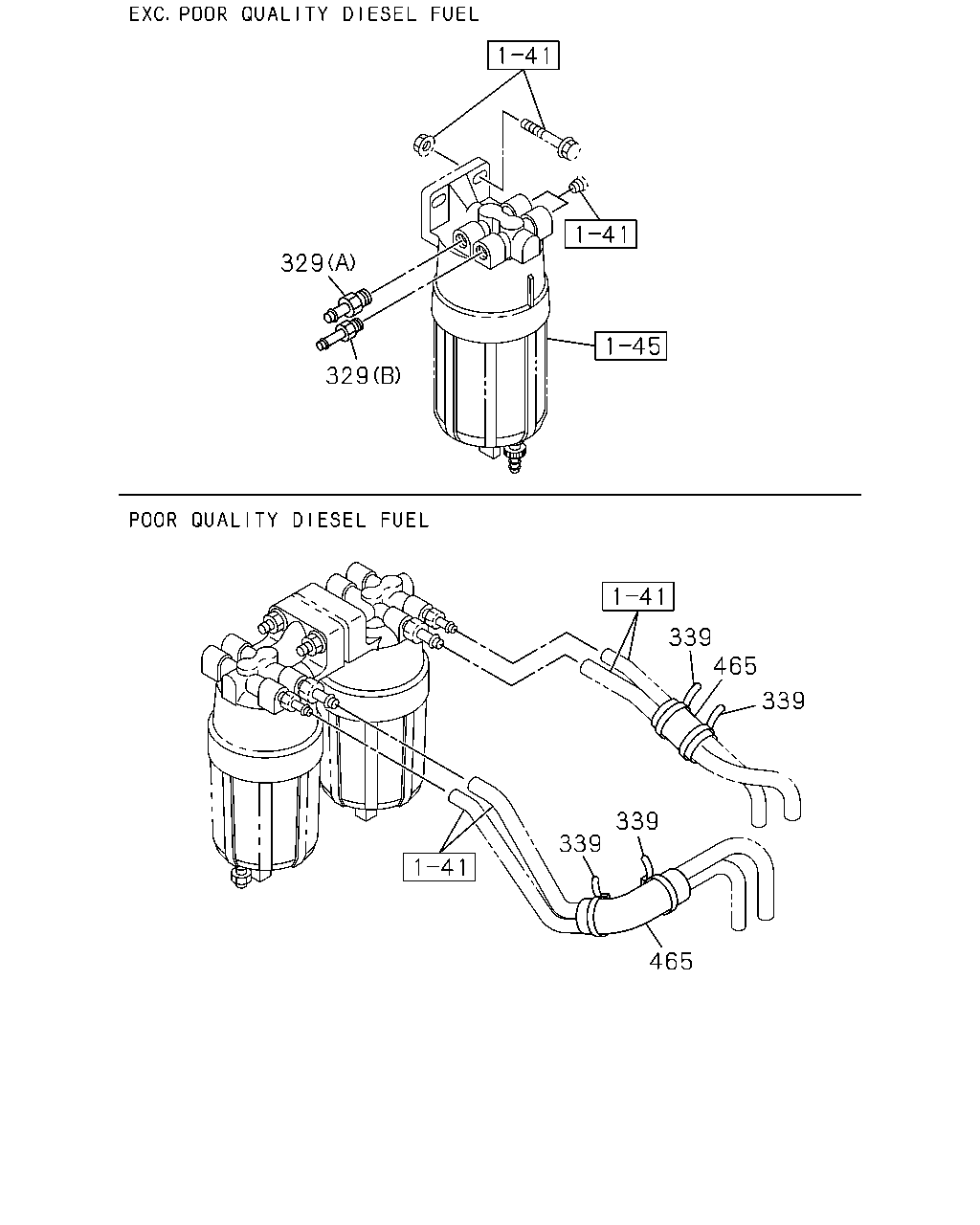

329 329 339 465 339 339 339 465

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
329	JOINT ASM; EYE,FUEL PIPE RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1009-1109
329	JOINT ASM; EYE,FUEL PIPE RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1110-
329	JOINT ASM; EYE,FUEL PIPE RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1009-1109
329	JOINT ASM; EYE,FUEL PIPE RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1110-
339	CLIP; BAND,FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1106-
465	SLEEVE; RUBBER POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1106-
