◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#58324) — 31 parça

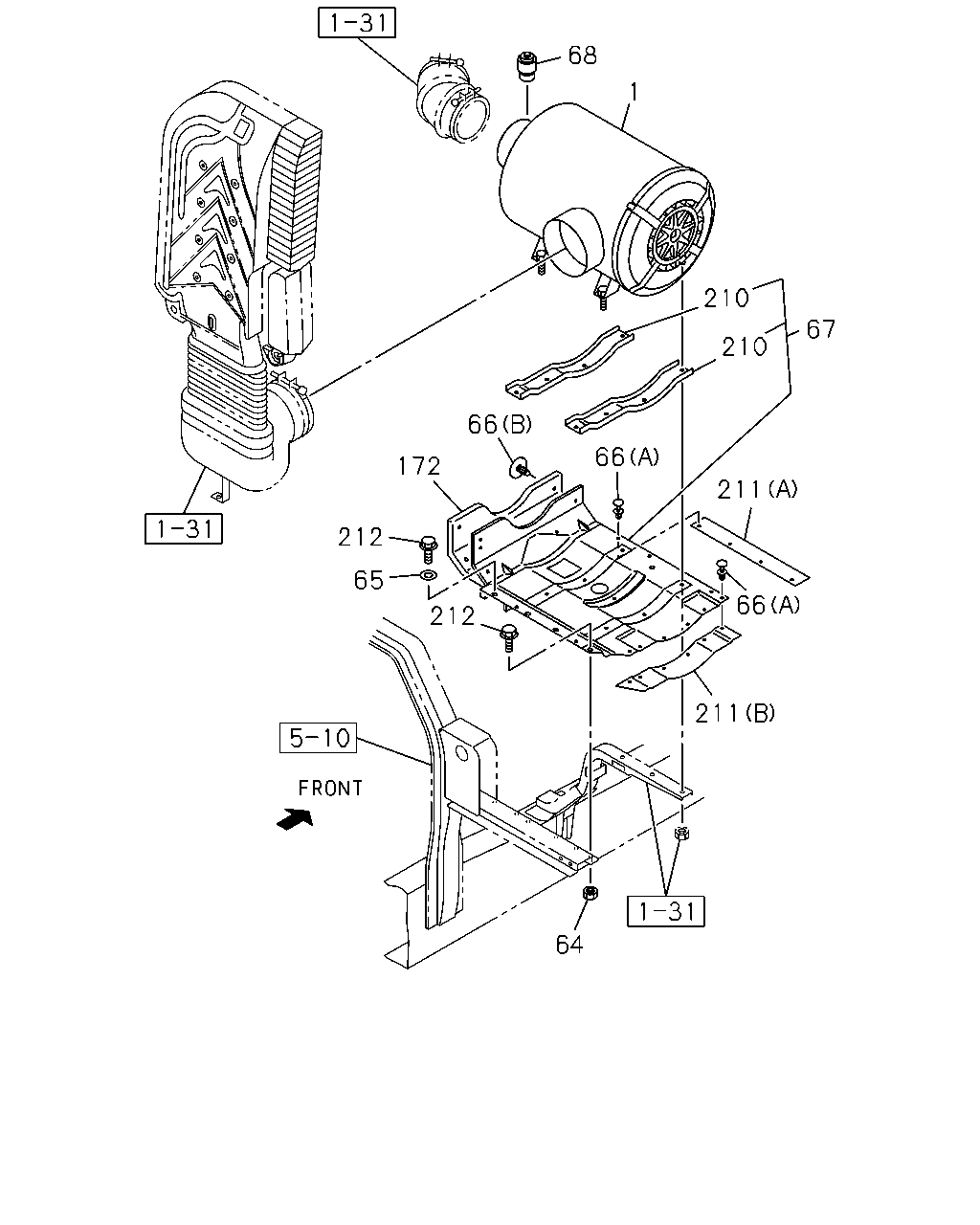

çizim 168028
68 1 210 67 210 66 66 172 211 212 65 212 66 211 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 1-14210-832-0 01 1 1008- ●
1 CLEANER ASM; AIR 8-98059-841-0 01 1 1008- ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 1008- ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 1008-1204 ● ●
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205- ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 1008- ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 1008- ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 1008- ●
66 CLIP; ACL
(B) 		8-94279-048-0 06 1 1008- ●
67 COVER; ACL 1-53419-388-0 01 1 1008- ●
67 COVER; ACL 1-53419-416-0 01 1 1008- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 1008- ● ●
172 INSULATOR; NOISE 1-53449-105-0 01 1 1008- ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 1008- ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 1008- ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 1008- ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 1008- ● ●

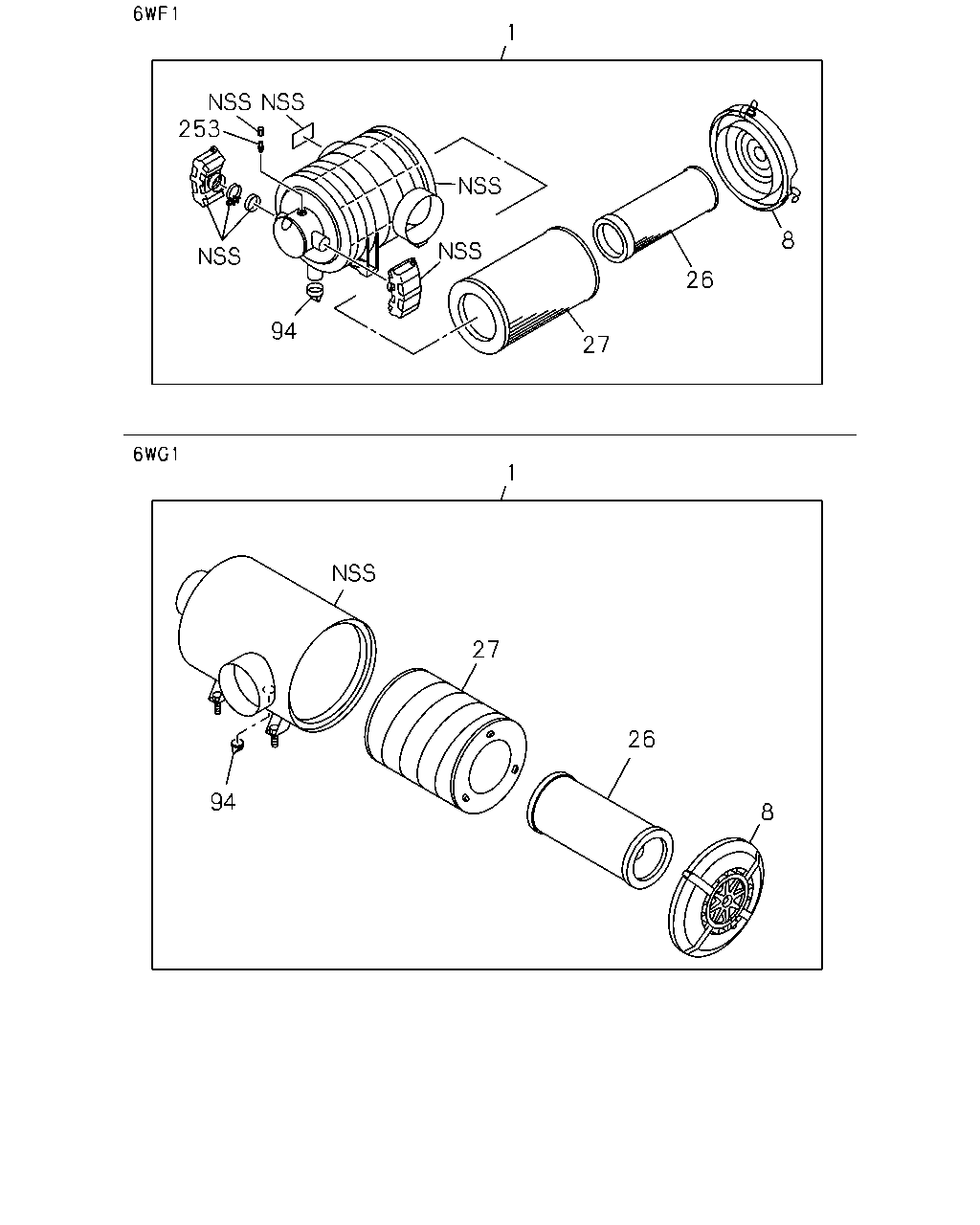

çizim 168035
1 253 8 26 94 27 1 27 26 94 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 1-14210-832-0 01 1 1008- ●
1 CLEANER ASM; AIR 8-98059-841-0 01 1 1008- ●
8 COVER ASM; ACL 1-14212-129-0 01 1 1008- ●
8 COVER ASM; ACL 1-14212-132-0 01 1 1008- ●
26 FILTER; ACL,INNER 1-14215-217-0 01 1 1008- ●
26 FILTER; ACL,INNER 1-14215-220-0 01 1 1008- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-112-1 01 1 1008- ●
27 FILTER; ACL,OUTER 1-14215-203-0 01 1 1008- ●
27 FILTER; ACL,OUTER 1-14215-213-0 01 1 1008- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-166-0 01 1 1008- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-111-1 01 1 1008- ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 1008- ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 1008- ●
253 NIPPLE 1-14219-252-0 01 1 1008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
