0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#58317) — 99 parça
çizim 167997
9 9 18 22 22 99 99 9 9 22 9 158 9 22
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 1008-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 1008-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1008-
9 CLIP; BATTERY CABLE
(E) ID=18 L=28 H=30 		1-09701-110-0 01 1 1008-
18 CLIP; BATTERY CABLE
ID=21 L=24 		8-94176-807-1 01 1 1008-
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 1008-
22 CLIP; BATTERY CABLE
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 1008-
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 02 1 1008-
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 02 1 1008-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1008-
çizim 168004
23 23 23 23 23 23 61 61 78 75 10 100 24 10 69 66 63 108 110 57 11 162 60 109 77 20 14 75 24 81 12 28 76 101 120 155 180
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; BATTERY CABLE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 05 1 1008-
10 BOLT; BATTERY CABLE CLIP
(A) M8X35 FLANGE 		0-28650-835-0 01 1 1008-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1008-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 07 1 1008-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1008-
14 BOLT; BRKT CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98171-604-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=40 		1-47478-410-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82698-557-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-574-0 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(E) 		1-82698-575-1 01 1 1008-
23 BRACKET; CABLE CLIP TO FRAME
(F) 		1-82698-589-0 01 1 1008-
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1008-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 1008-
57 WASHER; PL,BATTERY CABLE
6WF1 TC-C(1B8) ID=6.4 		9-09164-506-0 01 1 1008-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1008-
61 BRACKET; BATTERY CABLE
6WF1 TC-C(1B8) (B) 		8-98147-302-0 01 1 1008-1112
61 BRACKET; BATTERY CABLE
6WF1 TC-C(1B8) (B) 		8-98147-302-0 01 1 1201-
61 BRACKET; BATTERY CABLE
6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (B) 		8-98147-302-0 01 1 1201-
61 BRACKET; BATTERY CABLE
6WG1 TC-R(75L) (A) 		1-82698-587-0 01 1 1008-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1008-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1008-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1008-
75 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28050-820-0 02 1 1008-1112
75 BOLT; BRKT
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28050-820-0 02 1 1201-
75 BOLT; BRKT
6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (B) M8X20 FLANGE 		0-28050-820-0 02 1 1201-
75 BOLT; BRKT
6WG1 TC-R(75L) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1008-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 03 1 1008-
77 WASHER; LK,STARTER CABLE
ID=10.2 		0-91510-610-0 01 1 1008-
78 BRACKET; CLIP BATTERY 1-47476-396-1 01 1 1008-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 05 1 1008-
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 1008-
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1008-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1008-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1008-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1008-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1008-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1008-
çizim 168010
64 208 208 208
BalonParca AdiParca NoAdetTipApplied Date
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 		1-82510-648-0 01 1 1008-
208 FUSE
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (C) 80A 		1-82516-031-0 01 1 1008-
208 FUSE
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (B) 100A 		1-82516-032-0 01 1 1008-
208 FUSE
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) (A) 40A GREEN 		8-94468-662-0 05 1 1008-

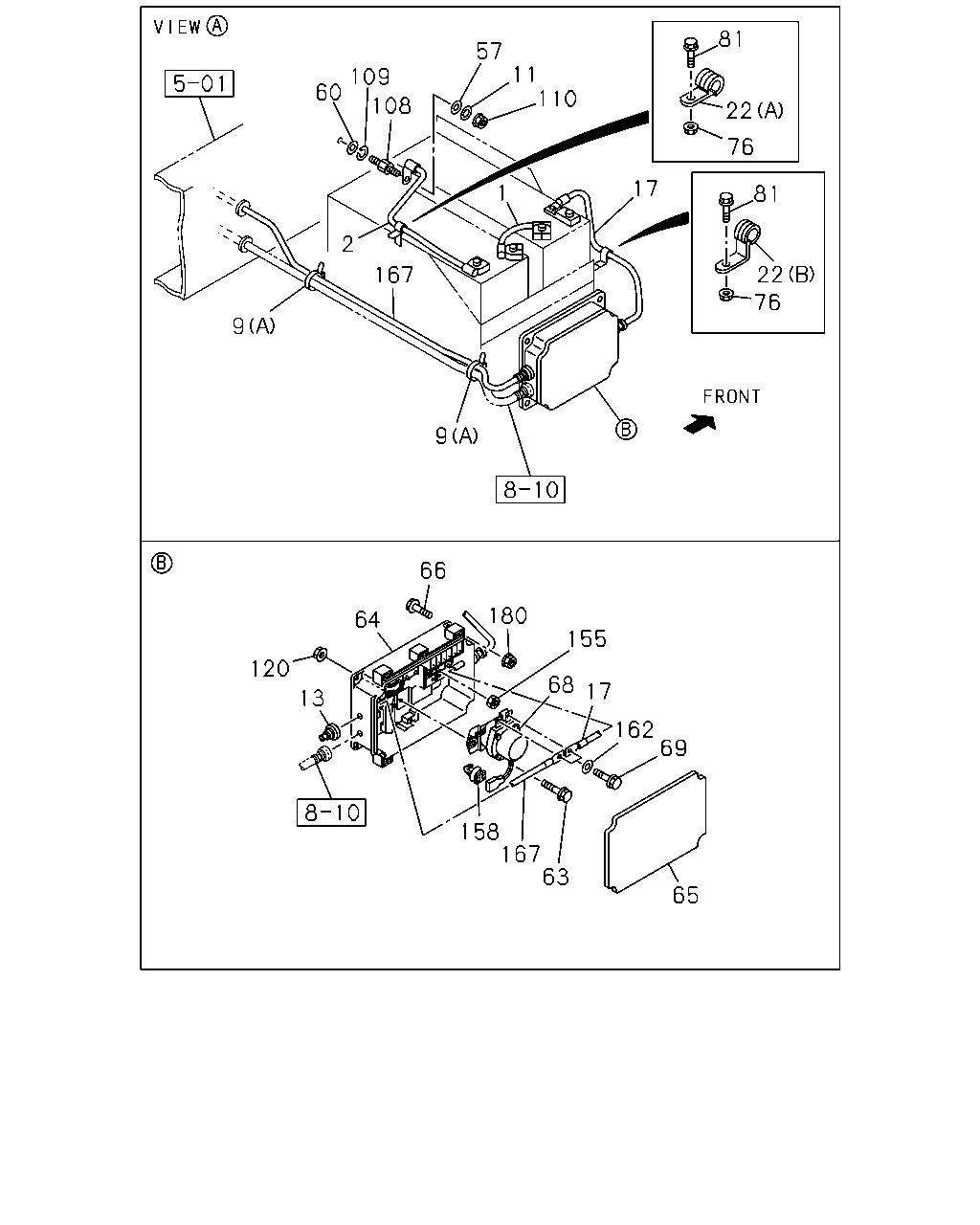

çizim 168013
81 57 11 110 109 60 108 22 76 17 1 81 2 22 76 167 9 9 66 180 64 155 120 68 17 13 162 69 158 167 63 65
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> L=265 		1-82650-390-1 01 1 1008-
1 CABLE; BATTERY
BATTERY 195G51 NX300-15<PU6>,BATTERY 145G51 N150<SJ8> L=450 		1-82650-391-1 01 1 1008-
2 CABLE; BATTERY
L=720 		1-82650-386-1 01 1 1008-
9 CLIP; BATTERY CABLE
(A) L=350 		1-09707-183-0 02 1 1008-
9 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-94176-807-1 02 1 1008-
9 CLIP; BATTERY CABLE
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
9 CLIP; BATTERY CABLE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 1008-
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 		1-09701-067-0 03 1 1008-
9 CLIP; BATTERY CABLE
(E) ID=18 L=28 H=30 		1-09701-110-0 01 1 1008-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 1008-
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 1008-
17 CABLE; BATTERY (+) TO RELAY
L=640 		1-82652-762-3 01 1 1008-
22 CLIP; BATTERY CABLE
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
22 CLIP; BATTERY CABLE
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
22 CLIP; BATTERY CABLE
(A) ID=25 L=50 		1-09701-019-0 01 1 1008-
22 CLIP; BATTERY CABLE
(C) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 1008-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 1008-
57 WASHER; PL,BATTERY CABLE
6WF1 TC-C(1B8) ID=6.4 		9-09164-506-0 01 1 1008-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 1008-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 1008-
64 BOX; BATTERY RELAY
GENERATOR MITSUBISHI 24V-60A 1.5KW(NFT) 		1-82510-648-0 01 1 1008-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 1008-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 1008-
68 RELAY; BATTERY 1-82550-313-0 01 1 1008-
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 1008-
76 NUT; BATTERY CABLE
M8 FLANGE 		0-91180-108-0 03 1 1008-
81 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28650-825-0 05 1 1008-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 1008-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 1008-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 1008-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 1008-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 1008-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 1008-
167 CABLE; BATTERY RELAY TO STARTER 8-97617-906-2 01 1 1008-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 02 1 1008-

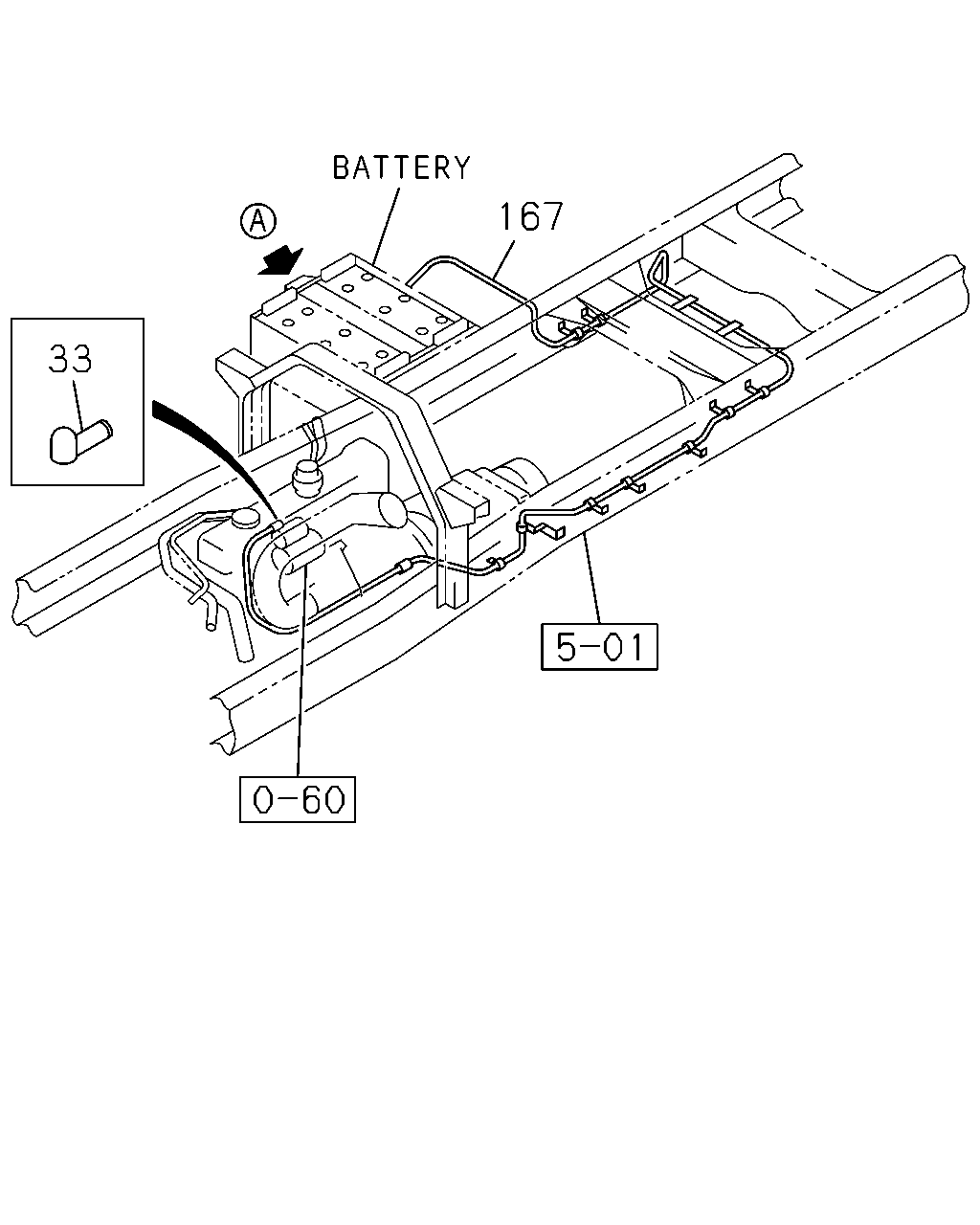

çizim 168064
167 33
BalonParca AdiParca NoAdetTipApplied Date
33 CAP; INSULATOR 8-97181-965-0 01 1 1008-
167 CABLE; BATTERY RELAY TO STARTER 8-97617-906-2 01 1 1008-
