5-16 — OIL PUMP; CAB TILT (#5831) — 237 parça

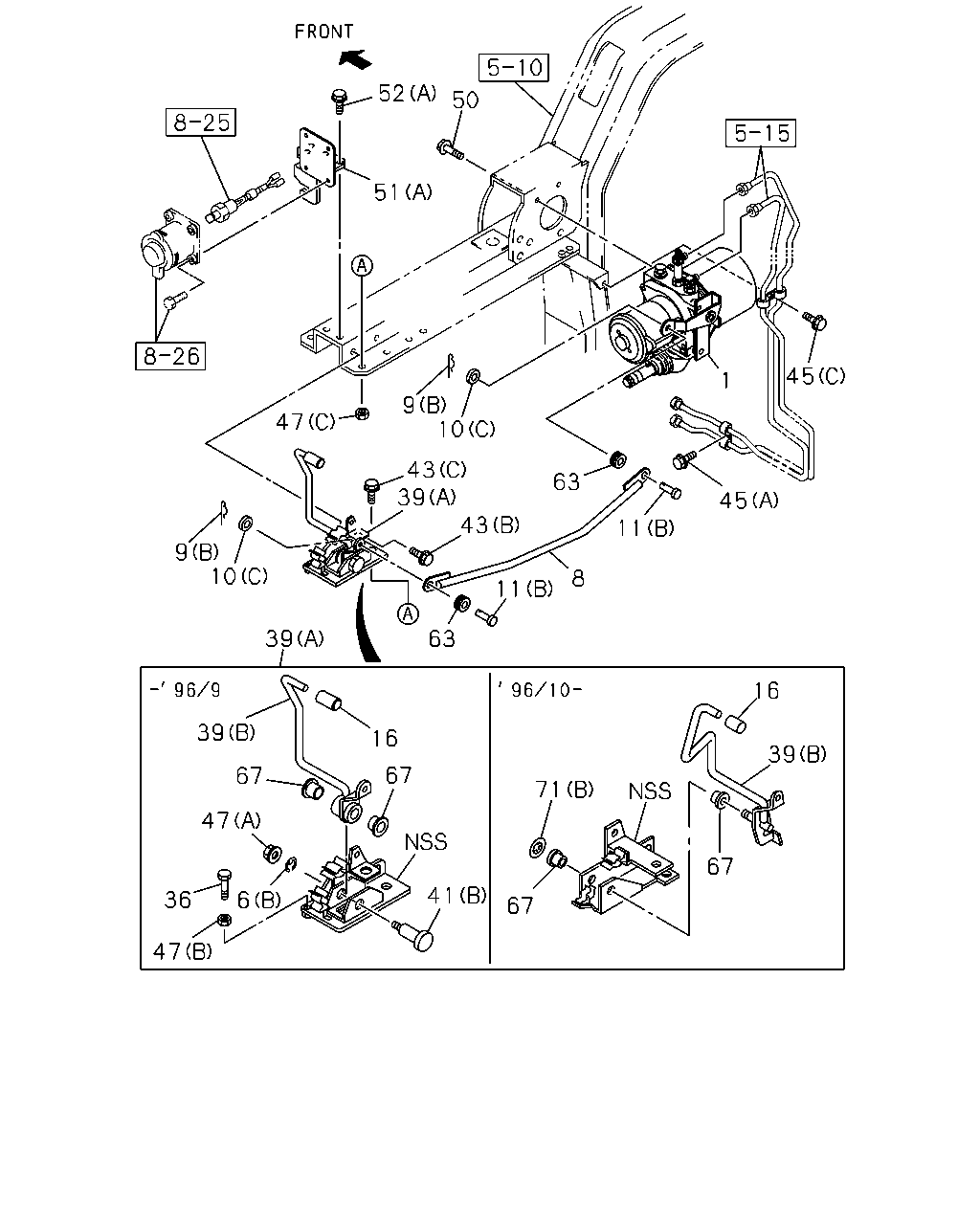

çizim 8391
52 50 51 45 1 9 10 47 43 39 43 63 45 11 9 10 8 11 39 63 16 39 16 39 67 67 71 47 67 41 36 6 67 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 1-53458-485-1 01 1 9603-9902 ●
1 PUMP; OIL,CAB TILT 1-53458-926-0 01 1 9903-9904 ●
1 PUMP; OIL,CAB TILT 1-53458-927-0 01 1 9905- ●
1 PUMP; OIL,CAB TILT 1-53458-661-1 01 1 9603-9904 ●
1 PUMP; OIL,CAB TILT 1-53458-921-0 01 1 9905-9910 ●
1 PUMP; OIL,CAB TILT 1-53458-965-0 01 1 9911- ●
6 RING; SNAP
(A) 		1-53458-411-0 01 1 9603- ● ●
6 RING; SNAP
(B) ID=8 		9-09185-408-0 01 1 9610-9803 ● ●
8 LINK; OIL PUMP 1-53458-726-0 01 1 9603- ●
8 LINK; OIL PUMP 1-53458-664-0 01 1 9603-9903 ●
8 LINK; OIL PUMP 1-53458-929-0 01 1 9904- ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9603-9706 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9707- ● ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 9603- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 9603- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9603-9706 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9603-9706 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9707- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 9603- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 9603- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9603-9706 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9603-9706 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9707- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 9603- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9603-9706 ●
16 CAP
ID=9.0 		8-94207-303-0 01 1 9603- ● ●
36 BOLT; STOPPER
M8X25 		0-20800-825-0 01 1 9603-9609 ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 9603- ●
39 LEVER; OIL PUMP
(B) 		1-53458-644-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(B) 		1-53458-770-0 01 1 9610-9803 ●
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 9804- ●
39 LEVER; OIL PUMP
(A) 		1-53458-646-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 9610- ●
39 LEVER; OIL PUMP
(A) 		1-53458-662-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 9610- ●
39 LEVER; OIL PUMP
(B) 		1-53458-663-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(B) 		1-53458-778-0 01 1 9610-9803 ●
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 9804- ●
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 9603- ●
41 PIN; SPR,LEVER
(B) 		1-33619-128-1 01 1 9603-9609 ● ●
41 PIN; SPR,LEVER
(A) 		1-53458-019-0 01 1 9603- ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9603-9706 ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9707- ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ●
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 9803- ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9603-9706 ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9603-9606 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ●
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
45 BOLT; COVER
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 9603- ● ●
45 BOLT; COVER
CAB UP +110MM<TGG> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9905-9905 ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9607-9609 ● ●
47 NUT; LEVER
(B) M8 		9-09111-408-0 01 1 9603-9609 ● ●
47 NUT; LEVER
(C) M10 FLANGE 		0-91150-210-0 01 1 9607- ● ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28081-016-0 02 1 9603- ● ●
51 BRACKET; OIL PUMP
(A) 		1-53458-642-0 01 1 9603-9609 ●
51 BRACKET; OIL PUMP
(A) 		1-53458-690-0 01 1 9610- ●
51 BRACKET; OIL PUMP
(A) 		1-53458-665-0 01 1 9603-9609 ●
51 BRACKET; OIL PUMP
(A) 		1-53458-781-0 01 1 9610- ●
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 9603- ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
52 BOLT; BRKT
(B) M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ●
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 02 1 9607- ●
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 9603- ● ●
67 BUSHING
ID=16 OD=18 L=12.5 		1-09330-048-0 02 1 9603-9609 ● ●
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 9610- ● ●
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 9603- ● ●
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9804- ● ●

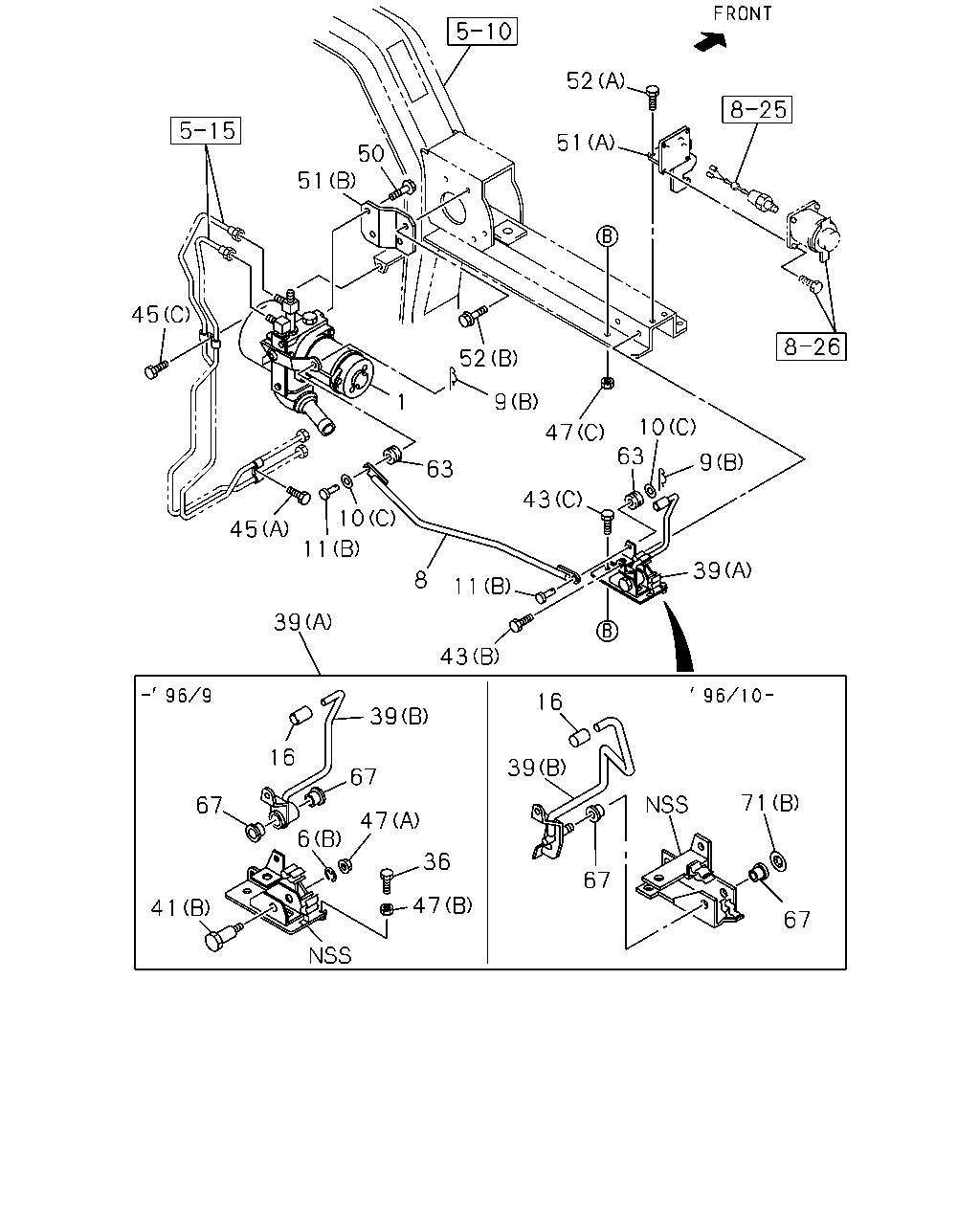

çizim 8914
52 50 51 51 45 52 9 1 10 47 63 9 63 43 10 45 11 39 8 11 39 43 16 39 16 39 67 71 67 47 6 36 67 47 41 67
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 1-53458-485-1 01 1 9603-9902 ●
1 PUMP; OIL,CAB TILT 1-53458-926-0 01 1 9903-9904 ●
1 PUMP; OIL,CAB TILT 1-53458-927-0 01 1 9905- ●
1 PUMP; OIL,CAB TILT 1-53458-661-1 01 1 9603-9904 ●
1 PUMP; OIL,CAB TILT 1-53458-921-0 01 1 9905-9910 ●
1 PUMP; OIL,CAB TILT 1-53458-965-0 01 1 9911- ●
6 RING; SNAP
(A) 		1-53458-411-0 01 1 9603- ● ●
6 RING; SNAP
(B) ID=8 		9-09185-408-0 01 1 9610-9803 ● ●
8 LINK; OIL PUMP 1-53458-726-0 01 1 9603- ●
8 LINK; OIL PUMP 1-53458-664-0 01 1 9603-9903 ●
8 LINK; OIL PUMP 1-53458-929-0 01 1 9904- ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9603-9706 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9707- ● ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 9603- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 9603- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9603-9706 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9603-9706 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9707- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 9603- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 9603- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9603-9706 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9603-9706 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9707- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 9603- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9603-9706 ●
16 CAP
ID=9.0 		8-94207-303-0 01 1 9603- ● ●
36 BOLT; STOPPER
M8X25 		0-20800-825-0 01 1 9603-9609 ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 9603- ●
39 LEVER; OIL PUMP
(B) 		1-53458-644-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(B) 		1-53458-770-0 01 1 9610-9803 ●
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 9804- ●
39 LEVER; OIL PUMP
(A) 		1-53458-646-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 9610- ●
39 LEVER; OIL PUMP
(A) 		1-53458-662-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 9610- ●
39 LEVER; OIL PUMP
(B) 		1-53458-663-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(B) 		1-53458-778-0 01 1 9610-9803 ●
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 9804- ●
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 9603- ●
41 PIN; SPR,LEVER
(B) 		1-33619-128-1 01 1 9603-9609 ● ●
41 PIN; SPR,LEVER
(A) 		1-53458-019-0 01 1 9603- ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9603-9706 ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9707- ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ●
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 9803- ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9603-9706 ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9603-9606 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ●
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
45 BOLT; COVER
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 9603- ● ●
45 BOLT; COVER
CAB UP +110MM<TGG> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9905-9905 ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9603-9606 ● ●
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9607-9609 ● ●
47 NUT; LEVER
(B) M8 		9-09111-408-0 01 1 9603-9609 ● ●
47 NUT; LEVER
(C) M10 FLANGE 		0-91150-210-0 01 1 9607- ● ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28081-016-0 02 1 9603- ● ●
51 BRACKET; OIL PUMP
(A) 		1-53458-642-0 01 1 9603-9609 ●
51 BRACKET; OIL PUMP
(A) 		1-53458-690-0 01 1 9610- ●
51 BRACKET; OIL PUMP
(A) 		1-53458-665-0 01 1 9603-9609 ●
51 BRACKET; OIL PUMP
(A) 		1-53458-781-0 01 1 9610- ●
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 9603- ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
52 BOLT; BRKT
(B) M10X20 FLANGE 		0-28081-020-0 02 1 9603-9606 ●
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 02 1 9607- ●
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 9603- ● ●
67 BUSHING
ID=16 OD=18 L=12.5 		1-09330-048-0 02 1 9603-9609 ● ●
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 9610- ● ●
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 9603- ● ●
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9804- ● ●

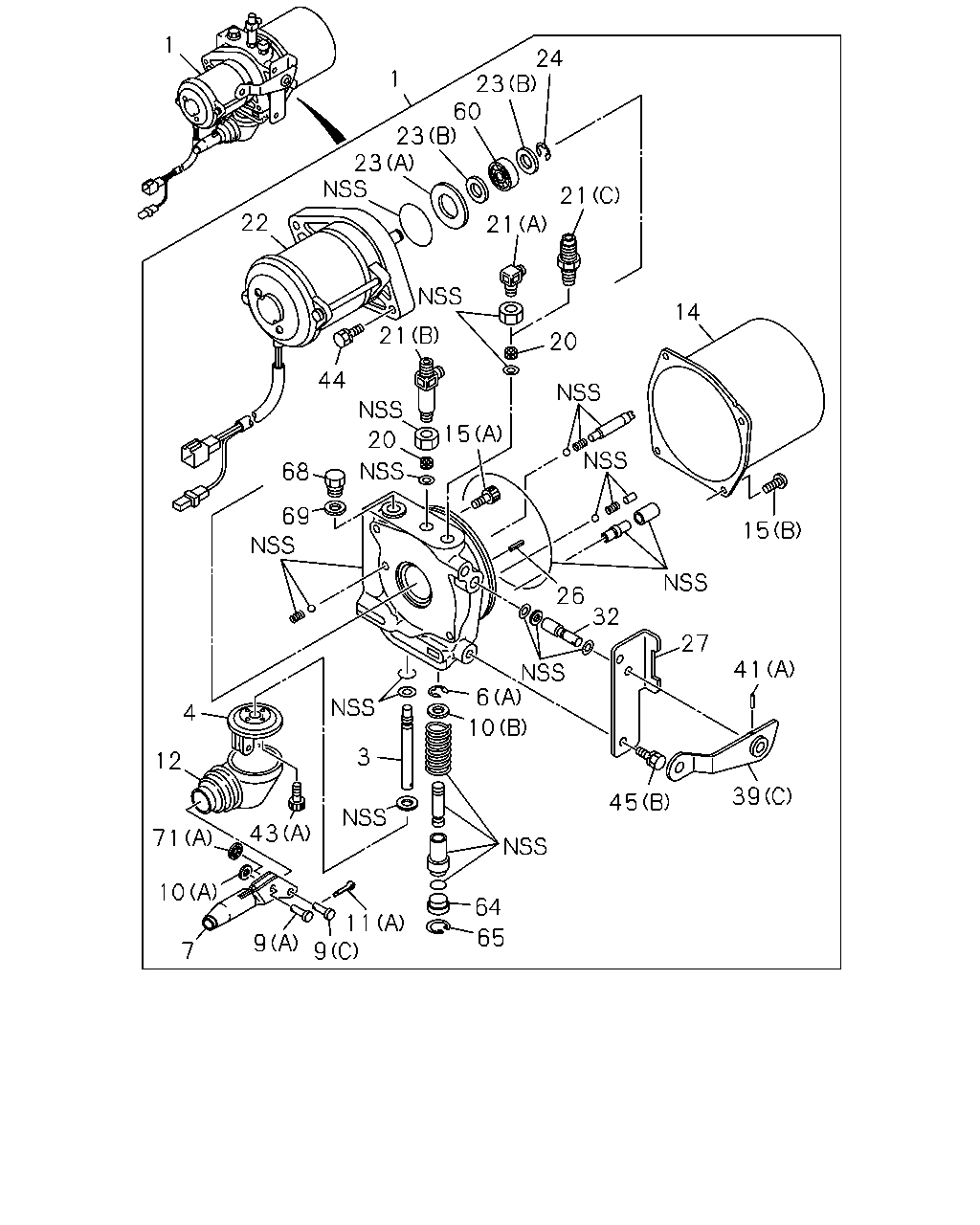

çizim 9201
1 24 23 60 23 23 1 21 22 21 14 20 21 44 15 20 68 69 15 26 32 27 41 6 4 10 3 12 39 45 43 71 10 64 11 9 65 9 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 1-53458-485-1 01 1 9603-9902 ●
1 PUMP; OIL,CAB TILT 1-53458-926-0 01 1 9903-9904 ●
1 PUMP; OIL,CAB TILT 1-53458-927-0 01 1 9905- ●
1 PUMP; OIL,CAB TILT 1-53458-661-1 01 1 9603-9904 ●
1 PUMP; OIL,CAB TILT 1-53458-921-0 01 1 9905-9910 ●
1 PUMP; OIL,CAB TILT 1-53458-965-0 01 1 9911- ●
3 PISTON; MANUAL 1-53458-414-0 01 1 9603-9706 ●
3 PISTON; MANUAL 1-53458-842-0 01 1 9603-9706 ●
3 PISTON; MANUAL 1-53458-842-0 01 1 9707- ● ●
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 9603- ● ●
6 RING; SNAP
(A) 		1-53458-411-0 01 1 9603- ● ●
6 RING; SNAP
(B) ID=8 		9-09185-408-0 01 1 9610-9803 ● ●
7 SOCKET; OIL PUMP 1-53458-565-1 01 1 9603- ●
7 SOCKET; OIL PUMP 1-53458-724-1 01 1 9603- ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9603-9706 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9707- ● ●
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 9603- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 9603- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9603-9706 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9603-9706 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9707- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 9603- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 9603- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9603-9706 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9603-9706 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9707- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 9603- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9603-9706 ●
12 BOOT; OIL PUMP 1-53458-560-0 01 1 9603- ● ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 9603- ● ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-005-0 04 1 9603- ● ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-433-0 02 1 9603- ● ●
20 FILTER; OIL PUMP 1-53458-048-0 02 1 9603- ● ●
21 CONNECTOR; OIL PUMP
(A) 		1-53458-562-0 01 1 9603-9904 ● ●
21 CONNECTOR; OIL PUMP
(C) M12 		1-53458-941-0 02 1 9905-9910 ● ●
21 CONNECTOR; OIL PUMP
(C) M12 		1-53458-941-0 02 1 9911- ●
21 CONNECTOR; OIL PUMP
(B) 		1-53458-563-0 01 1 9603-9904 ● ●
21 CONNECTOR; OIL PUMP
(B) 		1-53457-026-0 01 1 9911- ●
21 CONNECTOR; OIL PUMP
(C) M12 		1-53458-941-0 01 1 9911- ●
22 MOTOR; OIL PUMP 1-53458-731-0 01 1 9603- ● ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 9603- ● ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 9603- ● ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 9603- ● ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 9603- ● ●
27 COVER; OIL PUMP 1-53458-568-0 01 1 9603- ●
27 COVER; OIL PUMP 1-53458-725-0 01 1 9603- ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 9603- ● ●
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 9603- ●
39 LEVER; OIL PUMP
(B) 		1-53458-644-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(B) 		1-53458-770-0 01 1 9610-9803 ●
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 9804- ●
39 LEVER; OIL PUMP
(A) 		1-53458-646-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 9610- ●
39 LEVER; OIL PUMP
(A) 		1-53458-662-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 9610- ●
39 LEVER; OIL PUMP
(B) 		1-53458-663-0 01 1 9603-9609 ●
39 LEVER; OIL PUMP
(B) 		1-53458-778-0 01 1 9610-9803 ●
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 9804- ●
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 9603- ●
41 PIN; SPR,LEVER
(B) 		1-33619-128-1 01 1 9603-9609 ● ●
41 PIN; SPR,LEVER
(A) 		1-53458-019-0 01 1 9603- ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9603-9706 ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9707- ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9603-9606 ● ●
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ●
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 9803- ● ●
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9603-9706 ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 9603- ● ●
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9603-9606 ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607- ● ●
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606 ● ●
45 BOLT; COVER
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9607- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 9603- ● ●
45 BOLT; COVER
CAB UP +110MM<TGG> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9905-9905 ● ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 9603- ● ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 9603- ● ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 9603- ● ●
68 PLUG; FILLER 1-53458-428-0 01 1 9603- ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 9603- ● ●
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 9603- ● ●
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9804- ● ●

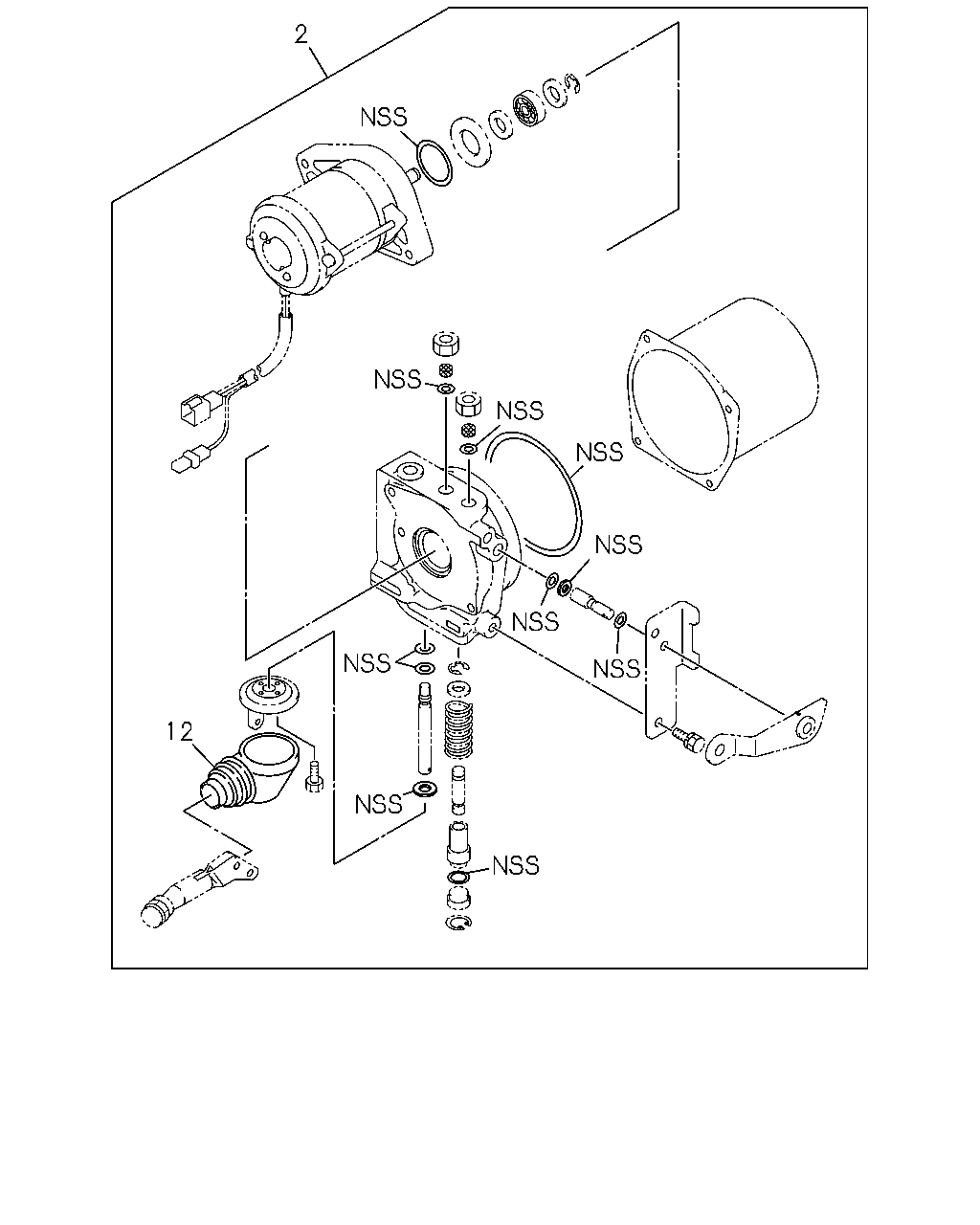

çizim 42876
2 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL PUMP 1-85579-053-0 01 1 9603-9706 ●
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 9603-9706 ●
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 9707- ● ●
12 BOOT; OIL PUMP 1-53458-560-0 01 1 9603- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
