Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11274 - EXZ LHD EURO2/3/4 WITH 3STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#58309) — 132 parça
Tümü
A - 6WF1 TC-C
B - 6WG1 TC-R
◀
[040A] COMPONENT;INJ PUMP (17 parça)
[040A] '12/6- PIPING;PUMP AND COMMON RAIL (41 parça)
[040A] -'12/5 PIPING;PUMP AND COMMON RAIL (39 parça)
[040A] PIPING;NOZZLE AND COMMON RAIL (35 parça)
▶

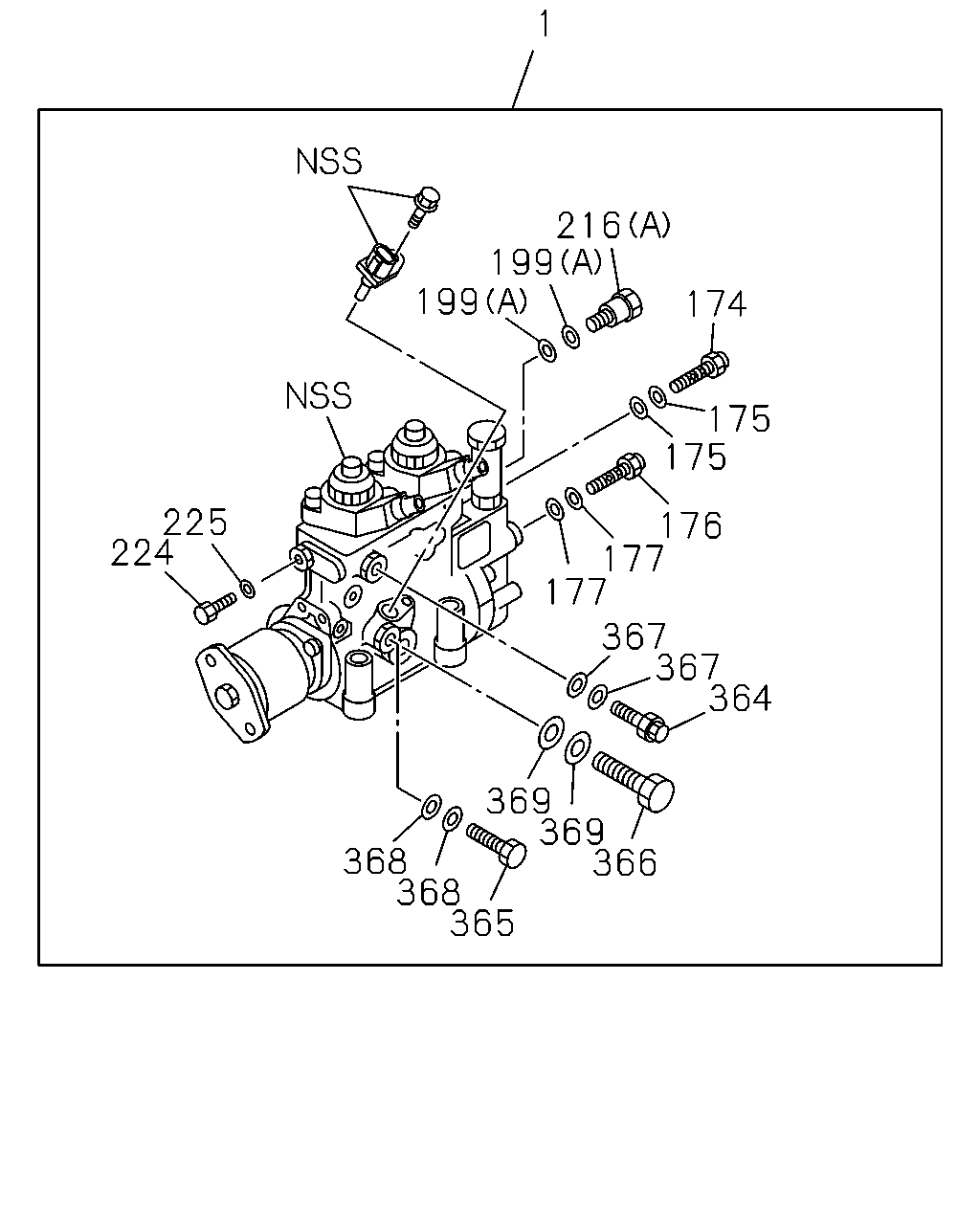

1
216
199
199
174
175
175
225
224
176
177
177
367
367
364
369
369
366
368
368
365
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; INJ
8-97603-414-4
01
1
1008-
●
●
174
BOLT; EYE,FUEL OUTLET,FEED PUMP
5-15759-003-0
01
1
1008-
●
●
175
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
1-15619-507-0
02
1
1008-
●
●
176
BOLT; EYE,FEED PUMP
1-15619-509-0
01
1
1008-
●
●
177
GASKET; EYE BOLT,INL,FUEL FEED PUMP
1-15619-507-0
02
1
1008-
●
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1008-
●
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
02
1
1008-
●
●
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1008-
●
●
216
BOLT; EYE
(B)
8-97602-173-0
01
1
1008-
●
●
224
PLUG; INJ PUMP
1-15619-500-0
01
1
1008-
●
●
225
GASKET; PLUG
1-15619-502-0
01
1
1008-
●
●
364
VALVE; OVER FLOW,INJ PUMP
1-15619-496-0
01
1
1008-
●
●
365
BOLT; EYE,OIL INLET
9-88130-088-0
01
1
1008-
●
●
366
BOLT; EYE,OIL OUTLET
1-15619-497-0
01
1
1008-
●
●
367
GASKET; VALVE,OVER FLOW
1-15619-501-0
02
1
1008-
●
●
368
GASKET; EYE BOLT,OIL INLET
1-15619-508-0
02
1
1008-
●
●
369
GASKET; EYE BOLT,OIL OUTLET
1-15619-504-0
02
1
1008-
●
●

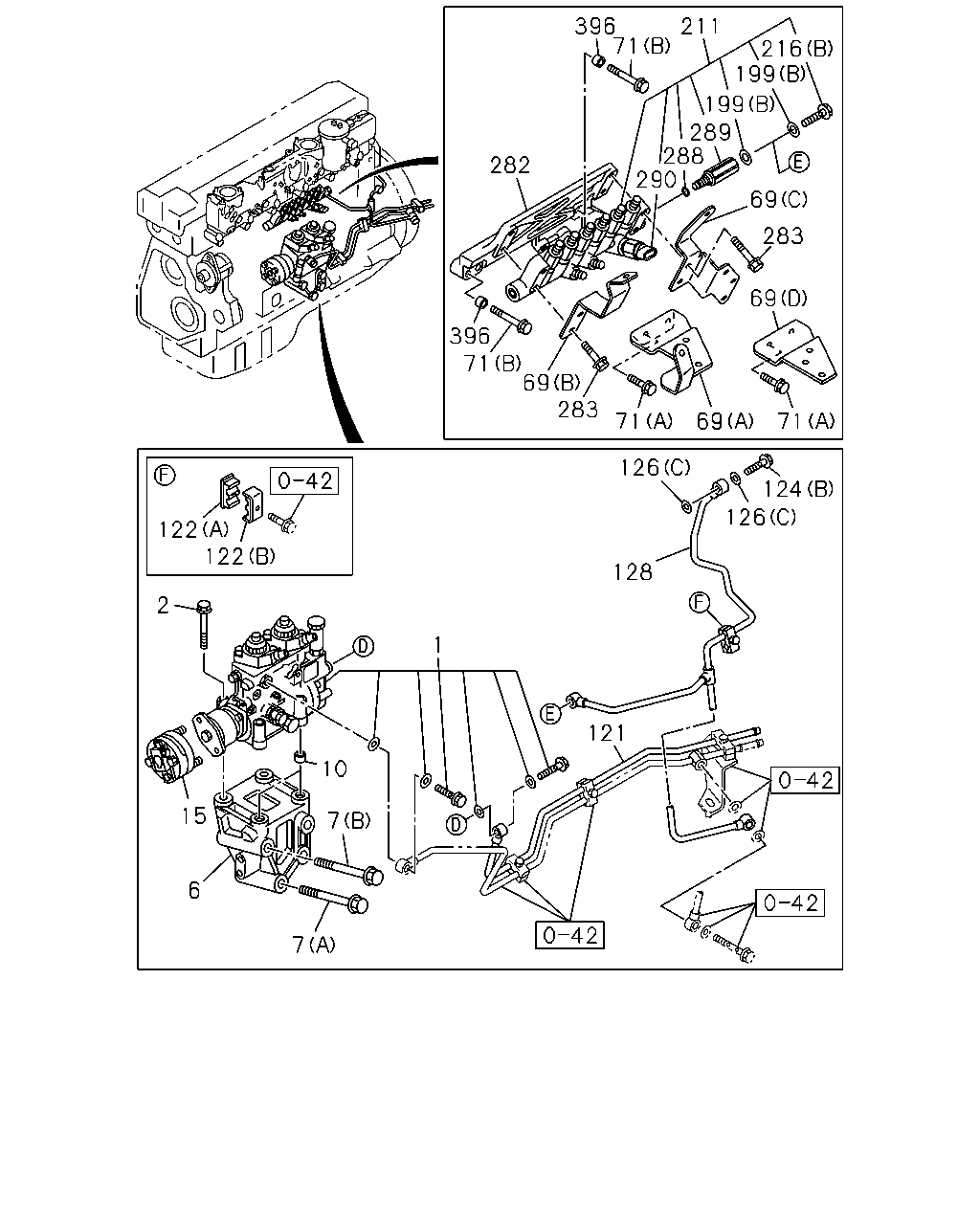

7
6
15
7
10
2
122
122
121
128
126
126
124
71
69
71
283
69
71
396
69
283
69
282
396
211
290
288
289
199
199
216
71
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; INJ
8-97603-414-4
01
1
1008-
●
●
2
BOLT; INJ PUMP
M8X90 FLANGE
0-28060-890-0
04
1
1008-
●
●
6
BRACKET; INJ PUMP TO C/BL
1-19751-179-0
01
1
1008-
●
●
7
BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE
0-28951-490-0
02
1
1008-
●
●
7
BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE
0-28956-412-0
02
1
1008-
●
●
10
DOWEL; INJ PUMP
1-11229-012-1
02
1
1008-
●
●
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
1-15780-192-0
01
1
1008-
●
●
69
BRACKET; INJ PIPE CLIP
(D)
1-15419-720-1
01
1
1008-
●
69
BRACKET; INJ PIPE CLIP
(A)
8-97605-219-0
01
1
1008-
●
69
BRACKET; INJ PIPE CLIP
(B)
8-97613-974-0
01
1
1008-
●
69
BRACKET; INJ PIPE CLIP
(C)
8-97613-988-0
01
1
1008-
●
71
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1008-
●
●
71
BOLT; BRKT
(B) M10X60 FLANGE
0-28151-060-0
02
1
1008-
●
●
121
PIPE; FUEL,FEED PUMP,SUCTION
8-97607-212-0
01
1
1008-
●
●
122
CLIP; LEAK OFF PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
01
1
1206-
●
●
122
CLIP; LEAK OFF PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
01
1
1206-
●
●
124
BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT
1-09675-037-1
06
1
1008-
●
●
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
1008-1205
●
●
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
01
1
1206-
●
●
124
BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25
1-09630-141-0
04
1
1008-1205
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25
1-09630-141-0
02
1
1206-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20
8-98065-990-0
01
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0
8-98065-992-0
06
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6
8-98065-993-0
01
1
1008-
●
●
128
PIPE ASM; INJ
1-15416-818-0
01
1
1008-1205
●
128
PIPE ASM; INJ
8-98218-279-0
01
1
1206-
●
128
PIPE ASM; INJ
8-97603-638-0
01
1
1008-1205
●
128
PIPE ASM; INJ
8-98218-280-0
01
1
1206-
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1008-
●
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
02
1
1008-
●
●
211
RAIL ASM; COMMON
8-97603-121-2
01
1
1008-
●
●
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1008-
●
●
216
BOLT; EYE
(B)
8-97602-173-0
01
1
1008-
●
●
282
BRACKET; COMMON RAIL
8-97603-122-2
01
1
1008-
●
●
283
BOLT; COMMON RAIL
M10X40 FLANGE
0-28151-040-0
04
1
1008-
●
●
288
GASKET
ID=11 OD=16.3
1-15641-046-0
01
1
1008-
●
●
289
LIMITER; FUEL PRESS
8-98032-283-0
01
1
1008-
●
●
290
SENSOR; PRESS
8-97318-684-0
01
1
1008-1102
●
●
290
SENSOR; PRESS
8-98119-790-0
01
1
1103-
●
●
396
DOWEL; RAIL ASM
1-13119-004-0
02
1
1008-
●
●

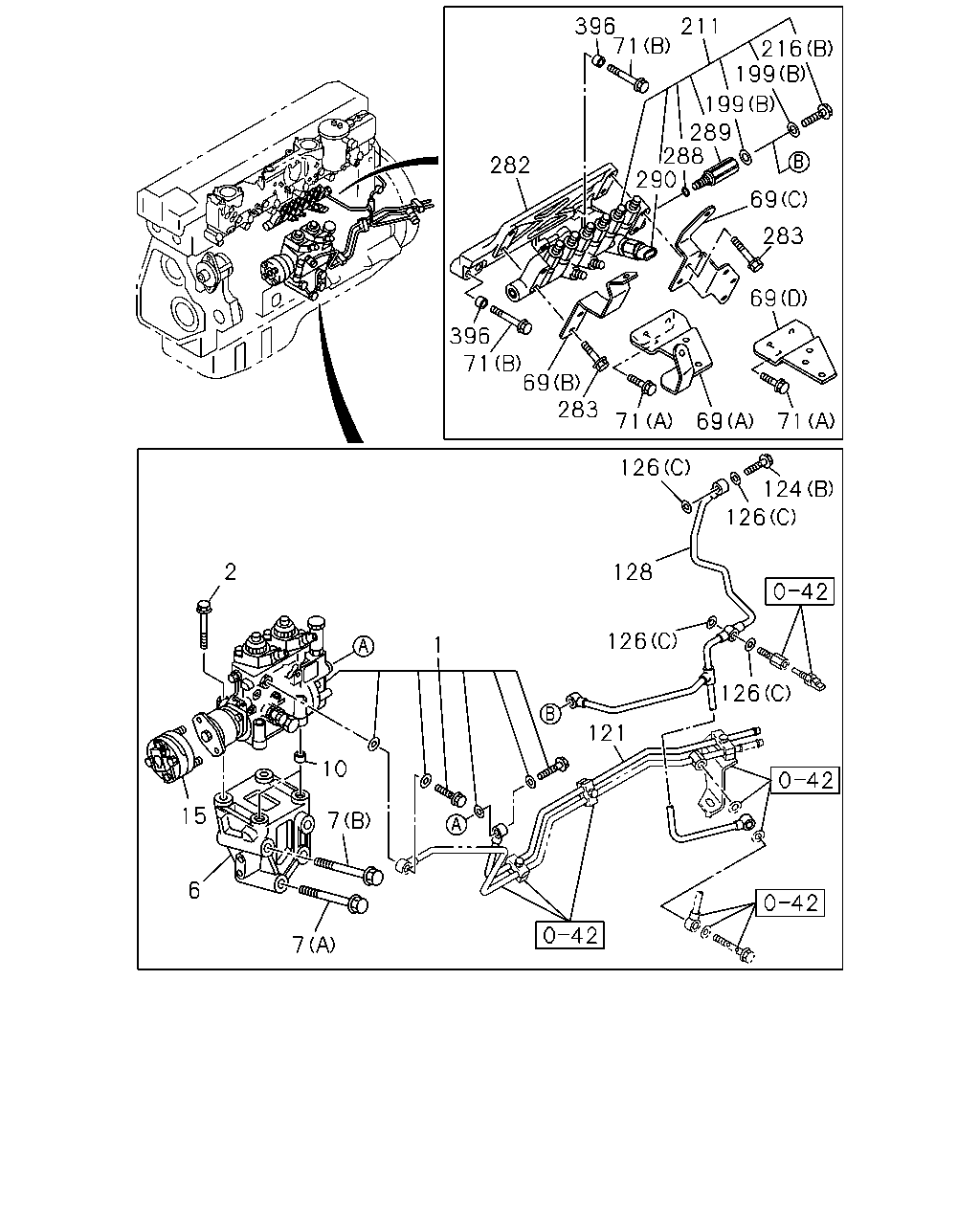

396
71
211
216
199
199
289
288
290
282
69
283
69
396
71
69
283
71
69
71
126
124
126
2
128
126
1
126
15
121
10
7
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; INJ
8-97603-414-4
01
1
1008-
●
●
2
BOLT; INJ PUMP
M8X90 FLANGE
0-28060-890-0
04
1
1008-
●
●
6
BRACKET; INJ PUMP TO C/BL
1-19751-179-0
01
1
1008-
●
●
7
BOLT; INJ PUMP BRKT
(A) M14X90 FLANGE
0-28951-490-0
02
1
1008-
●
●
7
BOLT; INJ PUMP BRKT
(B) M14X120 FLANGE
0-28956-412-0
02
1
1008-
●
●
10
DOWEL; INJ PUMP
1-11229-012-1
02
1
1008-
●
●
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
1-15780-192-0
01
1
1008-
●
●
69
BRACKET; INJ PIPE CLIP
(D)
1-15419-720-1
01
1
1008-
●
69
BRACKET; INJ PIPE CLIP
(A)
8-97605-219-0
01
1
1008-
●
69
BRACKET; INJ PIPE CLIP
(B)
8-97613-974-0
01
1
1008-
●
69
BRACKET; INJ PIPE CLIP
(C)
8-97613-988-0
01
1
1008-
●
71
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
1008-
●
●
71
BOLT; BRKT
(B) M10X60 FLANGE
0-28151-060-0
02
1
1008-
●
●
121
PIPE; FUEL,FEED PUMP,SUCTION
8-97607-212-0
01
1
1008-
●
●
124
BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT
1-09675-037-1
06
1
1008-
●
●
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
1008-1205
●
●
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
01
1
1206-
●
●
124
BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25
1-09630-141-0
04
1
1008-1205
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25
1-09630-141-0
02
1
1206-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20
8-98065-990-0
01
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0
8-98065-992-0
06
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6
8-98065-993-0
01
1
1008-
●
●
128
PIPE ASM; INJ
1-15416-818-0
01
1
1008-1205
●
128
PIPE ASM; INJ
8-98218-279-0
01
1
1206-
●
128
PIPE ASM; INJ
8-97603-638-0
01
1
1008-1205
●
128
PIPE ASM; INJ
8-98218-280-0
01
1
1206-
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1008-
●
●
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
02
1
1008-
●
●
211
RAIL ASM; COMMON
8-97603-121-2
01
1
1008-
●
●
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1008-
●
●
216
BOLT; EYE
(B)
8-97602-173-0
01
1
1008-
●
●
282
BRACKET; COMMON RAIL
8-97603-122-2
01
1
1008-
●
●
283
BOLT; COMMON RAIL
M10X40 FLANGE
0-28151-040-0
04
1
1008-
●
●
288
GASKET
ID=11 OD=16.3
1-15641-046-0
01
1
1008-
●
●
289
LIMITER; FUEL PRESS
8-98032-283-0
01
1
1008-
●
●
290
SENSOR; PRESS
8-97318-684-0
01
1
1008-1102
●
●
290
SENSOR; PRESS
8-98119-790-0
01
1
1103-
●
●
396
DOWEL; RAIL ASM
1-13119-004-0
02
1
1008-
●
●

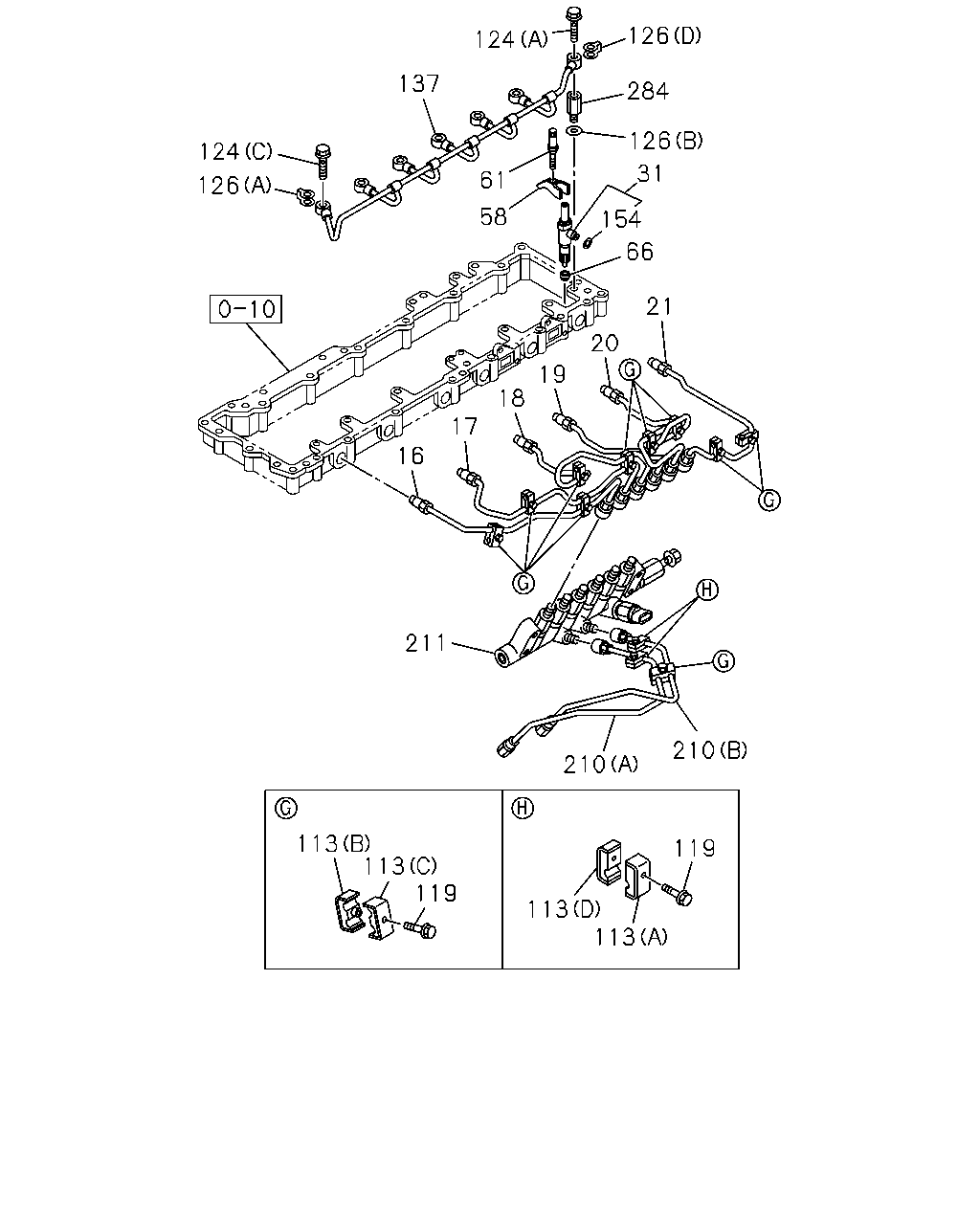

113
113
119
113
113
119
210
210
211
21
20
19
18
17
16
66
154
31
126
284
126
124
137
61
124
58
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
PIPE; INJ NO.1
1-15416-842-2
01
1
1008-
●
●
17
PIPE; INJ NO.2
1-15416-843-3
01
1
1008-
●
●
18
PIPE; INJ NO.3
1-15416-844-2
01
1
1008-
●
●
19
PIPE; INJ NO.4
1-15416-845-2
01
1
1008-
●
●
20
PIPE; INJ NO.5
1-15416-846-3
01
1
1008-
●
●
21
PIPE; INJ NO.6
1-15416-847-2
01
1
1008-
●
●
31
NOZZLE ASM; INJ
8-97603-415-7
06
1
1008-
●
31
NOZZLE ASM; INJ
8-98030-550-4
06
1
1008-
●
58
FLANGE; INJ,NOZZLE HOLDER
8-97603-469-0
06
1
1008-
●
●
61
BOLT; CLAMP NOZZLE HOLDER
1-09070-121-0
06
1
1008-
●
●
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10
8-97216-082-0
06
1
1008-
●
●
113
CLIP; INJ PIPE
(C) ID=7 & 7 L=22
8-97330-118-3
10
1
1008-
●
113
CLIP; INJ PIPE
(B) ID=7 & 7 L=22
8-97330-119-3
10
1
1008-
●
113
CLIP; INJ PIPE
(D)
1-09701-269-0
02
1
1008-
●
●
113
CLIP; INJ PIPE
(A)
8-94396-371-0
02
1
1008-
●
●
113
CLIP; INJ PIPE
(C) ID=7 & 7 L=22
8-97330-118-3
13
1
1008-
●
113
CLIP; INJ PIPE
(B) ID=7 & 7 L=22
8-97330-119-3
13
1
1008-
●
119
BOLT; CLIP,INJ PIPE
M6X30 FLANGE
0-28050-630-0
12
1
1008-
●
119
BOLT; CLIP,INJ PIPE
M6X30 FLANGE
0-28050-630-0
15
1
1008-
●
124
BOLT; EYE LEAK OFF PIPE
(C) M8X18 EYE-BOLT
1-09675-037-1
06
1
1008-
●
●
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
1008-1205
●
●
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
01
1
1206-
●
●
124
BOLT; EYE LEAK OFF PIPE
(A) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25
1-09630-141-0
04
1
1008-1205
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=14.2 OD=25
1-09630-141-0
02
1
1206-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20
8-98065-990-0
01
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.3 OD=15.0
8-98065-992-0
06
1
1008-
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=12.6
8-98065-993-0
01
1
1008-
●
●
137
PIPE ASM; LEAK OFF
8-97617-161-0
01
1
1008-
●
●
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
9-09561-111-0
06
1
1008-1106
●
●
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
0-95690-111-0
06
1
1107-
●
●
210
PIPE; INJ,C/R
(A)
1-15416-811-1
01
1
1008-
●
●
210
PIPE; INJ,C/R
(B)
1-15416-812-1
01
1
1008-
●
●
211
RAIL ASM; COMMON
8-97603-121-2
01
1
1008-
●
●
284
ADAPTER; FUEL LEAK OFF
1-15419-525-2
01
1
1008-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
