0-36 — TURBOCHARGER SYSTEM (#58305) — 83 parça

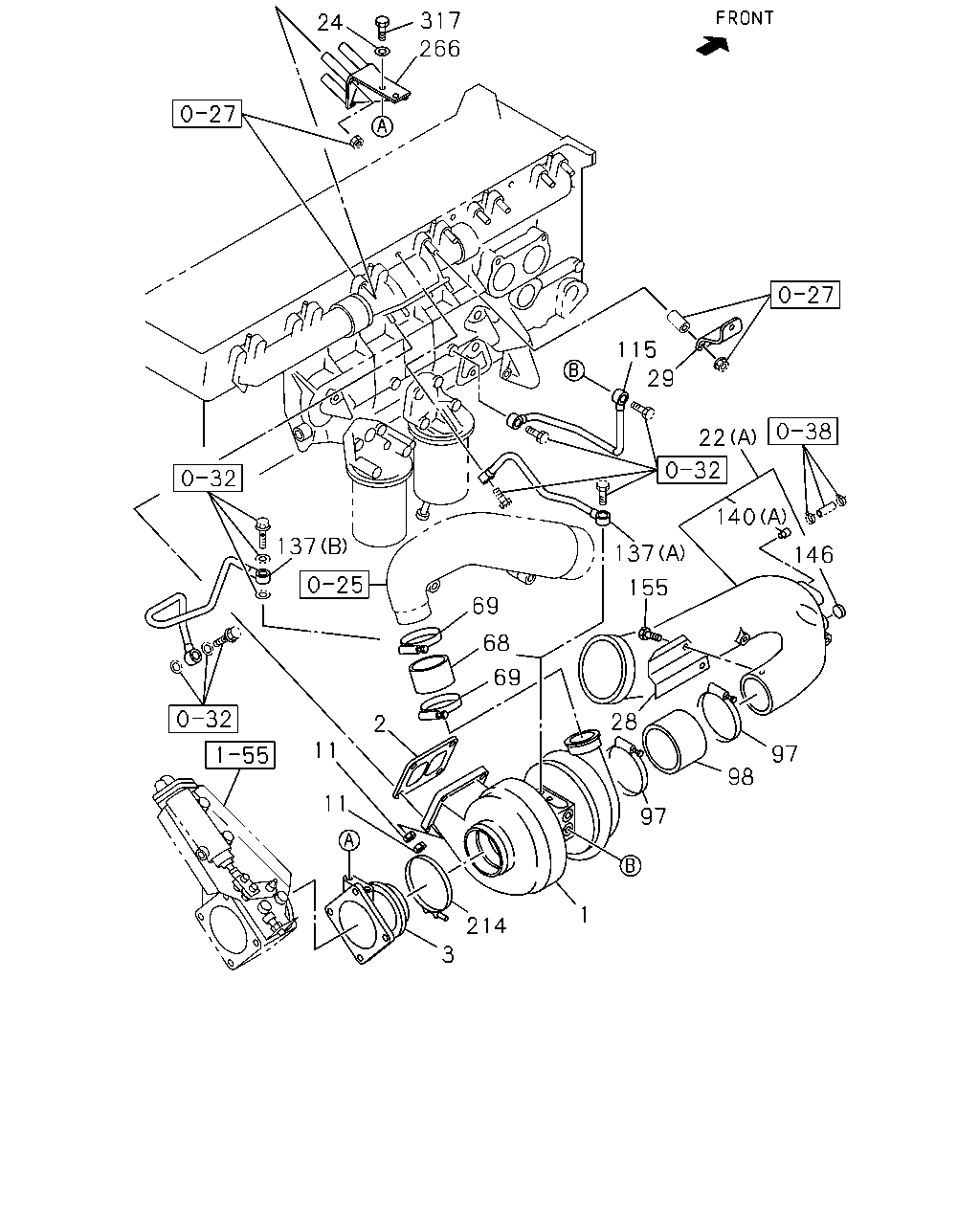

çizim 167995
317 266 24 115 29 22 140 146 137 155 97 98 97 28 1 214 137 69 68 69 2 11 11 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-374-3 01 1 1008- ●
1 TURBOCHARGER ASM 1-14400-425-5 01 1 1008- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 1008- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1008- ●
3 PIPE; EXH,TURBOCHARGER 1-14144-632-4 01 1 1008- ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 1008- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 1008- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS CHINESE<SL7> (C) 		8-98124-025-1 01 1 1201-1309 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS CHINESE<SL7> (E) 		8-98254-523-1 01 1 1310- ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		1-14134-484-3 01 1 1008- ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		8-97613-690-3 01 1 1008-1112 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS ENGLISH<RR8> (B) 		8-97613-690-3 01 1 1201-1309 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS ENGLISH<RR8> (D) 		8-98254-521-0 01 1 1310-1408 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS ENGLISH<RR8> (F) 		8-98276-598-0 01 1 1409- ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 1008- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 1008- ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 1008- ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 1008- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 1008- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 1008- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-987-1 01 1 1008- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 1008- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-826-1 01 1 1008- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 1008- ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13721-827-0 01 1 1008- ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-2 01 1 1008-1412 ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98300-237-0 01 1 1501- ●
140 PIPE; AIR PIPE
CAUTIONS ENGLISH<RR8> (B) 		8-97603-427-1 01 1 1409- ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 1008- ● ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 1008-1112 ●
140 PIPE; AIR PIPE
CAUTIONS ENGLISH<RR8> (B) 		8-97603-427-1 01 1 1201-1309 ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 1008-1205 ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28050-610-0 04 1 1008- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98059-890-0 01 1 1008- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 1008- ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 1008- ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 1008- ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 1008- ● ●

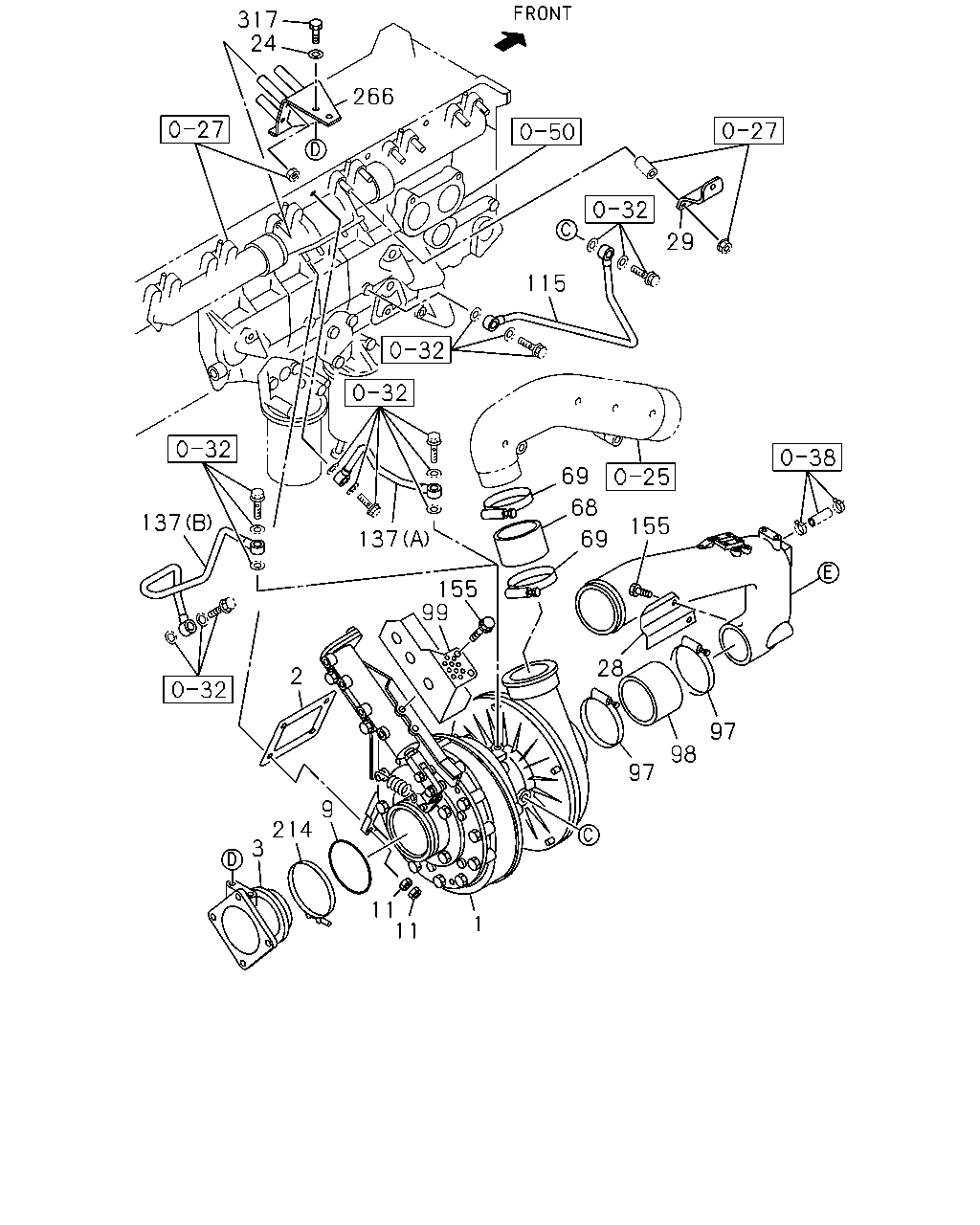

çizim 168005
115 29 266 317 24 137 137 155 99 2 9 214 3 11 11 1 97 98 97 28 69 68 69 155
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-374-3 01 1 1008- ●
1 TURBOCHARGER ASM 1-14400-425-5 01 1 1008- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-140-1 01 1 1008- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1008- ●
3 PIPE; EXH,TURBOCHARGER 1-14144-632-4 01 1 1008- ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 1008- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 1008- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 1008- ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 1008- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 1008- ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 1008- ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 1008- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008- ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-124-0 01 1 1008- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 1008- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-987-1 01 1 1008- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 1008- ●
99 PROTECTOR; HEAT 1-14181-350-0 01 1 1008- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-826-1 01 1 1008- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 1008- ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13721-827-0 01 1 1008- ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-2 01 1 1008-1412 ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98300-237-0 01 1 1501- ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1008- ● ●
155 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28050-610-0 04 1 1008- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98059-890-0 01 1 1008- ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 1008- ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 1008- ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 1008- ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 1008- ● ●

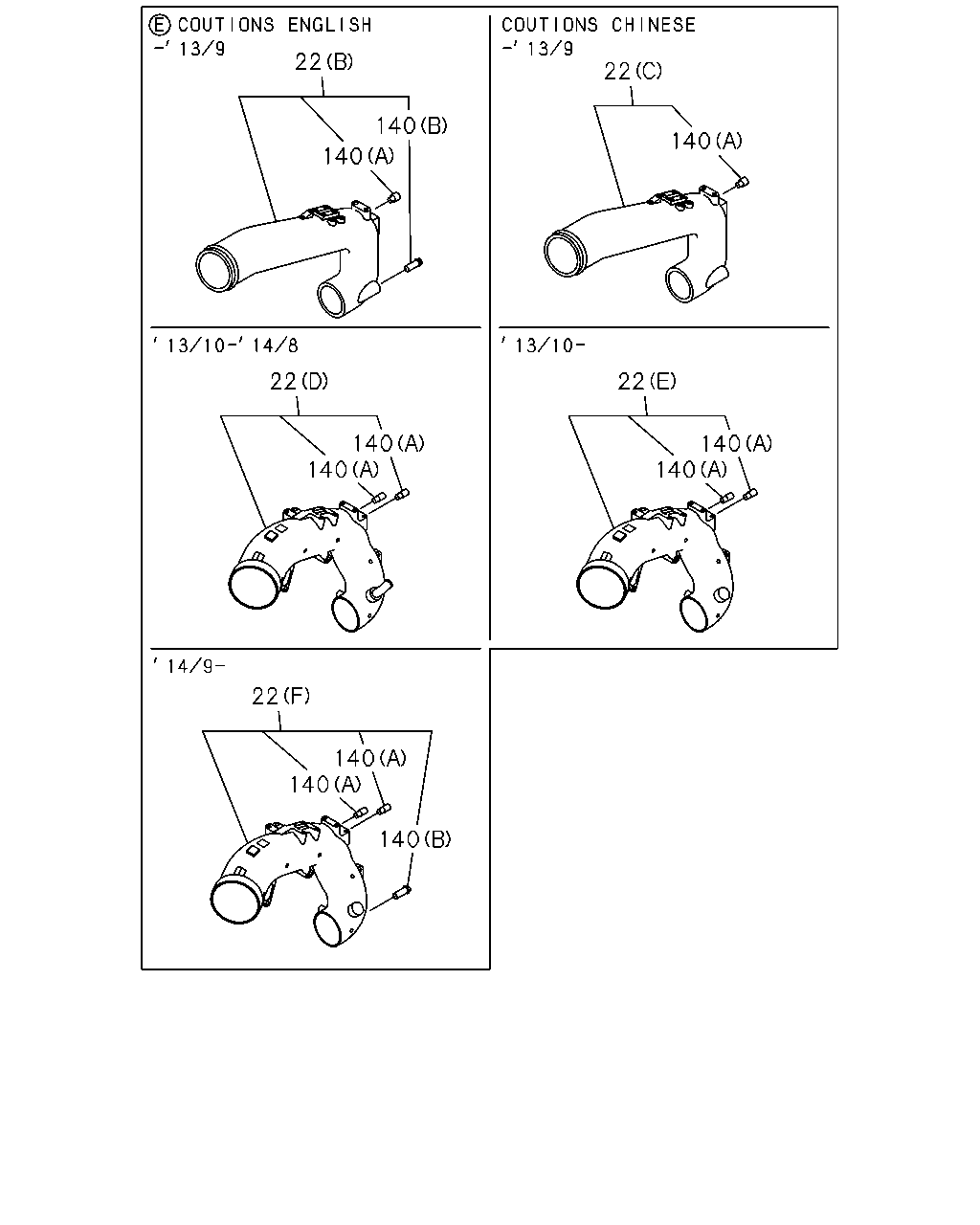

çizim 431240
22 140 22 140 140 22 140 140 140 140 140 22 22 140 140
BalonParca AdiParca NoAdetTipApplied Date A B
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS CHINESE<SL7> (C) 		8-98124-025-1 01 1 1201-1309 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS CHINESE<SL7> (E) 		8-98254-523-1 01 1 1310- ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		1-14134-484-3 01 1 1008- ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		8-97613-690-3 01 1 1008-1112 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS ENGLISH<RR8> (B) 		8-97613-690-3 01 1 1201-1309 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS ENGLISH<RR8> (D) 		8-98254-521-0 01 1 1310-1408 ●
22 DUCT; INL,ACL TO TURBOCHARGER
CAUTIONS ENGLISH<RR8> (F) 		8-98276-598-0 01 1 1409- ●
140 PIPE; AIR PIPE
CAUTIONS ENGLISH<RR8> (B) 		8-97603-427-1 01 1 1409- ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 1008- ● ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 1008-1112 ●
140 PIPE; AIR PIPE
CAUTIONS ENGLISH<RR8> (B) 		8-97603-427-1 01 1 1201-1309 ●
