Sayfa 0-32 - Isuzu EPC

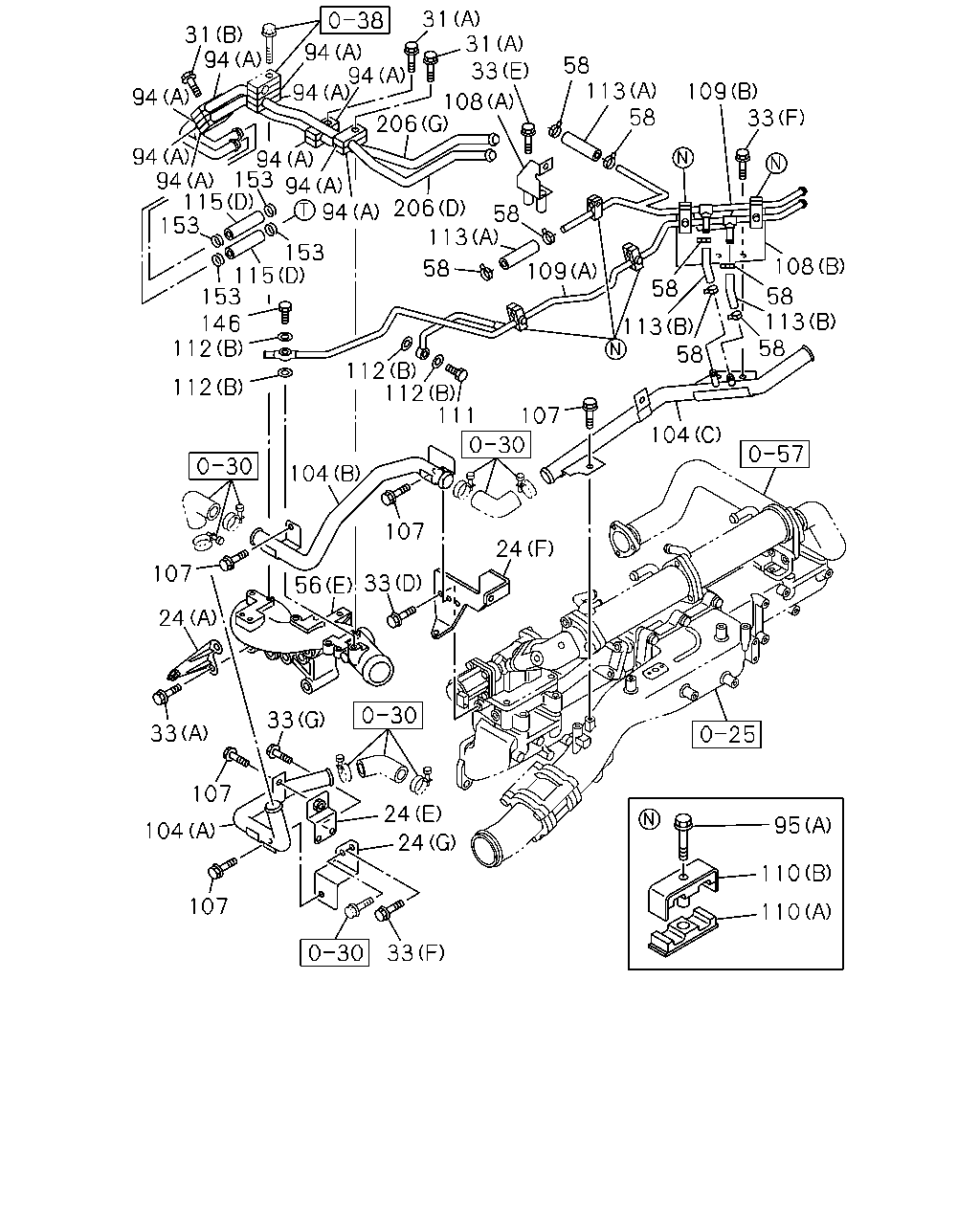

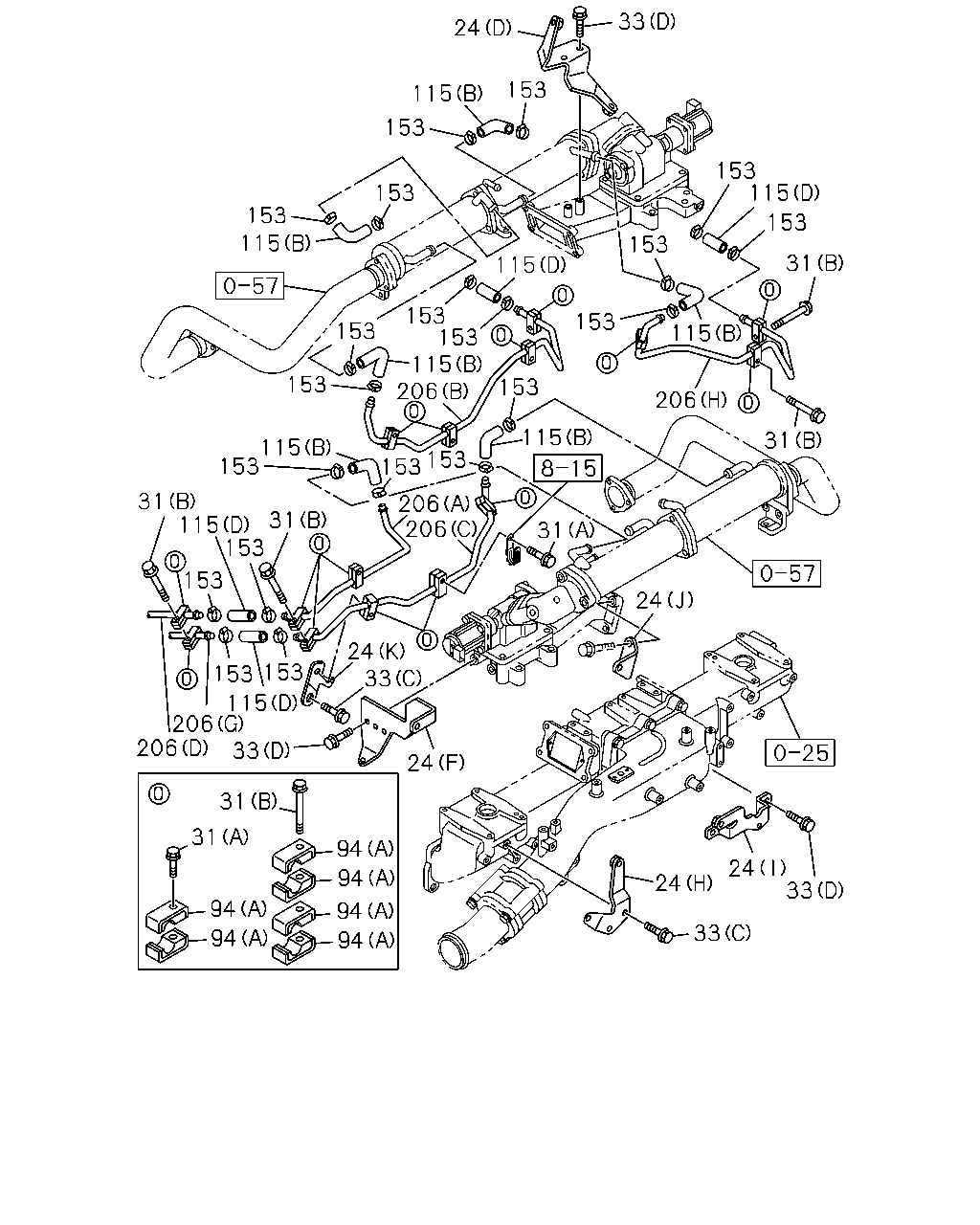

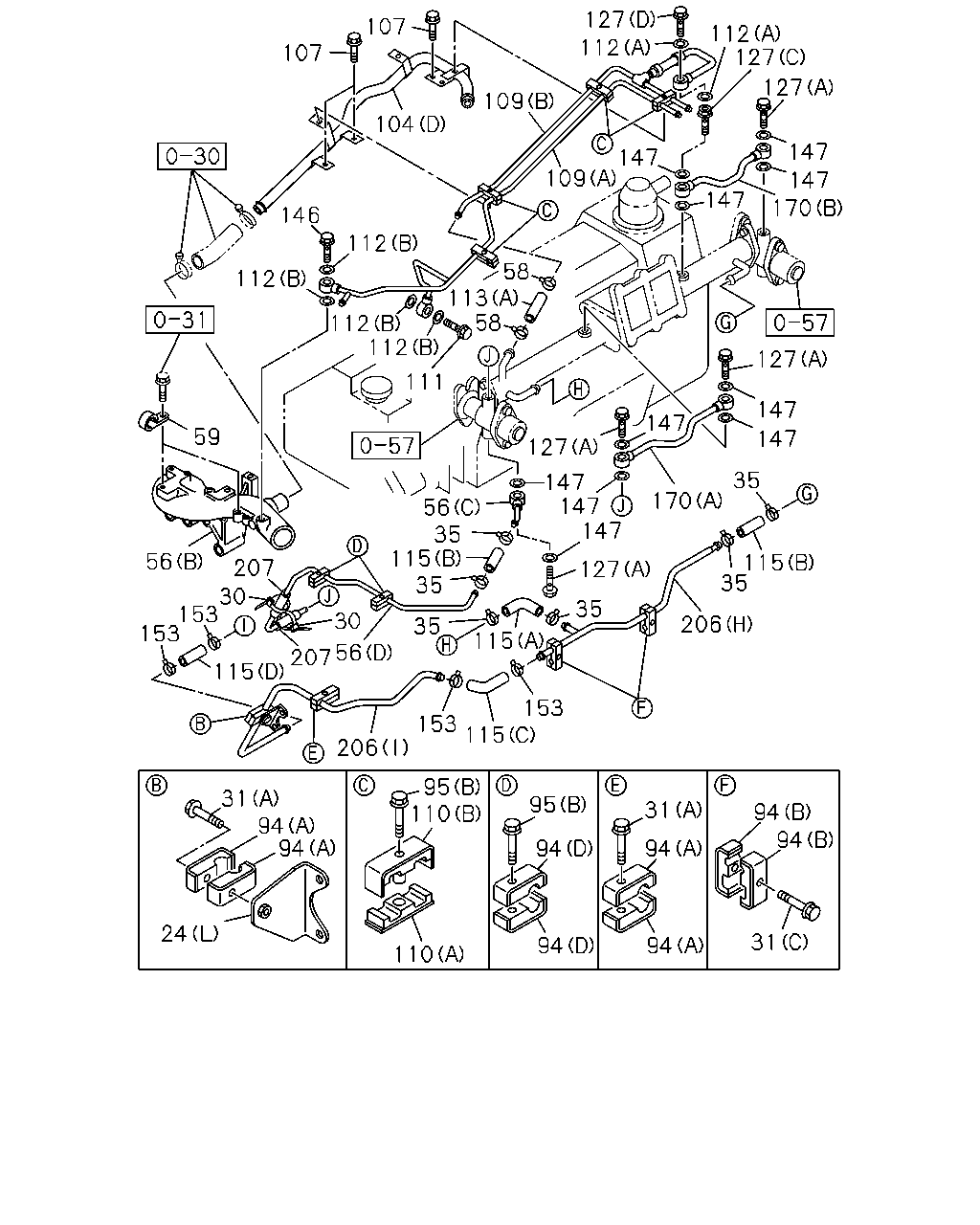

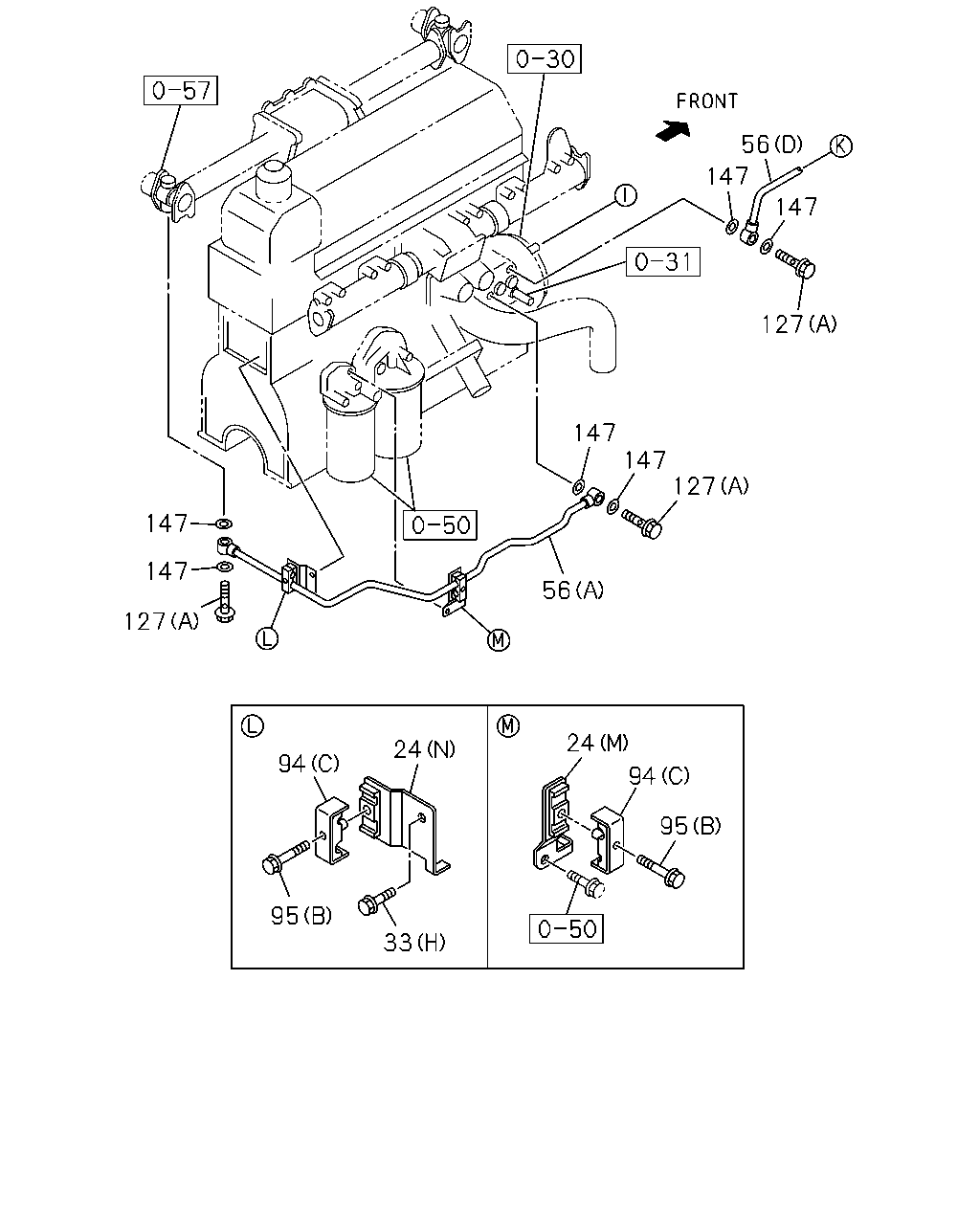

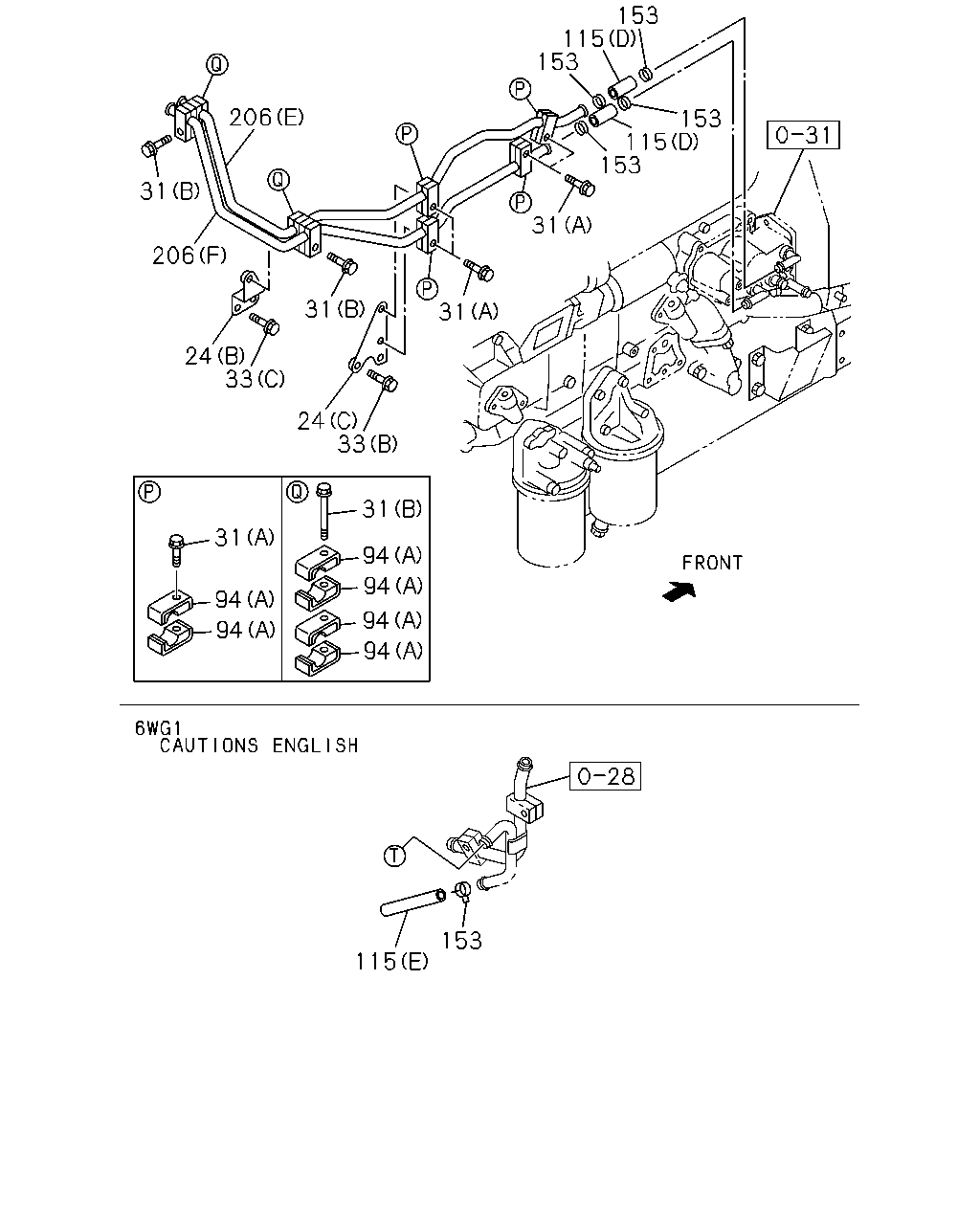

0-32 — WATER PIPING; ENGINE (#58302) — 384 parça

127 107 112 127 112 107 127 109 104 147 147 147 109 147 170 146 112 58 113 112 58 112 112 127 111 147 147 59 147 127 35 147 147 147 170 56 35 115 35 56 115 35 207 127 30 153 153 30 35 206 35 115 56 207 115 153 115 153 206 95 110 31 94 94 95 31 94 94 94 94 24 31 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (L)	1-13729-060-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (M)	1-13729-023-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (N)	1-13729-024-0	01	1	1008-	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1008-		●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1008-		●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1008-		●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1008-		●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1008-		●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1008-		●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1008-		●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1008-		●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1008-		●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1008-		●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1008-		●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	1008-1205	●
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-	●
31	BOLT; CLIP (C) M6X70 FLANGE	0-28050-670-0	02	1	1008-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE	0-28050-840-0	02	1	1008-	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1008-		●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1008-		●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX>	1-09707-143-0	06	1	1008-	●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (A)	1-13721-747-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	1008-	●
56	PIPE; WATER OUTLET (E)	8-98038-588-0	01	1	1008-		●
58	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=14	1-09704-102-0	02	1	1008-	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	1008-1105		●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-		●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	1008-	●
94	CLIP; WATER PIPE (D) ID=14 L=15	1-09701-282-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-210-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	8-94393-037-0	02	1	1008-	●
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	56	1	1008-		●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	1008-	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28050-640-0	04	1	1008-	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	05	1	1008-		●
104	PIPE; WATER CHARGE (D)	1-13721-913-2	01	1	1008-1208	●
104	PIPE; WATER CHARGE (D)	8-98228-041-0	01	1	1209-	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1008-		●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	1008-1105		●
104	PIPE; WATER CHARGE (C)	8-98191-341-0	01	1	1106-		●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1008-		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	1008-	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1008-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG CAUTIONS CHINESE<SL7> (A)	8-97640-419-0	01	1	1104-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	1008-1103	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	8-97606-594-0	01	1	1104-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (B)	1-13721-834-2	01	1	1008-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	1008-1105		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-495-0	01	1	1106-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	1008-1105		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-98191-496-0	01	1	1106-		●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	1008-	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	1008-	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	1008-		●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	1008-		●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1008-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	1008-	●	●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-		●
113	HOSE; RUBBER,AIR LEAK EURO3 SPECIFICATION<NJX> (A) L=70 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1008-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C)	1-09361-081-1	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=60	1-09361-084-0	02	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	1008-	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1008-		●
115	HOSE; RUBBER CAUTIONS CHINESE<SL7> (D) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (D) L=55 SERVICED BY L=3000	0-03566-300-0	09	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (E)	8-97620-785-1	01	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	04	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M16X30 FLANGE	1-09675-095-1	07	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-230-0	01	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1008-		●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1008-	●	●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	1008-	●
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	1008-	●
153	CLIP; RUBBER HOSE CAUTIONS CHINESE<SL7> ID=25	8-97177-581-0	28	1	1008-		●
153	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=25	8-97177-581-0	32	1	1008-		●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (A)	1-13721-744-0	01	1	1008-	●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (B)	1-13721-745-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (H)	1-13721-853-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (I)	1-13721-899-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS CHINESE<SL7> (D)	8-97613-003-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS ENGLISH<RR8> (D)	8-97620-779-0	01	1	1008-		●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	1008-	●

31 31 33 31 94 94 94 58 113 58 109 33 94 94 108 206 94 94 94 153 94 115 94 153 206 58 113 153 115 153 146 112 108 58 109 58 58 113 58 113 58 112 112 111 112 107 104 104 107 24 107 33 56 24 33 33 107 24 95 104 24 110 107 110 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (L)	1-13729-060-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (M)	1-13729-023-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (N)	1-13729-024-0	01	1	1008-	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1008-		●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1008-		●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1008-		●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1008-		●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1008-		●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1008-		●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1008-		●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1008-		●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1008-		●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1008-		●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1008-		●
31	BOLT; CLIP (C) M6X70 FLANGE	0-28050-670-0	02	1	1008-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE	0-28050-840-0	02	1	1008-	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1008-		●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1008-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> (H) M14X20 FLANGE	0-28951-420-0	01	1	1008-	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1008-		●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1008-		●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1008-		●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1008-		●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1008-		●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1008-		●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1008-		●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (A)	1-13721-747-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	1008-	●
56	PIPE; WATER OUTLET (E)	8-98038-588-0	01	1	1008-		●
58	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=14	1-09704-102-0	02	1	1008-	●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	04	1	1008-1105		●
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1106-		●
94	CLIP; WATER PIPE (D) ID=14 L=15	1-09701-282-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-210-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	8-94393-037-0	02	1	1008-	●
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	56	1	1008-		●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	1008-	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28050-640-0	04	1	1008-	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	05	1	1008-		●
104	PIPE; WATER CHARGE (D)	1-13721-913-2	01	1	1008-1208	●
104	PIPE; WATER CHARGE (D)	8-98228-041-0	01	1	1209-	●
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1008-		●
104	PIPE; WATER CHARGE (C)	8-97613-002-1	01	1	1008-1105		●
104	PIPE; WATER CHARGE (C)	8-98191-341-0	01	1	1106-		●
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1008-		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	1008-	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1008-		●
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1008-		●
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1008-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG CAUTIONS CHINESE<SL7> (A)	8-97640-419-0	01	1	1104-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97606-594-0	01	1	1008-1103	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A)	8-97606-594-0	01	1	1104-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (B)	1-13721-834-2	01	1	1008-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-97611-167-2	01	1	1008-1105		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-495-0	01	1	1106-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-97613-671-2	01	1	1008-1105		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-98191-496-0	01	1	1106-		●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	1008-	●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	1008-	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	05	1	1008-		●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	05	1	1008-		●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1008-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1008-	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	04	1	1008-	●	●
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1106-		●
113	HOSE; RUBBER,AIR LEAK EURO3 SPECIFICATION<NJX> (A) L=70 SERVICED BY L=3000	0-03559-300-0	01	1	1008-	●
113	HOSE; RUBBER,AIR LEAK (A) L=70 SERVICED BY L=3000	0-03559-300-0	02	1	1008-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C)	1-09361-081-1	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=60	1-09361-084-0	02	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	1008-	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1008-		●
115	HOSE; RUBBER CAUTIONS CHINESE<SL7> (D) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (D) L=55 SERVICED BY L=3000	0-03566-300-0	09	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (E)	8-97620-785-1	01	1	1008-		●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1008-	●	●
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	1008-	●
153	CLIP; RUBBER HOSE CAUTIONS CHINESE<SL7> ID=25	8-97177-581-0	28	1	1008-		●
153	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=25	8-97177-581-0	32	1	1008-		●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (H)	1-13721-853-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (I)	1-13721-899-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS CHINESE<SL7> (D)	8-97613-003-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS ENGLISH<RR8> (D)	8-97620-779-0	01	1	1008-		●

56 147 147 127 147 147 127 147 147 56 127 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (L)	1-13729-060-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (M)	1-13729-023-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (N)	1-13729-024-0	01	1	1008-	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1008-		●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1008-		●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1008-		●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1008-		●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1008-		●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1008-		●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1008-		●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1008-		●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1008-		●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1008-		●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1008-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> (H) M14X20 FLANGE	0-28951-420-0	01	1	1008-	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1008-		●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1008-		●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1008-		●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1008-		●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1008-		●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1008-		●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1008-		●
56	PIPE; WATER OUTLET (B)	8-98039-673-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (A)	1-13721-747-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-855-0	01	1	1008-	●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-898-0	01	1	1008-	●
56	PIPE; WATER OUTLET (E)	8-98038-588-0	01	1	1008-		●
94	CLIP; WATER PIPE (D) ID=14 L=15	1-09701-282-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-210-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	8-94393-037-0	02	1	1008-	●
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	56	1	1008-		●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	04	1	1008-	●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28050-640-0	04	1	1008-	●
95	BOLT; CLIP (A) M6X35 FLANGE	0-28050-635-0	05	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	04	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M16X30 FLANGE	1-09675-095-1	07	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-230-0	01	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1008-		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	1008-	●

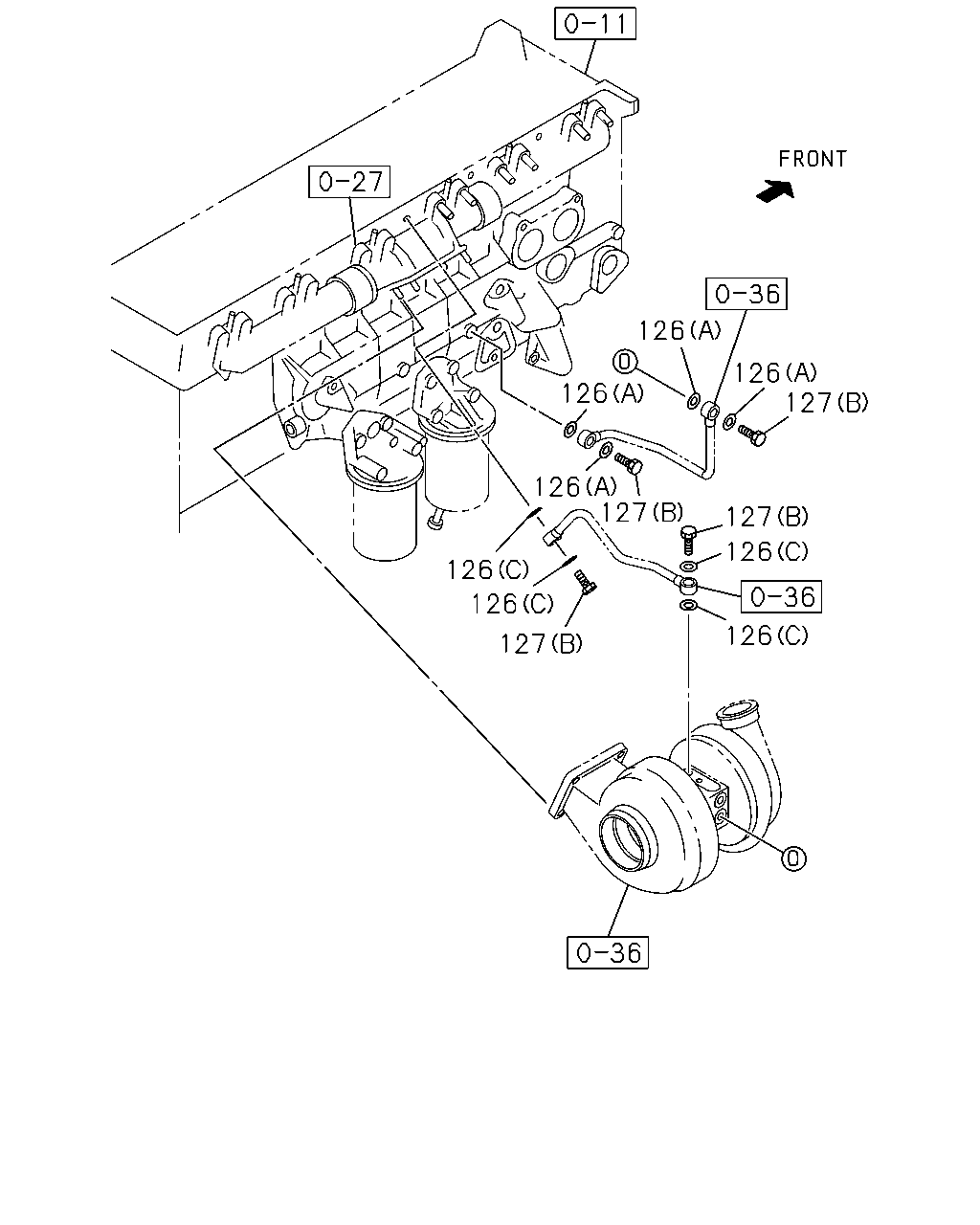

126 126 127 126 126 127 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1008-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	1008-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1008-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1008-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	04	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M16X30 FLANGE	1-09675-095-1	07	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-230-0	01	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1008-		●

33 24 153 115 153 153 115 153 153 115 153 115 153 31 153 153 153 115 206 153 115 153 153 206 115 31 153 153 206 206 115 153 31 31 115 153 31 153 24 24 33 153 153 115 206 206 33 24 31 31 94 24 33 94 24 94 94 33 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (L)	1-13729-060-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (M)	1-13729-023-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (N)	1-13729-024-0	01	1	1008-	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1008-		●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1008-		●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1008-		●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1008-		●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1008-		●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1008-		●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1008-		●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1008-		●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1008-		●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1008-		●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1008-		●
31	BOLT; CLIP (C) M6X70 FLANGE	0-28050-670-0	02	1	1008-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE	0-28050-840-0	02	1	1008-	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1008-		●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1008-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> (H) M14X20 FLANGE	0-28951-420-0	01	1	1008-	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1008-		●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1008-		●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1008-		●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1008-		●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1008-		●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1008-		●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1008-		●
94	CLIP; WATER PIPE (D) ID=14 L=15	1-09701-282-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-210-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	8-94393-037-0	02	1	1008-	●
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	56	1	1008-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C)	1-09361-081-1	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=60	1-09361-084-0	02	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	1008-	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1008-		●
115	HOSE; RUBBER CAUTIONS CHINESE<SL7> (D) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (D) L=55 SERVICED BY L=3000	0-03566-300-0	09	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (E)	8-97620-785-1	01	1	1008-		●
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	1008-	●
153	CLIP; RUBBER HOSE CAUTIONS CHINESE<SL7> ID=25	8-97177-581-0	28	1	1008-		●
153	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=25	8-97177-581-0	32	1	1008-		●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (H)	1-13721-853-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (I)	1-13721-899-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS CHINESE<SL7> (D)	8-97613-003-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS ENGLISH<RR8> (D)	8-97620-779-0	01	1	1008-		●

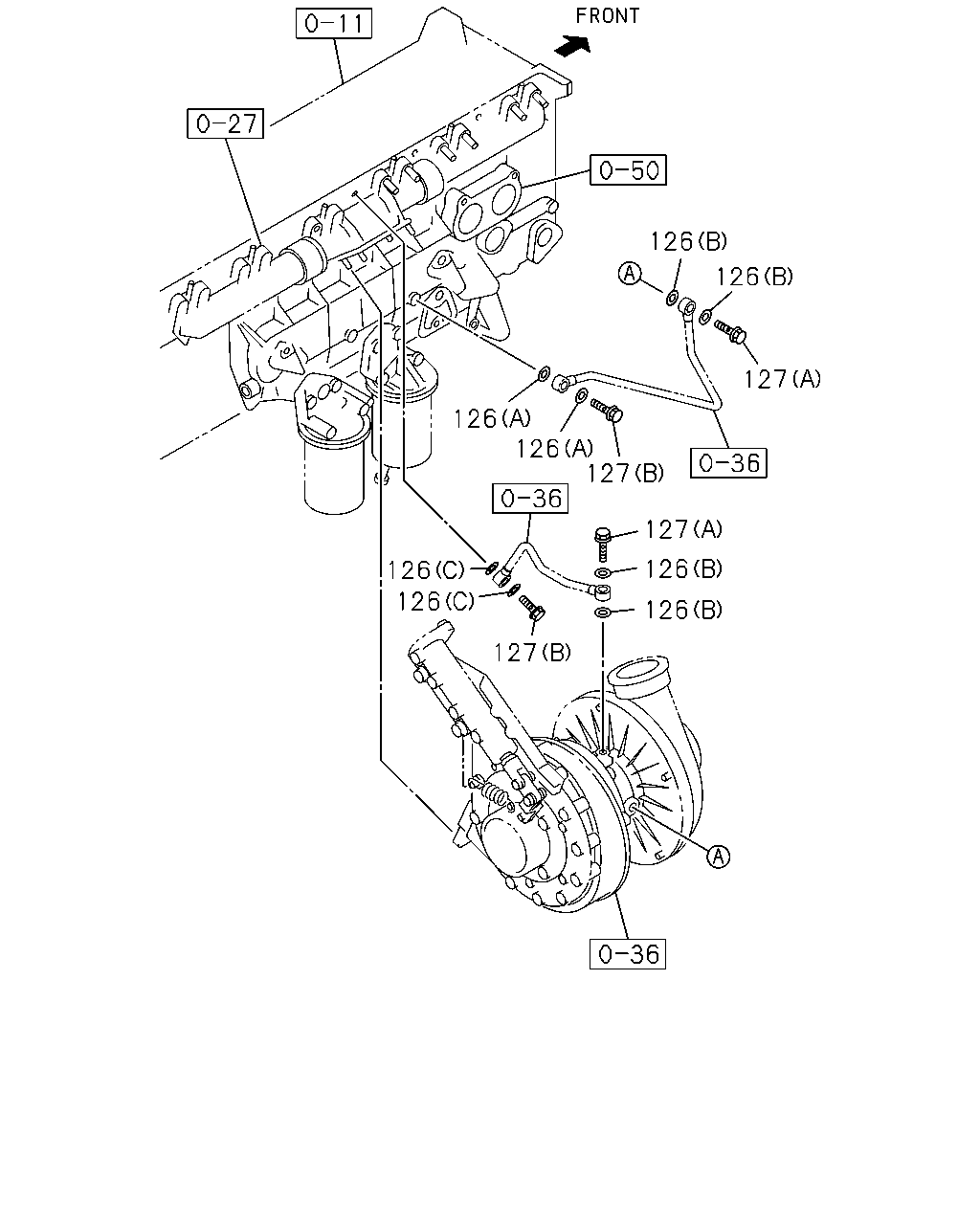

126 126 127 126 126 127 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1008-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	1008-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1008-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1008-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	04	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (A) M16X30 FLANGE	1-09675-095-1	07	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M16X30 FLANGE	1-09675-230-0	01	1	1008-	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	8-97372-238-0	01	1	1008-	●
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1008-		●
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1008-		●

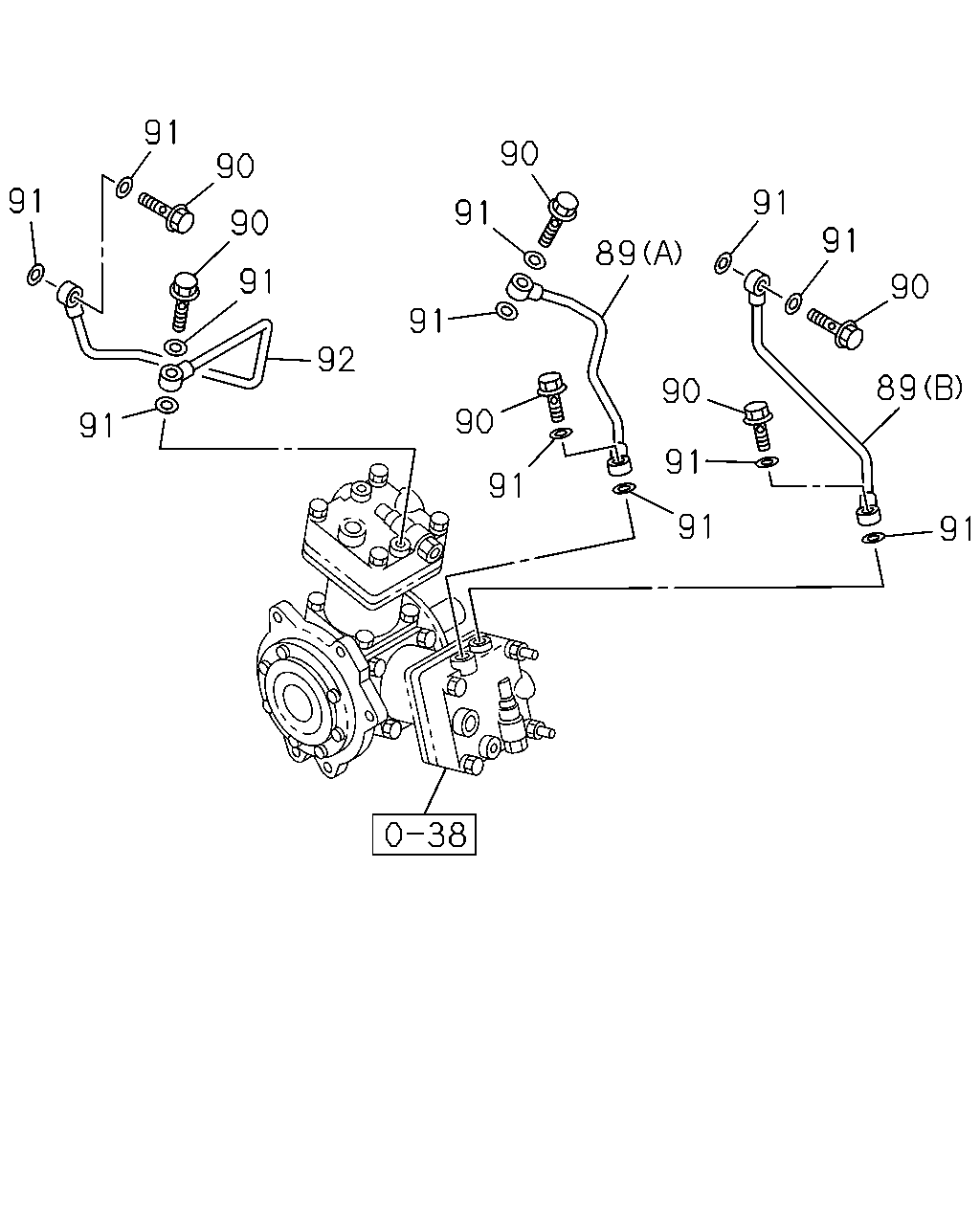

91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1008-	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1008-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1008-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1008-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1008-	●	●

153 115 153 206 153 115 153 31 31 206 31 31 24 33 24 33 31 31 94 94 94 94 94 94 153 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (L)	1-13729-060-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (M)	1-13729-023-0	01	1	1008-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (N)	1-13729-024-0	01	1	1008-	●
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1008-		●
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1008-		●
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1008-		●
24	BRACKET; WATER PIPE (D)	8-97611-050-0	01	1	1008-		●
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1008-		●
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1008-		●
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1008-		●
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1008-		●
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1008-		●
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1008-		●
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1008-		●
31	BOLT; CLIP (C) M6X70 FLANGE	0-28050-670-0	02	1	1008-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M8X40 FLANGE	0-28050-840-0	02	1	1008-	●
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	13	1	1008-		●
31	BOLT; CLIP (B) M8X70 FLANGE	0-28050-870-0	07	1	1008-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> (H) M14X20 FLANGE	0-28951-420-0	01	1	1008-	●
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	06	1	1008-		●
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1008-		●
33	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	02	1	1008-		●
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1008-		●
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1008-		●
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1008-		●
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1008-		●
94	CLIP; WATER PIPE (D) ID=14 L=15	1-09701-282-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-09701-210-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	04	1	1008-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	8-94393-037-0	02	1	1008-	●
94	CLIP; WATER PIPE (A) ID=17 L=17	1-09701-284-0	56	1	1008-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C)	1-09361-081-1	01	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=60	1-09361-084-0	02	1	1008-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	1008-	●
115	HOSE; RUBBER (B)	8-97604-063-0	06	1	1008-		●
115	HOSE; RUBBER CAUTIONS CHINESE<SL7> (D) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (D) L=55 SERVICED BY L=3000	0-03566-300-0	09	1	1008-		●
115	HOSE; RUBBER CAUTIONS ENGLISH<RR8> (E)	8-97620-785-1	01	1	1008-		●
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	1008-	●
153	CLIP; RUBBER HOSE CAUTIONS CHINESE<SL7> ID=25	8-97177-581-0	28	1	1008-		●
153	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=25	8-97177-581-0	32	1	1008-		●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (H)	1-13721-853-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (I)	1-13721-899-0	01	1	1008-	●
206	PIPE; WATER,EGR COOLER (A)	8-97608-891-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (G)	8-97608-892-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (C)	8-97608-893-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (B)	8-97613-528-2	01	1	1008-		●
206	PIPE; WATER,EGR COOLER (H)	8-97613-529-1	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS CHINESE<SL7> (D)	8-97613-003-0	01	1	1008-		●
206	PIPE; WATER,EGR COOLER CAUTIONS ENGLISH<RR8> (D)	8-97620-779-0	01	1	1008-		●

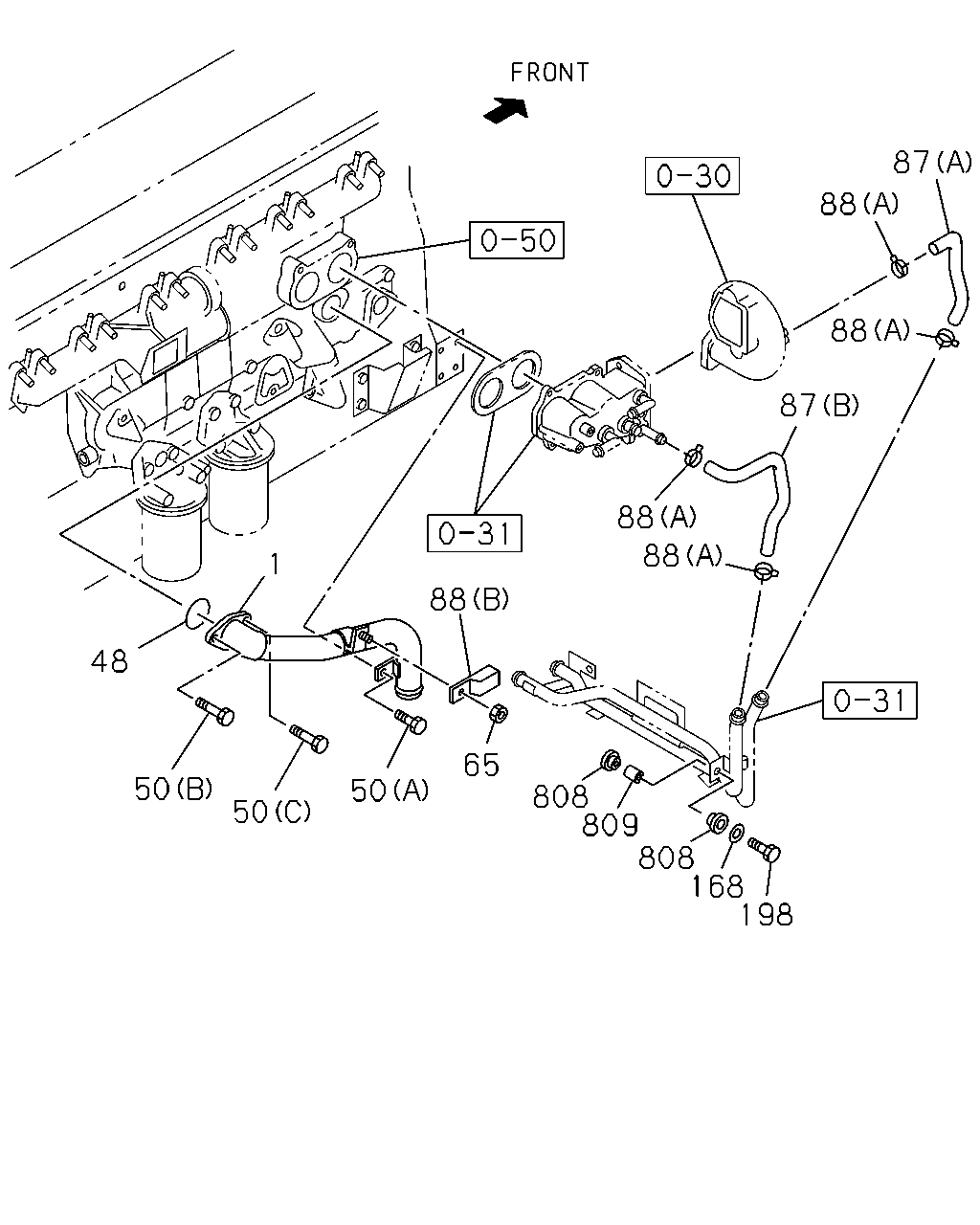

87 88 88 87 88 88 1 88 48 65 50 50 808 809 808 168 198 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1008-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1008-	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1008-	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	1008-	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1008-	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	1008-	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	1008-	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1008-	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1008-	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	1008-1206	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1008-	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	1008-	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	1008-	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
