0-31 — THERMOSTAT AND HOUSING (#58301) — 46 parça

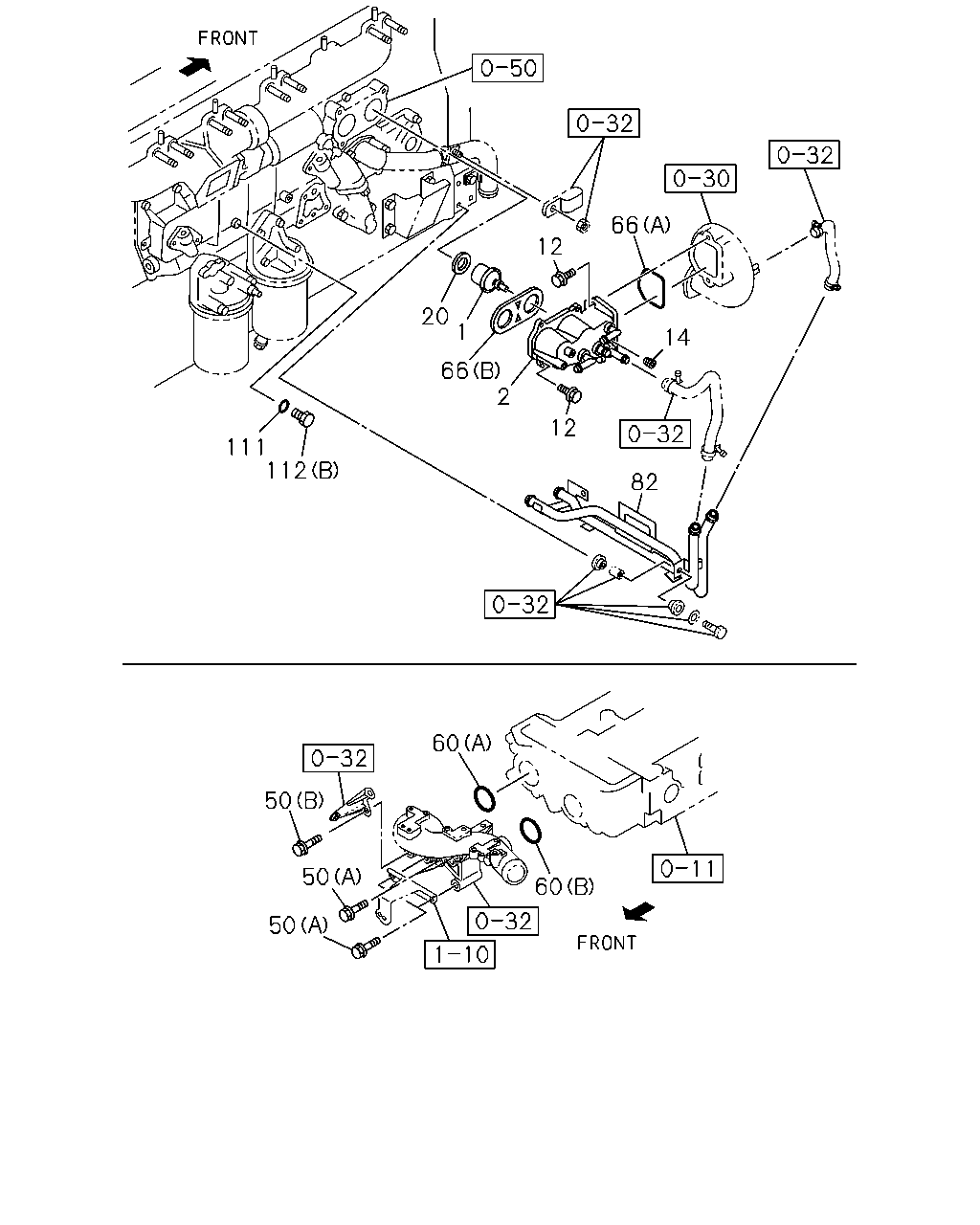

66 12 20 1 14 66 2 12 111 112 82 60 50 50 60 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	1008-1509	●	●
1	THERMOSTAT 82 CELSIUS	8-98319-254-0	02	1	1510-	●	●
2	HOUSING; THERMOSTAT	1-13710-550-1	01	1	1008-1012	●
2	HOUSING; THERMOSTAT	8-98173-668-0	01	1	1101-	●
2	HOUSING; THERMOSTAT	8-98054-424-1	01	1	1008-1208		●
2	HOUSING; THERMOSTAT	8-98217-268-0	01	1	1209-		●
12	BOLT; HSG M10X25 FLANGE	0-28151-025-0	05	1	1008-	●	●
14	PLUG; SW PT3/8	8-94475-259-0	01	1	1008-	●	●
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	1008-	●	●
50	BOLT; OUTLET PIPE (A) M10X90 FLANGE	0-28151-090-0	04	1	1008-	●	●
50	BOLT; OUTLET PIPE (B) M10X55 FLANGE	8-97365-449-0	02	1	1008-	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	1008-	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	1008-	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	1008-1111	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-98205-844-0	01	1	1112-	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	1008-	●	●
82	PIPE; WATER,HTR	8-97612-229-0	01	1	1008-	●	●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	01	1	1008-	●	●
112	PLUG (A) M12X9	8-98047-054-0	01	1	1008-1012	●
112	PLUG (B) M14X9	8-98042-944-0	01	1	1008-1009	●	●
112	PLUG (B) M14X14	9-09862-156-0	01	1	1010-	●	●

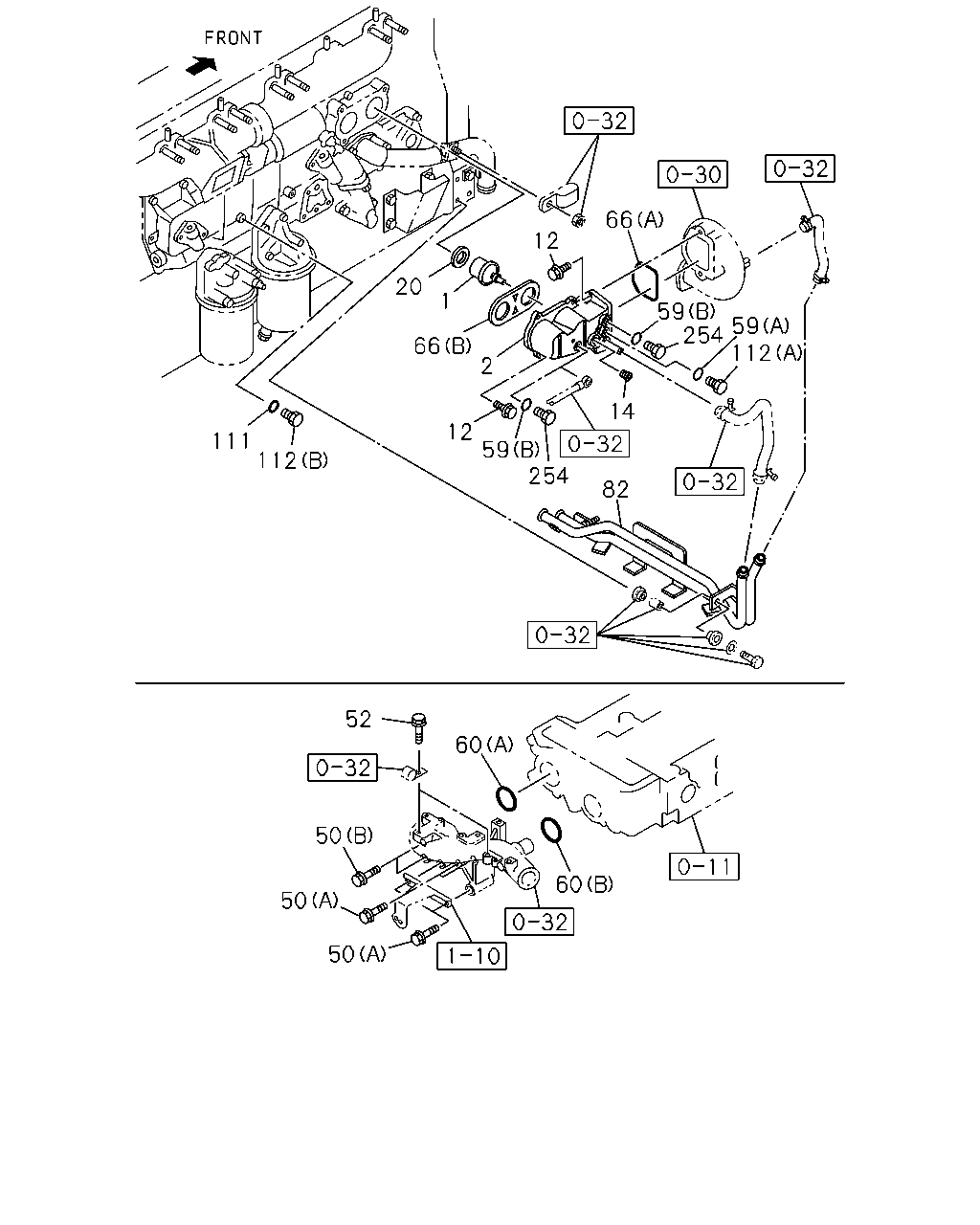

66 12 20 59 59 254 112 1 66 2 14 12 111 59 254 112 82 52 60 50 60 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT 82 CELSIUS	8-98271-161-0	02	1	1008-1509	●	●
1	THERMOSTAT 82 CELSIUS	8-98319-254-0	02	1	1510-	●	●
2	HOUSING; THERMOSTAT	1-13710-550-1	01	1	1008-1012	●
2	HOUSING; THERMOSTAT	8-98173-668-0	01	1	1101-	●
2	HOUSING; THERMOSTAT	8-98054-424-1	01	1	1008-1208		●
2	HOUSING; THERMOSTAT	8-98217-268-0	01	1	1209-		●
12	BOLT; HSG M10X25 FLANGE	0-28151-025-0	05	1	1008-	●	●
14	PLUG; SW PT3/8	8-94475-259-0	01	1	1008-	●	●
20	RING; SEAL ID=59 OD=66.1	1-13779-011-0	02	1	1008-	●	●
50	BOLT; OUTLET PIPE (A) M10X90 FLANGE	0-28151-090-0	04	1	1008-	●	●
50	BOLT; OUTLET PIPE (B) M10X55 FLANGE	8-97365-449-0	02	1	1008-	●	●
52	BOLT; JOINT,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	1008-	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	01	1	1008-1012	●
59	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> (B) ID=16.2	1-09630-086-0	02	1	1008-	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6	1-09623-452-0	01	1	1008-	●	●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6	1-09623-505-0	01	1	1008-	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6	1-09623-247-0	01	1	1008-1111	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-98205-844-0	01	1	1112-	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-13743-036-1	01	1	1008-	●	●
82	PIPE; WATER,HTR	8-97612-229-0	01	1	1008-	●	●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=25	1-09630-141-0	01	1	1008-	●	●
112	PLUG (A) M12X9	8-98047-054-0	01	1	1008-1012	●
112	PLUG (B) M14X9	8-98042-944-0	01	1	1008-1009	●	●
112	PLUG (B) M14X14	9-09862-156-0	01	1	1010-	●	●
254	PLUG; HSG EURO2 SPECIFICATION<THN> M16X12	0-92002-416-0	02	1	1008-	●
