0-30 — WATER PUMP AND CORROSION RESISTOR (#58300) — 53 parça

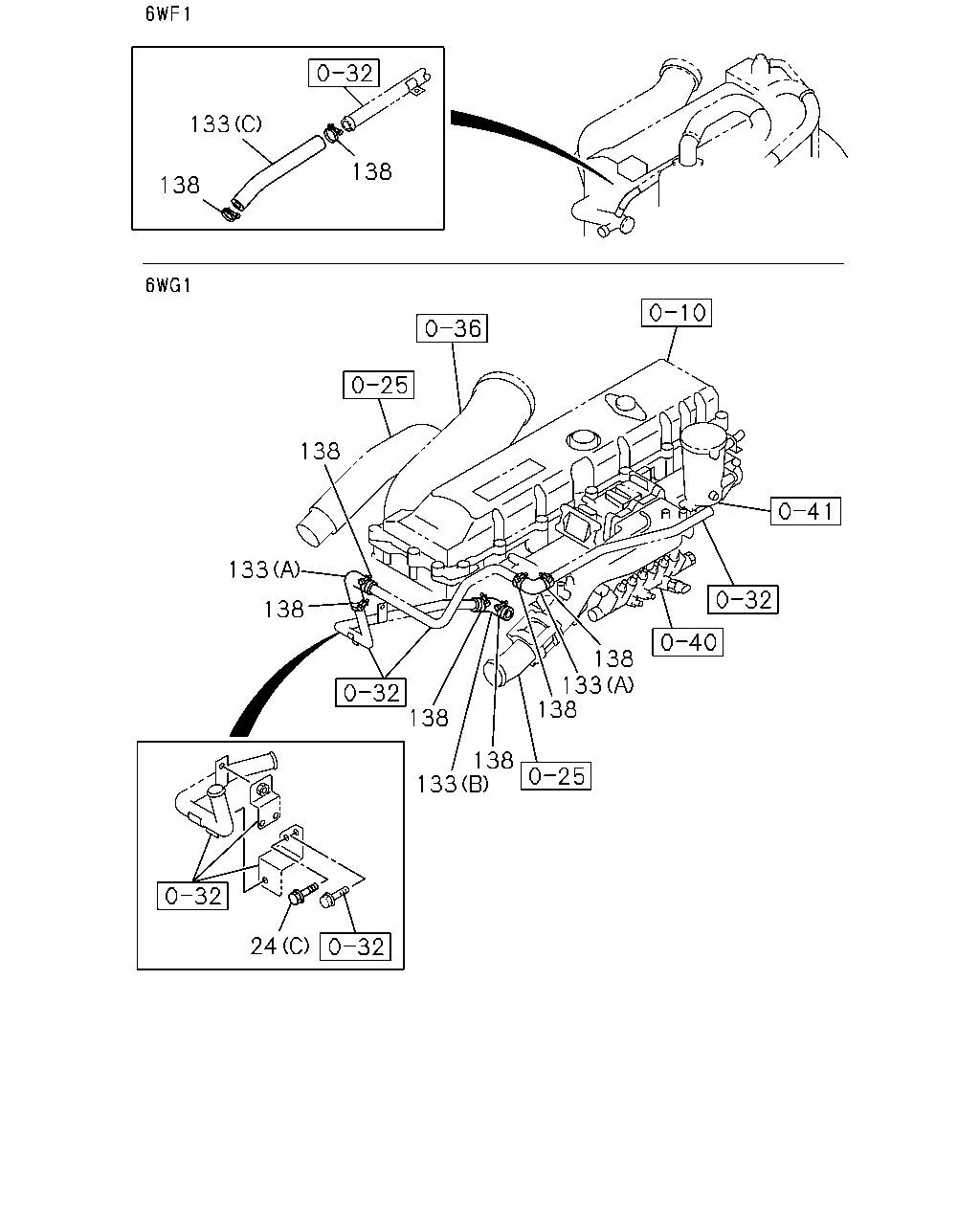

çizim 168019
133 138 138 138 133 138 138 133 138 138 138 133 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 1008- ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 1008- ● ●
24 BOLT; WATER PUMP
(C) M10X100 FLANGE 		0-28151-000-0 01 1 1008- ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 03 1 1008- ●
133 HOSE; RUBBER,WATER PIPE
(C) L=100 SERVICED BY L=3000 		0-03580-300-0 01 1 1008- ●
133 HOSE; RUBBER,WATER PIPE
(A) 		8-97612-998-0 02 1 1008- ●
133 HOSE; RUBBER,WATER PIPE
(B) 		8-97617-185-0 01 1 1008- ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 1008- ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 06 1 1008- ●

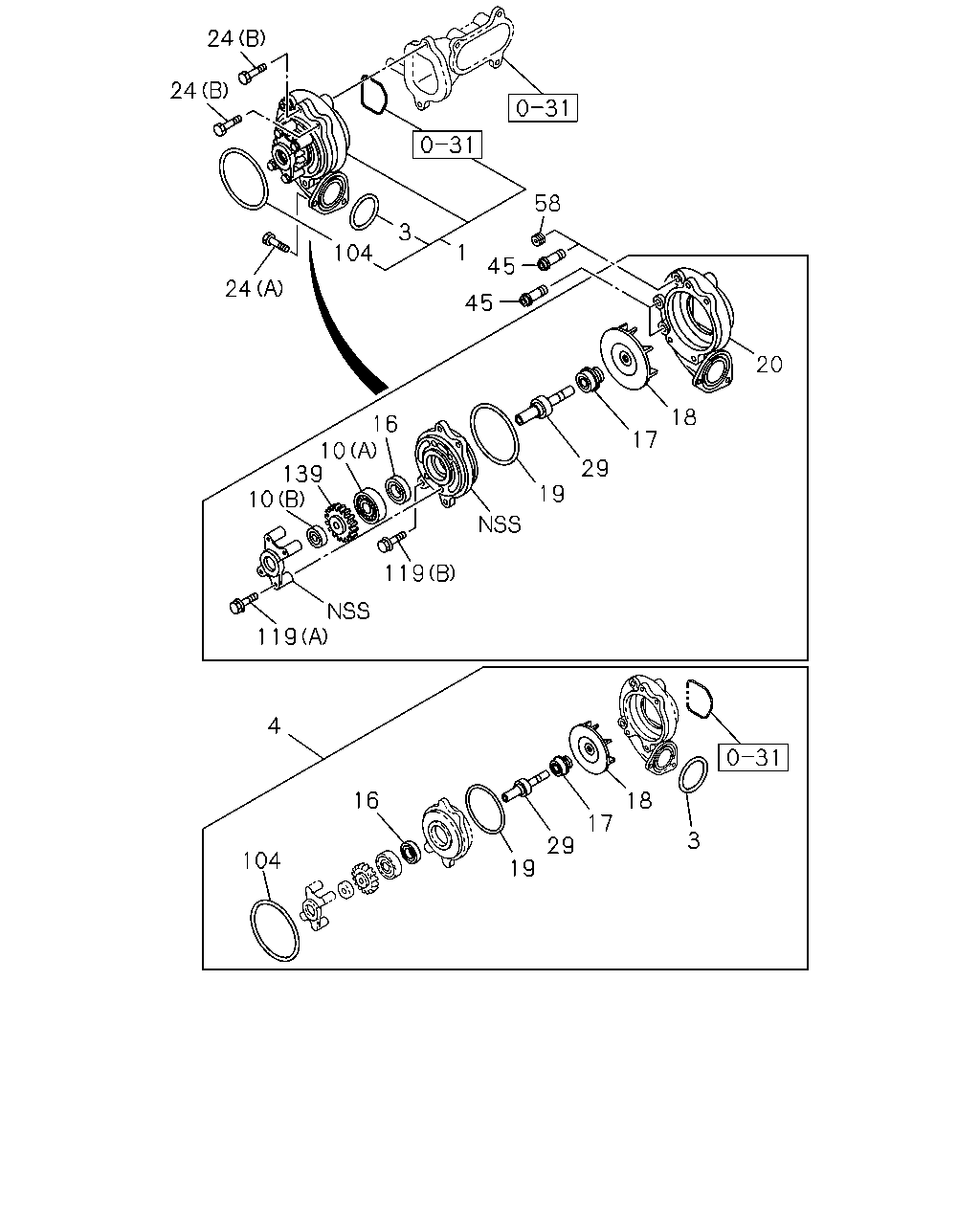

çizim 168102
24 24 58 3 1 104 45 24 45 20 18 16 17 10 139 10 29 19 119 119 4 16 18 17 3 29 104 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 8-98146-073-0 01 1 1008-1207 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-865-0 01 1 1208-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-957-0 01 1 1401-1406 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-996-0 01 1 1407- ●
1 PUMP ASM; WATER,W/GASKET 8-98146-072-0 01 1 1008-1207 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-864-0 01 1 1208-1312 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-956-0 01 1 1401-1406 ●
1 PUMP ASM; WATER,W/GASKET 1-87310-995-0 01 1 1407- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 1008- ● ●
4 REPAIR KIT; WATER PUMP 1-87813-077-1 01 1 1008-1111 ●
4 REPAIR KIT; WATER PUMP 1-87813-813-0 01 1 1112-1207 ●
4 REPAIR KIT; WATER PUMP 1-87813-957-0 01 1 1208-1312 ●
4 REPAIR KIT; WATER PUMP 1-87813-813-0 01 1 1401-1406 ●
4 REPAIR KIT; WATER PUMP 1-87814-621-0 01 1 1407- ●
4 REPAIR KIT; WATER PUMP 1-87813-314-1 01 1 1008-1111 ●
4 REPAIR KIT; WATER PUMP 1-87813-815-0 01 1 1112-1207 ●
4 REPAIR KIT; WATER PUMP 1-87813-955-0 01 1 1208-1312 ●
4 REPAIR KIT; WATER PUMP 1-87813-815-0 01 1 1401-1406 ●
4 REPAIR KIT; WATER PUMP 1-87814-620-0 01 1 1407- ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 1008- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 1008- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 1008- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1008-1207 ● ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1208-1312 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1406 ● ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1407- ● ●
18 IMPELLER; WATER PUMP 8-97608-969-0 01 1 1008- ●
18 IMPELLER; WATER PUMP 8-98075-723-0 01 1 1008- ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 1008- ● ●
20 COVER; WATER PUMP 8-97611-134-0 01 1 1008- ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 04 1 1008- ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 1008- ● ●
24 BOLT; WATER PUMP
(C) M10X100 FLANGE 		0-28151-000-0 01 1 1008- ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 03 1 1008- ●
29 SHAFT; WATER PUMP 8-98141-463-0 01 1 1008- ● ●
45 JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<THN> PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 1008- ●
45 JOINT; HTR HOSE,WATER PUMP
EURO3 SPECIFICATION<NJX> PT3/8 & OD=18.3 L=47 		9-09903-631-0 02 1 1008- ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 03 1 1008- ●
58 PLUG; HTR
EURO2 SPECIFICATION<THN> PT3/8 		5-09605-005-0 02 1 1008- ●
58 PLUG; HTR
EURO3 SPECIFICATION<NJX> PT3/8 		5-09605-005-0 01 1 1008- ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 1008- ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 1008- ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 1008- ● ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-1 01 1 1008- ● ●
