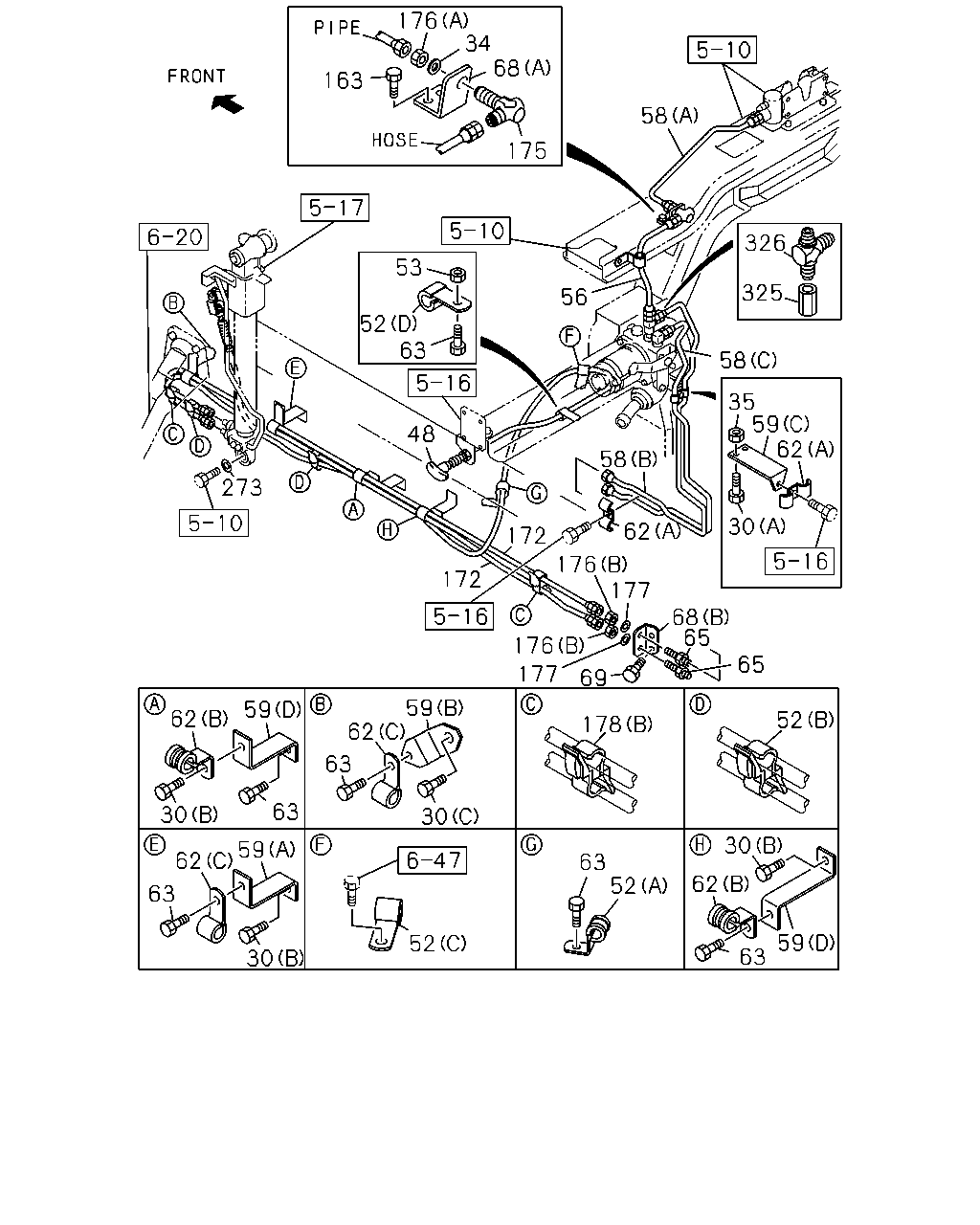

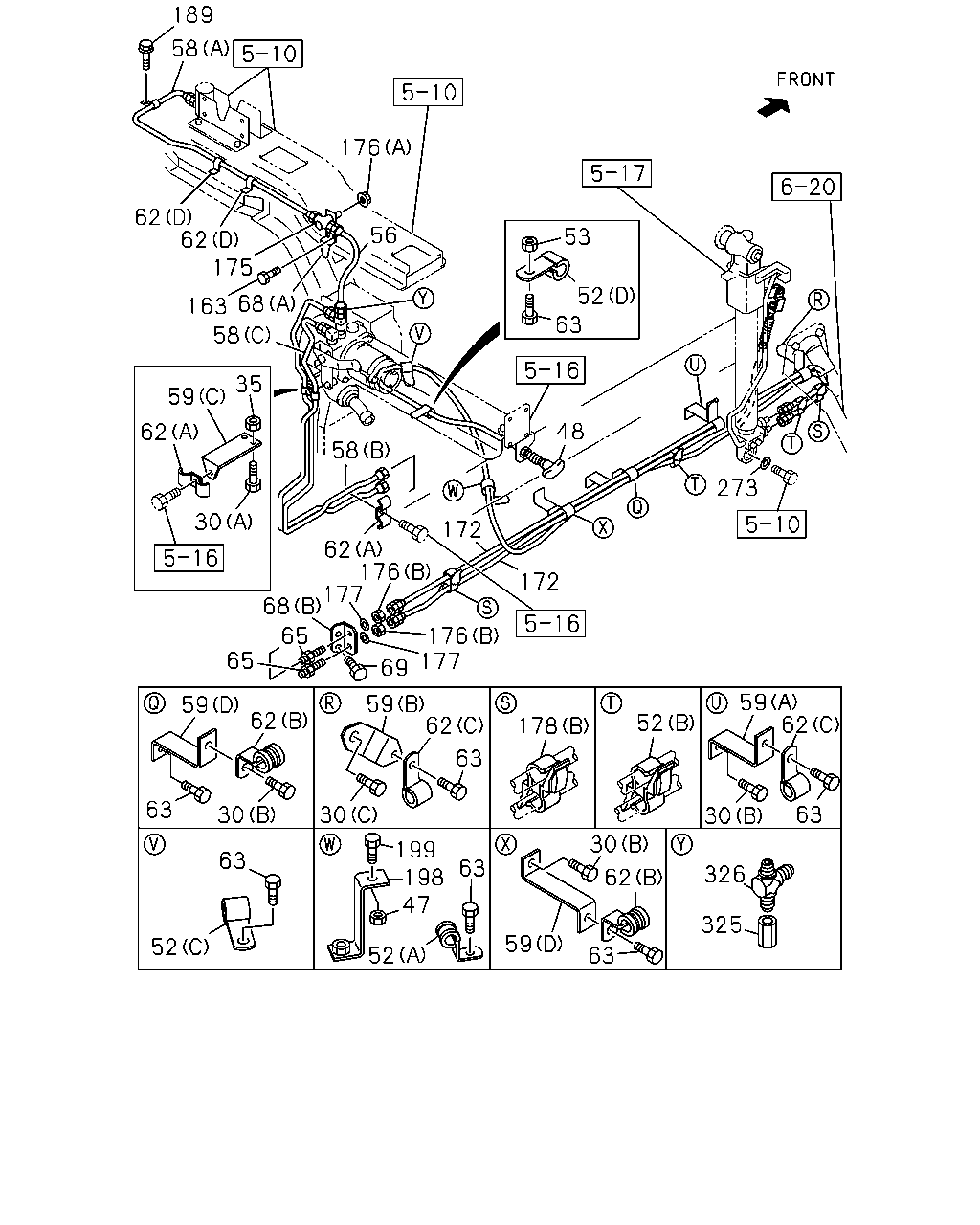

5-15 — CAB MOUNTING; CAB SIDE (#5830) — 305 parça

189 58 176 62 62 175 56 53 52 68 163 63 58 35 59 48 62 58 273 30 172 62 176 177 68 172 176 177 65 65 69 59 62 59 62 178 59 62 52 63 63 63 30 30 30 30 199 198 47 63 63 326 62 325 59 52 52 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
30	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	9607-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28081-225-0	01	1	9603-9606	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	9607-	●	●
35	NUT; BRKT M8	9-09110-408-0	02	1	9603-9606	●	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
47	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9603-9904		●
47	NUT; BRKT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9905-		●
48	CABLE ASM; CONT 10PE1S(60L) L=2457	1-62500-670-6	01	1	9603-9711	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> L=2457	1-62500-670-6	01	1	9603-9711	●
48	CABLE ASM; CONT L=2457	1-62500-670-6	01	1	9712-9910	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	9911-	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9603-9711	●	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	02	1	9603-9907	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9908-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	9603-	●	●
52	CLIP; CONT CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9603-9907	●	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
56	HOSE; FLEX,OIL PIPE L=650	1-09364-432-3	01	1	9611-9904	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=650	1-09365-053-0	01	1	9905-	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=750	1-09365-058-0	01	1	9905-	●
56	HOSE; FLEX,OIL PIPE L=300	1-09364-545-1	01	1	9603-9610	●	●
56	HOSE; FLEX,OIL PIPE L=300	1-09364-545-2	01	1	9611-9904		●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=300	1-09365-059-0	01	1	9905-		●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=400	1-09365-060-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (A)	1-47424-665-1	01	1	9603-9610	●
58	PIPE; OIL,POWER UNIT (B)	1-47428-473-0	01	1	9603-9904	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (B)	1-49163-336-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT (C)	1-47428-474-0	01	1	9603-9904	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (C)	1-49163-342-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (B)	1-49163-338-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (C)	1-49163-344-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT (A) L=1390	1-47428-967-0	01	1	9603-9904		●
58	PIPE; OIL,POWER UNIT (A) L=1396	1-49163-351-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (B) L=1025	1-47429-627-0	01	1	9603-9903		●
58	PIPE; OIL,POWER UNIT (B) L=1030	1-49164-392-0	01	1	9904-9904		●
58	PIPE; OIL,POWER UNIT (B) L=1054	1-49164-150-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (C) L=997	1-47429-806-0	01	1	9603-9903		●
58	PIPE; OIL,POWER UNIT (C) L=1002	1-49164-393-0	01	1	9904-9904		●
58	PIPE; OIL,POWER UNIT (C) L=1120	1-49164-151-0	01	1	9905-9910		●
58	PIPE; OIL,POWER UNIT (C) L=1006	1-49165-034-0	01	1	9911-		●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	9603-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	9603-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	9603-	●	●
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	9603-	●	●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●	●
62	CLIP; OIL PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9603-9905	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9905-	●	●
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904		●
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904		●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-		●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
65	UNION; OIL PIPE M14	9-09223-308-1	02	1	9603-9904	●	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	9905-	●	●
68	BRACKET; UNION (A)	1-47476-898-0	01	1	9603-9610	●
68	BRACKET; UNION (B)	1-47478-499-0	01	1	9903-9904	●
68	BRACKET; UNION (B)	1-47478-383-0	01	1	9905-	●
68	BRACKET; UNION (B)	1-47477-751-0	01	1	9603-9902		●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	9603-		●
68	BRACKET; UNION (B)	1-47478-500-0	01	1	9903-9904		●
68	BRACKET; UNION (B)	1-47478-384-0	01	1	9905-		●
69	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	9607-9610	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	9611-		●
172	HOSE; FLEX,OIL TILT L=1600	1-09364-825-1	02	1	9603-9904	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	9905-	●	●
175	UNION; FLEX HOSE M14	9-09225-208-1	01	1	9603-9610	●
175	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	9603-9904		●
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	9905-		●
176	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9610	●
176	NUT; UNION (B) M14	9-99111-414-0	02	1	9603-9904	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	9905-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91150-112-0	01	1	9603-9606		●
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-		●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9603-9904	●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9905-	●	●
178	CLIP; FLEX HOSE (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9611-9904	●
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●
178	CLIP; FLEX HOSE (B) ID=12-16 & 12-16	1-09709-191-0	02	1	9603-9706	●	●
189	BOLT; CLIP FULL FLOATING CAB(W16) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
189	BOLT; CLIP FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	01	1	9607-		●
189	BOLT; CLIP EXC. FULL FLOATING CAB(W16) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606		●
189	BOLT; CLIP EXC. FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	03	1	9607-		●
198	BRACKET; CABLE L TYPE ENG<90L>	1-46147-101-0	01	1	9603-9904		●
198	BRACKET; CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9>	1-46147-101-0	01	1	9905-		●
199	BOLT; BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
199	BOLT; BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904		●
199	BOLT; BRKT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	01	1	9905-		●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	9603-	●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9905-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9905-	●	●

176 34 68 163 58 175 326 53 325 56 52 63 58 273 35 59 62 48 58 30 62 172 176 177 172 68 65 176 65 177 69 59 62 59 62 52 178 63 63 30 30 30 59 62 63 52 62 63 59 52 63 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
30	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	9607-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28081-225-0	01	1	9603-9606	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	9607-	●	●
34	WASHER; LK ID=14.2	9-09150-514-0	01	1	9603-9610	●
35	NUT; BRKT M8	9-09110-408-0	02	1	9603-9606	●	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
48	CABLE ASM; CONT 10PE1S(60L) L=2457	1-62500-670-6	01	1	9603-9711	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> L=2457	1-62500-670-6	01	1	9603-9711	●
48	CABLE ASM; CONT L=2457	1-62500-670-6	01	1	9712-9910	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	9911-	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9603-9711	●	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	02	1	9603-9907	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9908-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	9603-	●	●
52	CLIP; CONT CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9603-9907	●	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
56	HOSE; FLEX,OIL PIPE L=650	1-09364-432-3	01	1	9611-9904	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=650	1-09365-053-0	01	1	9905-	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=750	1-09365-058-0	01	1	9905-	●
56	HOSE; FLEX,OIL PIPE L=300	1-09364-545-1	01	1	9603-9610	●	●
56	HOSE; FLEX,OIL PIPE L=300	1-09364-545-2	01	1	9611-9904		●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=300	1-09365-059-0	01	1	9905-		●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=400	1-09365-060-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (A)	1-47424-665-1	01	1	9603-9610	●
58	PIPE; OIL,POWER UNIT (B)	1-47428-473-0	01	1	9603-9904	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (B)	1-49163-336-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT (C)	1-47428-474-0	01	1	9603-9904	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (C)	1-49163-342-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (B)	1-49163-338-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (C)	1-49163-344-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT (A) L=1390	1-47428-967-0	01	1	9603-9904		●
58	PIPE; OIL,POWER UNIT (A) L=1396	1-49163-351-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (B) L=1025	1-47429-627-0	01	1	9603-9903		●
58	PIPE; OIL,POWER UNIT (B) L=1030	1-49164-392-0	01	1	9904-9904		●
58	PIPE; OIL,POWER UNIT (B) L=1054	1-49164-150-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (C) L=997	1-47429-806-0	01	1	9603-9903		●
58	PIPE; OIL,POWER UNIT (C) L=1002	1-49164-393-0	01	1	9904-9904		●
58	PIPE; OIL,POWER UNIT (C) L=1120	1-49164-151-0	01	1	9905-9910		●
58	PIPE; OIL,POWER UNIT (C) L=1006	1-49165-034-0	01	1	9911-		●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	9603-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	9603-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	9603-	●	●
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	9603-	●	●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●	●
62	CLIP; OIL PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9603-9905	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9905-	●	●
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904		●
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904		●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-		●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
65	UNION; OIL PIPE M14	9-09223-308-1	02	1	9603-9904	●	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	9905-	●	●
68	BRACKET; UNION (A)	1-47476-898-0	01	1	9603-9610	●
68	BRACKET; UNION (B)	1-47478-499-0	01	1	9903-9904	●
68	BRACKET; UNION (B)	1-47478-383-0	01	1	9905-	●
68	BRACKET; UNION (B)	1-47477-751-0	01	1	9603-9902		●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	9603-		●
68	BRACKET; UNION (B)	1-47478-500-0	01	1	9903-9904		●
68	BRACKET; UNION (B)	1-47478-384-0	01	1	9905-		●
69	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	9607-9610	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	9611-		●
172	HOSE; FLEX,OIL TILT L=1600	1-09364-825-1	02	1	9603-9904	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	9905-	●	●
175	UNION; FLEX HOSE M14	9-09225-208-1	01	1	9603-9610	●
175	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	9603-9904		●
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	9905-		●
176	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9610	●
176	NUT; UNION (B) M14	9-99111-414-0	02	1	9603-9904	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	9905-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91150-112-0	01	1	9603-9606		●
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-		●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9603-9904	●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9905-	●	●
178	CLIP; FLEX HOSE (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9611-9904	●
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●
178	CLIP; FLEX HOSE (B) ID=12-16 & 12-16	1-09709-191-0	02	1	9603-9706	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	9603-	●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9905-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9905-	●	●

179 178 180 53 52 56 326 63 325 58 48 58 273 172 172 35 59 62 62 176 177 68 65 176 177 30 69 65 62 59 62 59 52 178 63 63 30 30 30 59 62 63 52 62 63 59 52 63 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
30	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	9607-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28081-225-0	01	1	9603-9606	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	9607-	●	●
35	NUT; BRKT M8	9-09110-408-0	02	1	9603-9606	●	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
48	CABLE ASM; CONT 10PE1S(60L) L=2457	1-62500-670-6	01	1	9603-9711	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> L=2457	1-62500-670-6	01	1	9603-9711	●
48	CABLE ASM; CONT L=2457	1-62500-670-6	01	1	9712-9910	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	9911-	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9603-9711	●	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	02	1	9603-9907	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9908-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	9603-	●	●
52	CLIP; CONT CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9603-9907	●	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
56	HOSE; FLEX,OIL PIPE L=650	1-09364-432-3	01	1	9611-9904	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=650	1-09365-053-0	01	1	9905-	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=750	1-09365-058-0	01	1	9905-	●
56	HOSE; FLEX,OIL PIPE L=300	1-09364-545-1	01	1	9603-9610	●	●
56	HOSE; FLEX,OIL PIPE L=300	1-09364-545-2	01	1	9611-9904		●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=300	1-09365-059-0	01	1	9905-		●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=400	1-09365-060-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (A)	1-47424-665-1	01	1	9603-9610	●
58	PIPE; OIL,POWER UNIT (B)	1-47428-473-0	01	1	9603-9904	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (B)	1-49163-336-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT (C)	1-47428-474-0	01	1	9603-9904	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (C)	1-49163-342-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (B)	1-49163-338-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (C)	1-49163-344-0	01	1	9905-	●
58	PIPE; OIL,POWER UNIT (A) L=1390	1-47428-967-0	01	1	9603-9904		●
58	PIPE; OIL,POWER UNIT (A) L=1396	1-49163-351-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (B) L=1025	1-47429-627-0	01	1	9603-9903		●
58	PIPE; OIL,POWER UNIT (B) L=1030	1-49164-392-0	01	1	9904-9904		●
58	PIPE; OIL,POWER UNIT (B) L=1054	1-49164-150-0	01	1	9905-		●
58	PIPE; OIL,POWER UNIT (C) L=997	1-47429-806-0	01	1	9603-9903		●
58	PIPE; OIL,POWER UNIT (C) L=1002	1-49164-393-0	01	1	9904-9904		●
58	PIPE; OIL,POWER UNIT (C) L=1120	1-49164-151-0	01	1	9905-9910		●
58	PIPE; OIL,POWER UNIT (C) L=1006	1-49165-034-0	01	1	9911-		●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	9603-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	9603-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	9603-	●	●
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	9603-	●	●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●	●
62	CLIP; OIL PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9603-9905	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9905-	●	●
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9904		●
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-		●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9904		●
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	03	1	9905-		●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
65	UNION; OIL PIPE M14	9-09223-308-1	02	1	9603-9904	●	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	9905-	●	●
68	BRACKET; UNION (A)	1-47476-898-0	01	1	9603-9610	●
68	BRACKET; UNION (B)	1-47478-499-0	01	1	9903-9904	●
68	BRACKET; UNION (B)	1-47478-383-0	01	1	9905-	●
68	BRACKET; UNION (B)	1-47477-751-0	01	1	9603-9902		●
68	BRACKET; UNION (A)	1-53458-374-1	01	1	9603-		●
68	BRACKET; UNION (B)	1-47478-500-0	01	1	9903-9904		●
68	BRACKET; UNION (B)	1-47478-384-0	01	1	9905-		●
69	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09364-825-1	02	1	9603-9904	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	9905-	●	●
176	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9610	●
176	NUT; UNION (B) M14	9-99111-414-0	02	1	9603-9904	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	9905-	●	●
176	NUT; UNION (A) M12 FLANGE	0-91150-112-0	01	1	9603-9606		●
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	9607-		●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9603-9904	●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9905-	●	●
178	CLIP; FLEX HOSE (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9611-9904	●
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●
178	CLIP; FLEX HOSE (B) ID=12-16 & 12-16	1-09709-191-0	02	1	9603-9706	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	9611-	●
180	NUT; CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	9905-	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	9603-	●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9905-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9905-	●	●

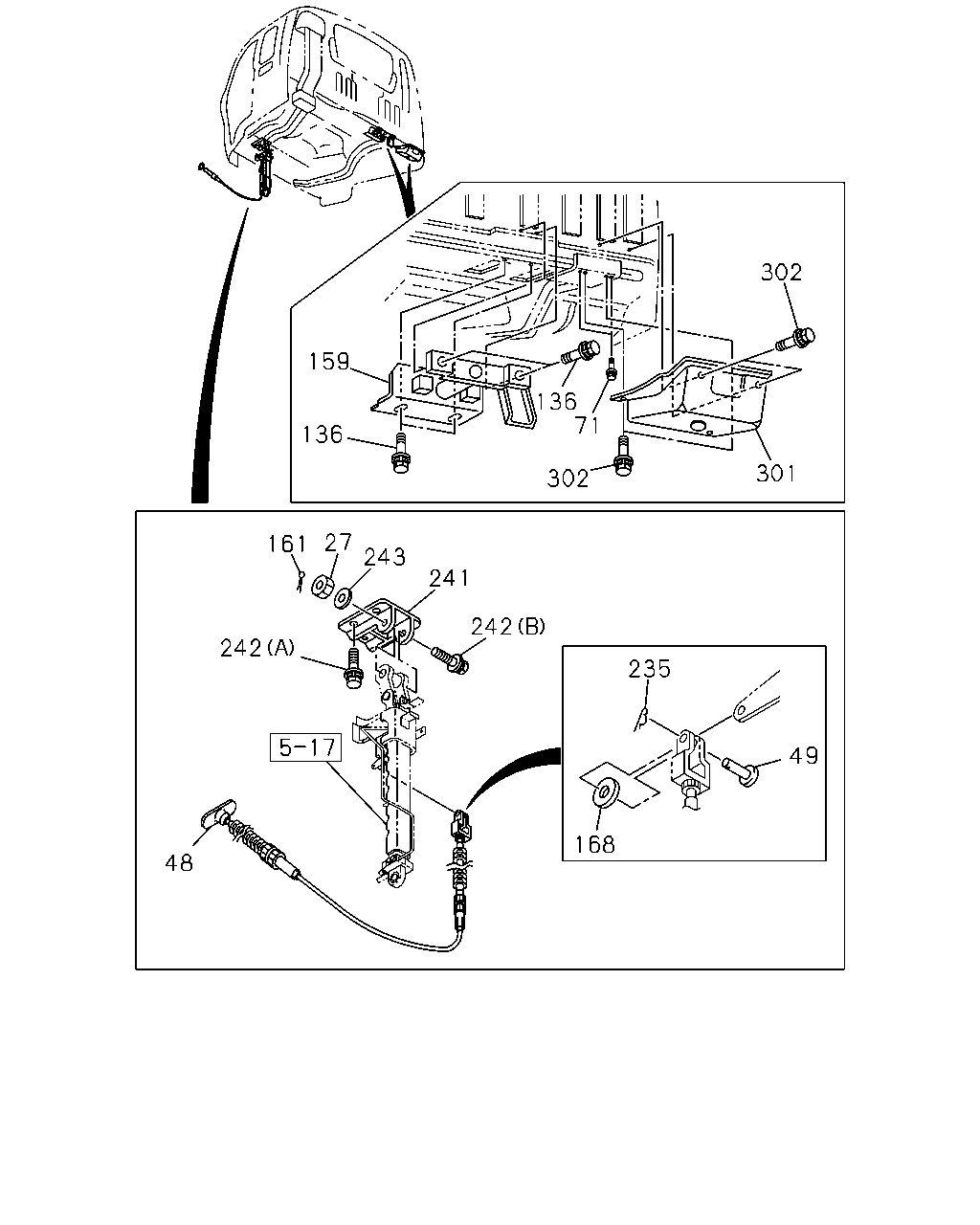

302 159 136 71 136 301 302 27 161 243 241 242 242 235 49 168 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	NUT; OIL CYL M14	9-99116-414-0	01	1	9603-	●	●
48	CABLE ASM; CONT 10PE1S(60L) L=2457	1-62500-670-6	01	1	9603-9711	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> L=2457	1-62500-670-6	01	1	9603-9711	●
48	CABLE ASM; CONT L=2457	1-62500-670-6	01	1	9712-9910	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	9911-	●	●
48	CABLE ASM; CONT 6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9603-9711	●	●
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	9603-	●	●
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	9603-	●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	9603-	●	●
159	PIN	1-79717-615-2	01	1	9603-9609	●	●
159	PIN	1-79717-627-1	01	1	9610-	●	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	9603-	●	●
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	9603-	●	●
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	9603-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-0	01	1	9603-	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-660-0	01	1	9603-		●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30	1-09980-546-0	05	1	9603-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	9603-	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	9603-	●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	9603-	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
