7-45 — CONSOLE BOX (#583) — 55 parça

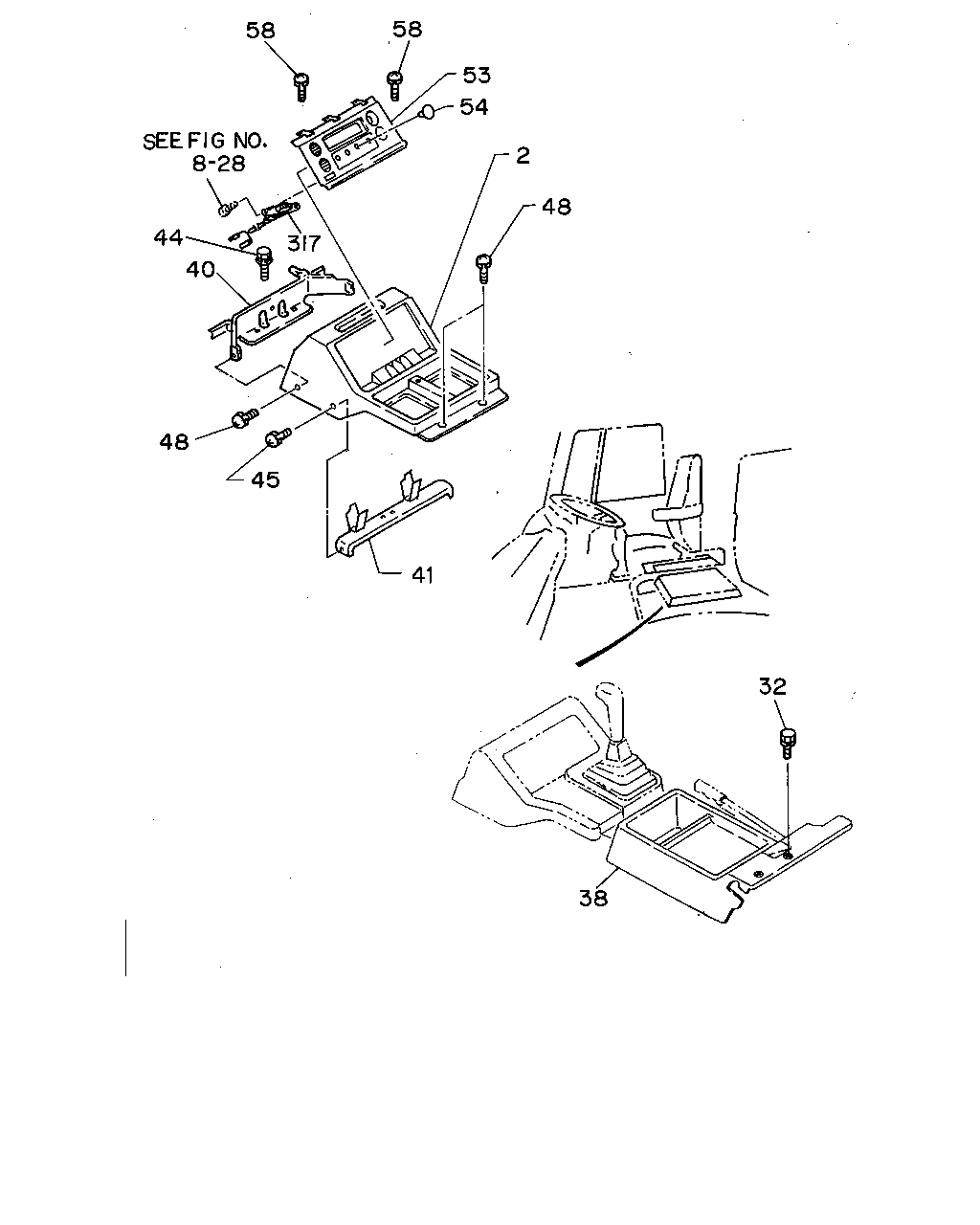

58 58 53 54 2 48 317 44 40 48 45 41 32 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CONSOLE; CENTER	1-72447-396-1	01	1	8712-9001
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	8712-
38	TRAY; PARCEL,PIPING COVER FULL TRACTOR TRUCK<RD6>	1-72497-036-2	01	1	8712-9306
38	TRAY; PARCEL,PIPING COVER FULL TRACTOR TRUCK<RD6>	1-72497-055-0	01	1	9307-
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-614-4	01	1	8712-
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	8712-
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	8712-9301
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	8712-
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	8712-
53	PANEL; SW,CENTER CONSOLE	1-72447-362-6	01	1	8712-9205
53	PANEL; SW,CENTER CONSOLE EXC. RADIO AM & TAPE PLAYER(UM1)	1-72447-362-6	01	1	9206-
53	PANEL; SW,CENTER CONSOLE RADIO AM & TAPE PLAYER(UM1)	1-72447-588-0	01	1	9206-
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	8712-9502
54	BUTTON; CLIP,CTR CONSOLE EXC. EXH HEAT WARNING<W50>	1-72447-390-0	01	1	9503-
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	05	1	8712-
317	CONSENT	1-82523-011-3	01	1	9002-

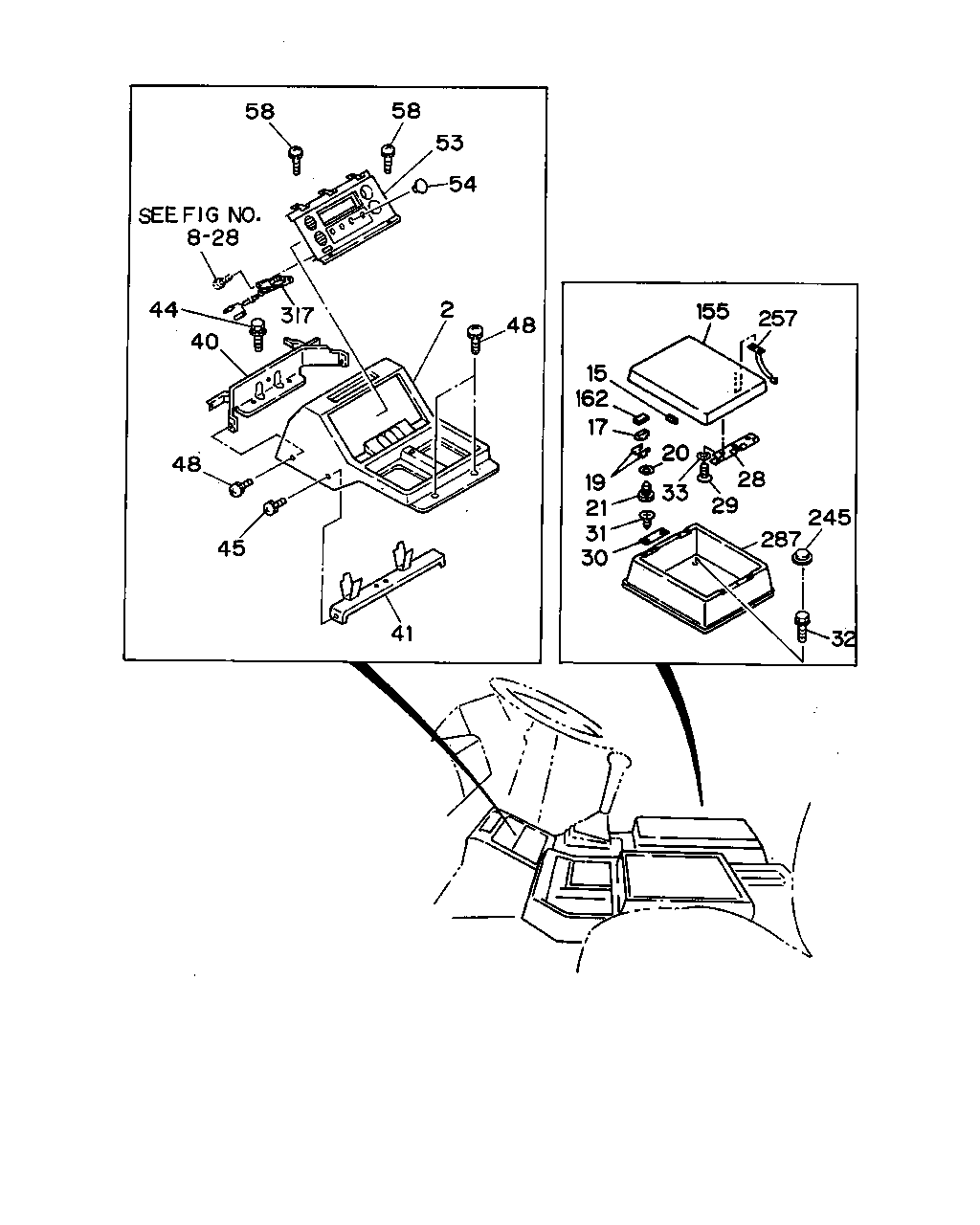

58 58 53 54 48 2 317 44 40 48 45 41 155 257 28 245 287 32 29 33 20 15 162 17 19 21 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CONSOLE; CENTER	1-72447-396-1	01	1	8712-9001
2	CONSOLE; CENTER	1-72447-417-1	01	1	9002-9306
2	CONSOLE; CENTER	1-72447-538-1	01	1	9307-
15	FINISHER; PARCEL BOX EXC. FULL TRACTOR TRUCK<RD6> L=190	1-71998-300-0	04	1	8712-
17	MAGNET; LID EXC. FULL TRACTOR TRUCK<RD6>	8-94286-017-2	02	1	8712-
19	PLATE; MAGNET GUIDE,PARCEL BOX LID EXC. FULL TRACTOR TRUCK<RD6>	8-94286-457-0	04	1	8712-
20	WASHER; PL,MAGNET EXC. FULL TRACTOR TRUCK<RD6> ID=4.3 OD=10	9-09160-604-0	04	1	8712-
21	SCREW; MAGNET EXC. FULL TRACTOR TRUCK<RD6> M3X10 TAPPING	9-07066-310-0	04	1	8712-
28	HINGE; PARCEL BOX EXC. FULL TRACTOR TRUCK<RD6>	1-72447-391-1	01	1	8712-
29	SCREW; HINGE EXC. FULL TRACTOR TRUCK<RD6> M4X16	0-70080-416-0	06	1	8712-
29	SCREW; HINGE EXC. FULL TRACTOR TRUCK<RD6> M3X10 TAPPING	9-07066-310-0	02	1	8712-
30	PLATE; MAGNET,PARCEL BOX LOCK EXC. FULL TRACTOR TRUCK<RD6>	8-94286-018-0	02	1	8712-
31	SCREW; MAGNET PLATE,PARCEL BOX EXC. FULL TRACTOR TRUCK<RD6> M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	8712-
32	SCREW; PARCEL BOX M6X20 W/PL WASHER	5-09981-023-0	04	1	8712-
33	WASHER; PL,CONSOLE BOX EXC. FULL TRACTOR TRUCK<RD6> ID=3.9	8-94279-622-0	04	1	8712-9302
40	BRACKET; SUPPORT,CENTER CONSOLE	1-65670-614-4	01	1	8712-
41	STRUT ASM; CENTER CONSOLE	1-65670-599-2	01	1	8712-
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	8712-9301
44	BOLT; SUPPORT,CTR CONSOLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-
45	SCREW; STRUT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	02	1	8712-
48	SCREW; BRKT,CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-367-0	04	1	8712-
53	PANEL; SW,CENTER CONSOLE	1-72447-362-6	01	1	8712-9205
53	PANEL; SW,CENTER CONSOLE EXC. RADIO AM & TAPE PLAYER(UM1)	1-72447-362-6	01	1	9206-
53	PANEL; SW,CENTER CONSOLE RADIO AM & TAPE PLAYER(UM1)	1-72447-588-0	01	1	9206-
54	BUTTON; CLIP,CTR CONSOLE	1-72447-390-0	01	1	8712-9502
54	BUTTON; CLIP,CTR CONSOLE EXC. EXH HEAT WARNING<W50>	1-72447-390-0	01	1	9503-
58	SCREW; SW PNL M5X14 W/PL WASHER	5-09981-050-0	05	1	8712-
155	LID; PARCEL BOX EXC. FULL TRACTOR TRUCK<RD6>	1-72447-423-2	01	1	8712-9306
155	LID; PARCEL BOX EXC. FULL TRACTOR TRUCK<RD6>	1-72447-510-0	01	1	9307-
162	CUSHION; PARCEL BOX EXC. FULL TRACTOR TRUCK<RD6>	1-72447-485-1	02	1	8712-
245	CAP; CTR,CONSOLE EXC. FULL TRACTOR TRUCK<RD6>	1-72447-467-1	01	1	8712-9306
257	CONSOLE; BEAR EXC. FULL TRACTOR TRUCK<RD6>	1-72447-468-1	01	1	9307-
287	BOX; PARCEL	1-72447-403-1	01	1	8712-9001
287	BOX; PARCEL EXC. FULL TRACTOR TRUCK<RD6>	1-72447-493-0	01	1	9002-9306
287	BOX; PARCEL EXC. FULL TRACTOR TRUCK<RD6>	1-72447-508-0	01	1	9307-
317	CONSENT	1-82523-011-3	01	1	9002-
