Sayfa 0-28 - Isuzu EPC

0-28 — VENTILATION SYSTEM (#58299) — 257 parça

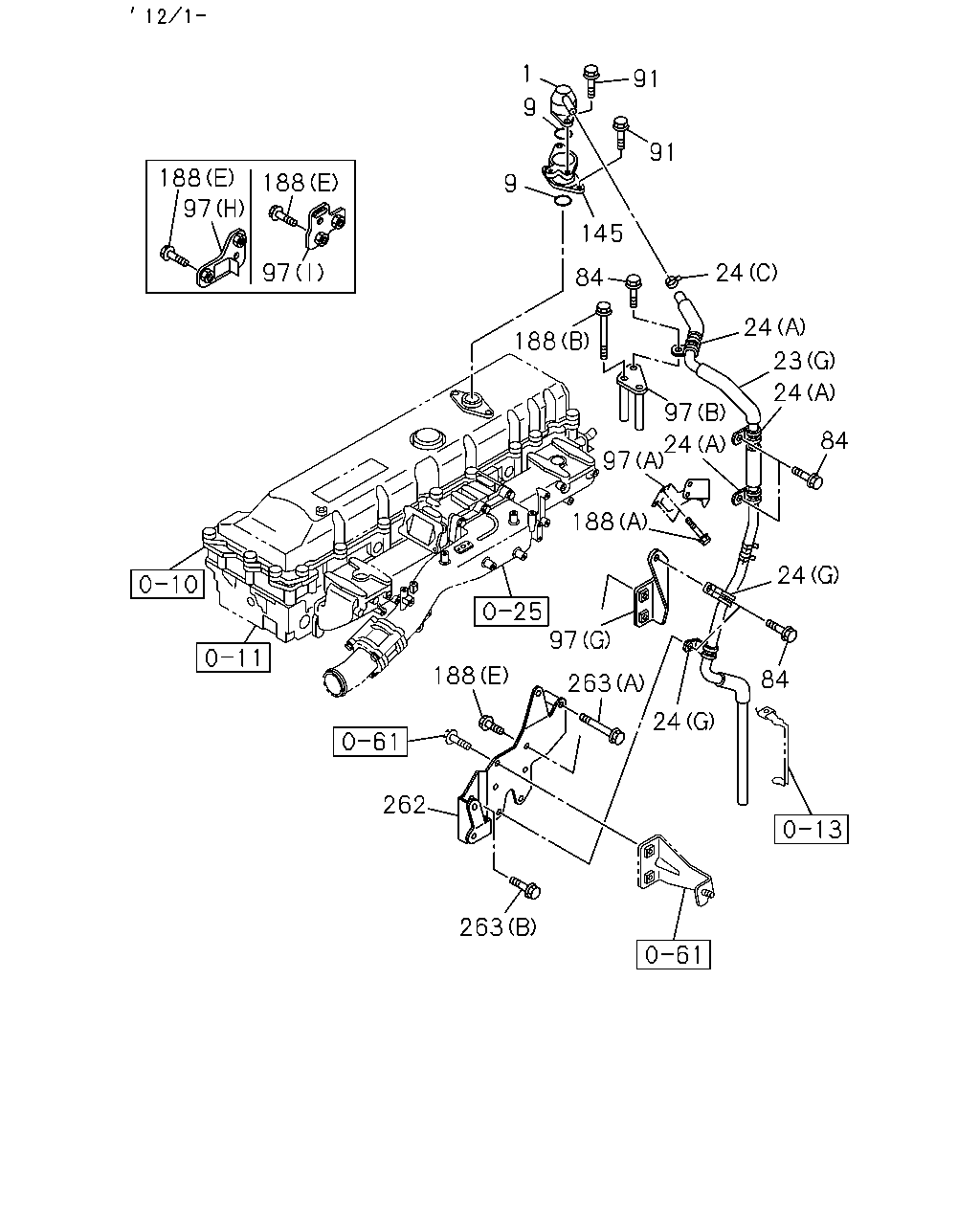

1 91 9 91 145 24 84 188 24 24 84 84 97 24 23 23 24 24 151 90 279 178 90 309 110 110 3 318 3 3 275 151 263 263 24 262 261 24 24 24 23 24 86 85 86 24 24 188 97 84 9 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1008-1112		●
3	GASKET; BODY TO CAP CAUTIONS ENGLISH<RR8>	8-97385-921-0	01	1	1201-		●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (A)	8-97611-033-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (G)	8-98204-684-0	01	1	1201-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (B)	8-97611-034-2	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (C)	8-97611-035-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (D)	8-98163-389-2	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (E)	8-98163-545-0	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (F)	8-98165-843-0	01	1	1008-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (G) ID=35 H=45 L=33	1-09700-947-0	02	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (C) ID=28.5	1-09707-150-0	01	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=28.5	1-09707-150-0	06	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (C) ID=28.5	1-09707-150-0	06	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (D) L=250	5-09707-030-1	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	5-09707-030-1	01	1	1201-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	8-98216-430-0	01	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=33 L=30	8-97619-250-0	02	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (E) ID=31 L=30	1-09700-969-0	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (A) ID=33 L=30	8-97619-250-0	03	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (F) ID=24.5 L=22	8-97603-362-1	04	1	1008-		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1008-1210		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	07	1	1211-1411		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1412-		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS CHINESE<SL7> M8X50 FLANGE	0-28050-850-0	01	1	1008-1112		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS ENGLISH<RR8> M8X50 FLANGE	0-28050-850-0	02	1	1008-		●
85	PIPE; BREATHER CAUTIONS CHINESE<SL7>	8-97611-021-1	01	1	1008-1112		●
85	PIPE; BREATHER CAUTIONS ENGLISH<RR8>	8-98163-543-0	01	1	1008-		●
86	BOLT; BREATHER PIPE CAUTIONS CHINESE<SL7> M8X16 FLANGE	0-28050-816-0	02	1	1008-1112		●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1008-1112		●
90	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=14	1-09704-102-0	02	1	1201-		●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1008-1112		●
110	GASKET; PIPE CAUTIONS ENGLISH<RR8> ID=11	1-09623-469-0	02	1	1201-		●
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1008-		●
151	SEPARATOR; OIL,PCV	8-97604-118-0	01	1	1008-1112		●
151	SEPARATOR; OIL,PCV CAUTIONS ENGLISH<RR8>	8-97604-118-0	01	1	1201-		●
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1008-1112		●
178	BOLT; PIPE CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	01	1	1201-		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1008-1112		●
261	BOLT; SEPARETOR CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	04	1	1201-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●
275	CAP; PCV	8-97385-918-0	01	1	1008-1112		●
275	CAP; PCV CAUTIONS ENGLISH<RR8>	8-97385-918-0	01	1	1201-		●
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1008-1112		●
279	HOSE; RUBBER,OIL DRAIN CAUTIONS ENGLISH<RR8> L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1201-		●
306	SPACER; CLIP CAUTIONS CHINESE<SL7> L=33	8-97329-615-0	01	1	1008-1112		●
309	PIPE ASM; OIL SEPARATOR	1-13314-045-1	01	1	1008-1112		●
309	PIPE ASM; OIL SEPARATOR CAUTIONS ENGLISH<RR8>	1-13314-045-1	01	1	1201-		●
318	ELEMENT KIT; PCV	8-97385-919-0	01	1	1008-1112		●
318	ELEMENT KIT; PCV CAUTIONS ENGLISH<RR8>	8-97385-919-0	01	1	1201-		●

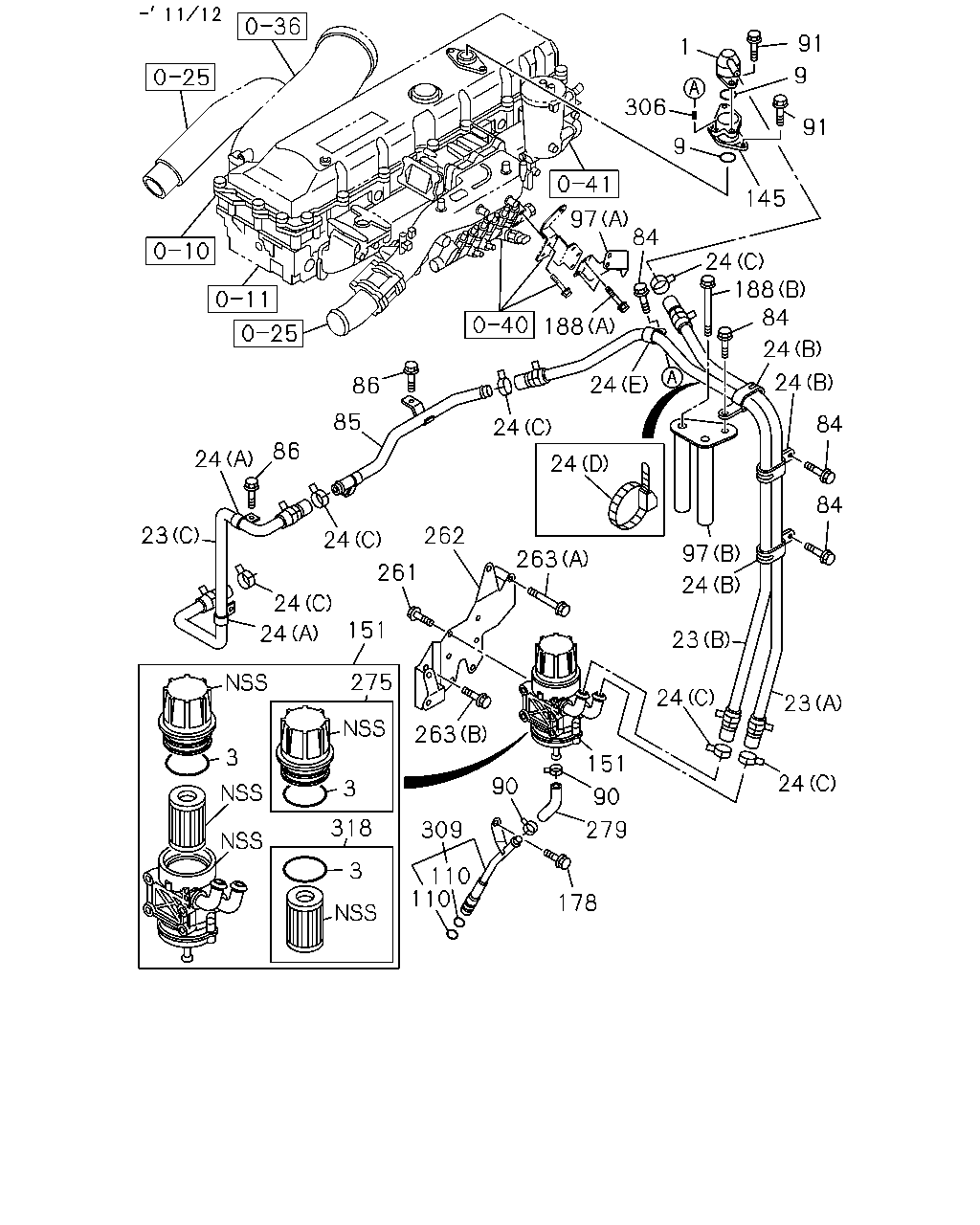

97 188 24 84 24 84 1 97 91 335 192 91 9 145 9 24 24 24 84 23 24 24 3 85 151 261 188 97 262 23 263 188 97 24 24 84 23 24 24 151 90 279 178 90 309 110 110 3 318 3 275 91 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1008-1112		●
3	GASKET; BODY TO CAP CAUTIONS ENGLISH<RR8>	8-97385-921-0	01	1	1201-		●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (A)	8-97611-033-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (G)	8-98204-684-0	01	1	1201-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (B)	8-97611-034-2	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (C)	8-97611-035-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (D)	8-98163-389-2	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (E)	8-98163-545-0	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (F)	8-98165-843-0	01	1	1008-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (G) ID=35 H=45 L=33	1-09700-947-0	02	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (C) ID=28.5	1-09707-150-0	01	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=28.5	1-09707-150-0	06	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (C) ID=28.5	1-09707-150-0	06	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (D) L=250	5-09707-030-1	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	5-09707-030-1	01	1	1201-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	8-98216-430-0	01	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=33 L=30	8-97619-250-0	02	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (E) ID=31 L=30	1-09700-969-0	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (A) ID=33 L=30	8-97619-250-0	03	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (F) ID=24.5 L=22	8-97603-362-1	04	1	1008-		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1008-1210		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	07	1	1211-1411		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1412-		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS CHINESE<SL7> M8X50 FLANGE	0-28050-850-0	01	1	1008-1112		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS ENGLISH<RR8> M8X50 FLANGE	0-28050-850-0	02	1	1008-		●
85	PIPE; BREATHER CAUTIONS CHINESE<SL7>	8-97611-021-1	01	1	1008-1112		●
85	PIPE; BREATHER CAUTIONS ENGLISH<RR8>	8-98163-543-0	01	1	1008-		●
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1008-1112		●
90	CLIP; RUBBER HOSE CAUTIONS ENGLISH<RR8> ID=14	1-09704-102-0	02	1	1201-		●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1008-1112		●
110	GASKET; PIPE CAUTIONS ENGLISH<RR8> ID=11	1-09623-469-0	02	1	1201-		●
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1008-		●
151	SEPARATOR; OIL,PCV	8-97604-118-0	01	1	1008-1112		●
151	SEPARATOR; OIL,PCV CAUTIONS ENGLISH<RR8>	8-97604-118-0	01	1	1201-		●
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1008-1112		●
178	BOLT; PIPE CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	01	1	1201-		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	1-09707-082-1	01	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	8-98216-422-0	01	1	1208-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B) L=700	1-09707-190-0	02	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B)	8-98216-429-0	02	1	1208-		●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1008-1112		●
261	BOLT; SEPARETOR CAUTIONS ENGLISH<RR8> M8X16 FLANGE	0-28050-816-0	04	1	1201-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●
275	CAP; PCV	8-97385-918-0	01	1	1008-1112		●
275	CAP; PCV CAUTIONS ENGLISH<RR8>	8-97385-918-0	01	1	1201-		●
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1008-1112		●
279	HOSE; RUBBER,OIL DRAIN CAUTIONS ENGLISH<RR8> L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1201-		●
309	PIPE ASM; OIL SEPARATOR	1-13314-045-1	01	1	1008-1112		●
309	PIPE ASM; OIL SEPARATOR CAUTIONS ENGLISH<RR8>	1-13314-045-1	01	1	1201-		●
318	ELEMENT KIT; PCV	8-97385-919-0	01	1	1008-1112		●
318	ELEMENT KIT; PCV CAUTIONS ENGLISH<RR8>	8-97385-919-0	01	1	1201-		●
335	COVER; AIR BREATHER CAUTIONS ENGLISH<RR8>	8-98074-852-0	01	1	1008-		●

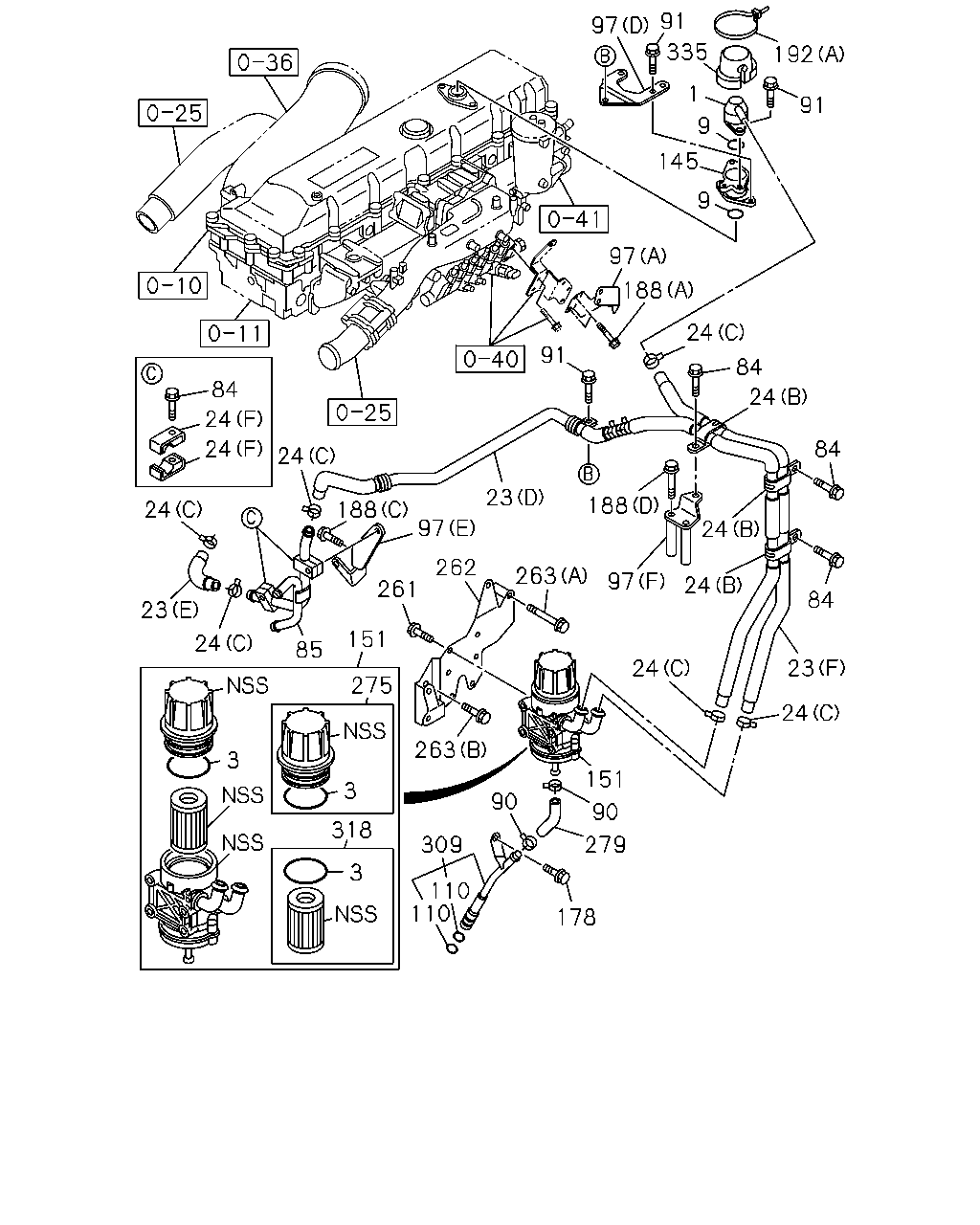

91 1 9 11 59 106 10 10 106 10 10 106 106 97 262 263 188 263 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
10	CLIP; AIR BREATHER (B) ID=31 L=30	1-09700-969-0	03	1	1008-1208	●
10	CLIP; AIR BREATHER (B) ID=29 L=30	8-98225-679-0	04	1	1209-	●
10	CLIP; AIR BREATHER (A) ID=28.5	1-09707-150-0	01	1	1008-	●
11	HOSE; RUBBER,AIR	1-11742-086-3	01	1	1008-1208	●
11	HOSE; RUBBER,AIR	8-98225-542-0	01	1	1209-	●
59	CLIP; HOSE ID=33.6	8-94362-518-0	01	1	1008-1208	●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
106	BOLT; DRAIN PIPE M8X12 FLANGE	0-28050-812-0	01	1	1008-	●
106	BOLT; DRAIN PIPE M8X16 FLANGE	0-28050-816-0	01	1	1008-1208	●
106	BOLT; DRAIN PIPE M8X16 FLANGE	0-28050-816-0	02	1	1209-	●
106	BOLT; DRAIN PIPE M8X25 FLANGE	0-28050-825-0	02	1	1008-	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●

91 91 24 24 24 23 84 24 84 24 263 97 188 188 97 24 97 188 84 145 9 9 1 188 188 97 97 263 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR	1-11740-181-1	01	1	1008-	●	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	01	1	1008-	●
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (A)	8-97611-033-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (G)	8-98204-684-0	01	1	1201-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (B)	8-97611-034-2	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS CHINESE<SL7> (C)	8-97611-035-3	01	1	1008-1112		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (D)	8-98163-389-2	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (E)	8-98163-545-0	01	1	1008-		●
23	HOSE; RUBBER,VENTILATOR PIPE CAUTIONS ENGLISH<RR8> (F)	8-98165-843-0	01	1	1008-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1412-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (G) ID=35 H=45 L=33	1-09700-947-0	02	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (C) ID=28.5	1-09707-150-0	01	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (B) ID=30X2 L=28	1-09701-266-0	03	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR (C) ID=28.5	1-09707-150-0	06	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (C) ID=28.5	1-09707-150-0	06	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR (D) L=250	5-09707-030-1	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	5-09707-030-1	01	1	1201-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (D) L=250	8-98216-430-0	01	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=33 L=30	8-97619-250-0	02	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (A) ID=33 L=30	8-97619-250-0	02	1	1201-1210		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (E) ID=31 L=30	1-09700-969-0	01	1	1008-1112		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS CHINESE<SL7> (A) ID=33 L=30	8-97619-250-0	03	1	1201-		●
24	CLIP; RUBBER HOSE,VENTILATOR CAUTIONS ENGLISH<RR8> (F) ID=24.5 L=22	8-97603-362-1	04	1	1008-		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1008-1210		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	07	1	1211-1411		●
84	BOLT; PIPE CLIP,VENTILATOR M8X16 FLANGE	0-28050-816-0	05	1	1412-		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS CHINESE<SL7> M8X50 FLANGE	0-28050-850-0	01	1	1008-1112		●
84	BOLT; PIPE CLIP,VENTILATOR CAUTIONS ENGLISH<RR8> M8X50 FLANGE	0-28050-850-0	02	1	1008-		●
91	BOLT; AIR BREATHER M10X20 FLANGE	0-28151-020-0	02	1	1008-	●	●
91	BOLT; AIR BREATHER CAUTIONS CHINESE<SL7> M10X20 FLANGE	0-28151-020-0	02	1	1008-		●
91	BOLT; AIR BREATHER CAUTIONS ENGLISH<RR8> M10X25 FLANGE	0-28151-025-0	02	1	1008-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (H)	8-98227-930-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (I)	8-98227-931-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (G)	8-98195-254-0	01	1	1201-		●
97	BRACKET; HOSE (C)	8-97629-739-0	01	1	1008-	●
97	BRACKET; HOSE (A)	1-15419-726-0	01	1	1008-	●	●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-97620-560-0	01	1	1008-1210		●
97	BRACKET; HOSE CAUTIONS CHINESE<SL7> (B)	8-98227-929-0	01	1	1211-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (D)	8-98163-390-1	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (E)	8-98163-544-0	01	1	1008-		●
97	BRACKET; HOSE CAUTIONS ENGLISH<RR8> (F)	8-98167-201-0	01	1	1008-		●
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	02	1	1201-1210		●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (E) M8X20 FLANGE	0-28050-820-0	04	1	1211-		●
188	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-	●	●
188	BOLT; BRKT CAUTIONS CHINESE<SL7> (B) M10X140 FLANGE	0-28156-014-0	02	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (C) M8X25 FLANGE	0-28050-825-0	01	1	1008-		●
188	BOLT; BRKT CAUTIONS ENGLISH<RR8> (D) M10X130 FLANGE	0-28156-013-0	02	1	1008-		●
262	BRACKET; OIL SEPARETOR	1-13345-220-1	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1008-	●	●
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1008-	●	●

270 151 270 270 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	SEPARATOR; OIL,PCV	8-97604-118-0	01	1	1008-1112		●
151	SEPARATOR; OIL,PCV CAUTIONS ENGLISH<RR8>	8-97604-118-0	01	1	1201-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	1-09707-082-1	01	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (A) L=500	8-98216-422-0	01	1	1208-		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B) L=700	1-09707-190-0	02	1	1008-1207		●
192	CLIP; BAND CAUTIONS ENGLISH<RR8> (B)	8-98216-429-0	02	1	1208-		●
270	COVER; VENTILATOR CAUTIONS ENGLISH<RR8> (A)	8-98165-302-0	01	1	1008-		●
270	COVER; VENTILATOR CAUTIONS ENGLISH<RR8> (B)	8-98165-304-0	01	1	1008-		●
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (C)	8-98165-305-2	01	1	1008-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
