◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#58291) — 47 parça

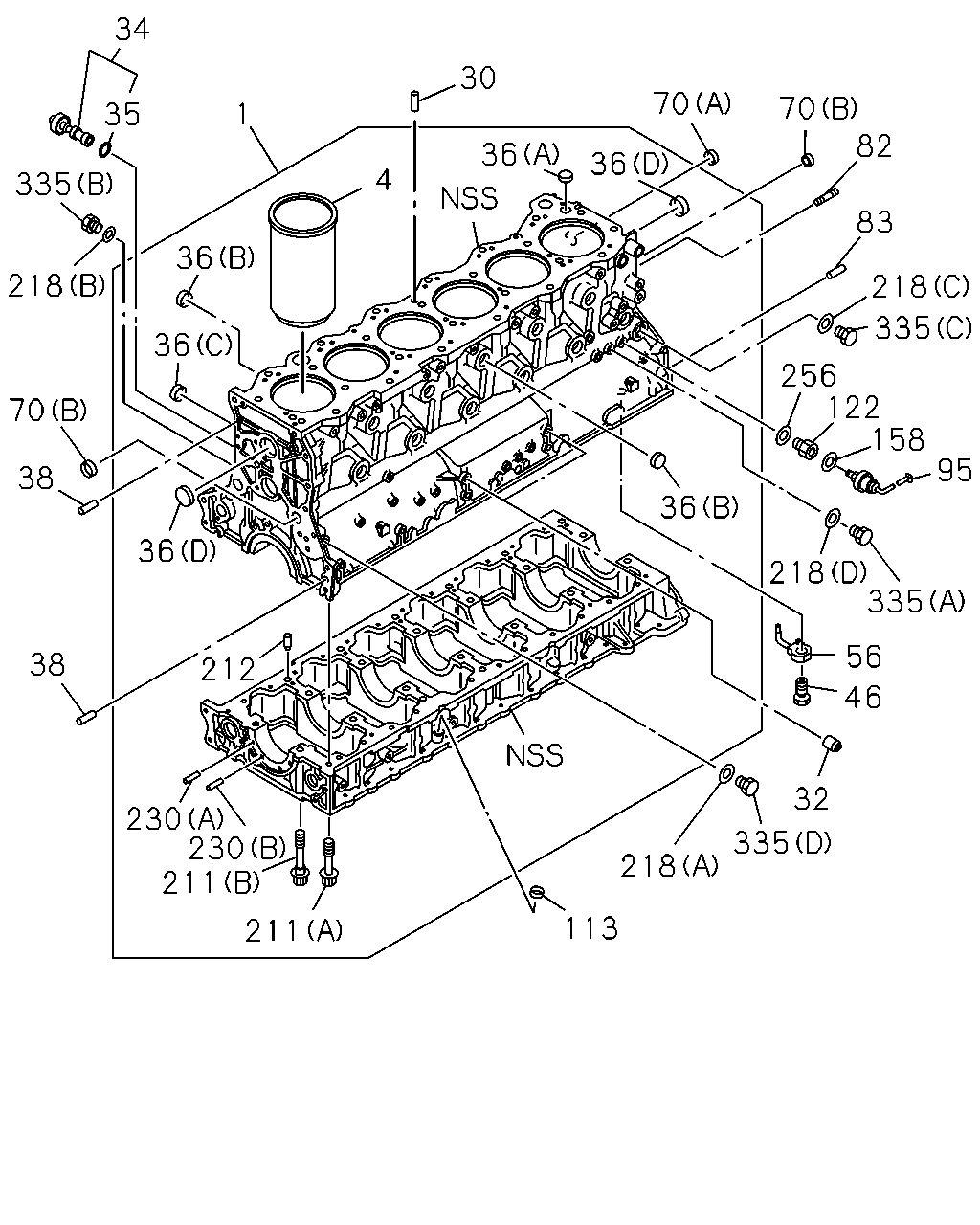

çizim 168044
34 30 70 70 82 35 1 36 36 4 335 83 36 218 218 335 36 256 122 158 95 70 36 38 36 212 218 335 56 38 46 32 230 230 211 335 218 113 211
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-98180-452-1 01 1 1008- ●
1 BLOCK ASM; CYL 8-98180-451-1 01 1 1008- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 1008- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 1008- ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 02 1 1008- ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 1008- ● ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 1008- ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 1008- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 01 1 1008- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=40 		1-09600-065-1 02 1 1008- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 1008- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=45 		8-97351-451-0 04 1 1008- ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 1008- ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 1008- ● ●
56 JET; OIL,PISTON COOLING 1-13342-125-5 06 1 1008- ●
56 JET; OIL,PISTON COOLING 1-13342-139-2 06 1 1008- ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 1008- ● ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 1008- ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 1008- ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 1008- ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 1008- ● ●
113 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 1008-1112 ●
113 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 1201- ●
113 CUP; SEALING
CAUTIONS CHINESE<SL7> OD=15.6 		5-11129-003-0 01 1 1201- ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 1008- ● ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1008- ● ●
211 BOLT; CRANKCASE
(A) M12X114 		1-09070-087-3 28 1 1008- ● ●
211 BOLT; CRANKCASE
(B) M18X150 		1-09070-151-0 14 1 1008- ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 1008- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1008- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 1008-1312 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22 		1-09630-089-0 01 1 1008- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 1008- ● ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 1008- ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 1008- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 1008- ● ●
335 PLUG; C/BL,SIDE
(C) M22X12 		1-09604-035-0 01 1 1008- ● ●
335 PLUG; C/BL,SIDE
(D) M10X7 		1-09604-094-0 01 1 1008- ● ●
335 PLUG; C/BL,SIDE
(A) M14X9 		8-98042-944-0 01 1 1008- ● ●
335 PLUG; C/BL,SIDE
(B) M12X9 		8-98047-054-0 01 1 1008- ● ●

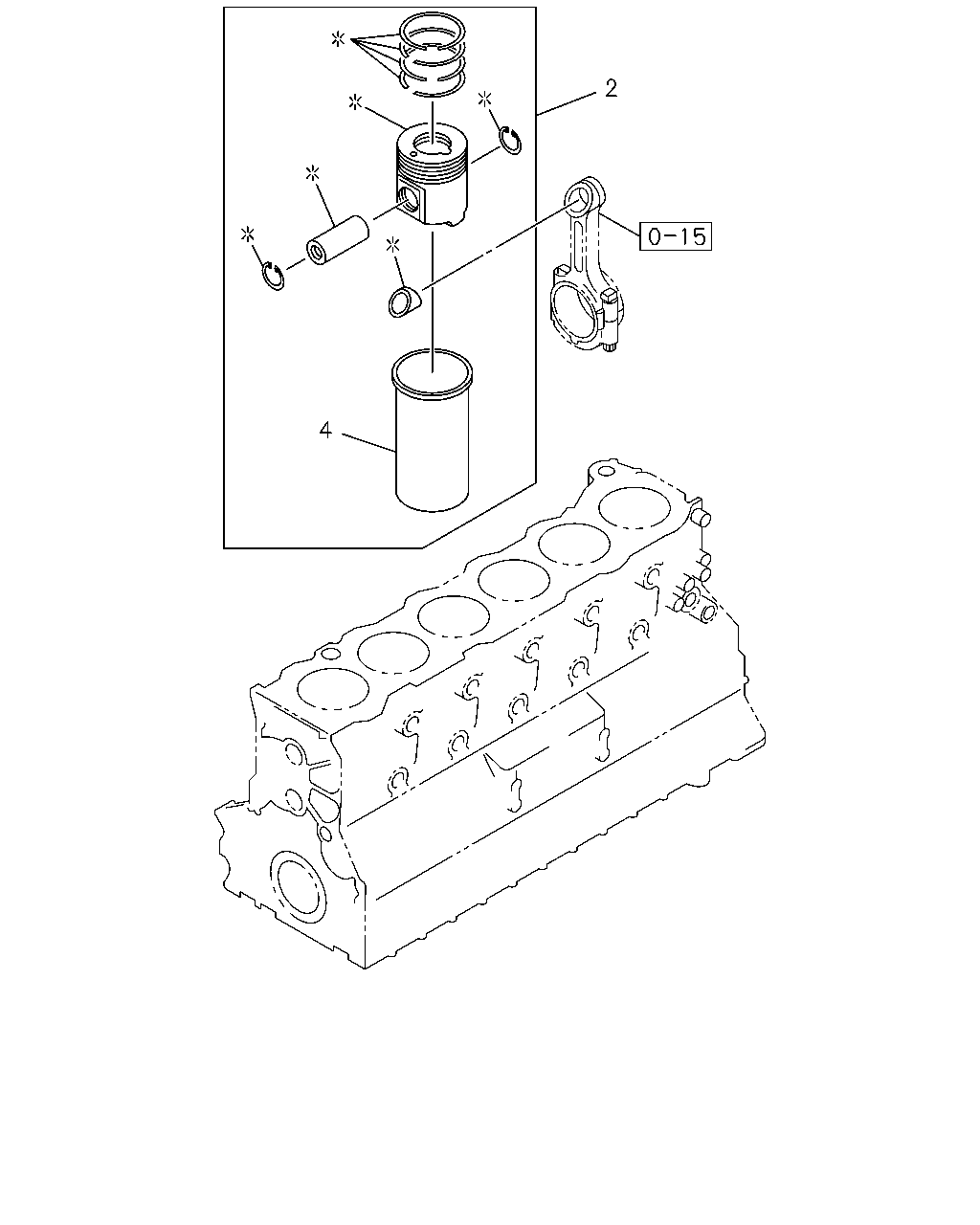

çizim 168087
2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-928-5 06 1 1008- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-929-5 06 1 1008- ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-095-5 06 1 1008- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-096-5 06 1 1008- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 1008- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 1008- ● ●
