◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11274 - EXZ LHD EURO2/3/4 WITH 3STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#58289) — 13 parça

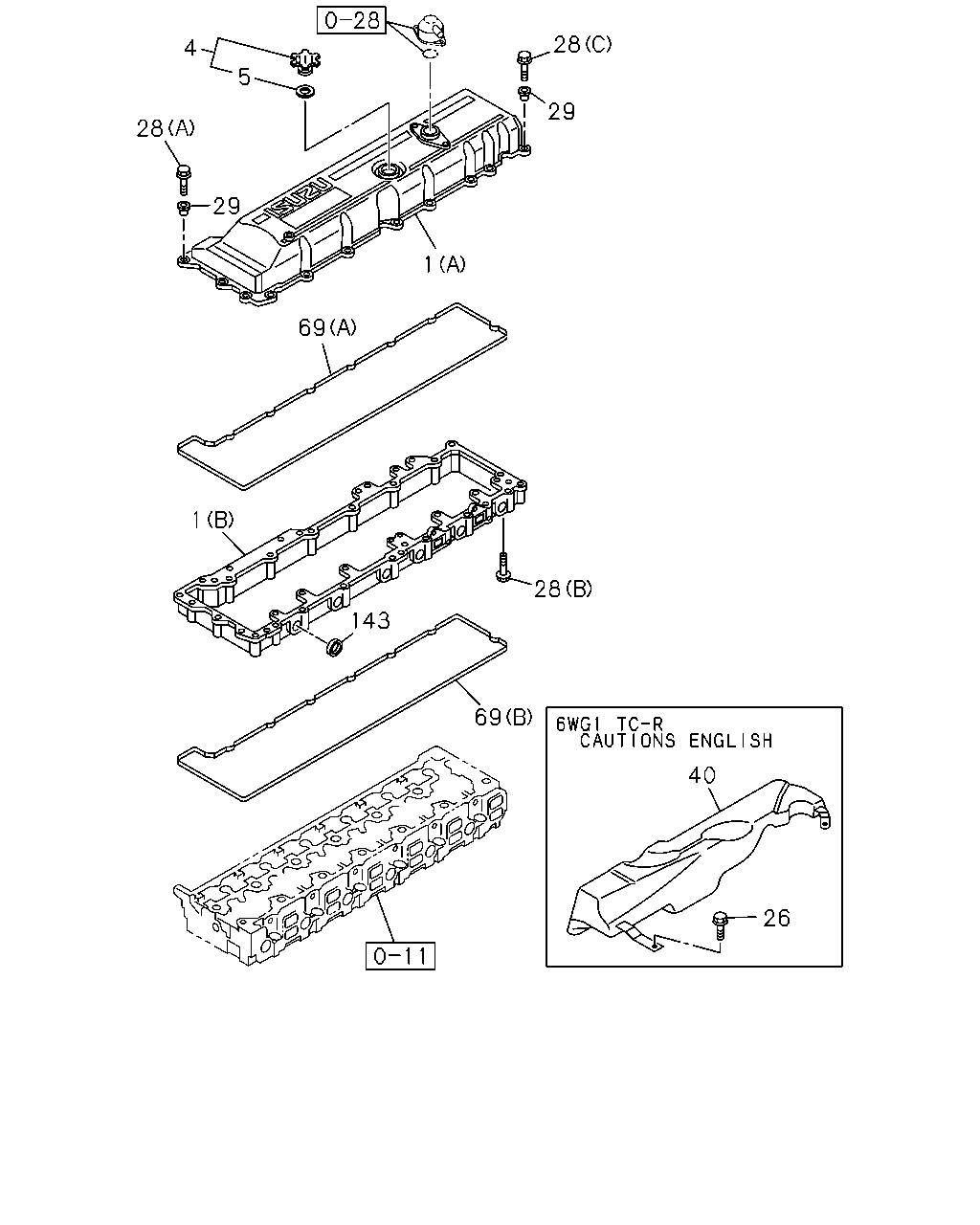

çizim 168045
28 4 5 29 28 29 1 69 1 28 143 69 40 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; CYL HD
(A) 		1-11180-476-5 01 1 1008- ● ●
1 COVER; CYL HD
(B) 		8-97618-854-1 01 1 1008- ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 1008- ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 1008- ● ●
26 BOLT; CYL HD COVER
CAUTIONS ENGLISH<RR8> M8X16 FLANGE 		0-28050-816-0 02 1 1008- ●
28 BOLT; HD COVER
(A) M8X30 FLANGE 		0-28050-830-0 08 1 1008- ● ●
28 BOLT; HD COVER
(B) M8X60 FLANGE 		0-28050-860-0 08 1 1008- ● ●
28 BOLT; HD COVER
(C) M8X80 FLANGE 		0-28050-880-0 12 1 1008- ● ●
29 RUBBER; MTG,HD COVER
OD=22 		8-94395-684-0 20 1 1008- ● ●
40 COVER
CAUTIONS ENGLISH<RR8> 		8-98165-006-0 01 1 1008- ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		1-11173-119-1 01 1 1008- ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-11173-120-1 01 1 1008- ● ●
143 GASKET; SLEEVE
OD=30 		1-09639-034-0 06 1 1008- ● ●
