8-75 — CONDENSER (#58283) — 34 parça

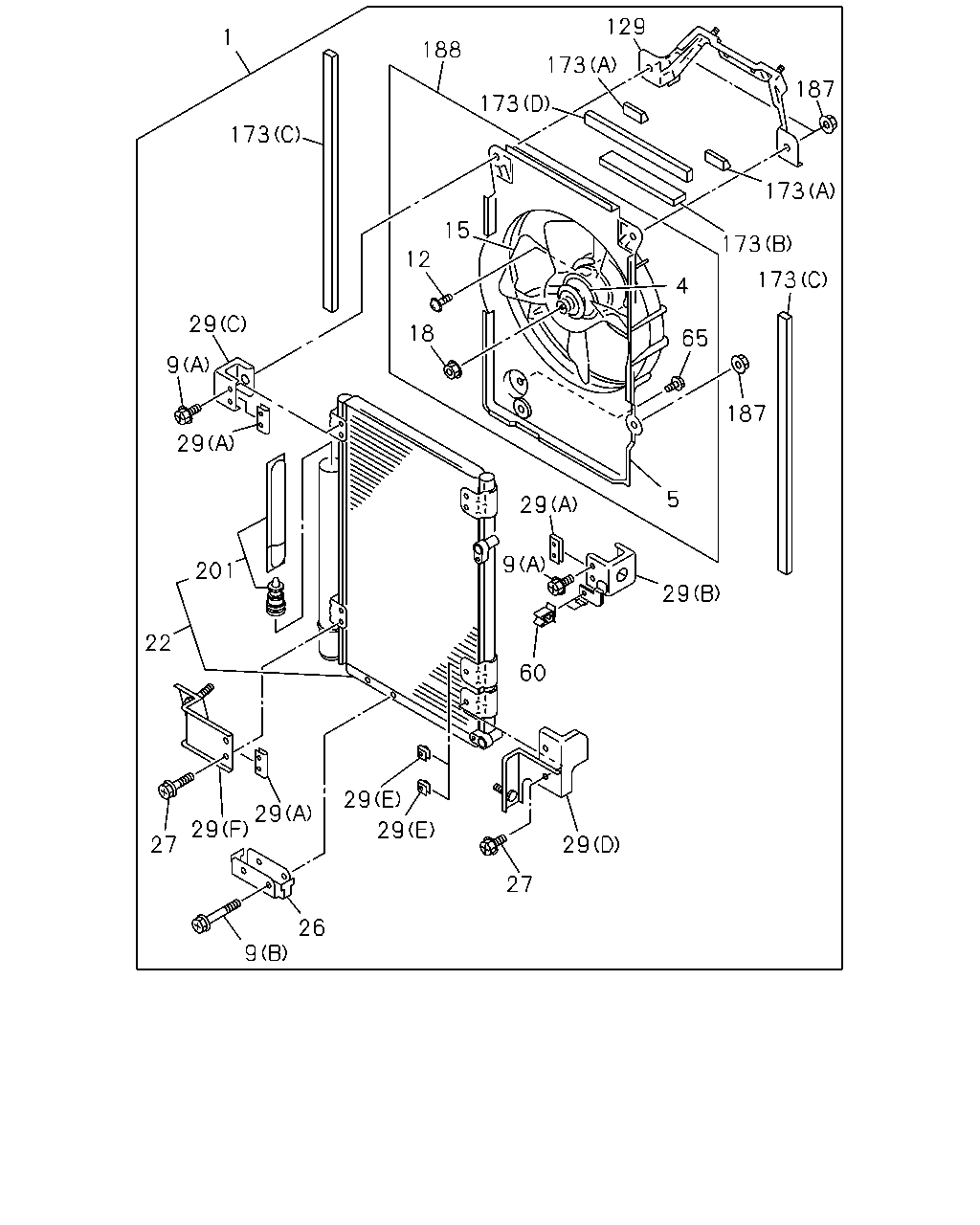

çizim 167909
129 188 173 187 173 173 173 15 173 12 173 4 29 18 65 9 187 29 5 29 9 201 29 22 60 29 29 29 29 27 29 27 26 9
BalonParca AdiParca NoAdetTipApplied Date
4 MOTOR ASM; FAN 8-98078-763-0 01 1 1008-
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 1008-
9 BOLT; BRKT
(A) M6X16 		8-97096-525-0 04 1 1008-
9 BOLT; BRKT
(B) M5X25 		8-97178-770-0 02 1 1008-
12 BOLT; FAN MOTOR 1-83539-314-0 03 1 1008-
15 FAN; MOTOR 8-98076-092-0 01 1 1008-
18 NUT; FAN,CENTER 1-83539-313-0 01 1 1008-
22 CONDENSER ASM; A/C 1-83534-245-1 01 1 1008-
26 BRACKET; LOW 1-83573-205-0 01 1 1008-
27 BOLT; BRKT,LOW SIDE
M6X16 		8-97096-525-0 04 1 1008-
29 BRACKET; SIDE
(A) 		1-83573-010-0 03 1 1008-
29 BRACKET; SIDE
(B) 		1-83573-125-0 01 1 1008-
29 BRACKET; SIDE
(C) 		1-83573-126-0 01 1 1008-
29 BRACKET; SIDE
(D) 		1-83573-204-0 01 1 1008-
29 BRACKET; SIDE
(F) 		1-83573-213-0 01 1 1008-
29 BRACKET; SIDE
(E) 		8-97180-263-0 02 1 1008-
60 CLIP; PIPE 1-83574-266-0 01 1 1008-
65 BOLT; SHROUD
M6X16 		8-97096-525-0 01 1 1008-
129 BRACKET; UPR 1-83573-129-0 01 1 1008-1201
129 BRACKET; UPR 8-98212-673-0 01 1 1202-
173 INSULATOR; CONDENSER
(A) 		8-98213-043-0 02 1 1202-
173 INSULATOR; CONDENSER
(B) 		8-98213-044-0 01 1 1202-
173 INSULATOR; CONDENSER
(C) 		8-98213-045-0 02 1 1202-
173 INSULATOR; CONDENSER
(D) 		8-98213-046-0 01 1 1202-
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 1008-
188 BLOWER ASM; SHROUD 8-98078-760-1 01 1 1008-
201 DRYER ASM; CONDENSER 1-83535-098-0 01 1 1008-

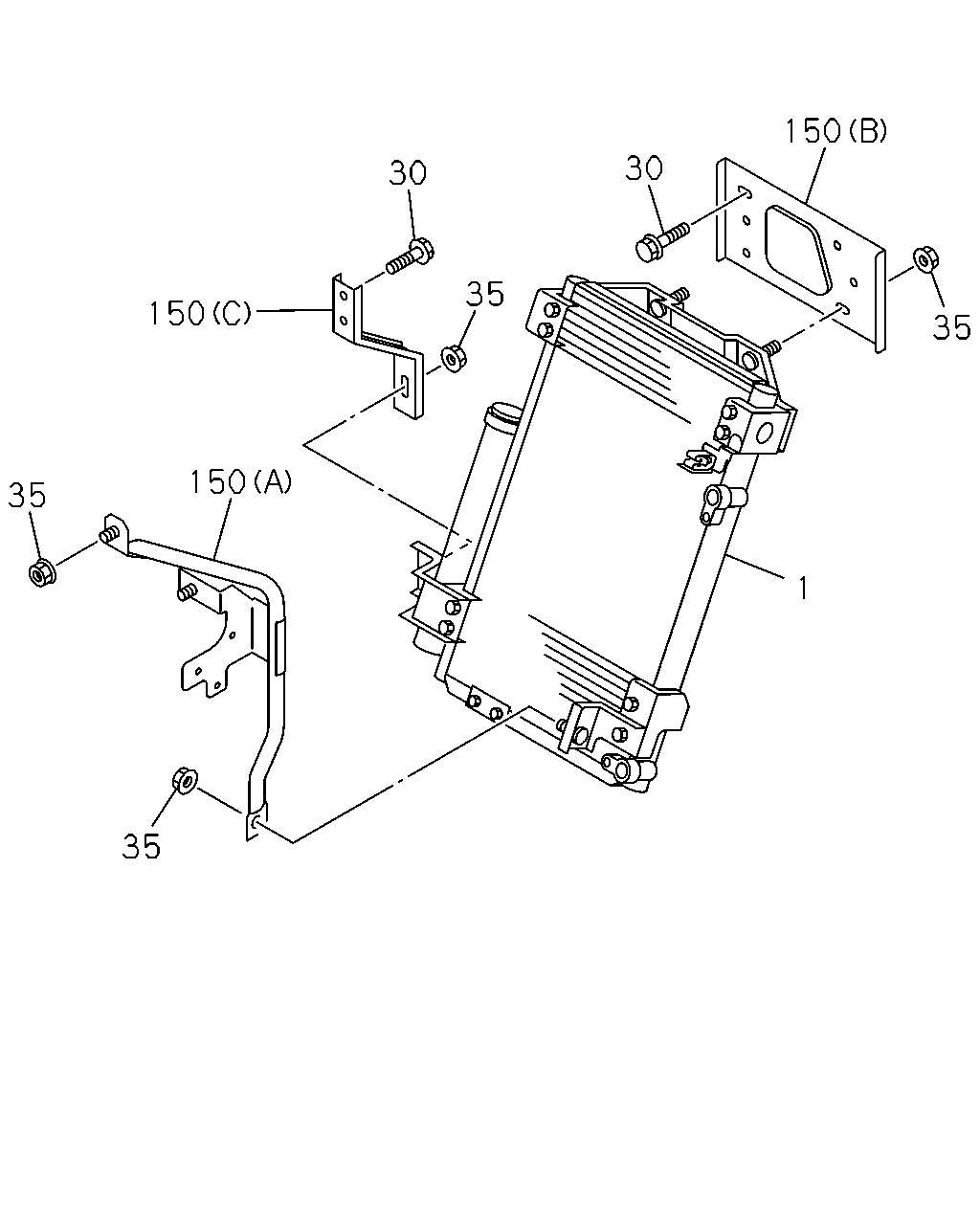

çizim 167911
150 30 30 35 150 35 150 35 1 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98076-090-0 01 1 1008-1201
1 CONDENSER; A/C 8-98212-672-0 01 1 1202-
30 BOLT; CONDENSER,A/C
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1008-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1008-
150 BRACKET; CONDENSER,MTG
(A) 		1-83573-136-0 01 1 1008-
150 BRACKET; CONDENSER,MTG
(B) 		1-83573-137-0 01 1 1008-
150 BRACKET; CONDENSER,MTG
(C) 		1-83573-138-0 01 1 1008-
