8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#58273) — 51 parça

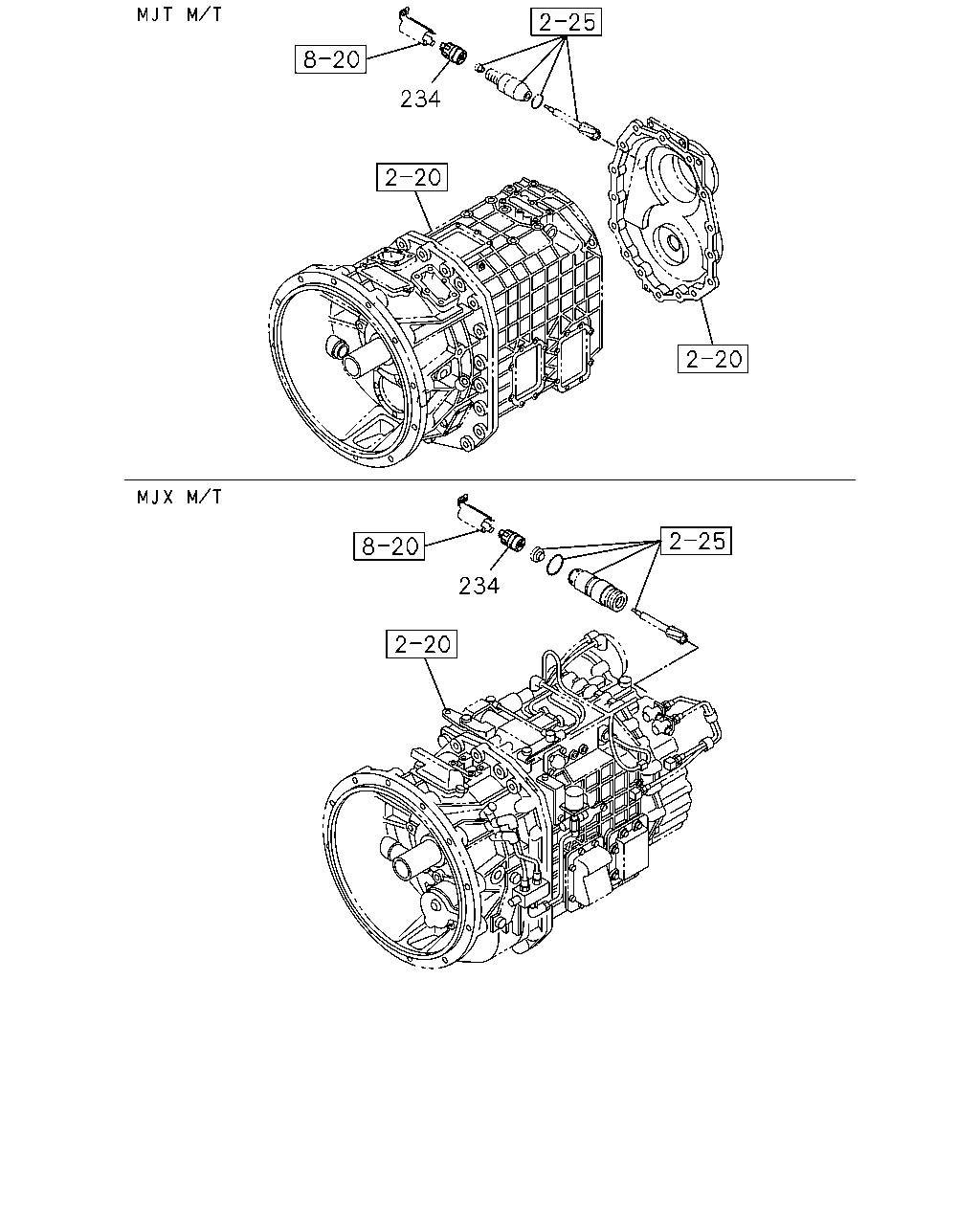

çizim 167897
234 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1008-

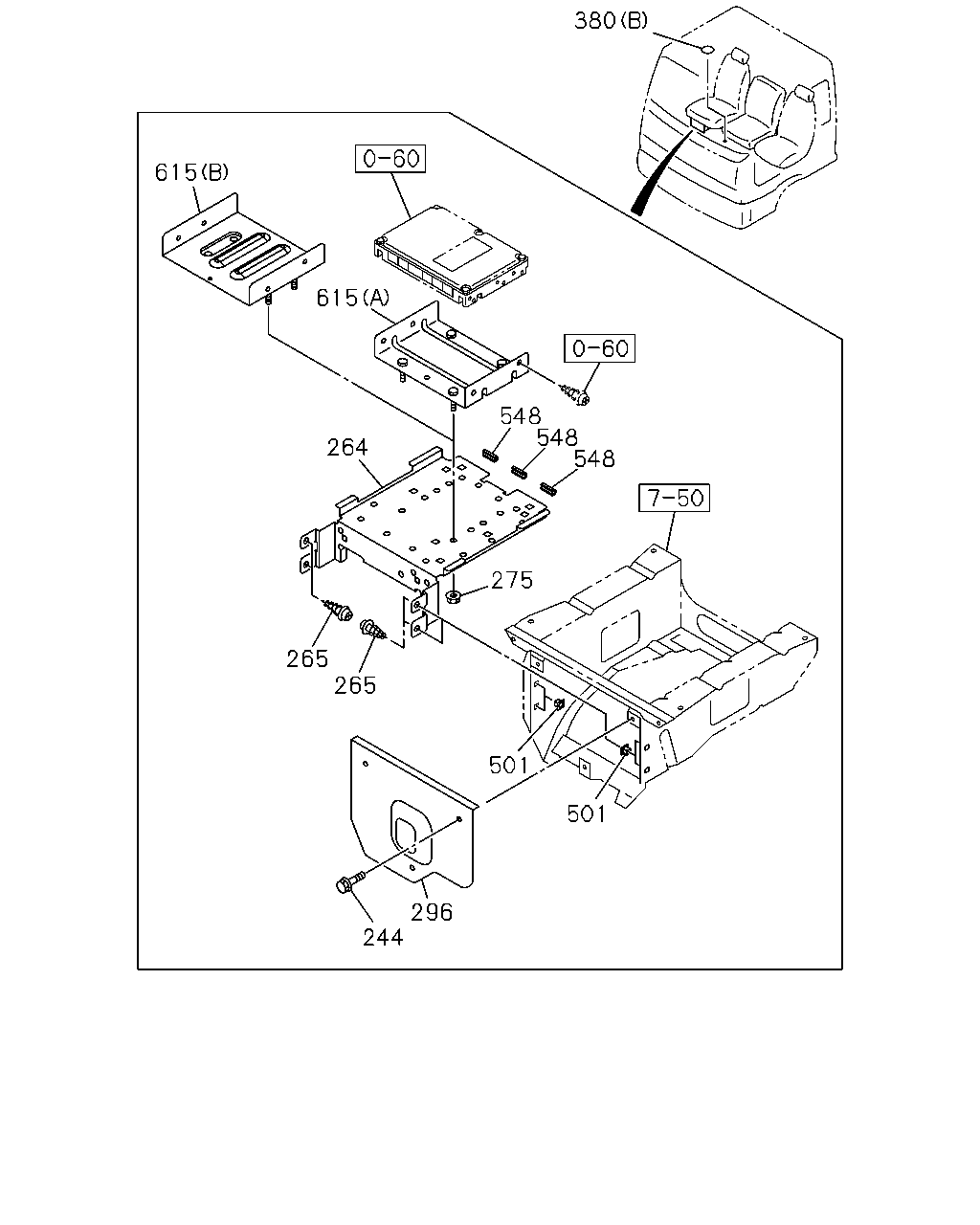

çizim 167959
380 615 615 548 548 548 264 275 265 265 501 501 296 244
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 1008-
264 BRACKET; CONT UNIT 8-97589-038-5 01 1 1008-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 1008-
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1008-
296 COVER; CONT UNIT
6WF1 TC-C(1B8) 		8-98151-570-0 01 1 1008-
296 COVER; CONT UNIT
6WG1 TC-R(75L) 		8-97589-674-1 01 1 1008-
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 1008-
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008-1210
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 1008-
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 1008-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
615 BRACKET; ECU,SEAT STAND
ENGINE CONTROL COMMON RAIL(Q4R) (A) 		8-97375-194-2 01 1 1008-
615 BRACKET; ECU,SEAT STAND
ENGINE CONTROL-B2(Q4T) (B) 		8-98013-431-0 01 1 1008-

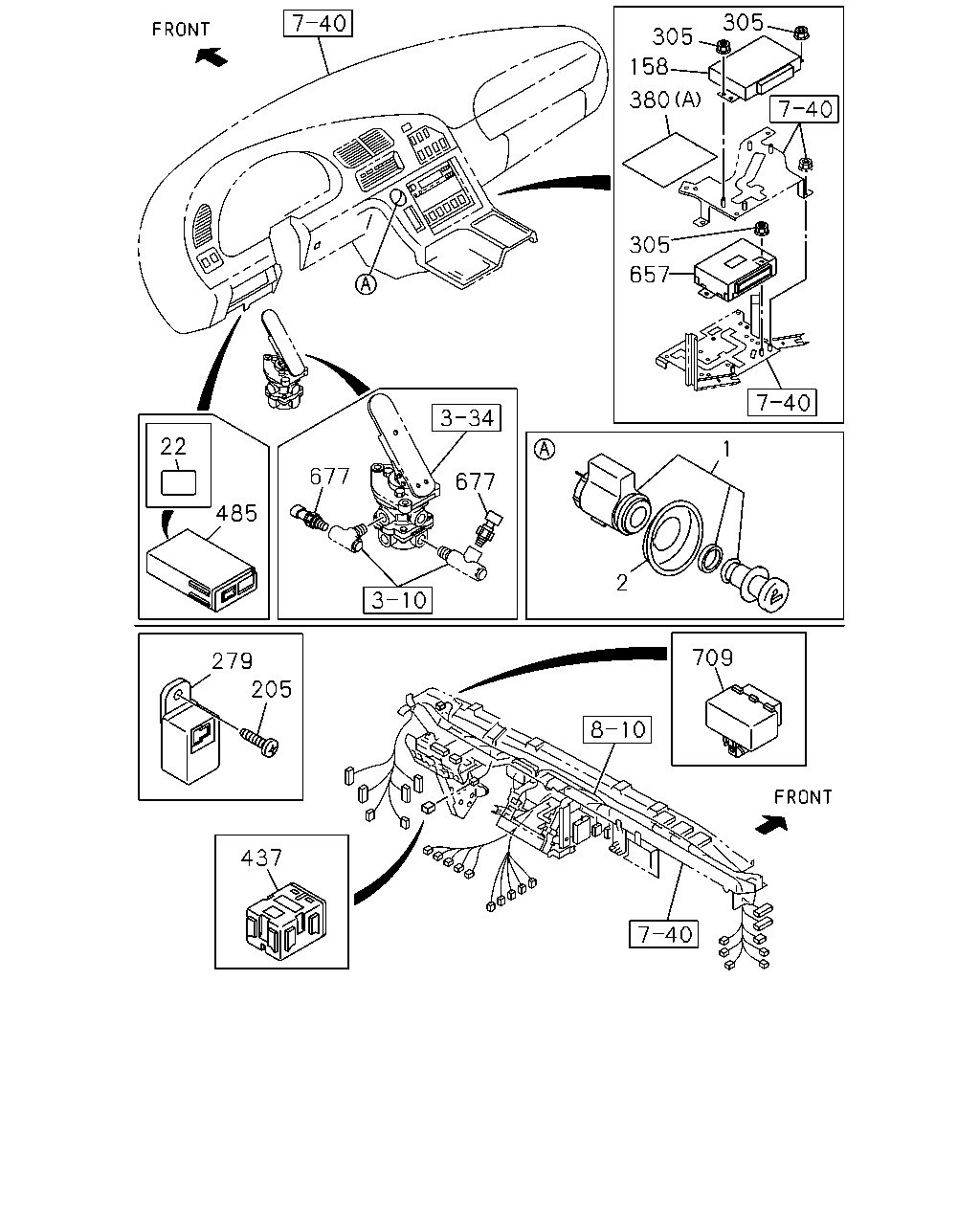

çizim 167961
305 305 158 380 305 657 22 1 677 677 485 2 709 279 205 437
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1008-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 1008-
22 SEAL; TAPE
EURO4 SPECIFICATION<KBT> SPEED LIMITER 90KM(NMJ) EXC. CHINA EQUIPMENT(YT2) 		8-98083-174-0 01 1 1008-
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98176-163-0 01 1 1008-1109
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98176-163-0 01 1 1110-
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4),TIRE 315/60R22.5-152/148,315/60R22.5-152/148(5M8) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98176-164-0 01 1 1008-1201
158 CONTROLLER; ABS
TIRE 275/70R22.5-148/145M RIB EEC(5L4),TIRE 315/60R22.5-152/148,315/60R22.5-152/148(5M8) RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7) 		8-98196-737-0 01 1 1202-
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1008-1109
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		1-80119-244-1 01 1 1110-1201
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L BLOCK DIRECT RUSSIA(5N9),TIRE 295/80R22.5-152/148K RIB LUG CCC(5P9) GENERAL EXPORT EQUIPMENT(TAA),CHINA EQUIPMENT(YT2) 		8-98196-720-0 01 1 1202-
205 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 1008-
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 1008-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1008-1008
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 1009-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 1008-
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 1008-
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1008-1210
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211-
437 CONVERTER; DC
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> KOITO 		8-97359-129-0 01 1 1008-
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1008-1008
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
657 CONTROL UNIT; MIMAMORI
6WF1 TC-C(1B8) 		1-80190-175-0 01 1 1008-1008
657 CONTROL UNIT; MIMAMORI
6WF1 TC-C(1B8) MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 1009-
657 CONTROL UNIT; MIMAMORI
6WG1 TC-R(75L) 		8-98081-576-1 01 1 1008-
677 SENSOR; AIR METER
ENGINE CONTROL-B2(Q4T) THREAD R1/4 		1-80220-023-1 02 1 1008-
709 RESISTOR; HD LAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 1008-

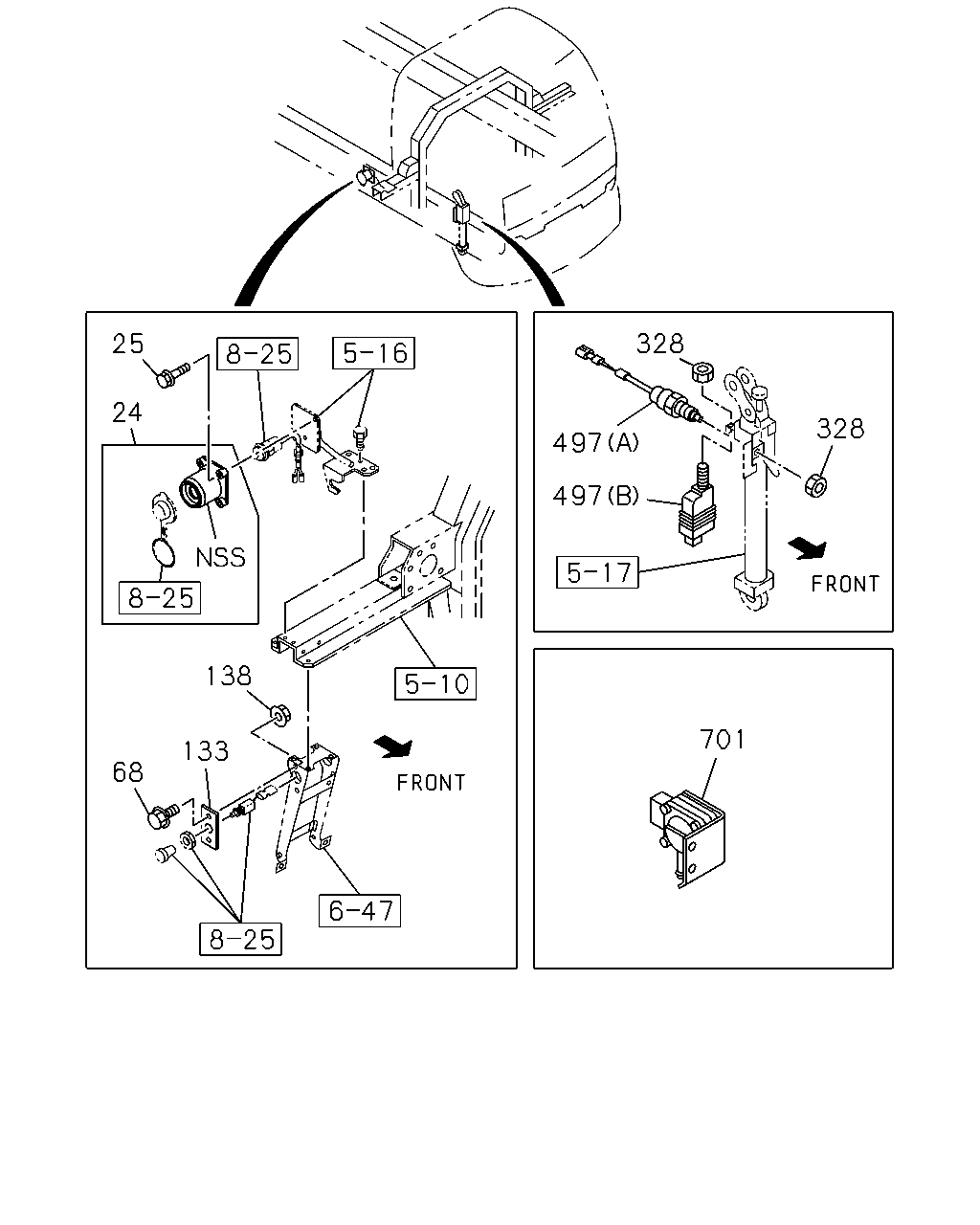

çizim 167965
25 24 138 133 68 701 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 1008-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 1008-
68 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
133 BRACKET; SWITCH 1-82699-815-0 01 1 1008-
138 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
328 NUT
M16 		0-91111-516-0 02 1 1008-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 1008-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 1008-
701 SENSOR; DPD
6WG1 TC-R(75L) CHINA EQUIPMENT(YT2) 		8-97360-368-2 01 1 1202-
