Isuzu WW
▶
TRUCKS
▶
EXR
▶
11273 - EXR LHD EURO2/3/4 WITH 3STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#58272) — 38 parça
◀
[825A] CAB SIDE (8 parça)

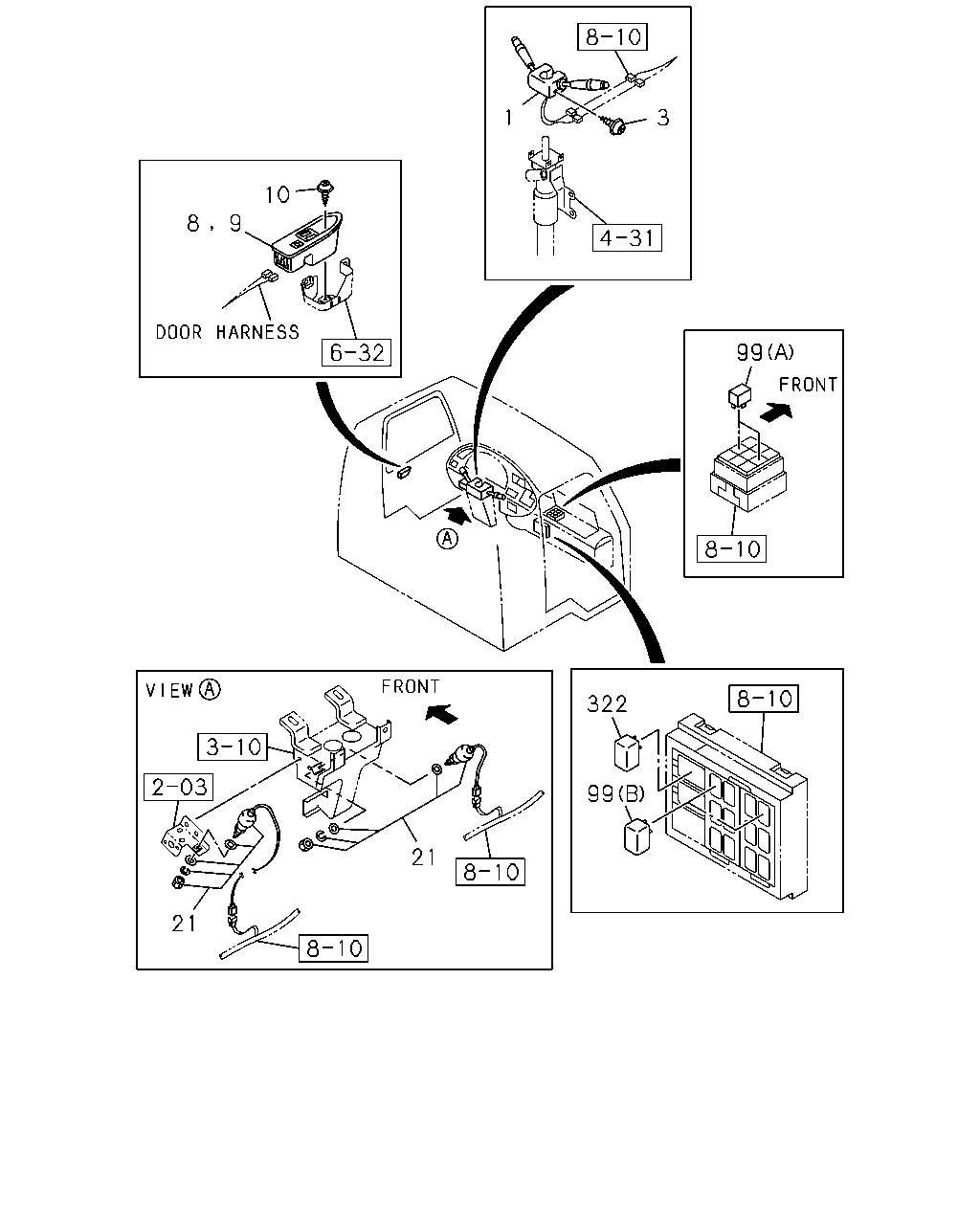

[825A] INST PANEL AND DOOR SIDE (11 parça)

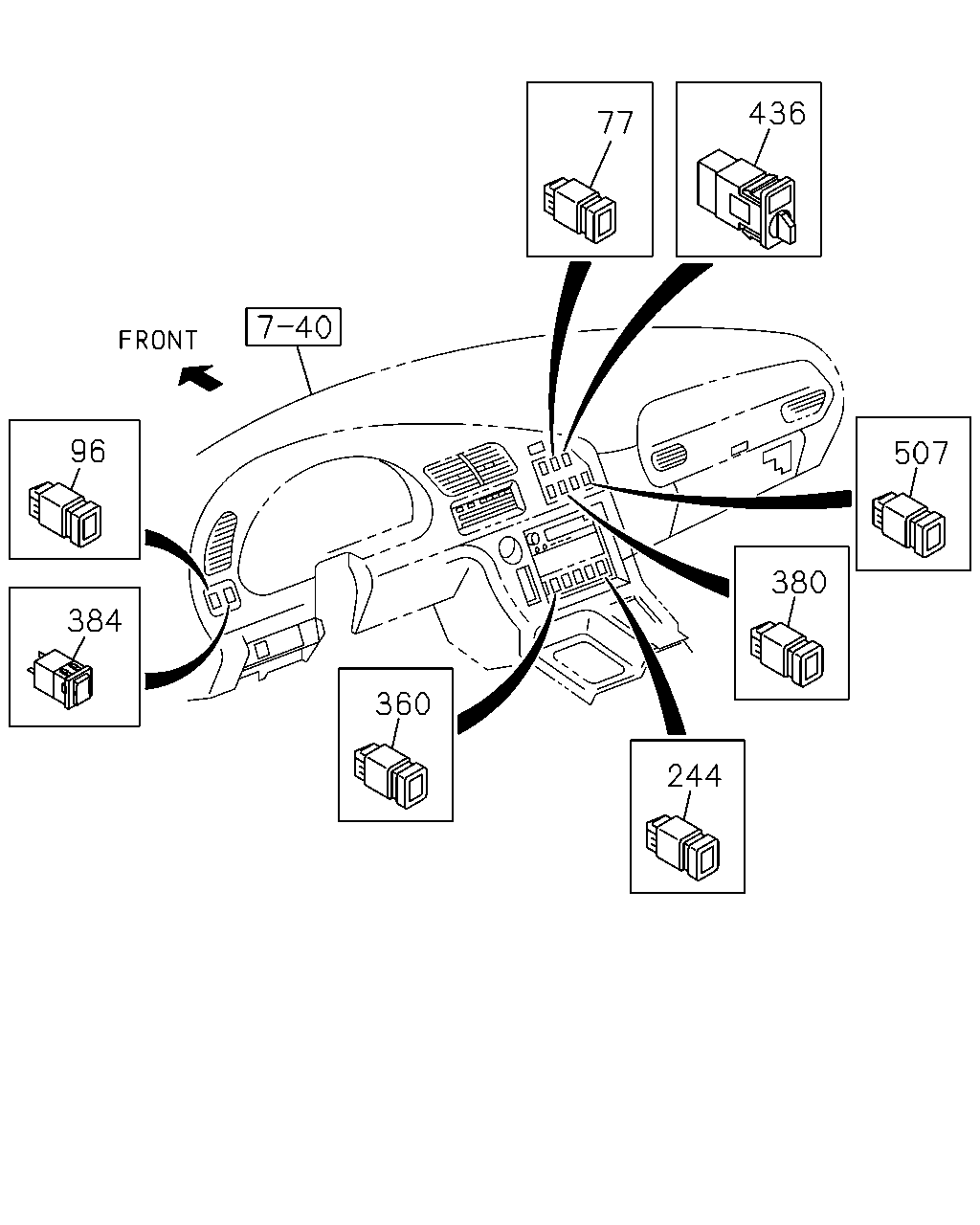

[825A] CLUSTER METER SIDE (8 parça)

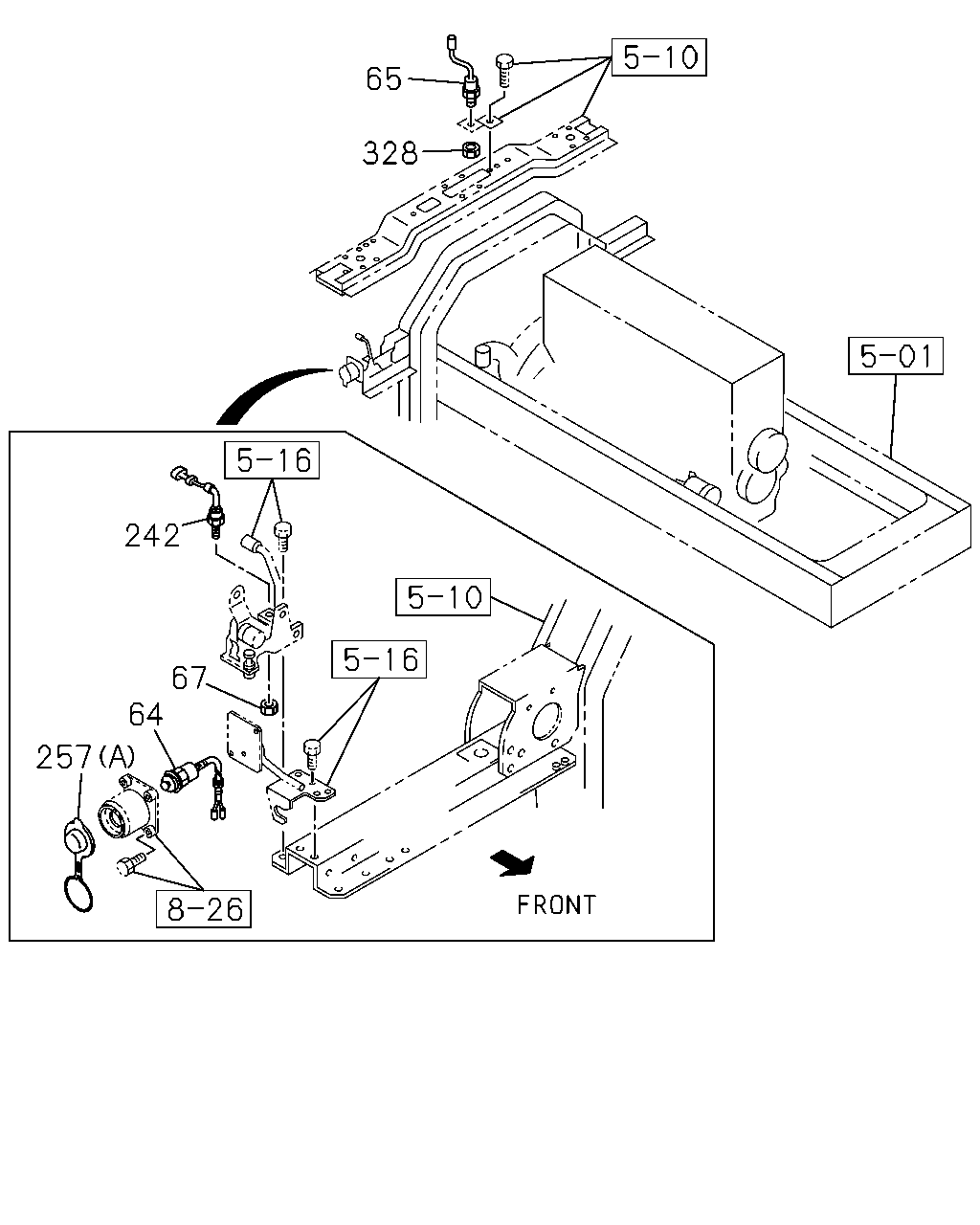

[825A] FRAME SIDE NO.1 (7 parça)
[825A] FRAME SIDE NO.2 (4 parça)
▶
359
520
131
29
30
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
1008-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
1008-
131
CLIP; BAND
TRAILER BRAKE HAND CONTROL<NLG> ENGINE CONTROL COMMON RAIL(Q4R) L=180
1-09707-162-1
01
1
1008-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
1008-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
1008-
359
SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> ENGINE CONTROL COMMON RAIL(Q4R) GREEN
1-82410-176-1
01
1
1008-
359
SWITCH; TRAILER BRAKE
TRAILER BRAKE HAND CONTROL<NLG> ENGINE CONTROL-B2(Q4T) STAMP 0.3
8-98010-857-0
01
1
1008-
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
1008-
3
1
10
8
9
99
322
99
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-704-1
01
1
1008-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
1008-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-174-1
01
1
1008-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-158-3
01
1
1008-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
1008-
21
SWITCH; CLU
1-82380-114-3
01
1
1008-
21
SWITCH; CLU
MJX16P M/T(Y3Z)
1-82380-114-3
01
1
1008-
99
RELAY; FOG LAMP
(B) 24V 10A PANASONIC
8-97173-035-1
02
1
1008-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1008-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1008-
322
RELAY; SPLITTER
MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) 24V 10A PANASONIC
8-97173-035-1
01
1
1008-
436
77
96
507
380
384
360
244
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82340-413-0
01
1
1008-
96
SWITCH; FOG LAMP
1-82340-628-0
01
1
1008-
244
SWITCH; BATTERY
BATTERY SWITCH<WF2>
8-98138-304-0
01
1
1008-
360
SWITCH ASM; DIFF LK
DIFF LOCK(C3N)
1-82340-660-1
01
1
1008-
380
SWITCH; MARKER LAMP
ROOF MARKER LAMP<U01>
1-82340-405-0
01
1
1008-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
1008-
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS>
1-82330-043-0
01
1
1008-
507
SWITCH; MIRROR HEATER
MIR O/S RR VIEW HEATED<DNN>
1-82340-423-0
01
1
1008-
65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
1008-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
1008-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
1008-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
1008-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
1008-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
1008-
328
NUT; SW
M16
0-91110-516-0
01
1
1008-
255
667
666
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
237
NUT
M8 FLANGE
0-91180-108-0
01
1
1008-
255
SWITCH; SEARCH LIGHT
8-98106-483-0
01
1
1008-
666
CLIP; AXLE HARNESS
ID=11X2 L=16
0-95325-025-0
01
1
1008-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1008-
