◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#58271) — 37 parça

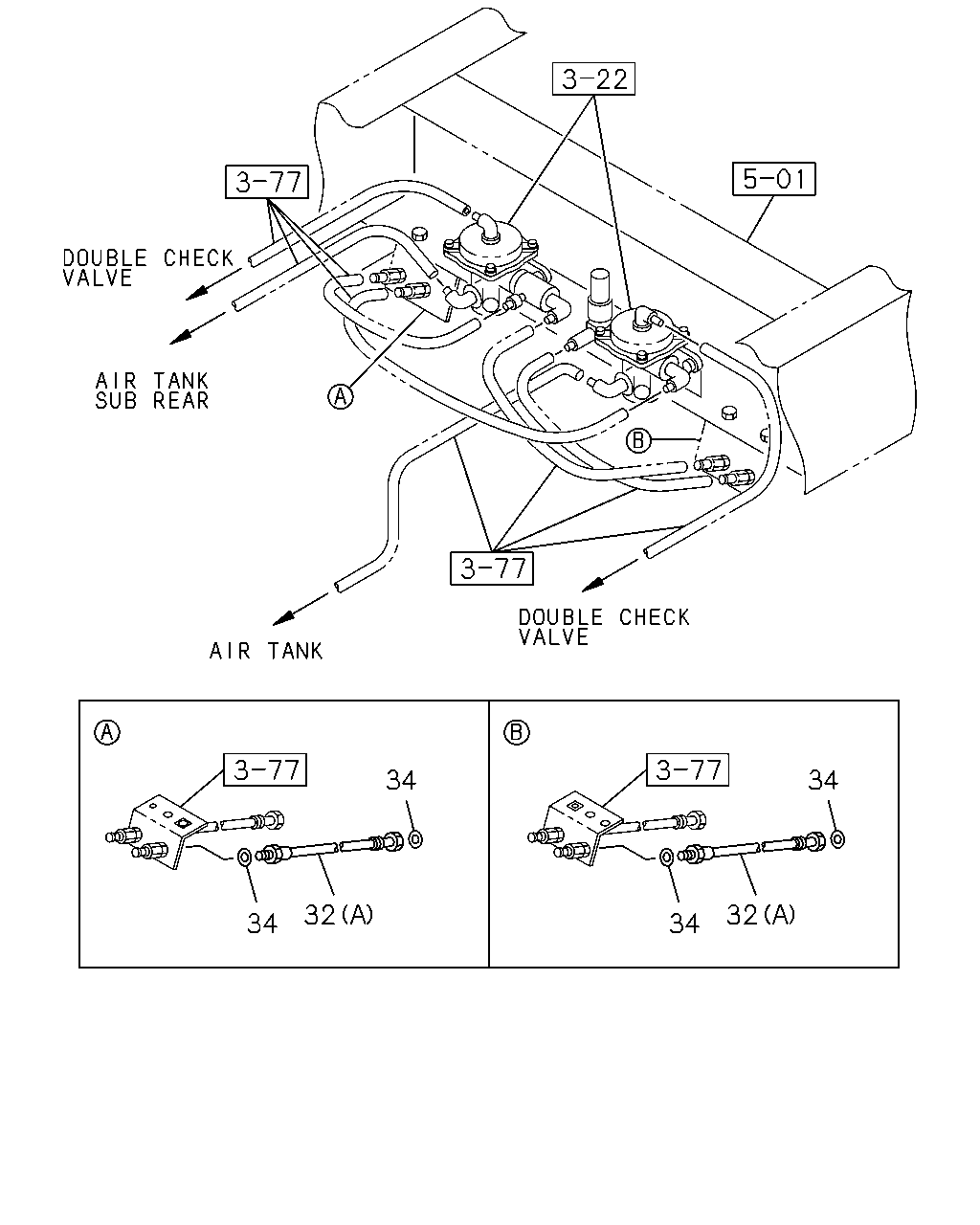

çizim 163341
34 32 34 34 34 32
BalonParca AdiParca NoAdetTipApplied Date
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (A) L=700 		1-09363-604-1 01 1 0909-
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (A) L=660 		1-09363-921-0 01 1 0909-
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (B) L=580 		0-57847-580-1 01 1 0909-
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (B) L=580 		0-57847-580-1 01 1 0909-
32 HOSE; FLEX,FRT
EXC. LOW DECK WO/REAR BODY<PK4> (B) L=630 		0-57847-630-1 02 1 0909-
32 HOSE; FLEX,FRT
EXC. LOW DECK WO/REAR BODY<PK4> (A) L=660 		1-09363-921-0 02 1 0909-
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0909-1510

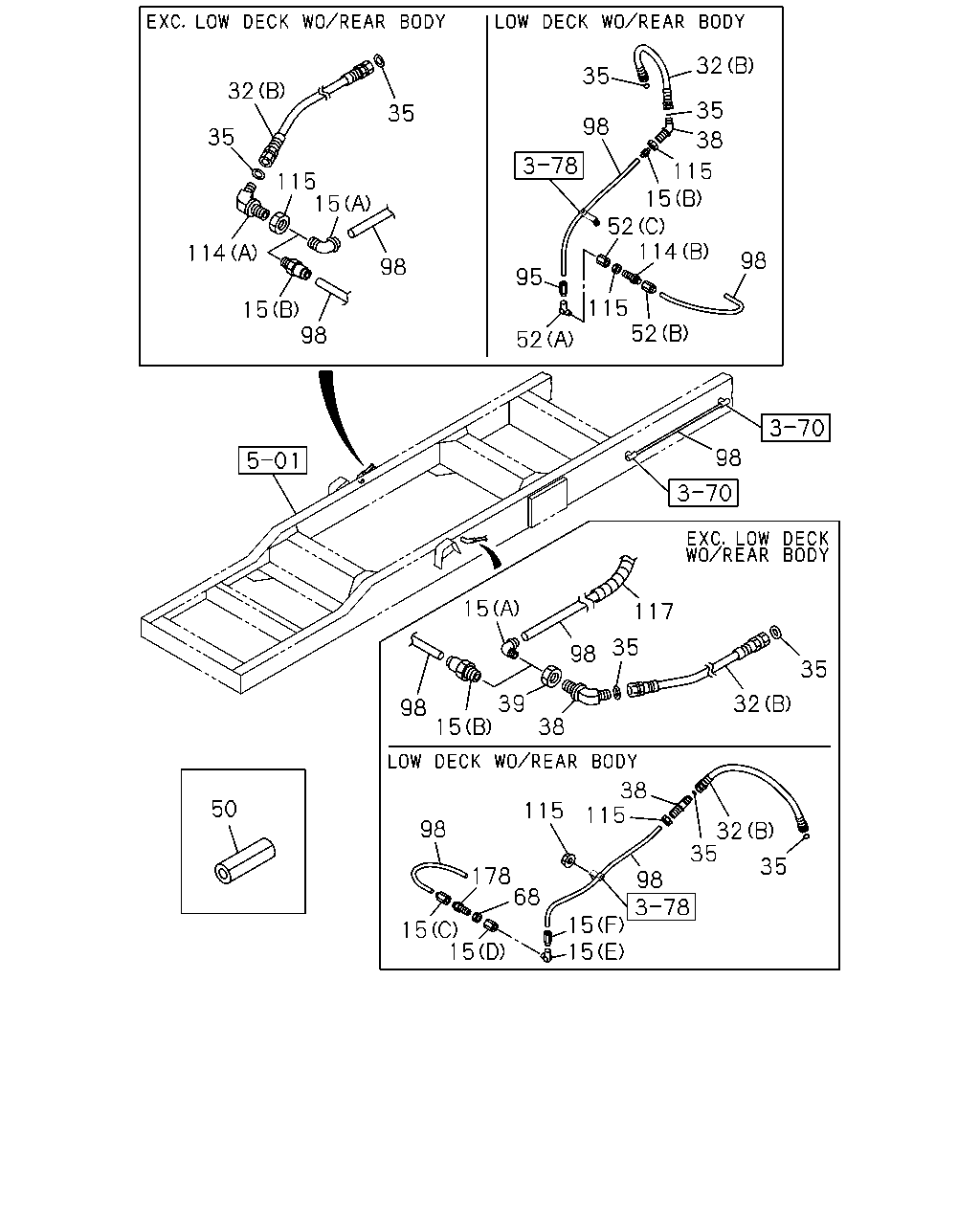

çizim 163351
32 35 114 15 98 98 15 115 35 35 98 95 52 115 52 98 114 52 15 115 38 35 32 98 117 35 98 15 98 15 38 39 32 35 98 115 38 115 178 68 15 15 15 15 98 35 32 35 50
BalonParca AdiParca NoAdetTipApplied Date
15 CONNECTOR; AIR PIPE
ANTILOCK BRAKE SYSTEM<BFA> (B) DIN12 R1/4 STRAIGHT 		1-09660-754-1 02 1 0909-
15 CONNECTOR; AIR PIPE
LOW DECK WO/REAR BODY<PK4> (C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0909-
15 CONNECTOR; AIR PIPE
LOW DECK WO/REAR BODY<PK4> (D) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0909-
15 CONNECTOR; AIR PIPE
LOW DECK WO/REAR BODY<PK4> (E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0909-
15 CONNECTOR; AIR PIPE
LOW DECK WO/REAR BODY<PK4> (F) PT3/8 		1-48319-058-0 01 1 0909-
15 CONNECTOR; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R1/4 ELBOW 		1-09660-655-1 02 1 0909-1211
15 CONNECTOR; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1212-
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (A) L=700 		1-09363-604-1 01 1 0909-
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (A) L=660 		1-09363-921-0 01 1 0909-
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (B) L=580 		0-57847-580-1 01 1 0909-
32 HOSE; FLEX,FRT
LOW DECK WO/REAR BODY<PK4> (B) L=580 		0-57847-580-1 01 1 0909-
32 HOSE; FLEX,FRT
EXC. LOW DECK WO/REAR BODY<PK4> (B) L=630 		0-57847-630-1 02 1 0909-
32 HOSE; FLEX,FRT
EXC. LOW DECK WO/REAR BODY<PK4> (A) L=660 		1-09363-921-0 02 1 0909-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0909-
38 UNION; AIR PIPE
M20 & PT1/4 ELBOW 		1-09650-081-1 01 1 0909-
39 NUT; PIPE UNION
M22 		0-91111-522-0 01 1 0909-
50 SLEEVE; RUBBER,NYLON TUBE
LOW DECK WO/REAR BODY<PK4> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0909-
52 CONNECTOR; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0909-
52 CONNECTOR; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0909-
52 CONNECTOR; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0909-
68 NUT; UNION
LOW DECK WO/REAR BODY<PK4> M20 		0-91111-520-0 01 1 0909-
95 ADAPTER; BRKT
LOW DECK WO/REAR BODY<PK4> PT3/8 		1-48319-058-0 01 1 0909-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0909-
114 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (B) M20 L=77.5 		0-92123-212-0 01 1 0909-
114 UNION; NYLON TUBE
(A) M20 & PT1/4 ELBOW 		1-09650-081-1 01 1 0909-
115 NUT; TUBE UNION
LOW DECK WO/REAR BODY<PK4> M20 		0-91111-520-0 01 1 0909-
115 NUT; TUBE UNION
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 01 1 0909-
115 NUT; TUBE UNION
M22 		0-91111-522-0 01 1 0909-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0909-
178 UNION
LOW DECK WO/REAR BODY<PK4> M20 L=77.5 		0-92123-212-0 01 1 0909-
