3-70 — BRAKE PIPING; AIR,AIR MASTER (#58270) — 158 parça
çizim 163329
137 128 141 401 296 296 434 32 296 434 32
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0909-
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0909-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0909-
141 UNION; FLEX HOSE
M10 & M12 STRAIGHT 		1-09650-270-1 02 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0909-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0909-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (C) ID=9 		1-09700-839-1 01 1 1501-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
LOW DECK WO/REAR BODY<PK4> (A) L=350 		1-09707-183-0 08 1 0909-
434 CLIP
(B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0909-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0909-
434 CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (A) L=350 		1-09707-183-0 07 1 0909-

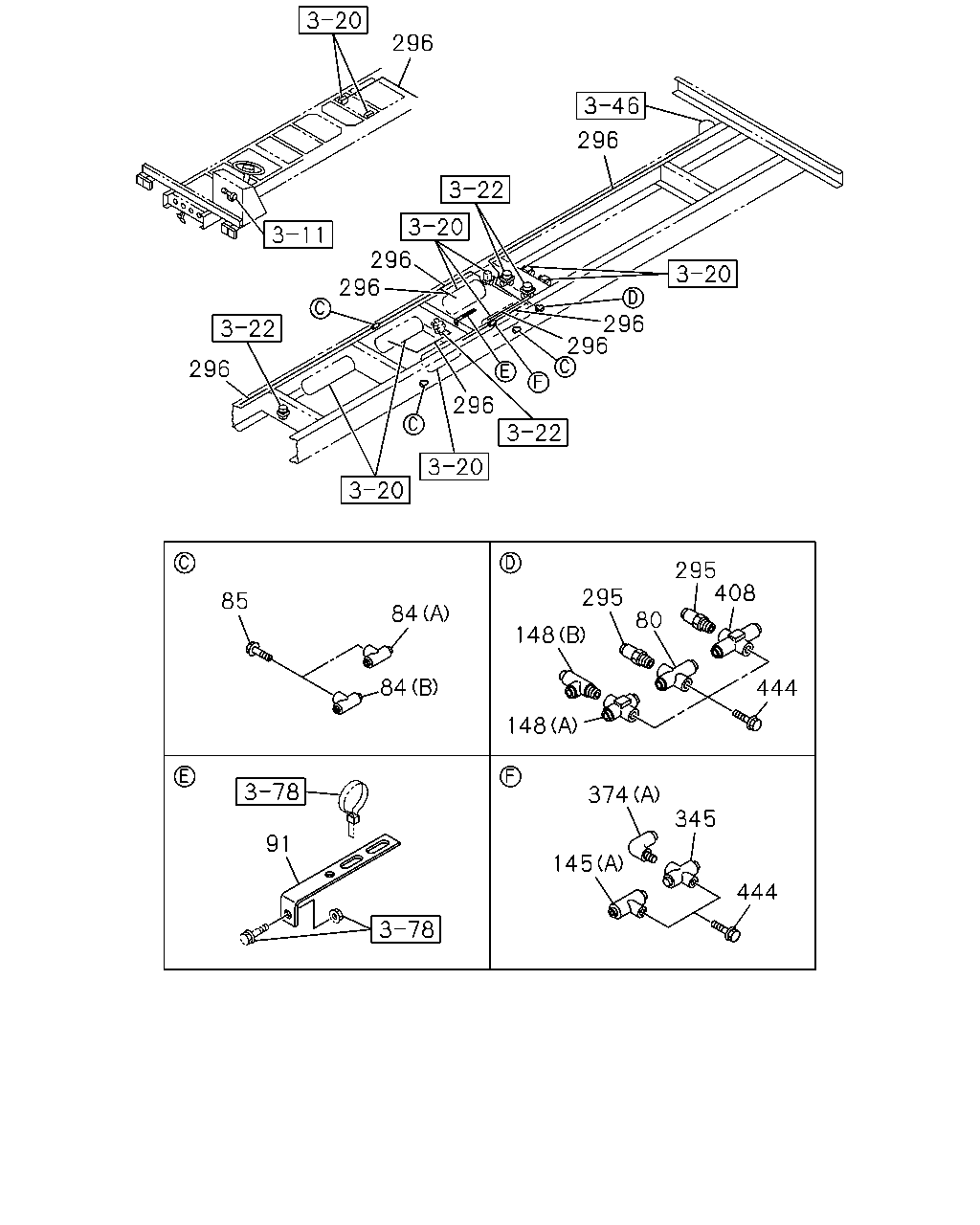

çizim 163330
296 296 296 296 296 296 296 296 85 84 84 91 148 148 444 408 295 80 295 374 345 444 145
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0909-1412
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1501-
80 UNION; 3 WAY
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1501-
84 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 0909-
84 UNION; NYLON TUBE
LOW DECK WO/REAR BODY<PK4> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0909-
84 UNION; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0909-
84 UNION; NYLON TUBE
EXC. LOW DECK WO/REAR BODY<PK4> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0909-
85 NUT; UNION
BOLT M8X20 FLANGE 		0-28050-820-0 03 1 0909-1505
91 BRACKET; TUBE CLIP
EXC. LOW DECK WO/REAR BODY<PK4> L=100 H=30 		1-47477-645-2 02 1 0909-
145 UNION; NYLON TUBE
EURO5 SPECIFICATION(NT5) (B) M12 ELBOW 		0-92125-206-0 01 1 1501-
145 UNION; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0909-
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0909-
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 0909-
295 CONNECTOR; NYLON TUBE
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0909-
295 CONNECTOR; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. AIR HORN(WB8) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0909-
345 UNION; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0909-
374 CONNECTOR
MZW6P M/T(RSZ) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1501-
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0909-
408 UNION; 3 WAY,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. AIR HORN(WB8) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0909-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 1506-
444 BOLT; UNION
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28050-820-0 02 1 1501-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0909-1412
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1412
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1412
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-

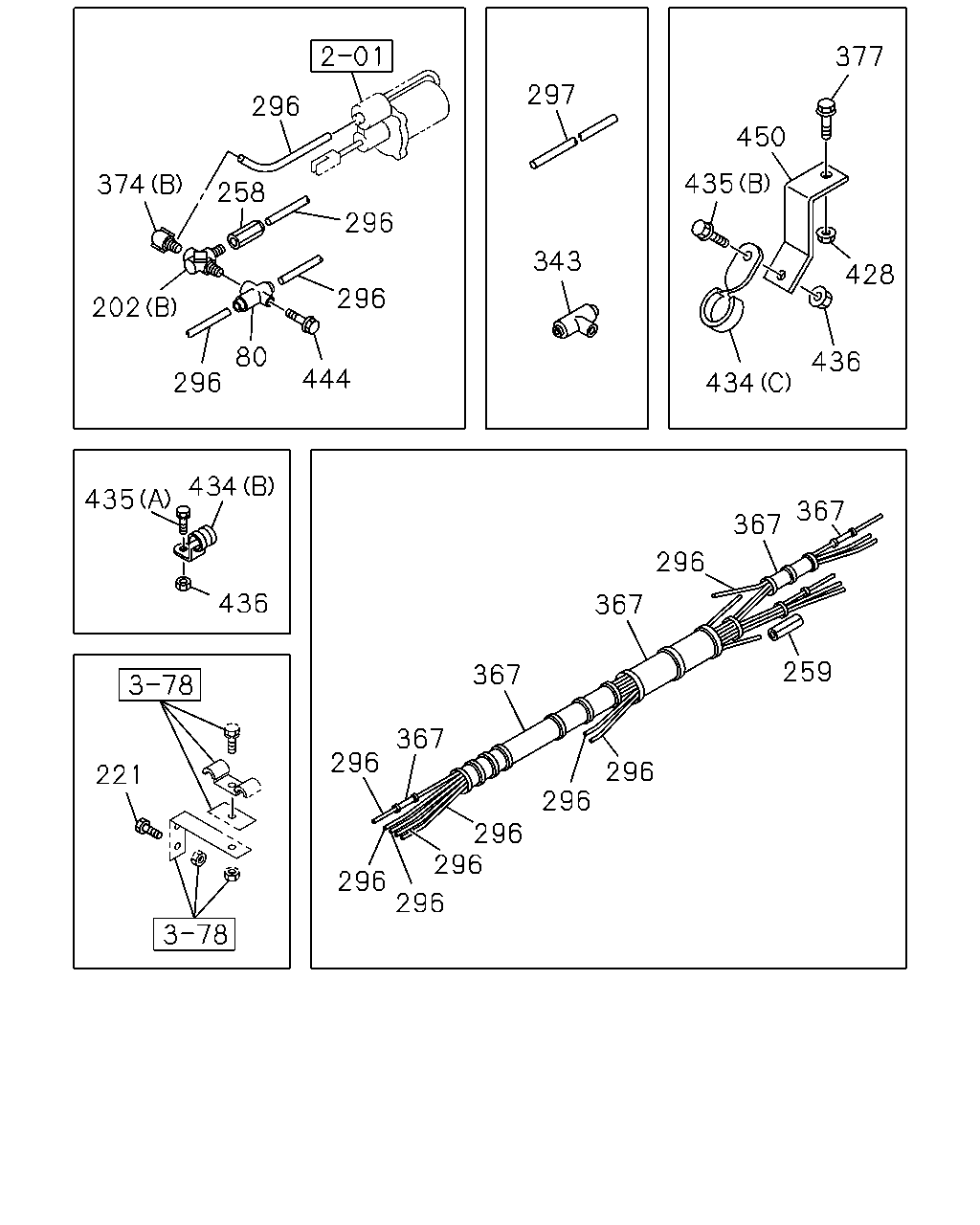

çizim 163331
296 374 258 296 296 444 80 296 202 297 343 377 450 435 434 436 428 367 367 296 367 367 367 296 296 296 296 296 296 296 259 435 434 436 221
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0909-1412
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1501-
80 UNION; 3 WAY
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1501-
202 ADAPTER
EURO5 SPECIFICATION(NT5) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1501-
202 ADAPTER
MZW6P M/T(RSZ) (B) 		1-09656-734-0 01 1 1501-
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0909-
258 CONNECTOR; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1501-
259 SLEEVE; RUBBER,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0909-
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 06 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0909-
297 TUBE; NYLON
TAIWAN EQUIPMENT(WW5) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1501-
343 UNION; NYLON TUBE
TAIWAN EQUIPMENT(WW5) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 1501-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0909-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0909-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0909-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0909-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0909-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0909-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0909-
374 CONNECTOR
MZW6P M/T(RSZ) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1501-
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0909-
377 BOLT; BRKT FIX
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28650-825-0 01 1 1501-
428 NUT; BRKT
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 1501-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (C) ID=9 		1-09700-839-1 01 1 1501-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
LOW DECK WO/REAR BODY<PK4> (A) L=350 		1-09707-183-0 08 1 0909-
434 CLIP
(B) ID=25 H=60 L=35 		1-09701-103-0 01 1 0909-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0909-
434 CLIP
EXC. LOW DECK WO/REAR BODY<PK4> (A) L=350 		1-09707-183-0 07 1 0909-
435 BOLT; CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (B) M8X30 FLANGE 		0-28650-830-0 01 1 1501-
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0909-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0909-1412
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1501-
436 NUT; CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 1501-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 1506-
444 BOLT; UNION
TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28050-820-0 02 1 1501-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0909-1412
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1412
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1412
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1501-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-
450 BRACKET; CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> 		1-47477-626-0 01 1 1501-

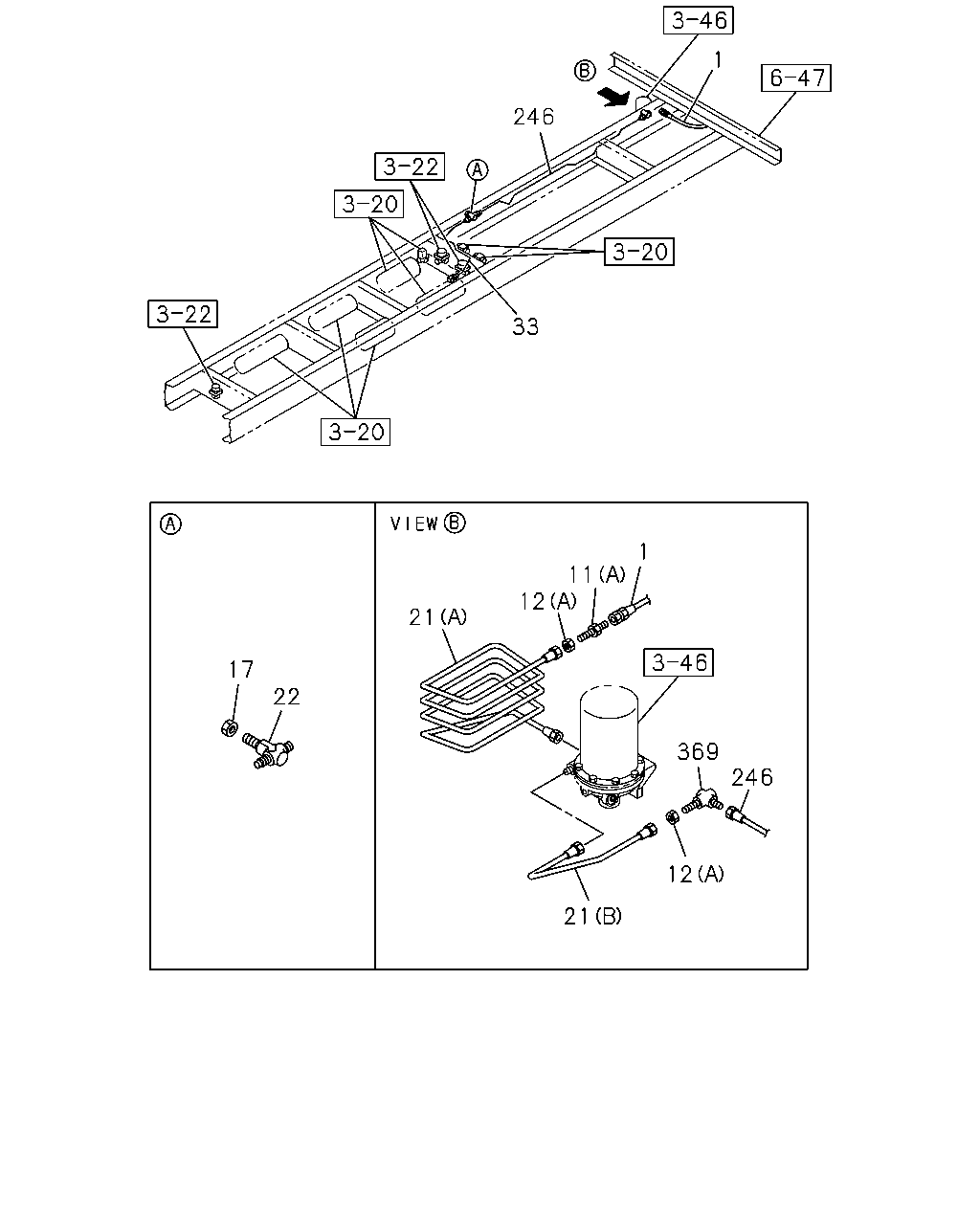

çizim 163335
246 1 33 17 22 21 12 11 1 369 246 12 21
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-871-0 01 1 0909-
11 UNION; AIR PIPE
EURO5 SPECIFICATION(NT5) (B) M12 ELBOW 		0-92125-206-0 02 1 1501-
11 UNION; AIR PIPE
(A) M22 		0-92123-315-0 01 1 0909-
12 NUT; UNION
EURO5 SPECIFICATION(NT5) (B) M12 		9-09840-280-0 02 1 1501-
12 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0909-
17 NUT; UNION
M14 		0-91111-514-0 01 1 0909-
21 PIPE; AIR,UNION TO AIR DRYER
(B) 		8-98105-794-0 01 1 0909-
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-98112-687-0 01 1 0909-
22 NIPPLE; AIR PIPE
M22 2WAY 		1-09654-212-1 01 1 0909-
33 PIPE; AIR,UNION TO AIR TANK
LOW DECK WO/REAR BODY<PK4> L=1348 		8-98072-520-0 01 1 0909-
33 PIPE; AIR,UNION TO AIR TANK
EXC. LOW DECK WO/REAR BODY<PK4> L=1297 		1-49124-939-0 01 1 0909-
246 PIPE; AIR,UNION TO UNION
L=1488 		8-98105-792-0 01 1 0909-
369 UNION; AIR PIPE
M22X2 ELBOW 		0-92135-215-0 01 1 0909-

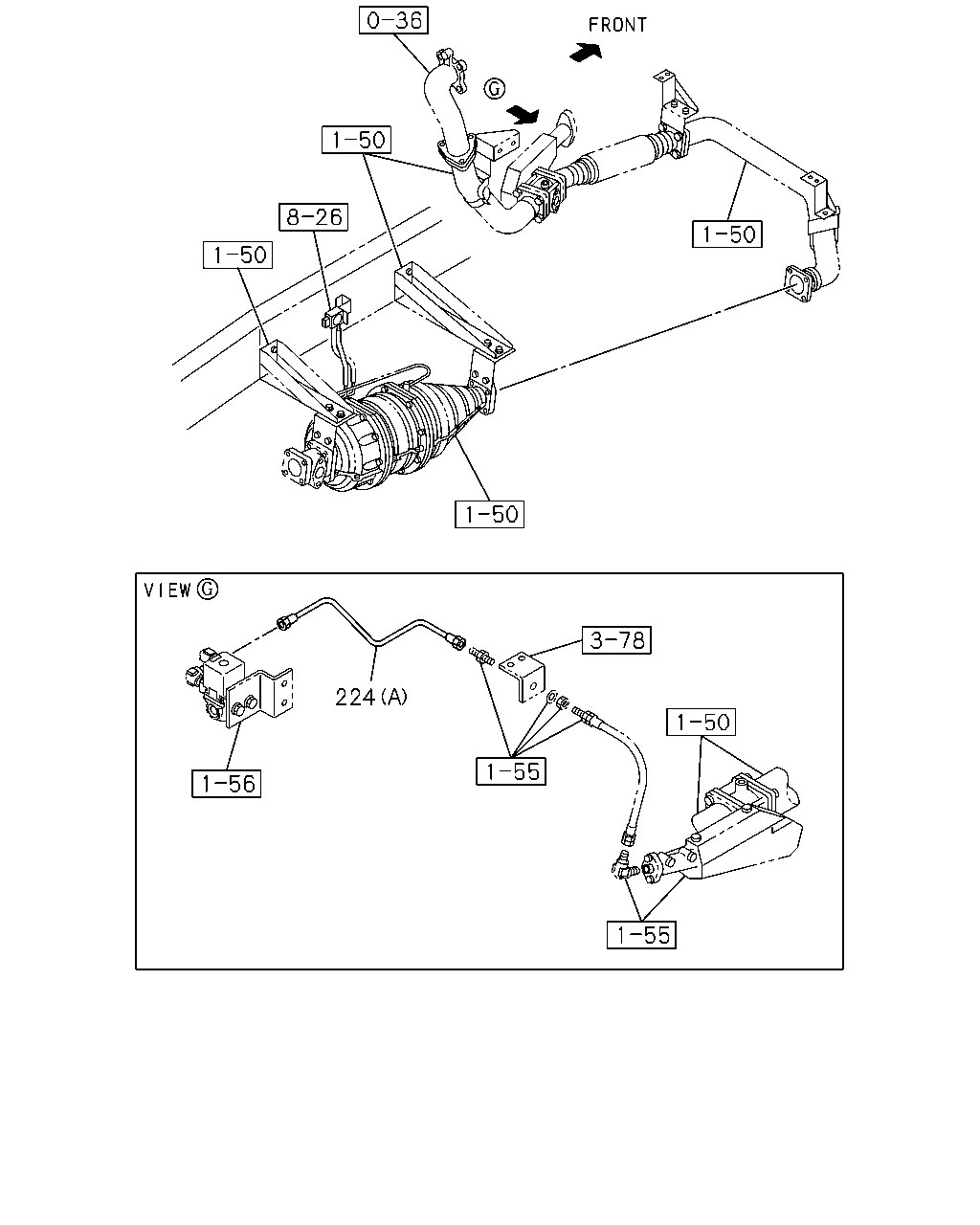

çizim 163336
224
BalonParca AdiParca NoAdetTipApplied Date
224 PIPE; AIR,UNION TO FLEX HOSE
EURO5 SPECIFICATION(NT5) (B) L=406 		8-98055-824-0 01 1 1501-
224 PIPE; AIR,UNION TO FLEX HOSE
EURO2 SPECIFICATION(NT2) (A) L=823 SERVICED BY L=900 		1-47428-813-0 01 1 0909-
224 PIPE; AIR,UNION TO FLEX HOSE
EURO3 SPECIFICATION(NT3) (A) L=311 		8-98118-530-0 01 1 0909-

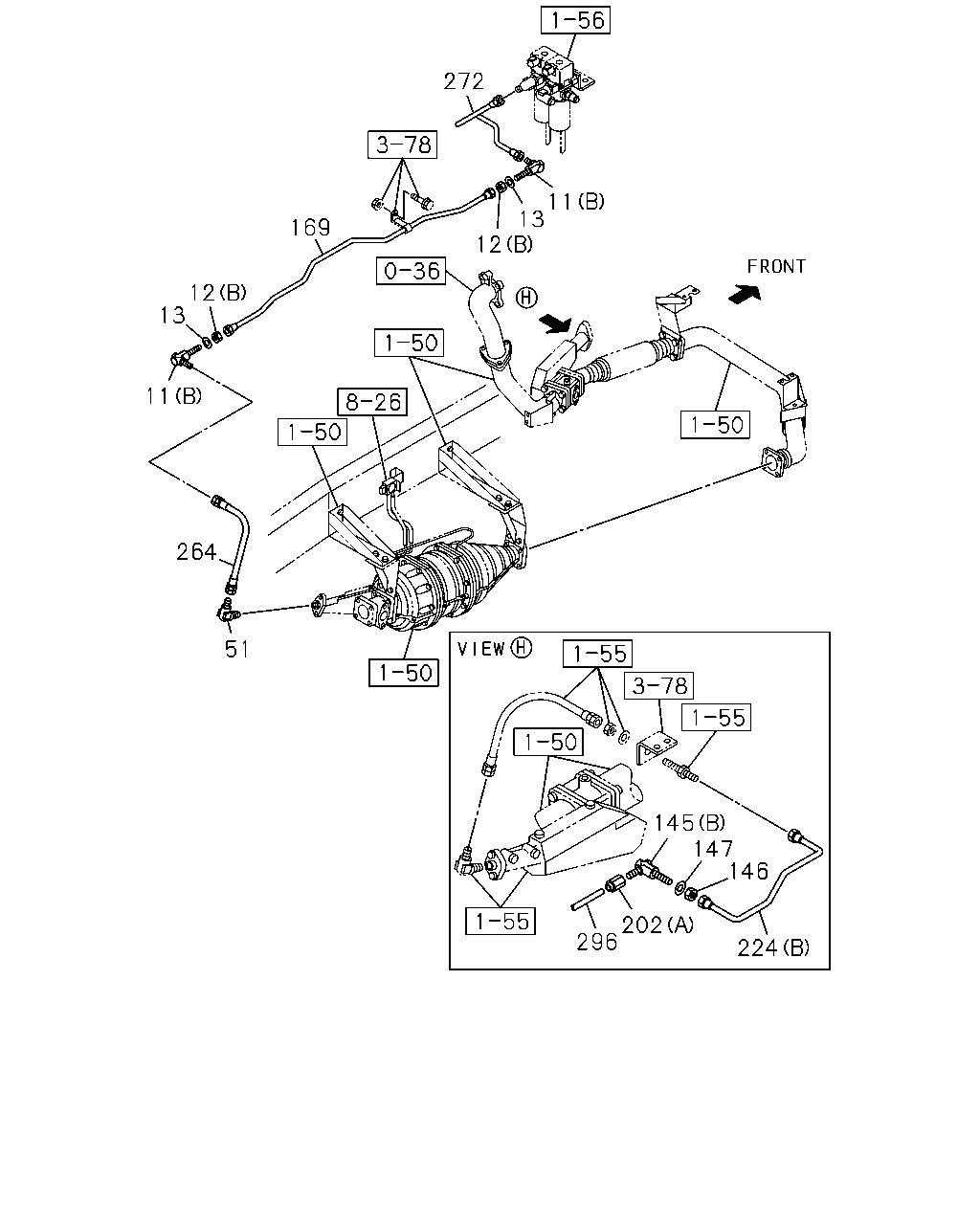

çizim 468041
272 169 12 13 11 264 51 12 13 11 145 147 146 224 202 296
BalonParca AdiParca NoAdetTipApplied Date
11 UNION; AIR PIPE
EURO5 SPECIFICATION(NT5) (B) M12 ELBOW 		0-92125-206-0 02 1 1501-
11 UNION; AIR PIPE
(A) M22 		0-92123-315-0 01 1 0909-
12 NUT; UNION
EURO5 SPECIFICATION(NT5) (B) M12 		9-09840-280-0 02 1 1501-
12 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0909-
13 WASHER; LK,UNION
EURO5 SPECIFICATION(NT5) ID=12.2 		0-91510-512-0 02 1 1501-
51 UNION
EURO5 SPECIFICATION(NT5) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1501-
145 UNION; NYLON TUBE
EURO5 SPECIFICATION(NT5) (B) M12 ELBOW 		0-92125-206-0 01 1 1501-
145 UNION; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0909-
146 NUT; UNION
EURO5 SPECIFICATION(NT5) M12 		9-09840-280-0 01 1 1501-
147 WASHER; LK,UNION
EURO5 SPECIFICATION(NT5) ID=12.2 		0-91510-512-0 01 1 1501-
169 PIPE; AIR,UNION TO FLEX HOSE
EURO5 SPECIFICATION(NT5) L=1169 SERVICED BY L=1200 		1-47428-816-0 01 1 1501-
202 ADAPTER
EURO5 SPECIFICATION(NT5) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1501-
202 ADAPTER
MZW6P M/T(RSZ) (B) 		1-09656-734-0 01 1 1501-
224 PIPE; AIR,UNION TO FLEX HOSE
EURO5 SPECIFICATION(NT5) (B) L=406 		8-98055-824-0 01 1 1501-
224 PIPE; AIR,UNION TO FLEX HOSE
EURO2 SPECIFICATION(NT2) (A) L=823 SERVICED BY L=900 		1-47428-813-0 01 1 0909-
224 PIPE; AIR,UNION TO FLEX HOSE
EURO3 SPECIFICATION(NT3) (A) L=311 		8-98118-530-0 01 1 0909-
264 HOSE; FLEX
EURO5 SPECIFICATION(NT5) L=250 		1-09363-618-0 01 1 1501-
272 PIPE; AIR,MAG VLV TO UNION
EURO5 SPECIFICATION(NT5) L=345 		8-98055-823-0 01 1 1501-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0909-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0909-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
