11206 - LT134 LHD EURO2/3/5
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶

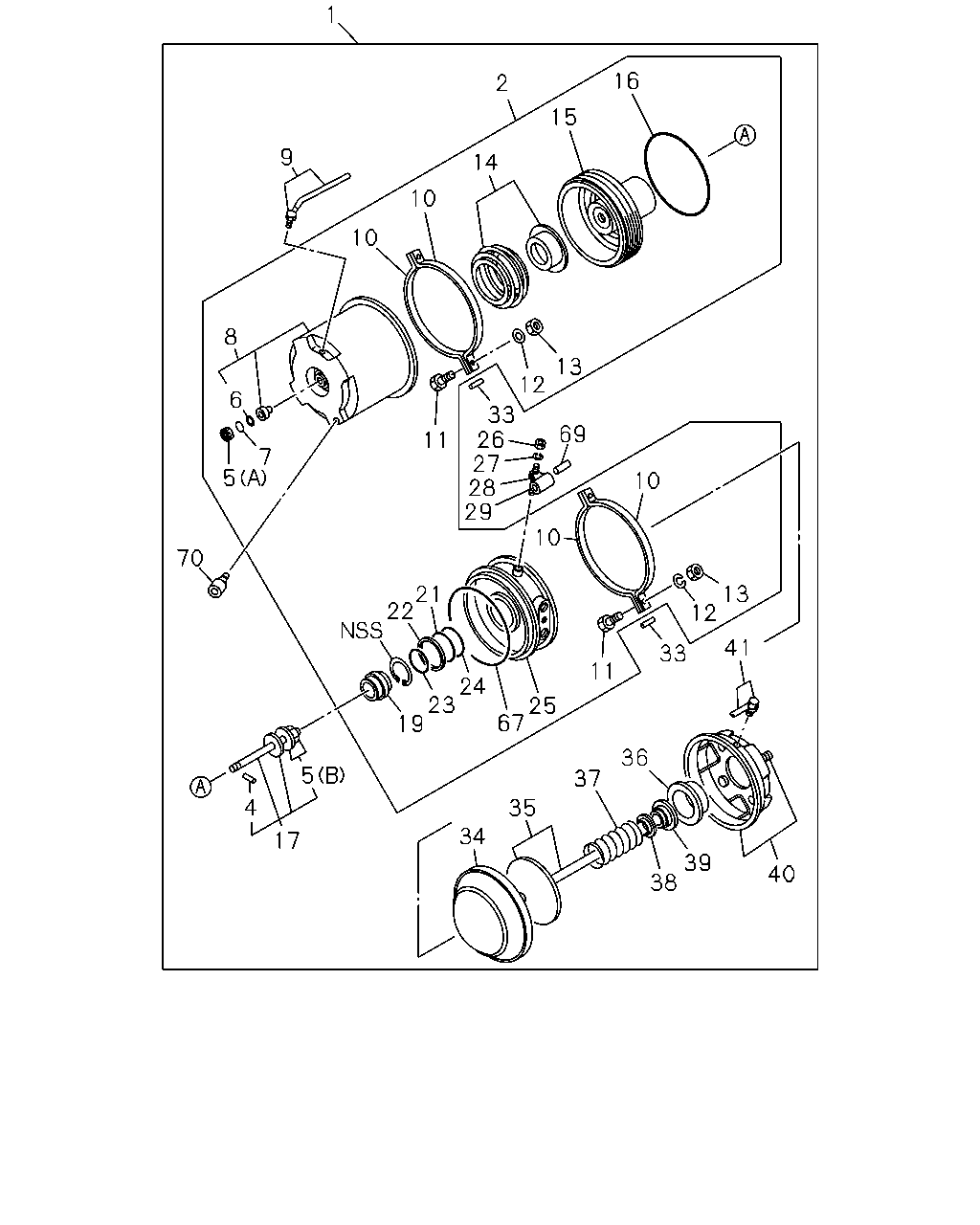

3-41 — REAR BRAKE POWER CHAMBER
(#58268) — 44 parça
1
2
16
15
14
10
10
9
8
6
7
5
70
4
17
5
19
23
24
22
21
67
25
11
36
37
35
34
38
39
40
41
13
12
33
10
10
69
13
12
33
26
27
28
29
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-48250-640-1
01
1
0909-
1
CHAMBER ASM; SPRING
1-48250-641-1
01
1
0909-
2
CHAMBER; EMERGENCY
1-48252-014-0
01
1
0909-
2
CHAMBER; EMERGENCY
1-48252-015-0
01
1
0909-
4
PIN; STRAIGHT,SPR CHAMBER
1-48259-056-0
04
1
0909-
5
NUT; SHELL
(A)
1-48259-054-0
02
1
0909-
5
NUT; SHELL
(B)
1-48259-074-0
02
1
0909-
6
GASKET; SHELL
9-09920-268-0
02
1
0909-
7
GASKET
1-48259-055-0
02
1
0909-
8
SHELL; CYL,SPR CHAMBER
1-48259-069-0
01
1
0909-
8
SHELL; CYL,SPR CHAMBER
1-48259-070-0
01
1
0909-
9
PIPE ASM; SHELL
1-48259-076-0
02
1
0909-
10
RING; CLAMP,SPR CHAMBER
1-48259-016-0
08
1
0909-
11
BOLT; CLAMP RING
1-48259-092-0
08
1
0909-
12
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
08
1
0909-
13
NUT; CLAMP RING
9-83315-080-0
08
1
0909-
14
SPRING & SEAT SET
1-48259-037-1
02
1
0909-
15
PISTON
1-48262-005-0
02
1
0909-
16
GASKET
1-48259-048-0
02
1
0909-
17
BOLT ASM; EMERGENCY
1-48259-073-0
02
1
0909-
19
COVER; PISTON
1-48269-011-0
02
1
0909-
21
GASKET; SPR CHAMBER
1-48259-049-0
02
1
0909-
22
RING; BACKUP,SPR CHAMBER
1-48259-019-0
02
1
0909-
23
GASKET; SPR CHAMBER
1-48259-047-0
02
1
0909-
24
BEARING; SPR CHAMBER
1-48259-020-0
02
1
0909-
25
PLATE; PRESSURE,SPR CHAMBER
1-48259-077-0
01
1
0909-
25
PLATE; PRESSURE,SPR CHAMBER
1-48259-078-0
01
1
0909-
26
NUT; PRESSURE PLATE
1-48259-058-0
04
1
0909-
27
WASHER; PRESSURE PLATE
ID=8.2
9-09150-508-0
02
1
0909-
28
BRACKET; PRESSURE PLATE,HOSE
1-48259-059-0
02
1
0909-
29
STUD; PRESSURE PLATE
1-48259-050-0
02
1
0909-
33
RETAINER; DIAPH
1-48259-044-0
04
1
0909-
34
DIAPHRAGM
1-48252-056-0
02
1
0909-
35
PLATE; ROD END,SPR CHAMBER
1-48253-010-0
02
1
0909-
36
RETAINER; SPR CHAMBER
1-48259-043-0
02
1
0909-
37
SPRING; LWR,SPR CHAMBER
1-48255-016-0
02
1
0909-
38
COVER; ROD & PLATE
1-48259-066-0
02
1
0909-
39
COVER; ROD & PLATE
1-48259-065-0
02
1
0909-
40
COVER ASM; LWR,SPR CHAMBER
1-48259-067-1
01
1
0909-
40
COVER ASM; LWR,SPR CHAMBER
1-48259-068-1
01
1
0909-
41
PIPE ASM; LWR COVER
1-48259-075-0
02
1
0909-
67
GASKET; SPR CHAMBER
1-48259-053-0
02
1
0909-
69
HOSE; PRESSURE PLATE
1-48259-051-0
02
1
0909-
70
COVER; EXH,SPR CHAMBER
1-48259-052-0
02
1
0909-
