◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#58265) — 81 parça

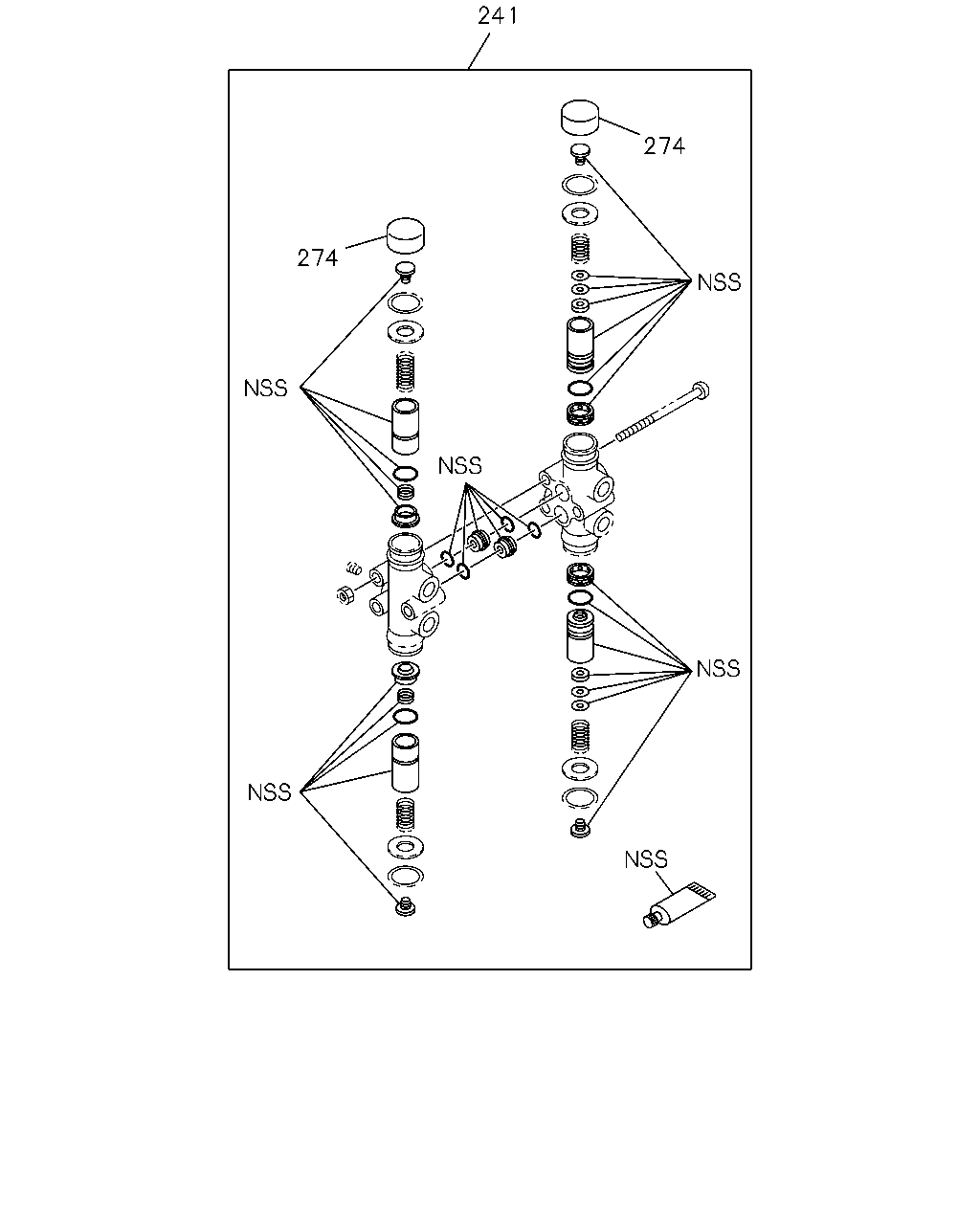

çizim 163315
241 274 274
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 0909-
274 COVER; DUST 1-48119-450-0 02 1 0909-

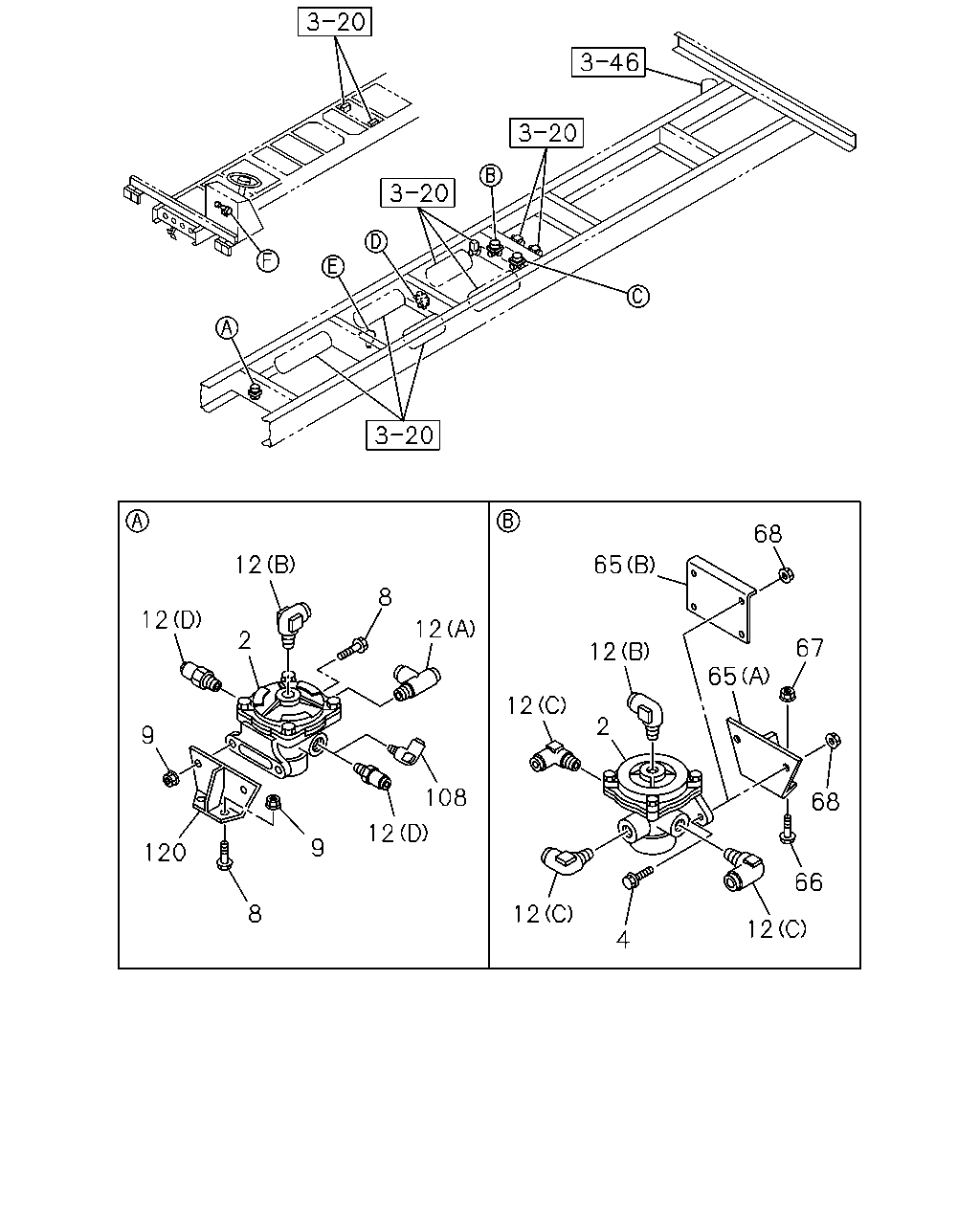

çizim 163317
12 12 2 9 120 8 9 12 108 12 8 12 12 2 12 4 12 66 68 67 65 68 65
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-755-0 02 1 0909-
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0909-
8 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0909-
8 BOLT; BRKT
EXC. LOW DECK WO/REAR BODY<PK4> M10X25 FLANGE 		0-28651-025-0 02 1 0909-
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0909-
9 NUT
EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 02 1 0909-
12 CONNECTOR; RELAY VLV
LOW DECK WO/REAR BODY<PK4> (D) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0909-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0909-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 ELBOW 		1-09660-960-0 03 1 0909-
12 CONNECTOR; RELAY VLV
(A) DIN12X2 & R1/2 3WAY 		1-09661-019-0 01 1 0909-
12 CONNECTOR; RELAY VLV
EXC. LOW DECK WO/REAR BODY<PK4> (D) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0909-
65 BRACKET; RELAY VLV RR
LOW DECK WO/REAR BODY<PK4> (B) 		8-98072-473-0 01 1 0909-
65 BRACKET; RELAY VLV RR
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-48219-074-0 01 1 0909-
66 BOLT; BRKT,RELAY VLV RR
M10X25 FLANGE 		0-28651-025-0 02 1 0909-
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91180-210-0 02 1 0909-
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0909-
108 CONNECTOR; ELBOW
LOW DECK WO/REAR BODY<PK4> DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0909-
120 BRACKET; VLV
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48219-074-0 01 1 0909-

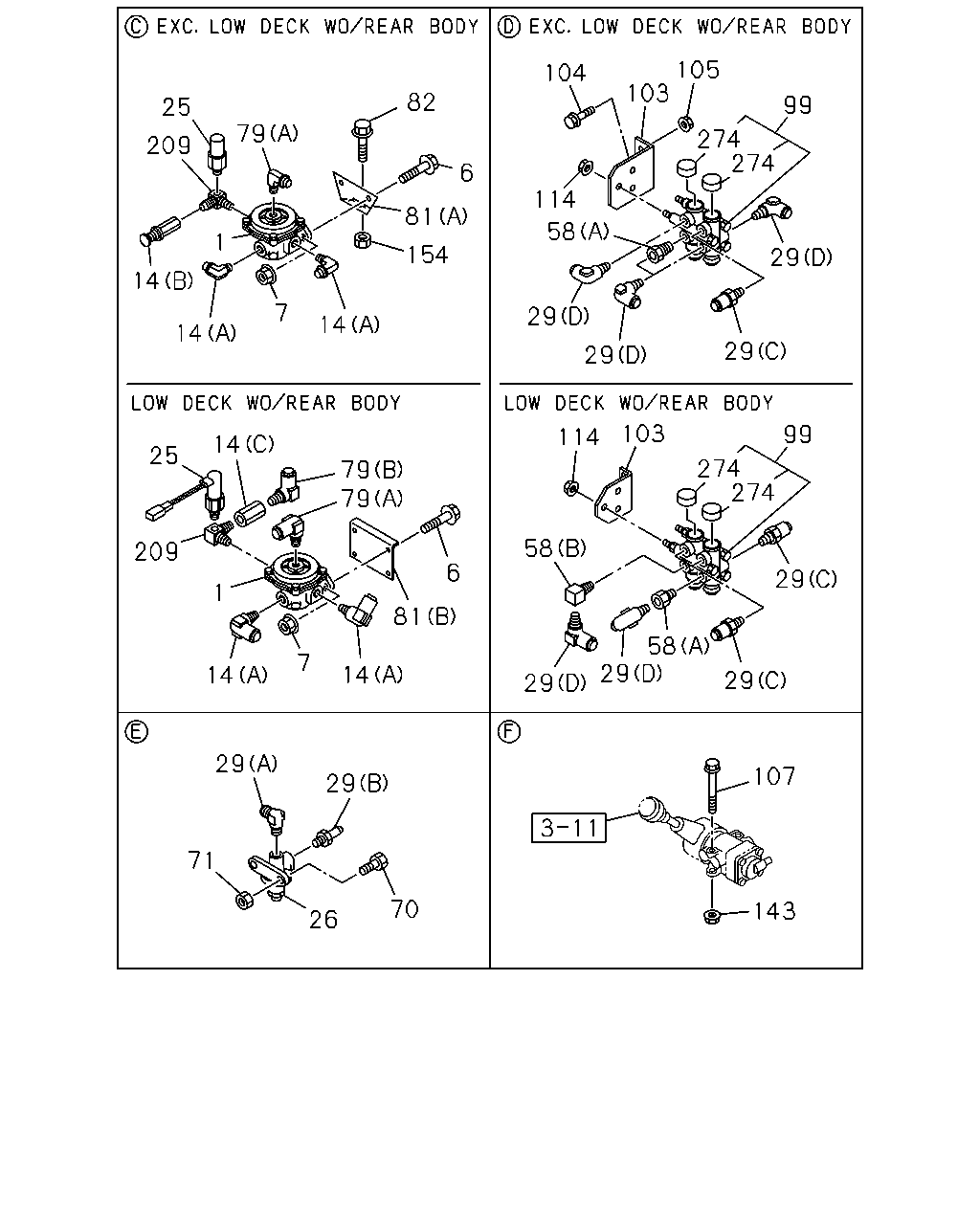

çizim 163318
25 209 79 82 6 81 154 14 7 14 14 1 14 79 79 25 209 1 14 14 7 81 6 29 29 71 26 70 107 143 29 58 29 29 58 114 103 274 274 99 105 99 103 104 114 58 29 29 29 29 274 274 29
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-755-0 01 1 0909-
6 BOLT; VLV
M10X30 FLANGE 		0-28651-030-0 02 1 0909-
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0909-
14 CONNECTOR; RELAY VLV
LOW DECK WO/REAR BODY<PK4> (C) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0909-
14 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0909-
14 CONNECTOR; RELAY VLV
EXC. LOW DECK WO/REAR BODY<PK4> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0909-
25 SWITCH; PRESSURE 1-48340-068-0 01 1 0909-
26 VALVE; AIR
DOOR CONTROL AIR W/SUB AIR TANK<SGW> 		1-48110-006-1 01 1 0909-
29 CONNECTOR; AIR VLV
LOW DECK WO/REAR BODY<PK4> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0909-
29 CONNECTOR; AIR VLV
LOW DECK WO/REAR BODY<PK4> (C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0909-
29 CONNECTOR; AIR VLV
DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0909-
29 CONNECTOR; AIR VLV
DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0909-
29 CONNECTOR; AIR VLV
EXC. LOW DECK WO/REAR BODY<PK4> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0909-
29 CONNECTOR; AIR VLV
EXC. LOW DECK WO/REAR BODY<PK4> (C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0909-
58 ADAPTER
LOW DECK WO/REAR BODY<PK4> (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0909-
58 ADAPTER
(A) PT3/8 		1-09664-210-0 01 1 0909-
70 BOLT; AIR VLV
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X30 FLANGE 		0-28650-830-0 02 1 0909-
71 NUT; AIR VLV
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8 FLANGE 		0-91180-108-0 02 1 0909-
79 CONNECTOR; RELAY VLV
LOW DECK WO/REAR BODY<PK4> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0909-
79 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0909-
81 BRACKET; RELAY VLV,PARKING BRK
LOW DECK WO/REAR BODY<PK4> (B) 		8-98072-473-0 01 1 0909-
81 BRACKET; RELAY VLV,PARKING BRK
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-48219-074-0 01 1 0909-
82 BOLT; BRKT,RELAY VLV
M10X25 FLANGE 		0-28651-025-0 02 1 0909-
99 VALVE; PROTECTION 1-48110-193-1 01 1 0909-
103 BRACKET; PROTECTION VALVE 1-47477-860-0 01 1 0909-
104 BOLT; BRKT,VALVE
M8X30 FLANGE 		0-28650-830-0 02 1 0909-
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0909-
107 BOLT; VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0909-
114 NUT; VLV
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 03 1 0909-
114 NUT; VLV
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-208-0 03 1 0909-
143 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0909-
154 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0909-
209 CONNECTOR; 3WAY,DEL
LOW DECK WO/REAR BODY<PK4> 		1-09656-673-0 01 1 0909-
209 CONNECTOR; 3WAY,DEL
EXC. LOW DECK WO/REAR BODY<PK4> DIN8X2 & PT1/4 3WAY 		1-09656-672-0 01 1 0909-
274 COVER; DUST 1-48119-450-0 02 1 0909-

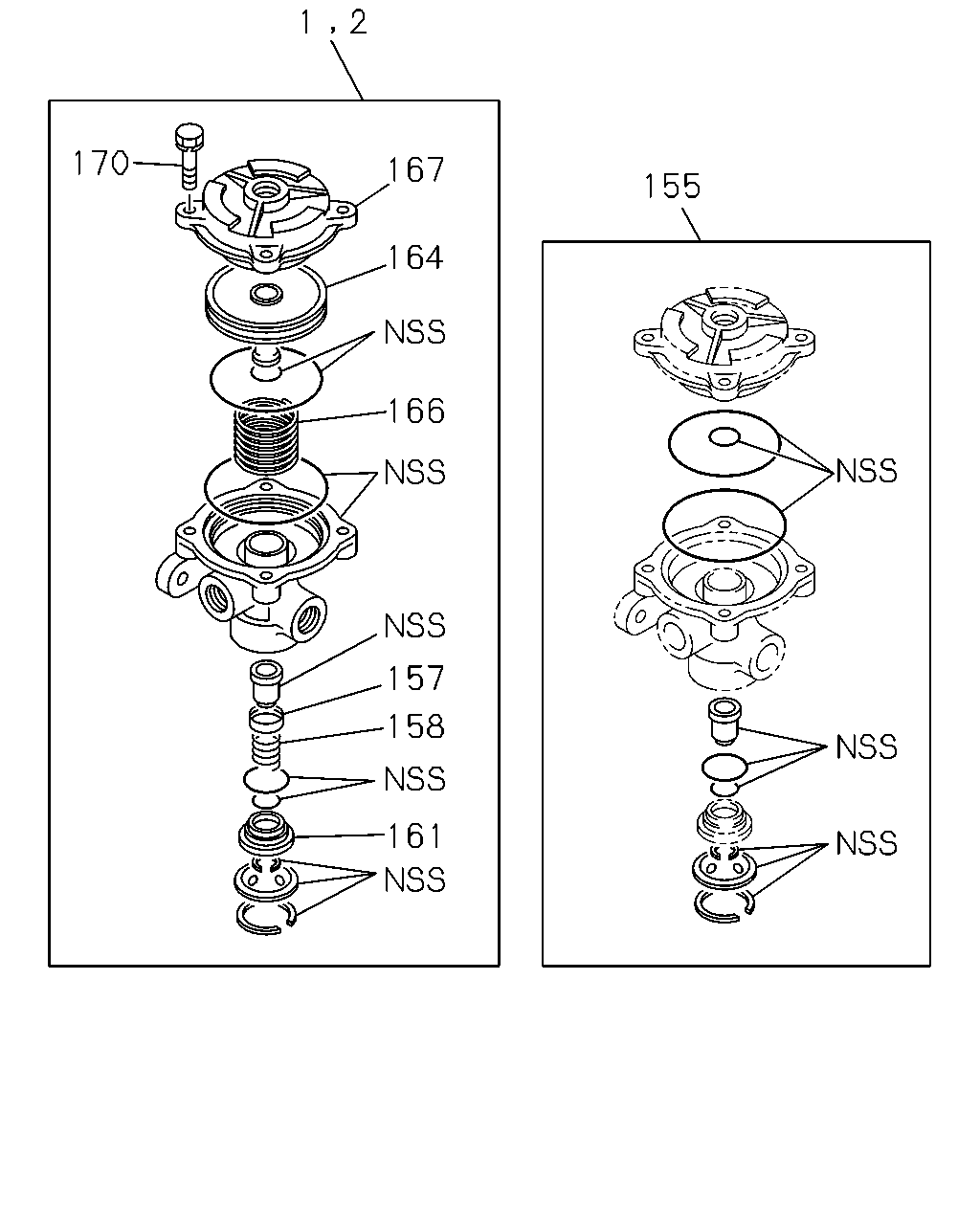

çizim 163323
1 170 167 164 2 166 157 158 161 155
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-755-0 01 1 0909-
2 VALVE; RELAY 1-48210-755-0 02 1 0909-
155 REPAIR KIT; RELAY VALVE
LOW DECK WO/REAR BODY<PK4> 		1-85576-033-0 03 1 0909-
155 REPAIR KIT; RELAY VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-85576-033-0 01 1 0909-
155 REPAIR KIT; RELAY VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-85576-033-0 02 1 0909-
157 RETAINER; VALVE
LOW DECK WO/REAR BODY<PK4> 		1-48213-002-0 03 1 0909-
157 RETAINER; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48213-002-0 01 1 0909-
157 RETAINER; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48213-002-0 02 1 0909-
158 SPRING; VALVE
LOW DECK WO/REAR BODY<PK4> 		1-47819-089-0 03 1 0909-
158 SPRING; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-47819-089-0 01 1 0909-
158 SPRING; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-47819-089-0 02 1 0909-
161 GUIDE; VALVE
LOW DECK WO/REAR BODY<PK4> 		1-48129-014-0 03 1 0909-
161 GUIDE; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48129-014-0 01 1 0909-
161 GUIDE; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48129-014-0 02 1 0909-
164 PISTON; RELAY VALVE
LOW DECK WO/REAR BODY<PK4> 		1-48219-071-0 03 1 0909-
164 PISTON; RELAY VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48219-071-0 01 1 0909-
164 PISTON; RELAY VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48219-071-0 02 1 0909-
166 SPRING; PISTON
LOW DECK WO/REAR BODY<PK4> 		1-47819-090-0 03 1 0909-
166 SPRING; PISTON
EXC. LOW DECK WO/REAR BODY<PK4> 		1-47819-090-0 01 1 0909-
166 SPRING; PISTON
EXC. LOW DECK WO/REAR BODY<PK4> 		1-47819-090-0 02 1 0909-
167 COVER; VALVE
LOW DECK WO/REAR BODY<PK4> 		1-48219-070-0 03 1 0909-
167 COVER; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48219-070-0 01 1 0909-
167 COVER; VALVE
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48219-070-0 02 1 0909-
170 SCREW; COVER TO BODY
LOW DECK WO/REAR BODY<PK4> 		1-48219-039-0 12 1 0909-
170 SCREW; COVER TO BODY
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48219-039-0 04 1 0909-
170 SCREW; COVER TO BODY
EXC. LOW DECK WO/REAR BODY<PK4> 		1-48219-039-0 08 1 0909-
