Sayfa 3-20 - Isuzu EPC

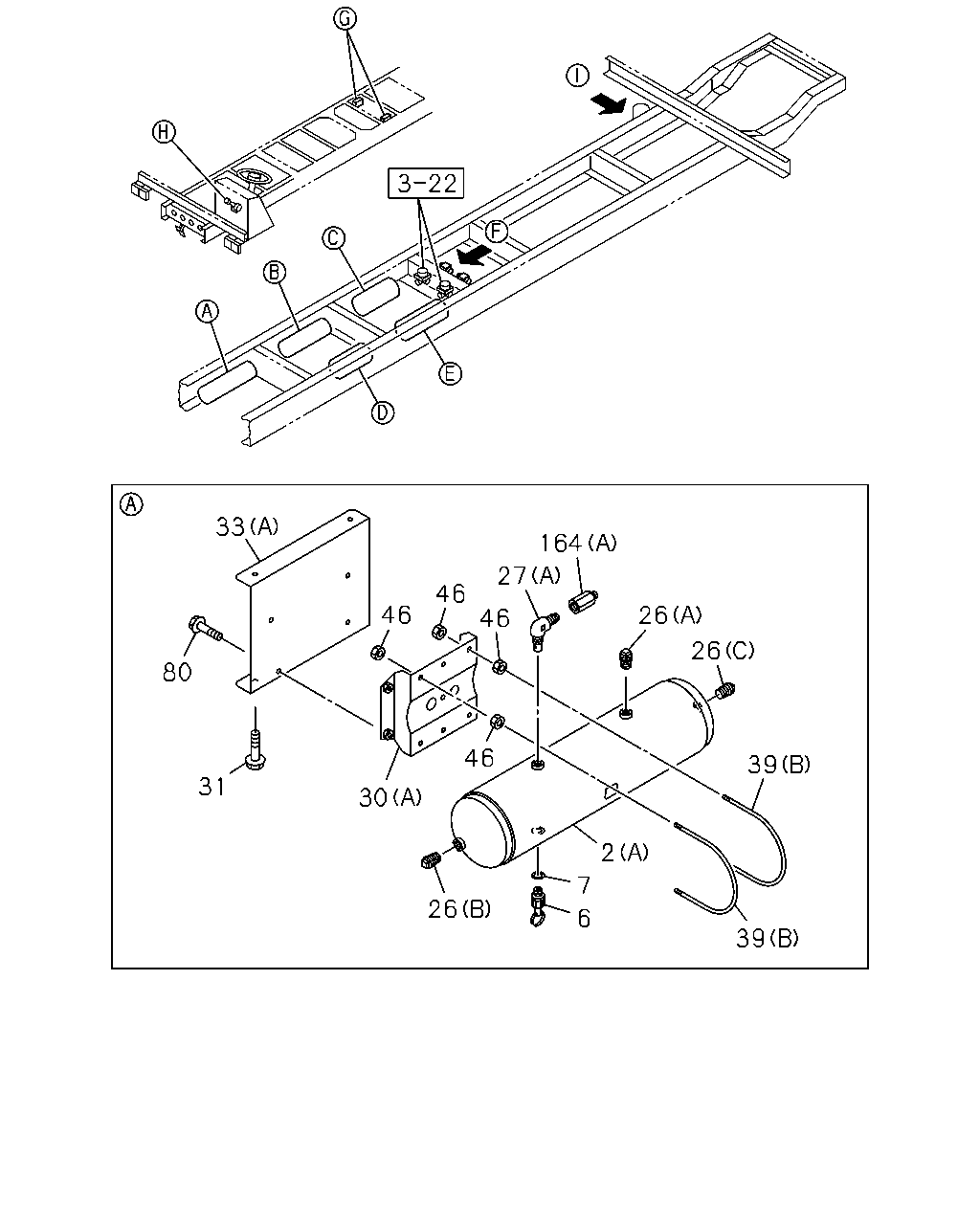

3-20 — AIR TANK (#58264) — 350 parça

33 46 46 46 28 80 31 39 39 46 126 8 5 166 5 1 7 6 10 46 46 28 46 5 5 166 5 8 39 5 1 7 6 39 10 104 28 8 46 33 80 31 33 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	0909-
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	0909-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	0909-
5	UNION; AIR TANK VIETNAM EQUIPMENT(JCD) (F) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0909-
5	UNION; AIR TANK VIETNAM EQUIPMENT(JCD) (C) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	0909-
5	UNION; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (C) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	0909-
5	UNION; AIR TANK VIETNAM EQUIPMENT(JCD) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0909-
5	UNION; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0909-
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (C) M22 & PT3/4 ELBOW	1-09650-277-0	03	1	0909-
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	03	1	0909-1005
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	03	1	1006-
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0909-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0909-
5	UNION; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0909-
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0909-
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0909-1005
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1006-
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK VIETNAM EQUIPMENT(JCD)	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK LOW DECK WO/REAR BODY<PK4>	1-48312-017-0	05	1	0909-
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	02	1	0909-
7	GASKET; DRAIN COCK EXC. LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK VIETNAM EQUIPMENT(JCD) ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	05	1	0909-
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0909-
7	GASKET; DRAIN COCK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	02	1	0909-
8	CONNECTOR; AIR TANK VIETNAM EQUIPMENT(JCD) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0909-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	0909-
8	CONNECTOR; AIR TANK (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0909-
10	PLUG; AIR TANK VIETNAM EQUIPMENT(JCD) (C) PT1/4	9-99204-513-0	02	1	0909-
10	PLUG; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (C) PT1/4	9-99204-513-0	02	1	0909-
10	PLUG; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) PT3/8	9-09204-517-0	01	1	0909-
10	PLUG; AIR TANK LOW DECK WO/REAR BODY<PK4> (C) PT1/4	9-99204-513-0	01	1	0909-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	0909-
28	BRACKET; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B) L=300	1-48317-247-6	02	1	0909-
28	BRACKET; AIR TANK VIETNAM EQUIPMENT(JCD) (B) L=300	1-48317-247-6	02	1	0909-
28	BRACKET; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (B) L=300	1-48317-247-6	02	1	0909-
28	BRACKET; AIR TANK LOW DECK WO/REAR BODY<PK4> (B) L=300	1-48317-247-6	04	1	0909-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	0909-
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0909-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0909-
33	BRACKET; BRKT,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (B)	8-98072-213-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (D)	8-98072-214-0	02	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (A)	8-98072-215-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C)	1-48316-080-0	01	1	0909-
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	06	1	0909-
39	U-BOLT; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	04	1	0909-
46	NUT; U-BOLT VIETNAM EQUIPMENT(JCD) M8	0-91110-508-0	16	1	0909-
46	NUT; U-BOLT LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	32	1	0909-
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	24	1	0909-
80	BOLT; BRKT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	12	1	0909-
80	BOLT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	08	1	0909-
104	NUT; BRKT VIETNAM EQUIPMENT(JCD) M12 FLANGE	0-91180-212-0	04	1	0909-
104	NUT; BRKT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	04	1	0909-
104	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	12	1	0909-
104	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	08	1	0909-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0909-
126	CONNECTOR; ELBOW LOW DECK WO/REAR BODY<PK4> (C) PT3/8 ELBOW	1-09660-696-0	02	1	0909-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK VIETNAM EQUIPMENT(JCD) 530KPA	1-48340-054-1	01	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> 530KPA	1-48340-054-1	01	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK LOW DECK WO/REAR BODY<PK4> 530KPA	1-48340-054-1	03	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. LOW DECK WO/REAR BODY<PK4> 530KPA	1-48340-054-1	02	1	0909-

39 27 2 39 167 27 7 6 30 104 46 26 126 164 26 46 30 46 46 33 31 80 166 5 8 5 11 39 5 39 10 7 6 5 7 104 6 28 46 46 28 1 46 46 80 31 10 33 5 166 5 166 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (C)	1-48371-109-0	01	1	0909-
1	TANK ASM; AIR (A)	1-48370-153-0	01	1	0909-
1	TANK ASM; AIR (B)	1-48371-108-0	01	1	0909-
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48370-153-0	01	1	0909-
2	TANK; AIR VIETNAM EQUIPMENT(JCD) (A)	1-48370-153-0	01	1	0909-
2	TANK; AIR (B)	1-48371-108-0	01	1	0909-
5	UNION; AIR TANK VIETNAM EQUIPMENT(JCD) (F) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0909-
5	UNION; AIR TANK VIETNAM EQUIPMENT(JCD) (C) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	0909-
5	UNION; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (C) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	0909-
5	UNION; AIR TANK VIETNAM EQUIPMENT(JCD) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0909-
5	UNION; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0909-
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (C) M22 & PT3/4 ELBOW	1-09650-277-0	03	1	0909-
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	03	1	0909-1005
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	03	1	1006-
5	UNION; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0909-
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0909-
5	UNION; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0909-
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0909-
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0909-1005
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	02	1	1006-
5	UNION; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK VIETNAM EQUIPMENT(JCD)	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK LOW DECK WO/REAR BODY<PK4>	1-48312-017-0	05	1	0909-
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	02	1	0909-
7	GASKET; DRAIN COCK EXC. LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK VIETNAM EQUIPMENT(JCD) ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	05	1	0909-
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0909-
7	GASKET; DRAIN COCK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	02	1	0909-
8	CONNECTOR; AIR TANK VIETNAM EQUIPMENT(JCD) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0909-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	0909-
8	CONNECTOR; AIR TANK (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0909-
10	PLUG; AIR TANK VIETNAM EQUIPMENT(JCD) (C) PT1/4	9-99204-513-0	02	1	0909-
10	PLUG; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (C) PT1/4	9-99204-513-0	02	1	0909-
10	PLUG; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) PT3/8	9-09204-517-0	01	1	0909-
10	PLUG; AIR TANK LOW DECK WO/REAR BODY<PK4> (C) PT1/4	9-99204-513-0	01	1	0909-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	02	1	0909-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) PT1/4	9-99204-513-0	01	1	0909-
26	PLUG; SUB AIR TANK VIETNAM EQUIPMENT(JCD) (C) PT1/4	9-99204-513-0	01	1	0909-
26	PLUG; SUB AIR TANK VIETNAM EQUIPMENT(JCD) (B) PT3/4	9-09204-526-0	02	1	0909-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	01	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT3/4	9-09204-526-0	01	1	0909-
27	UNION; ELBOW,AIR TANK VIETNAM EQUIPMENT(JCD) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0909-
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) M20 & PT3/4	1-48411-009-1	01	1	0909-
27	UNION; ELBOW,AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	0909-1005
27	UNION; ELBOW,AIR TANK (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1006-
27	UNION; ELBOW,AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0909-
28	BRACKET; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B) L=300	1-48317-247-6	02	1	0909-
28	BRACKET; AIR TANK VIETNAM EQUIPMENT(JCD) (B) L=300	1-48317-247-6	02	1	0909-
28	BRACKET; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (B) L=300	1-48317-247-6	02	1	0909-
28	BRACKET; AIR TANK LOW DECK WO/REAR BODY<PK4> (B) L=300	1-48317-247-6	04	1	0909-
28	BRACKET; AIR TANK (A)	1-48317-473-2	01	1	0909-
30	BRACKET; AIR TANK,SUB DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-473-2	01	1	0909-
30	BRACKET; AIR TANK,SUB VIETNAM EQUIPMENT(JCD) (A)	1-48317-473-2	01	1	0909-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	0909-
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0909-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0909-
33	BRACKET; BRKT,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (B)	8-98072-213-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (D)	8-98072-214-0	02	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (A)	8-98072-215-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C)	1-48316-080-0	01	1	0909-
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	06	1	0909-
39	U-BOLT; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	04	1	0909-
46	NUT; U-BOLT VIETNAM EQUIPMENT(JCD) M8	0-91110-508-0	16	1	0909-
46	NUT; U-BOLT LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	32	1	0909-
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	24	1	0909-
80	BOLT; BRKT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	12	1	0909-
80	BOLT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	08	1	0909-
104	NUT; BRKT VIETNAM EQUIPMENT(JCD) M12 FLANGE	0-91180-212-0	04	1	0909-
104	NUT; BRKT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	04	1	0909-
104	NUT; BRKT LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	12	1	0909-
104	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	08	1	0909-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0909-
126	CONNECTOR; ELBOW LOW DECK WO/REAR BODY<PK4> (C) PT3/8 ELBOW	1-09660-696-0	02	1	0909-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0909-
164	CONNECTOR; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0909-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK VIETNAM EQUIPMENT(JCD) 530KPA	1-48340-054-1	01	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> 530KPA	1-48340-054-1	01	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK LOW DECK WO/REAR BODY<PK4> 530KPA	1-48340-054-1	03	1	0909-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. LOW DECK WO/REAR BODY<PK4> 530KPA	1-48340-054-1	02	1	0909-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-1	01	1	0909-

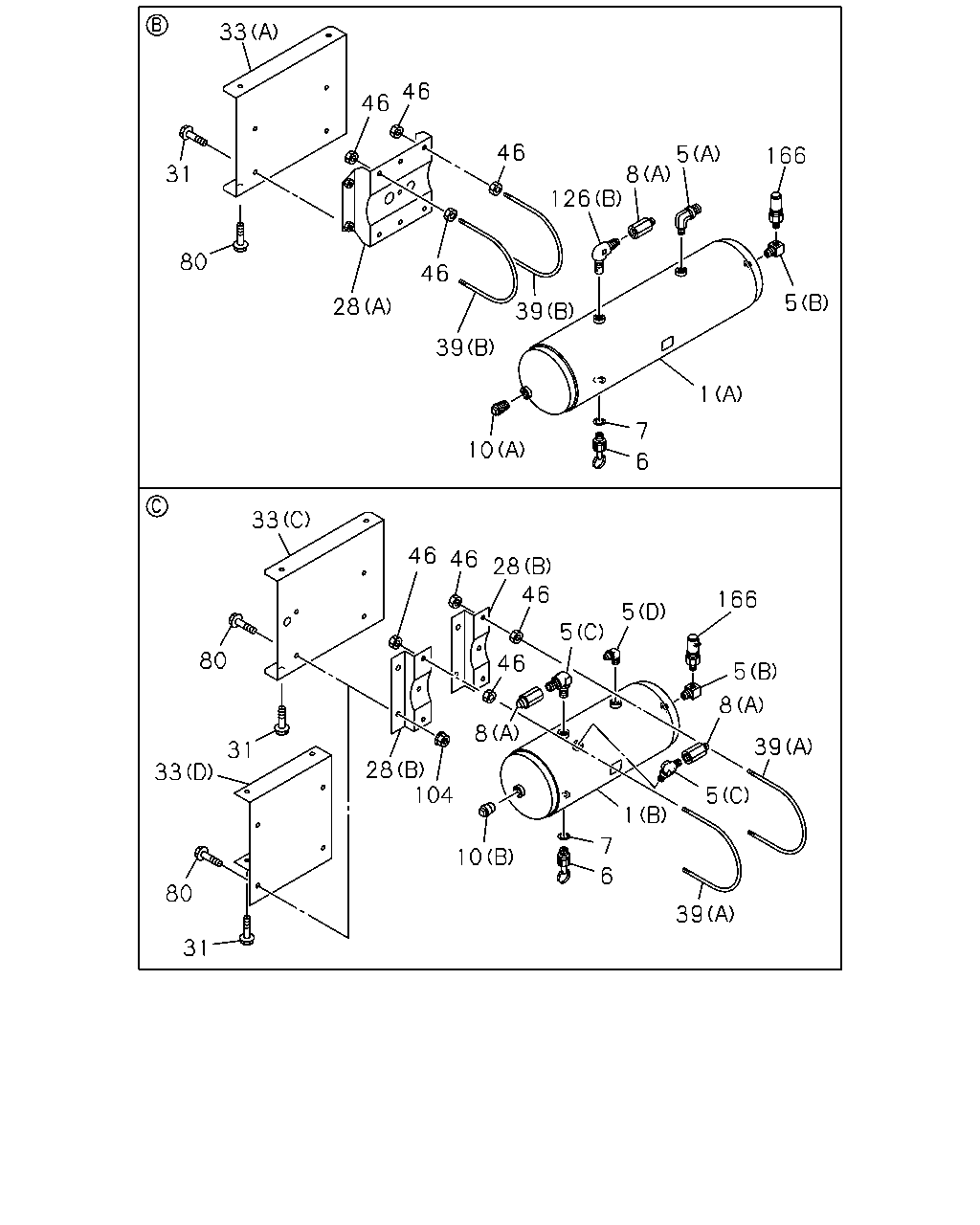

33 80 37 30 46 26 6 7 2 39 39 26 27 26 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48370-153-0	01	1	0909-
2	TANK; AIR VIETNAM EQUIPMENT(JCD) (A)	1-48370-153-0	01	1	0909-
2	TANK; AIR (B)	1-48371-108-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK VIETNAM EQUIPMENT(JCD)	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK LOW DECK WO/REAR BODY<PK4>	1-48312-017-0	05	1	0909-
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	02	1	0909-
7	GASKET; DRAIN COCK EXC. LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK VIETNAM EQUIPMENT(JCD) ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	05	1	0909-
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0909-
7	GASKET; DRAIN COCK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	02	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) PT1/4	9-99204-513-0	01	1	0909-
26	PLUG; SUB AIR TANK VIETNAM EQUIPMENT(JCD) (C) PT1/4	9-99204-513-0	01	1	0909-
26	PLUG; SUB AIR TANK VIETNAM EQUIPMENT(JCD) (B) PT3/4	9-09204-526-0	02	1	0909-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	01	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT3/4	9-09204-526-0	01	1	0909-
27	UNION; ELBOW,AIR TANK VIETNAM EQUIPMENT(JCD) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0909-
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) M20 & PT3/4	1-48411-009-1	01	1	0909-
27	UNION; ELBOW,AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	0909-1005
27	UNION; ELBOW,AIR TANK (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1006-
27	UNION; ELBOW,AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0909-
30	BRACKET; AIR TANK,SUB DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-473-2	01	1	0909-
30	BRACKET; AIR TANK,SUB VIETNAM EQUIPMENT(JCD) (A)	1-48317-473-2	01	1	0909-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	0909-
33	BRACKET; BRKT,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (B)	8-98072-213-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (D)	8-98072-214-0	02	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (A)	8-98072-215-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C)	1-48316-080-0	01	1	0909-
37	BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) M12X30 FLANGE	0-28651-230-0	04	1	0909-
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	06	1	0909-
39	U-BOLT; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	04	1	0909-
46	NUT; U-BOLT VIETNAM EQUIPMENT(JCD) M8	0-91110-508-0	16	1	0909-
46	NUT; U-BOLT LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	32	1	0909-
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	24	1	0909-
80	BOLT; BRKT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	12	1	0909-
80	BOLT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	08	1	0909-

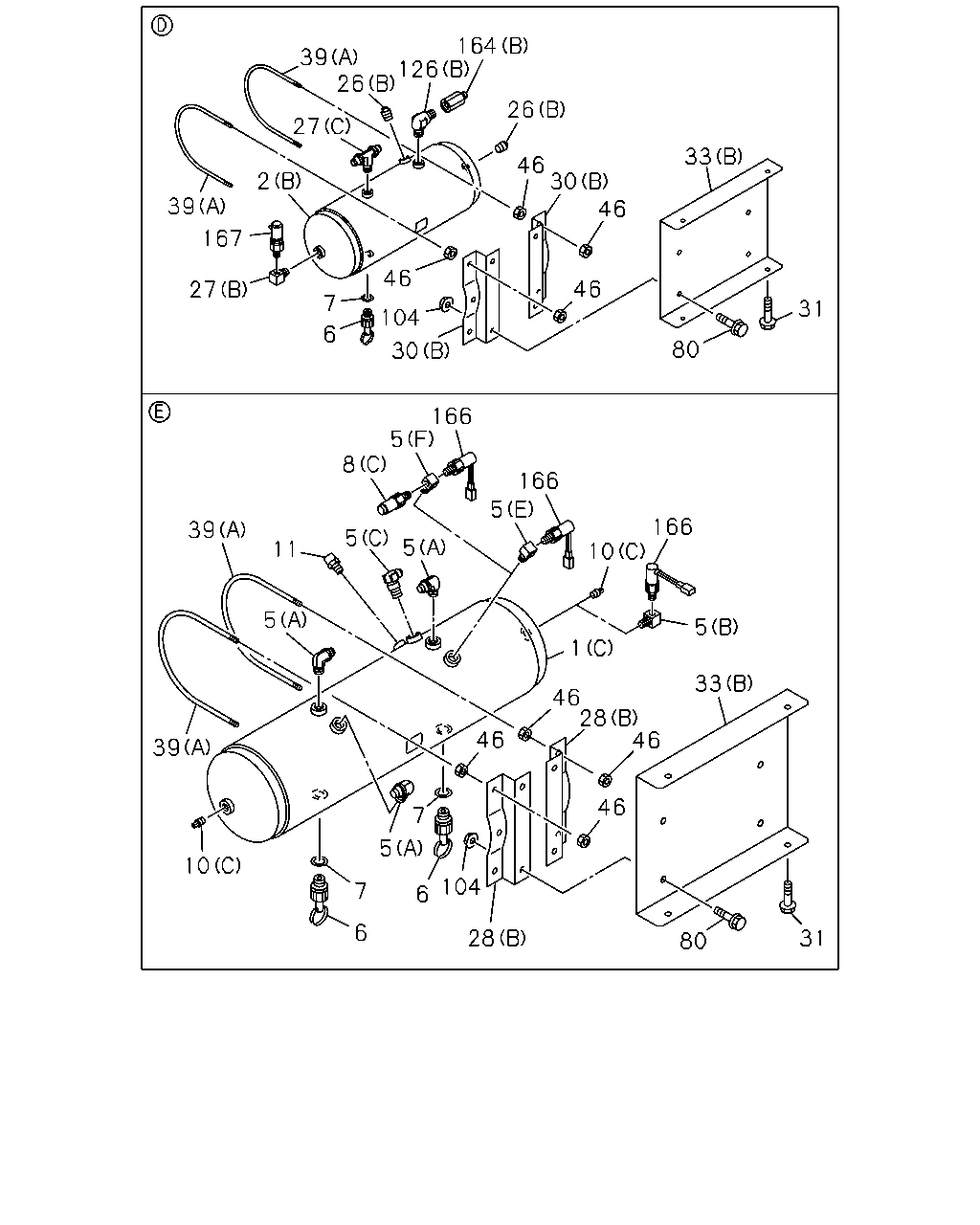

33 80 31 46 46 46 27 164 26 26 39 39 2 7 6 26 46 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48370-153-0	01	1	0909-
2	TANK; AIR VIETNAM EQUIPMENT(JCD) (A)	1-48370-153-0	01	1	0909-
2	TANK; AIR (B)	1-48371-108-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK VIETNAM EQUIPMENT(JCD)	1-48312-015-0	03	1	0909-
6	COCK; DRAIN,AIR TANK LOW DECK WO/REAR BODY<PK4>	1-48312-017-0	05	1	0909-
6	COCK; DRAIN,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW>	1-48312-015-0	01	1	0909-
6	COCK; DRAIN,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4>	1-48312-015-0	02	1	0909-
7	GASKET; DRAIN COCK EXC. LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK VIETNAM EQUIPMENT(JCD) ID=14	1-09630-145-0	03	1	0909-
7	GASKET; DRAIN COCK LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	05	1	0909-
7	GASKET; DRAIN COCK DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=14	1-09630-145-0	01	1	0909-
7	GASKET; DRAIN COCK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> ID=14	1-09630-145-0	02	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (C) PT1/4	9-99204-513-0	01	1	0909-
26	PLUG; SUB AIR TANK VIETNAM EQUIPMENT(JCD) (C) PT1/4	9-99204-513-0	01	1	0909-
26	PLUG; SUB AIR TANK VIETNAM EQUIPMENT(JCD) (B) PT3/4	9-09204-526-0	02	1	0909-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	02	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) PT3/8	9-09204-517-0	01	1	0909-
26	PLUG; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) PT3/4	9-09204-526-0	01	1	0909-
27	UNION; ELBOW,AIR TANK VIETNAM EQUIPMENT(JCD) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0909-
27	UNION; ELBOW,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) M20 & PT3/4	1-48411-009-1	01	1	0909-
27	UNION; ELBOW,AIR TANK (B) R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	0909-1005
27	UNION; ELBOW,AIR TANK (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1006-
27	UNION; ELBOW,AIR TANK (C) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0909-
30	BRACKET; AIR TANK,SUB DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48317-473-2	01	1	0909-
30	BRACKET; AIR TANK,SUB VIETNAM EQUIPMENT(JCD) (A)	1-48317-473-2	01	1	0909-
30	BRACKET; AIR TANK,SUB (B) L=300	1-48317-247-6	02	1	0909-
31	BOLT; BRKT TO FRAME DOOR CONTROL AIR W/SUB AIR TANK<SGW> M12X30 FLANGE	0-28651-230-0	04	1	0909-
31	BOLT; BRKT TO FRAME M12X30 FLANGE	0-28651-230-0	12	1	0909-
33	BRACKET; BRKT,AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (A)	1-48316-081-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK VIETNAM EQUIPMENT(JCD) (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (B)	1-48316-079-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (B)	8-98072-213-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (D)	8-98072-214-0	02	1	0909-
33	BRACKET; BRKT,AIR TANK LOW DECK WO/REAR BODY<PK4> (A)	8-98072-215-0	01	1	0909-
33	BRACKET; BRKT,AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (C)	1-48316-080-0	01	1	0909-
39	U-BOLT; AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0909-
39	U-BOLT; AIR TANK VIETNAM EQUIPMENT(JCD) (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	02	1	0909-
39	U-BOLT; AIR TANK LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	06	1	0909-
39	U-BOLT; AIR TANK EXC. LOW DECK WO/REAR BODY<PK4> (A) L=253	1-48317-248-1	04	1	0909-
46	NUT; U-BOLT VIETNAM EQUIPMENT(JCD) M8	0-91110-508-0	16	1	0909-
46	NUT; U-BOLT LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	32	1	0909-
46	NUT; U-BOLT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	08	1	0909-
46	NUT; U-BOLT EXC. LOW DECK WO/REAR BODY<PK4> M8	0-91110-508-0	24	1	0909-
80	BOLT; BRKT DOOR CONTROL AIR W/SUB AIR TANK<SGW> M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0909-
80	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT VIETNAM EQUIPMENT(JCD) M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT EXC. VIETNAM EQUIPMENT(JCD),LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	04	1	0909-
80	BOLT; BRKT LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	12	1	0909-
80	BOLT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> M12X30 FLANGE	0-28651-230-0	08	1	0909-
164	CONNECTOR; SUB AIR TANK DOOR CONTROL AIR W/SUB AIR TANK<SGW> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0909-
164	CONNECTOR; SUB AIR TANK (B) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0909-

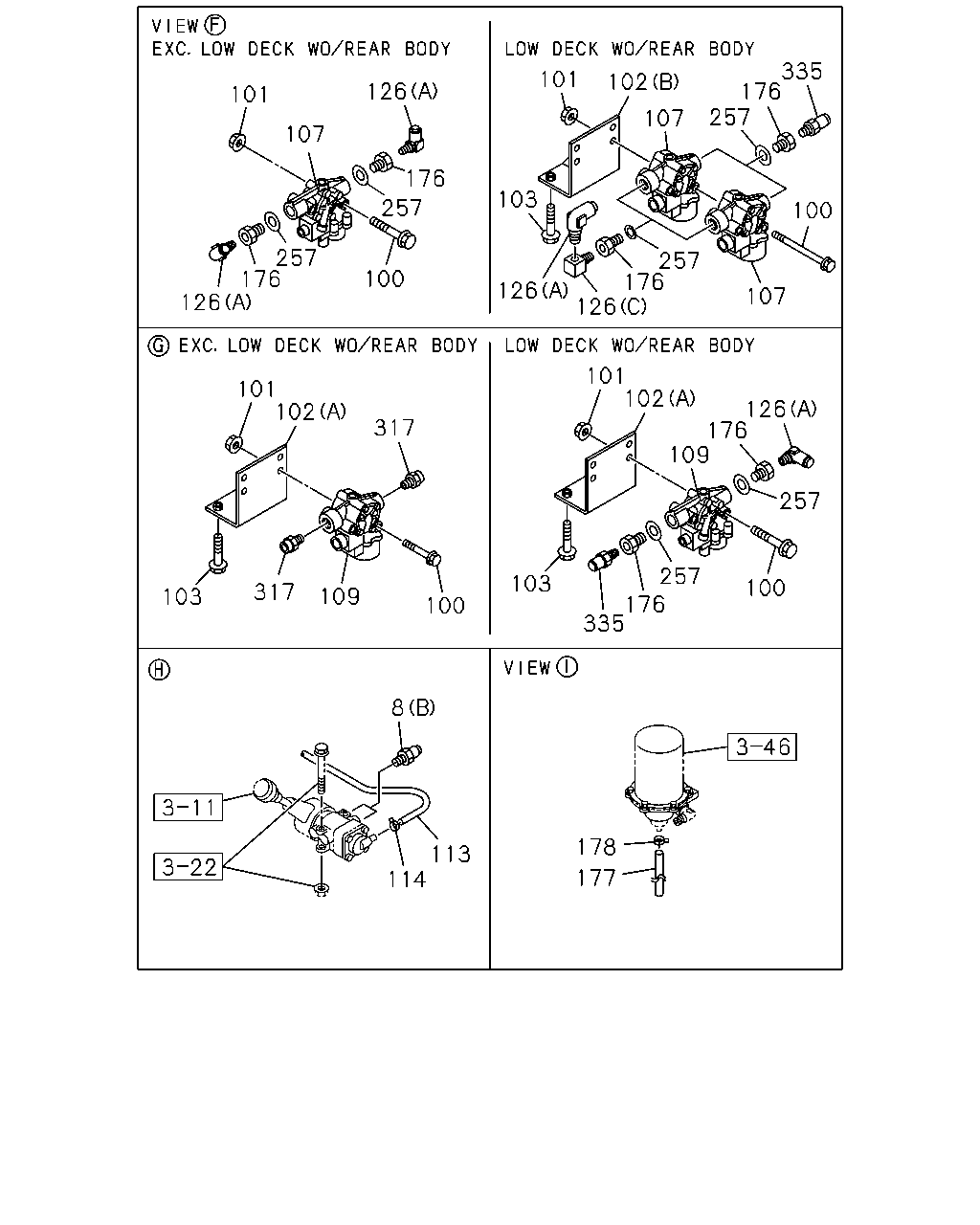

101 107 126 176 257 100 257 176 126 101 102 317 100 109 317 103 114 113 8 177 178 335 103 176 257 100 257 126 176 109 102 101 126 126 103 101 102 107 257 176 335 100 107 257 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CONNECTOR; AIR TANK VIETNAM EQUIPMENT(JCD) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0909-
8	CONNECTOR; AIR TANK (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	0909-
8	CONNECTOR; AIR TANK (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0909-
100	BOLT; MODULATOR LOW DECK WO/REAR BODY<PK4> M8X80 FLANGE	0-28050-880-0	04	1	0909-1412
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8X80 FLANGE	0-28050-880-0	04	1	0909-1412
100	BOLT; MODULATOR MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8X80 FLANGE	0-28050-880-0	04	1	0909-1412
100	BOLT; MODULATOR LOW DECK WO/REAR BODY<PK4> M8X80 FLANGE	0-28050-880-0	04	1	1501-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8X80 FLANGE	0-28050-880-0	04	1	1501-
100	BOLT; MODULATOR MZW6P M/T(RSZ),MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8X80 FLANGE	0-28050-880-0	04	1	1501-
100	BOLT; MODULATOR FULLER FS6306 M/T(MWO) ANTILOCK BRAKE SYSTEM<BFA> M8X140 FLANGE	0-28055-814-0	02	1	0909-
100	BOLT; MODULATOR LOW DECK WO/REAR BODY<PK4> M8X140 FLANGE	0-28065-814-0	02	1	0909-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-1412
101	NUT; MODULATOR MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-1412
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	1501-
101	NUT; MODULATOR MZW6P M/T(RSZ),MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	1501-
101	NUT; MODULATOR FULLER FS6306 M/T(MWO) ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE	0-91180-108-0	02	1	0909-
101	NUT; MODULATOR LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	06	1	0909-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A)	1-47479-519-0	02	1	0909-
102	BRACKET; MODULATOR LOW DECK WO/REAR BODY<PK4> (B)	8-98105-917-0	01	1	0909-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE	0-28650-825-0	04	1	0909-
103	BOLT; BRKT LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	02	1	0909-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	0909-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM<BFA>	1-48240-115-0	02	1	0909-
113	HOSE; VINYL,EXH L=650 SERVICED BY L=10000	9-09914-701-0	01	1	0909-
114	CLAMP; HOSE ID=14	1-09704-102-0	01	1	0909-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM<BFA> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0909-
126	CONNECTOR; ELBOW LOW DECK WO/REAR BODY<PK4> (C) PT3/8 ELBOW	1-09660-696-0	02	1	0909-
126	CONNECTOR; ELBOW (B) M22 & PT3/4 ELBOW	1-09650-277-0	02	1	0909-
176	ADAPTER FULLER FS6306 M/T(MWO) ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0909-1412
176	ADAPTER MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0909-1412
176	ADAPTER FULLER FS6306 M/T(MWO) ANTILOCK BRAKE SYSTEM<BFA> INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1501-
176	ADAPTER MZW6P M/T(RSZ),MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1501-
176	ADAPTER LOW DECK WO/REAR BODY<PK4> INNER PT3/8,OUTER M22	1-09650-494-1	08	1	0909-
177	HOSE; RUBBER,DRAIN L=90	9-09712-638-0	01	1	0909-
178	CLIP; HOSE ID=33.6	8-94362-518-0	01	1	0909-
257	GASKET; PLUG FULLER FS6306 M/T(MWO) ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	04	1	0909-1412
257	GASKET; PLUG MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> ID=22.5	9-09571-422-0	04	1	0909-1412
257	GASKET; PLUG FULLER FS6306 M/T(MWO) ANTILOCK BRAKE SYSTEM<BFA> ID=22.5	9-09571-422-0	04	1	1501-
257	GASKET; PLUG MZW6P M/T(RSZ),MLD6Q M/T(X5J) ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> ID=22.5	9-09571-422-0	04	1	1501-
257	GASKET; PLUG LOW DECK WO/REAR BODY<PK4> ID=22.5	9-09571-422-0	08	1	0909-
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> EXC. LOW DECK WO/REAR BODY<PK4> DIN12 & M22 STRAIGHT	1-09661-050-0	04	1	0909-
335	CONNECTOR; MODULATOR LOW DECK WO/REAR BODY<PK4> DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0909-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
