11206 - LT134 LHD EURO2/3/5
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶

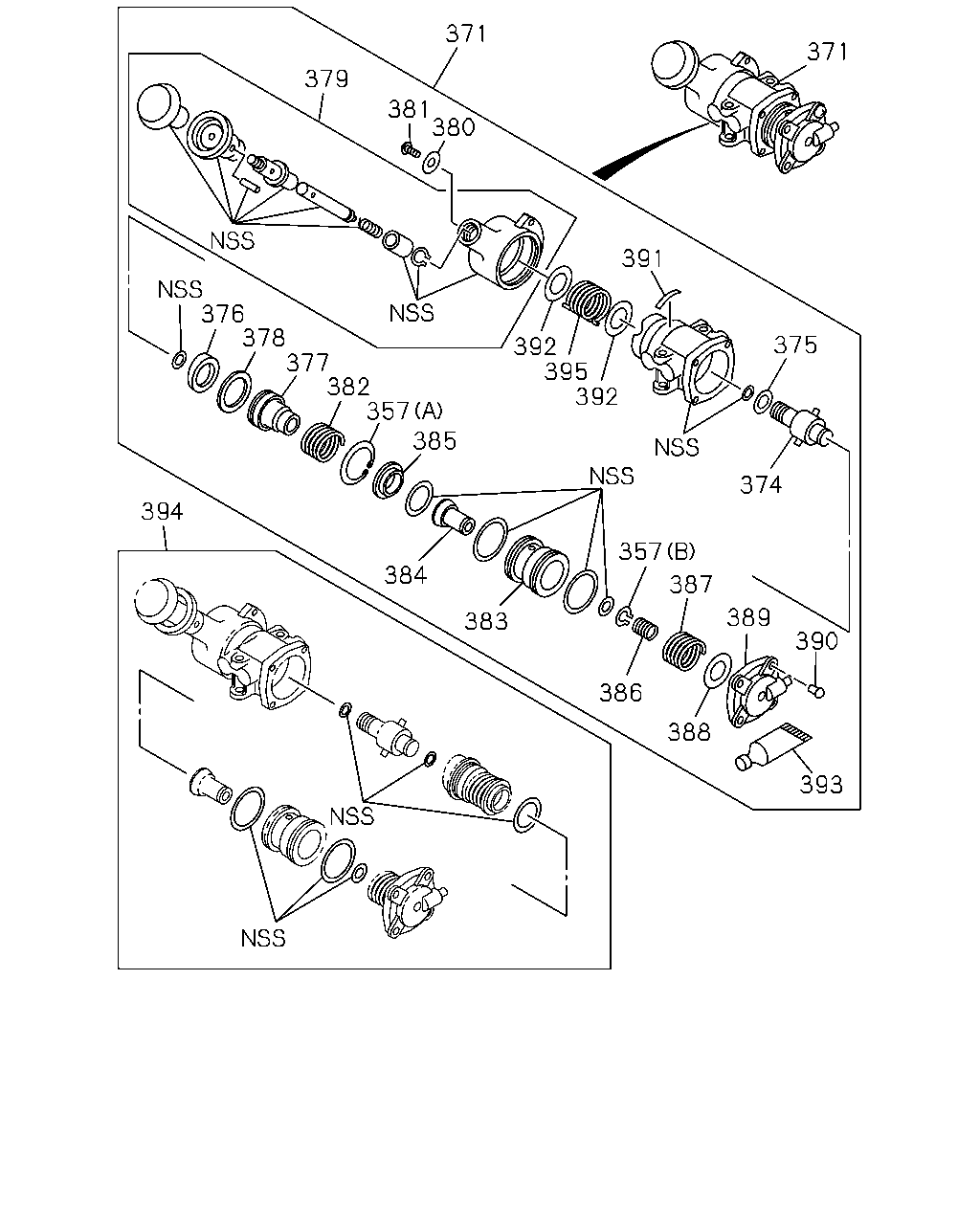

3-11 — PARKING BRAKE CONTROL
(#58263) — 25 parça
371
381
379
380
376
378
377
382
357
385
384
383
394
386
388
393
390
389
387
357
374
392
395
392
391
371
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
357
RING; SNAP
(A)
1-48469-067-0
01
1
0909-
357
RING; SNAP
(B)
1-48469-068-0
01
1
0909-
371
VALVE; BRK,HAND CONT
1-48460-319-0
01
1
0909-
374
HOLDER; CAM
1-48469-054-0
01
1
0909-
375
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0909-
376
RING; CAM
1-48469-056-0
01
1
0909-
377
SEAT; EXH VLV
1-48469-057-0
01
1
0909-
378
GUIDE
1-48469-058-0
01
1
0909-
379
HANDLE ASM; HAND BRK VLV
1-48469-126-0
01
1
0909-
380
WASHER; HANDLE
1-48469-061-0
01
1
0909-
381
SCREW; HANDLE
1-48469-062-0
01
1
0909-
382
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0909-
383
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0909-
384
VALVE; FEED
1-48469-065-0
01
1
0909-
385
SEAT; FEED VLV
1-48469-066-0
01
1
0909-
386
SPRING; VLV
1-48469-070-0
01
1
0909-
387
SPRING; MAIN
1-48469-089-0
01
1
0909-
388
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0909-
389
COVER; HAND BRK VLV
1-48469-090-0
01
1
0909-
390
SCREW; COVER
1-48469-118-0
04
1
0909-
391
PLATE; CAUTION
1-48469-093-0
01
1
0909-
392
SEAT; SPRING
1-48469-082-0
02
1
0909-
393
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0909-
394
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-096-0
01
1
0909-
395
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0909-
