◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 3 - Brakes, Brake System ▶ 3-08A - PARKING BRAKE ▶
3-08A — PARKING BRAKE (#58261) — 88 parça

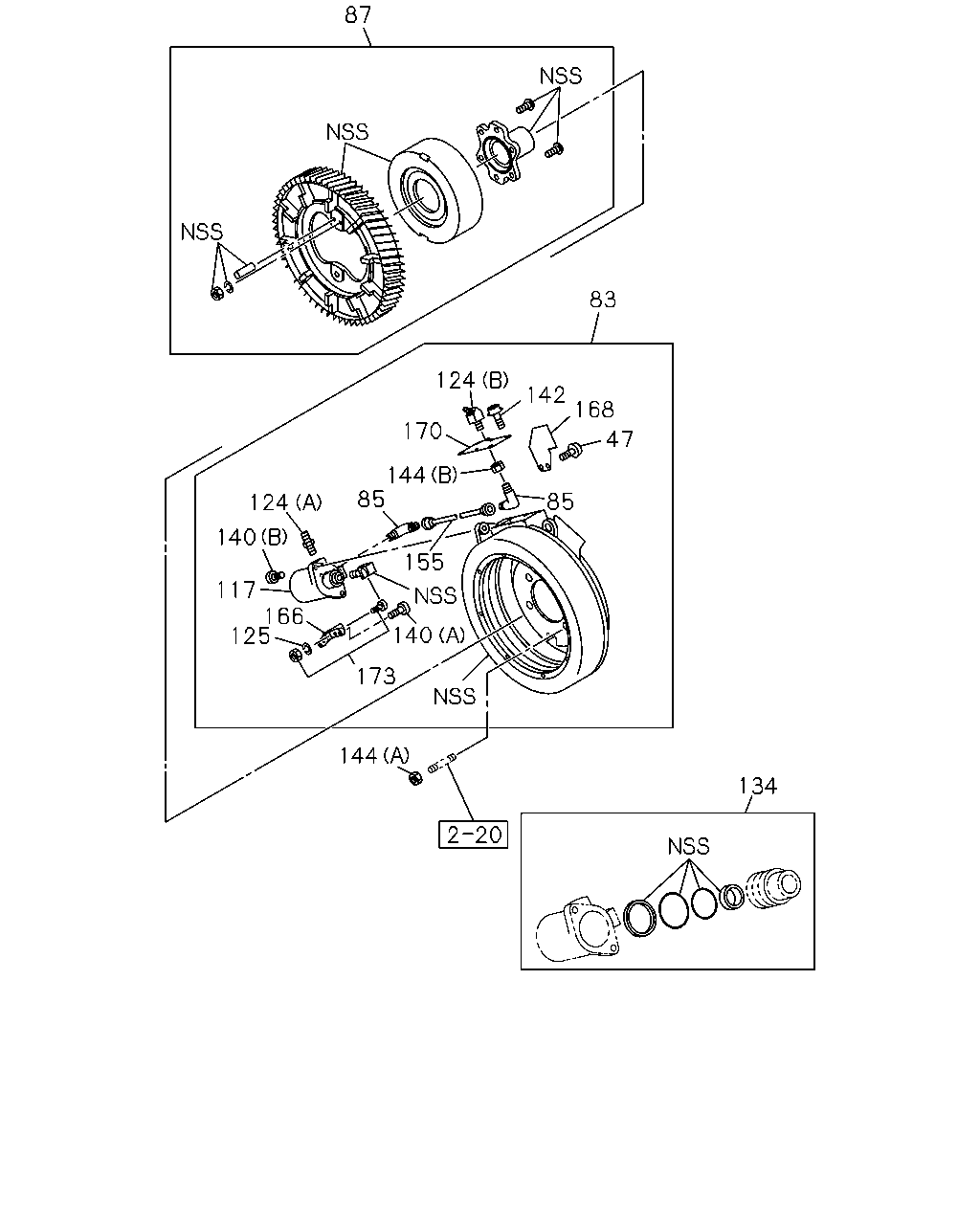

çizim 163313
87 83 47 168 142 85 124 170 144 85 124 140 117 166 125 173 155 140 144 134
BalonParca AdiParca NoAdetTipApplied Date A B
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0909-1412 ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 1501- ● ●
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-482-4 01 1 0909- ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0909-1412 ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 1501- ● ●
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-365-1 01 1 0909- ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0909-1412 ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 1501- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1501- ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0909- ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0909-1412 ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 1501- ● ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-606-0 01 1 1501- ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0909- ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0909-1412 ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 1501- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0909-1412 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 1501- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0909-1412 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 1501- ● ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0909-1412 ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 1501- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0909-1412 ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 1501- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M14 FLANGE 		8-97365-444-0 04 1 0909- ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-225-0 01 1 0909- ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0909-1412 ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 1501- ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0909-1412 ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 1501- ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0909-1412 ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 1501- ● ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0909-1412 ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 1501- ● ●

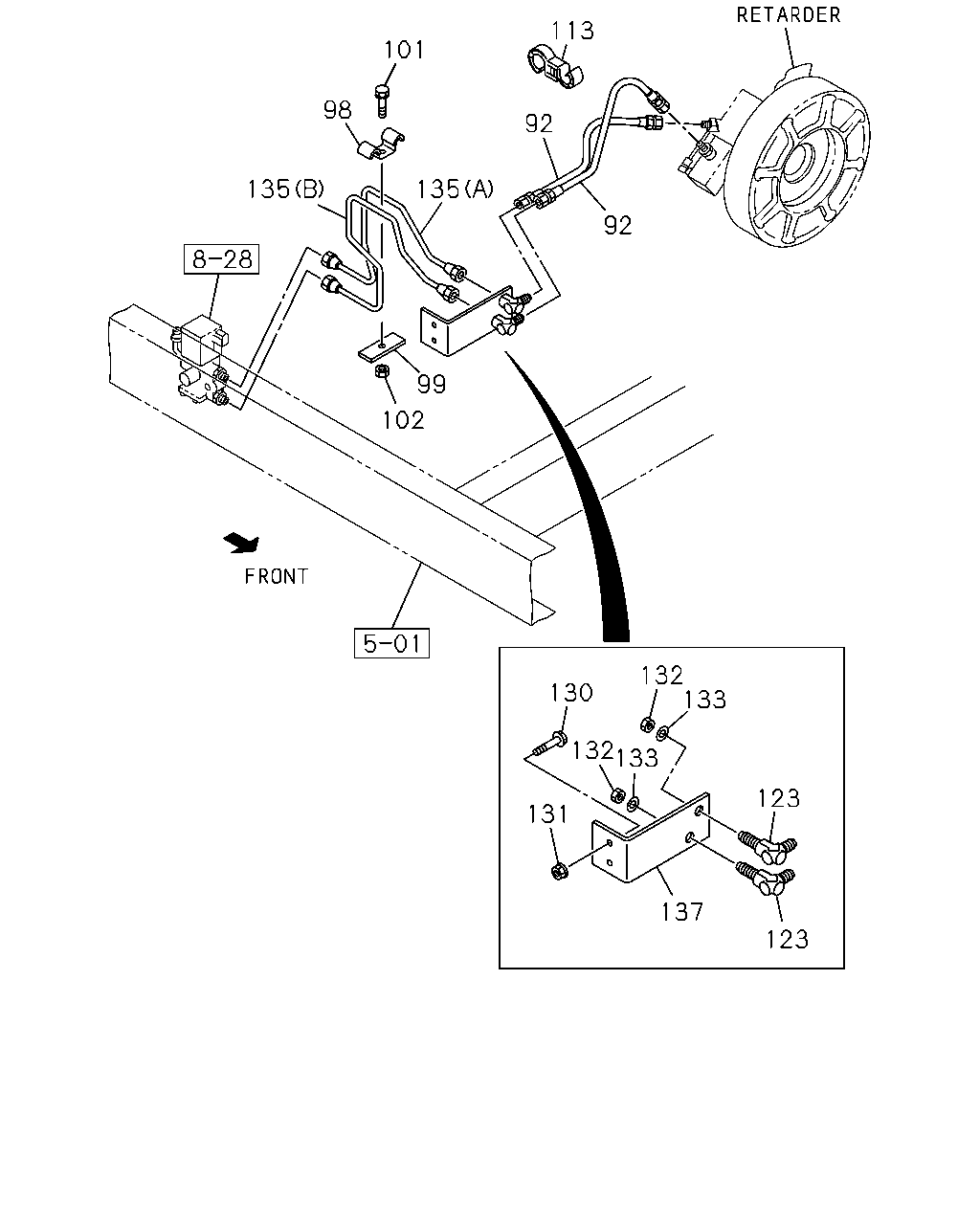

çizim 163319
113 92 92 135 98 101 135 102 99 132 133 123 123 137 131 133 132 130
BalonParca AdiParca NoAdetTipApplied Date A B
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=250 		1-09363-618-0 02 1 1501- ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=350 		1-09363-877-0 02 1 0909- ●
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0909- ●
99 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> L=50 		1-47475-299-2 01 1 0909- ●
101 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 0909- ●
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 0909- ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 0909- ●
123 UNION
BRAKE SYSTEM RETARDER<RE2> M12 ELBOW 		0-92125-206-0 02 1 0909- ●
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X35 FLANGE 		0-28050-835-0 02 1 0909- ●
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 0909- ●
131 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 03 1 0909- ●
132 NUT; UNION
BRAKE SYSTEM RETARDER<RE2> M12 		9-09840-280-0 02 1 0909- ●
133 WASHER; UNION
BRAKE SYSTEM RETARDER<RE2> ID=12.2 		0-91510-512-0 02 1 0909- ●
135 PIPE; AIR,MAG VLV TO UNION
BRAKE SYSTEM RETARDER<RE2> (A) L=437 		1-49124-933-0 01 1 0909- ●
135 PIPE; AIR,MAG VLV TO UNION
BRAKE SYSTEM RETARDER<RE2> (B) L=510 SERVICED BY L=550 		1-47428-808-0 01 1 0909- ●
137 BRACKET; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> 		1-47471-226-0 01 1 0909- ●

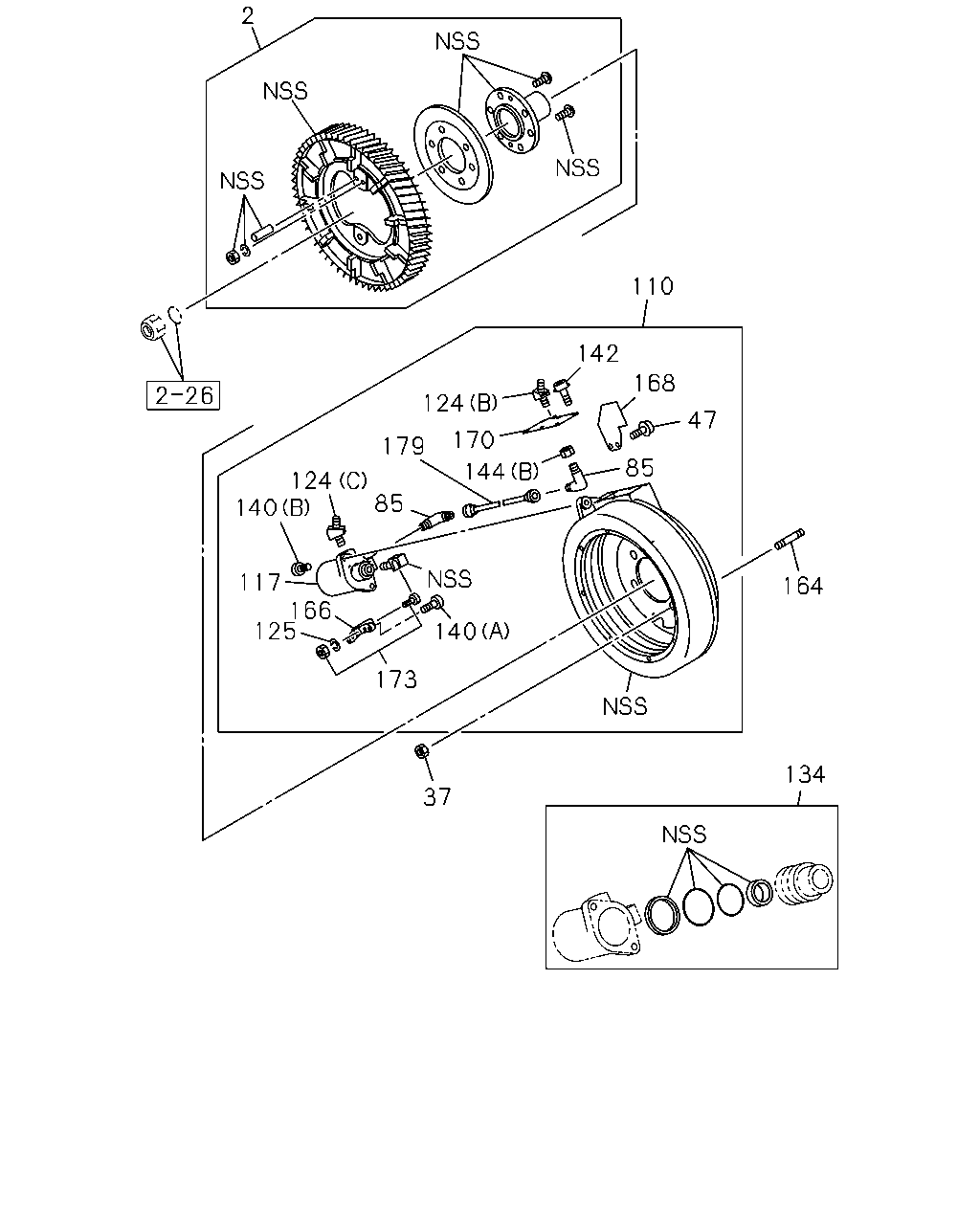

çizim 468036
110 47 168 142 85 164 134 37 173 140 144 170 124 179 85 124 140 117 166 125 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 DRUM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		8-98155-754-0 01 1 1501- ●
37 NUT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M14 FLANGE 		8-97365-444-0 04 1 1501- ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0909-1412 ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 1501- ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0909-1412 ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 1501- ● ●
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		8-98042-119-1 01 1 1501- ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0909-1412 ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 1501- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1501- ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0909- ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0909-1412 ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 1501- ● ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-606-0 01 1 1501- ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0909- ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0909-1412 ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 1501- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0909-1412 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 1501- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0909-1412 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 1501- ● ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0909-1412 ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 1501- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0909-1412 ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 1501- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M14 FLANGE 		8-97365-444-0 04 1 0909- ●
164 STUD; RETARDER
BRAKE SYSTEM RETARDER<RE2> M14X22 W/DRY-ROCK 		8-98019-447-0 04 1 1501- ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0909-1412 ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 1501- ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0909-1412 ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 1501- ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0909-1412 ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 1501- ● ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0909-1412 ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 1501- ● ●
179 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> 		1-48629-225-0 01 1 1501- ●
çizim 468067
92 92
BalonParca AdiParca NoAdetTipApplied Date A B
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=250 		1-09363-618-0 02 1 1501- ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=350 		1-09363-877-0 02 1 0909- ●
