◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#58257) — 347 parça
çizim 163295
432 475 474
BalonParca AdiParca NoAdetTipApplied Date
432 BRACKET; CHANGE LEVER
FULLER M/T<X9B> 		8-98118-925-0 01 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
FULLER M/T<X9B> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
MLD6Q M/T(X5J) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
MLD6Q M/T(X5J) (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
FULLER M/T<X9B> (B) M12 FLANGE 		0-91180-212-0 03 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (A) M8 FLANGE 		0-91180-108-0 20 1 0909-

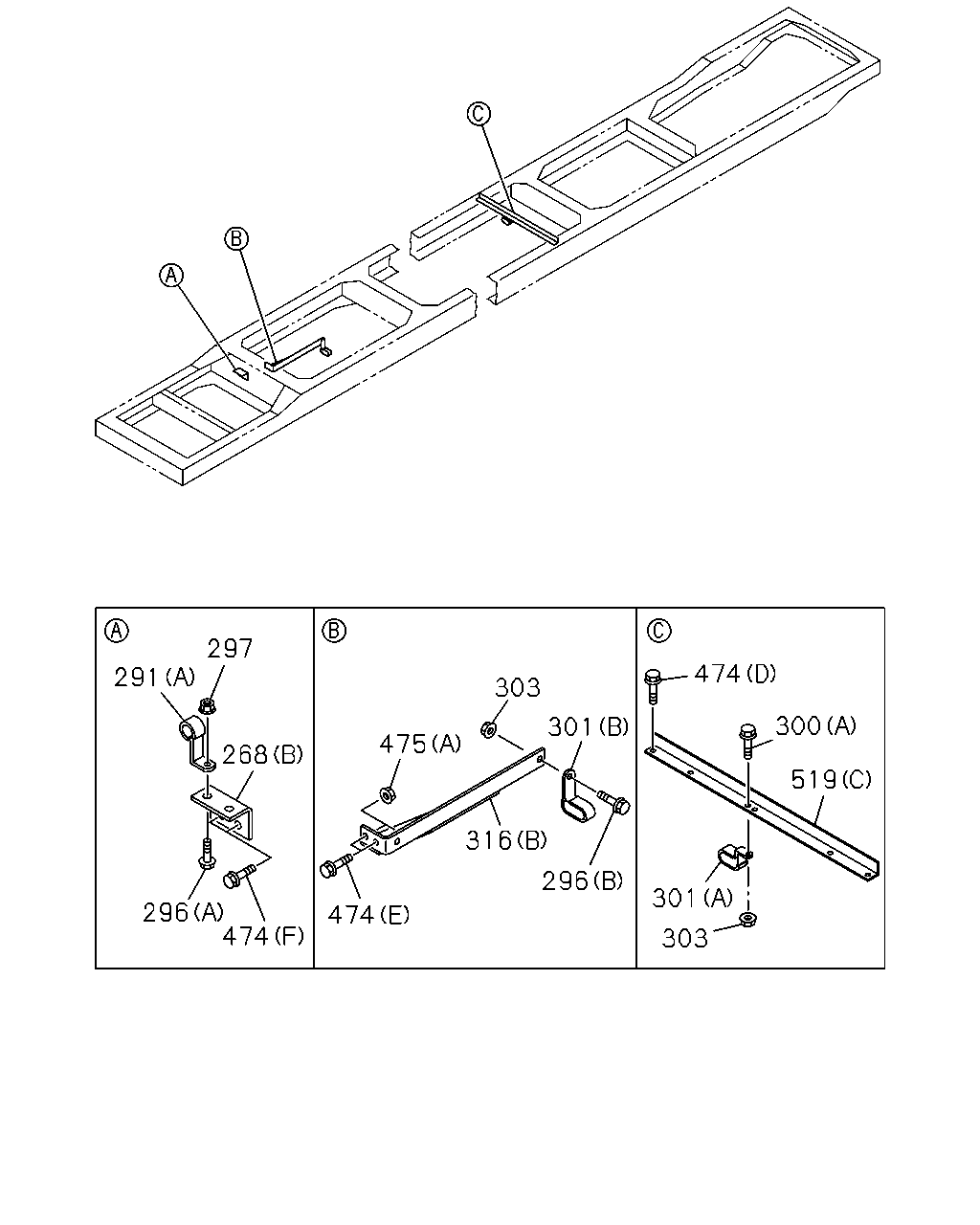

çizim 163299
297 291 268 474 296 474 475 303 301 316 296 301 303 519 300 474
BalonParca AdiParca NoAdetTipApplied Date
268 BRACKET; LINK ROD
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) 		8-98077-510-2 01 1 0909-
268 BRACKET; LINK ROD
ISUZU M/T<X9A> (B) 		1-47479-107-0 01 1 0909-
291 CLIP; SHIFT TO SELECT,FRAME
ISUZU M/T<X9A> (A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0909-
291 CLIP; SHIFT TO SELECT,FRAME
ISUZU M/T<X9A> (B) ID=22.2 		1-09701-209-1 01 1 0909-
296 BOLT; CLIP,SHIFT & SELECT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) (B) M8X20 FLANGE 		0-28650-820-0 14 1 1501-
296 BOLT; CLIP,SHIFT & SELECT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) (B) M8X20 FLANGE 		0-28650-820-0 16 1 1501-
296 BOLT; CLIP,SHIFT & SELECT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) (B) M8X20 FLANGE 		0-28650-820-0 13 1 0909-
296 BOLT; CLIP,SHIFT & SELECT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) (B) M8X20 FLANGE 		0-28650-820-0 15 1 0909-
296 BOLT; CLIP,SHIFT & SELECT
ISUZU M/T<X9A> (A) M10X20 FLANGE 		0-28651-020-0 02 1 0909-
297 NUT; CLIP
ISUZU M/T<X9A> M10 FLANGE 		0-91180-210-0 02 1 0909-
300 BOLT; CLIP
MZW6P M/T(RSZ) (B) M6X20 FLANGE 		0-28050-620-0 02 1 1501-
300 BOLT; CLIP
ISUZU M/T<X9A> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0909-
301 CLIP; WIRE
MZW6P M/T(RSZ) (B) ID=15 		1-09700-845-1 01 1 1501-
301 CLIP; WIRE
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) (B) ID=13X2 L=32 		1-09701-245-0 13 1 0909-1412
301 CLIP; WIRE
MZW6P M/T(RSZ),MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) (B) ID=13X2 L=32 		1-09701-245-0 13 1 1501-
301 CLIP; WIRE
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) (B) ID=13X2 L=32 		1-09701-245-0 15 1 0909-1412
301 CLIP; WIRE
MZW6P M/T(RSZ),MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) (B) ID=13X2 L=32 		1-09701-245-0 15 1 1501-
301 CLIP; WIRE
ISUZU M/T<X9A> (A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0909-
303 NUT; CLIP
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 14 1 1501-
303 NUT; CLIP
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 16 1 1501-
303 NUT; CLIP
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 13 1 0909-
303 NUT; CLIP
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 15 1 0909-
303 NUT; CLIP
ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 01 1 0909-
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (B) 		1-47479-729-0 09 1 0909-
316 BRACKET; CLIP
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) 		1-47479-729-0 09 1 0909-
316 BRACKET; CLIP
MLD6Q M/T(X5J) (A) 		1-33657-736-0 01 1 0909-
316 BRACKET; CLIP
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 10 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
FULLER M/T<X9B> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
MLD6Q M/T(X5J) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
MLD6Q M/T(X5J) (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
FULLER M/T<X9B> (B) M12 FLANGE 		0-91180-212-0 03 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (A) M8 FLANGE 		0-91180-108-0 20 1 0909-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) 		1-47479-111-0 02 1 0909-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) 		1-47479-555-0 01 1 0909-
519 BRACKET; FRAME
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (C) 		1-47479-486-0 01 1 0909-

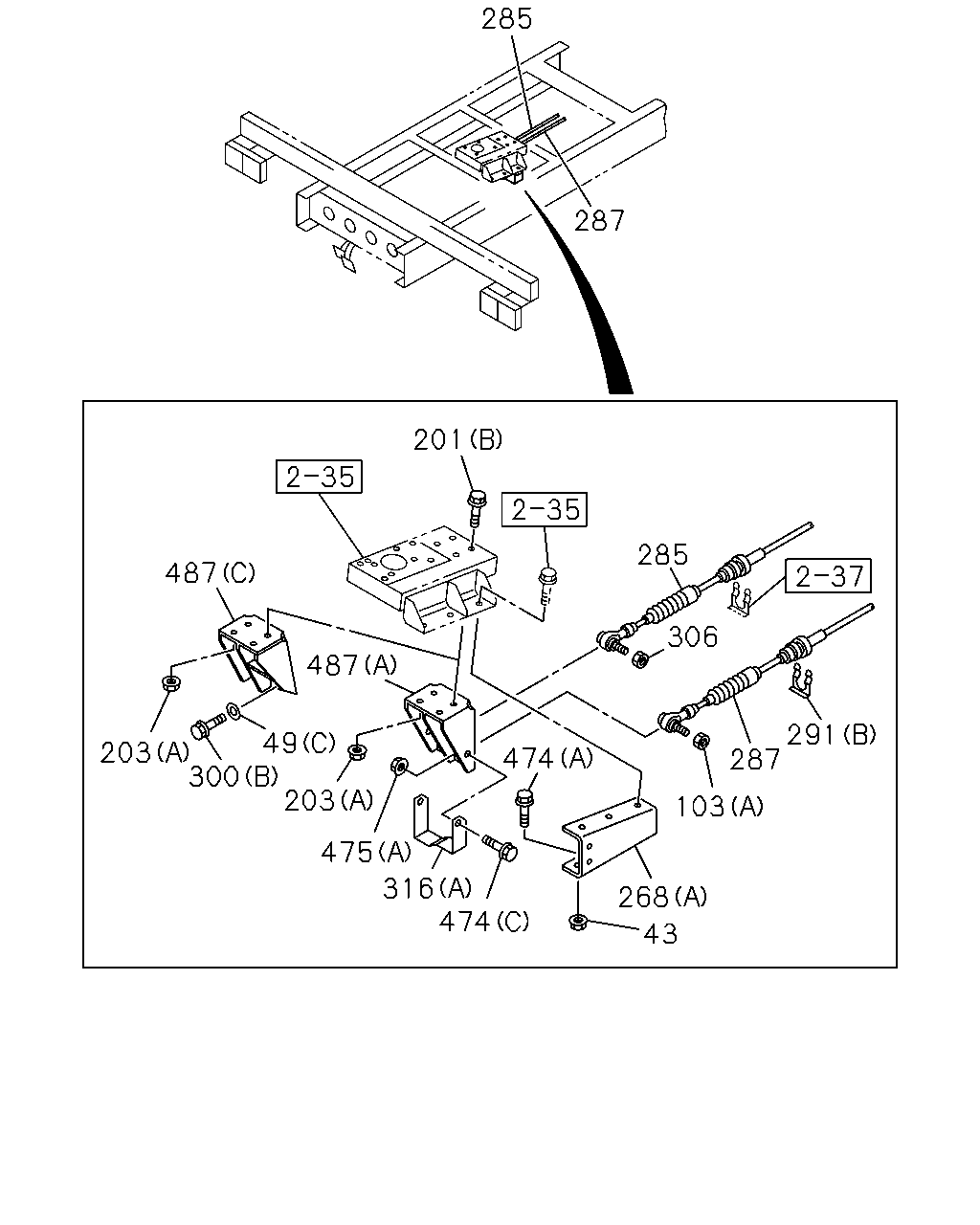

çizim 163300
285 287 201 487 487 203 300 203 49 475 316 474 43 268 474 103 306 287 291 285
BalonParca AdiParca NoAdetTipApplied Date
43 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> M12 FLANGE 		0-91180-212-0 03 1 0909-
49 WASHER; LK
MZW6P M/T(RSZ) (C) 		1-09500-043-0 02 1 1501-
49 WASHER; LK
MZW6P M/T(RSZ) (B) ID=12.2 		0-91510-512-0 01 1 1501-
49 WASHER; LK
MLD6Q M/T(X5J) (A) ID=14.2 		0-91510-514-0 01 1 0909-
103 NUT
MZW6P M/T(RSZ) (B) M12 		0-91111-512-0 01 1 1501-
103 NUT
ISUZU M/T<X9A> (A) M8 FLANGE 		1-09440-062-1 01 1 0909-
201 BOLT; BRKT
MZW6P M/T(RSZ) (D) M10X30 FLANGE 		0-28661-030-0 01 1 1501-
201 BOLT; BRKT
MZW6P M/T(RSZ) (C) M14X25 FLANGE 		0-28951-425-0 03 1 1501-
201 BOLT; BRKT
MLD6Q M/T(X5J) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
201 BOLT; BRKT
MLD6Q M/T(X5J) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0909-
201 BOLT; BRKT
ISUZU M/T<X9A> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0909-
203 NUT; BRKT FIX
MZW6P M/T(RSZ) (C) M10 FLANGE 		0-91180-210-0 01 1 1501-
203 NUT; BRKT FIX
MLD6Q M/T(X5J) (B) M10 FLANGE 		0-91180-210-0 04 1 0909-
203 NUT; BRKT FIX
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 04 1 0909-
268 BRACKET; LINK ROD
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) 		8-98077-510-2 01 1 0909-
268 BRACKET; LINK ROD
ISUZU M/T<X9A> (B) 		1-47479-107-0 01 1 0909-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-057-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98134-640-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-055-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-048-1 01 1 0909-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0909-1101
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-598-0 01 1 1102-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-046-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98105-776-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-045-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-049-0 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0909-1101
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-600-0 01 1 1102-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0909-
291 CLIP; SHIFT TO SELECT,FRAME
ISUZU M/T<X9A> (A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0909-
291 CLIP; SHIFT TO SELECT,FRAME
ISUZU M/T<X9A> (B) ID=22.2 		1-09701-209-1 01 1 0909-
300 BOLT; CLIP
MZW6P M/T(RSZ) (B) M6X20 FLANGE 		0-28050-620-0 02 1 1501-
300 BOLT; CLIP
ISUZU M/T<X9A> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0909-
306 NUT; WIRE BRKT
ISUZU M/T<X9A> M10 FLANGE 		1-09440-061-0 01 1 0909-
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (B) 		1-47479-729-0 09 1 0909-
316 BRACKET; CLIP
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) 		1-47479-729-0 09 1 0909-
316 BRACKET; CLIP
MLD6Q M/T(X5J) (A) 		1-33657-736-0 01 1 0909-
316 BRACKET; CLIP
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 10 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
FULLER M/T<X9B> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
MLD6Q M/T(X5J) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
MLD6Q M/T(X5J) (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
FULLER M/T<X9B> (B) M12 FLANGE 		0-91180-212-0 03 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (A) M8 FLANGE 		0-91180-108-0 20 1 0909-
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) (A) 		8-98096-018-1 01 1 1501-
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) (C) 		8-98106-227-1 01 1 1501-
487 BRACKET; CONT CABLE
MLD6Q M/T(X5J) (A) 		1-33657-725-0 01 1 0909-
487 BRACKET; CONT CABLE
MLD6Q M/T(X5J) (B) 		1-33657-803-0 01 1 0909-

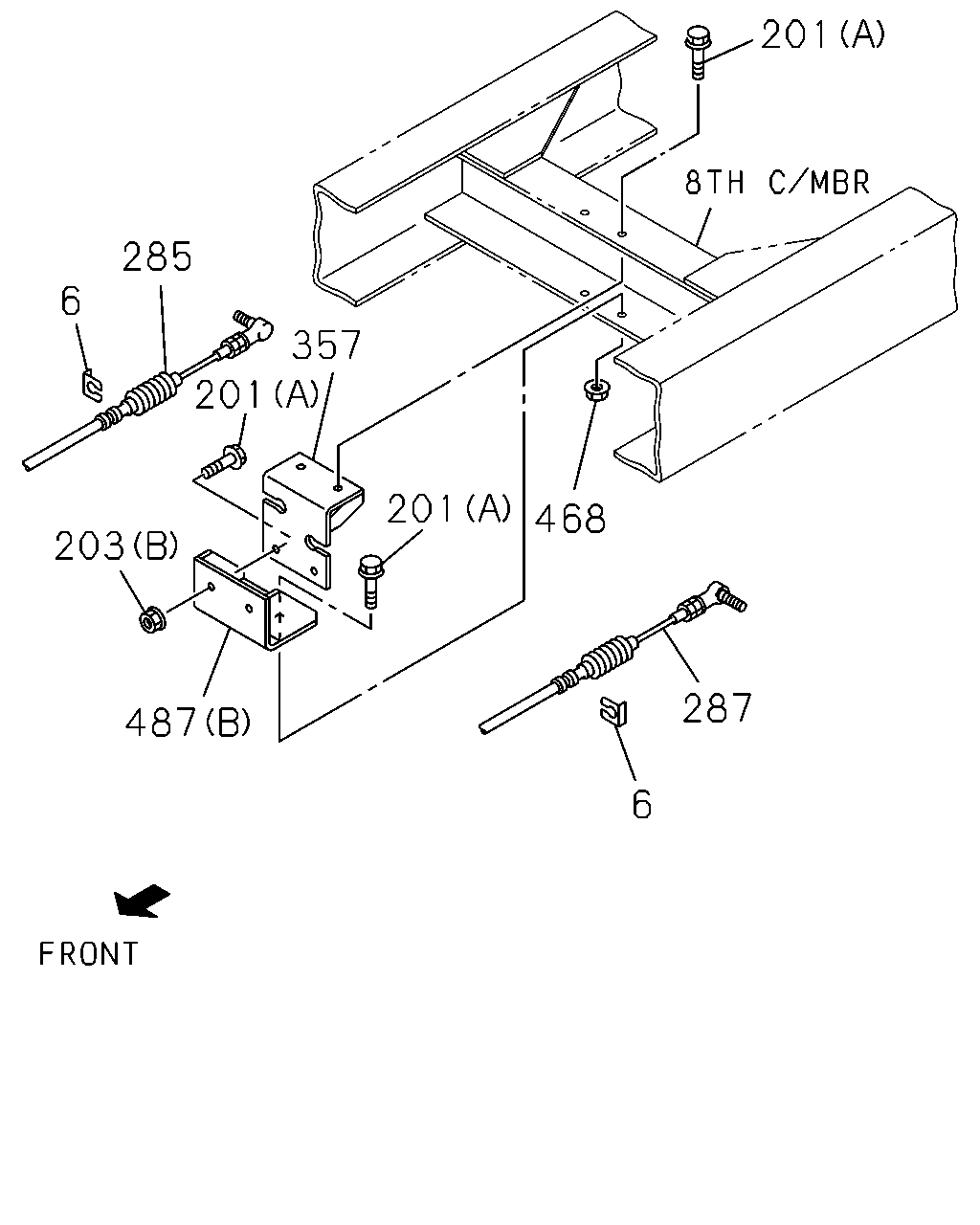

çizim 163302
201 468 287 6 201 357 201 285 6 203 487
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ISUZU M/T<X9A> ID=22.2 		1-09701-209-1 02 1 0909-
201 BOLT; BRKT
MZW6P M/T(RSZ) (D) M10X30 FLANGE 		0-28661-030-0 01 1 1501-
201 BOLT; BRKT
MZW6P M/T(RSZ) (C) M14X25 FLANGE 		0-28951-425-0 03 1 1501-
201 BOLT; BRKT
MLD6Q M/T(X5J) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
201 BOLT; BRKT
MLD6Q M/T(X5J) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0909-
201 BOLT; BRKT
ISUZU M/T<X9A> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0909-
203 NUT; BRKT FIX
MZW6P M/T(RSZ) (C) M10 FLANGE 		0-91180-210-0 01 1 1501-
203 NUT; BRKT FIX
MLD6Q M/T(X5J) (B) M10 FLANGE 		0-91180-210-0 04 1 0909-
203 NUT; BRKT FIX
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 04 1 0909-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-057-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98134-640-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-055-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-048-1 01 1 0909-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0909-1101
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-598-0 01 1 1102-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-046-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98105-776-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-045-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-049-0 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0909-1101
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-600-0 01 1 1102-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0909-
357 BRACKET; RELAY LEVER
MLD6Q M/T(X5J) 		1-33657-832-0 01 1 0909-
468 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 06 1 0909-
468 NUT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 02 1 0909-
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) (A) 		8-98096-018-1 01 1 1501-
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) (C) 		8-98106-227-1 01 1 1501-
487 BRACKET; CONT CABLE
MLD6Q M/T(X5J) (A) 		1-33657-725-0 01 1 0909-
487 BRACKET; CONT CABLE
MLD6Q M/T(X5J) (B) 		1-33657-803-0 01 1 0909-

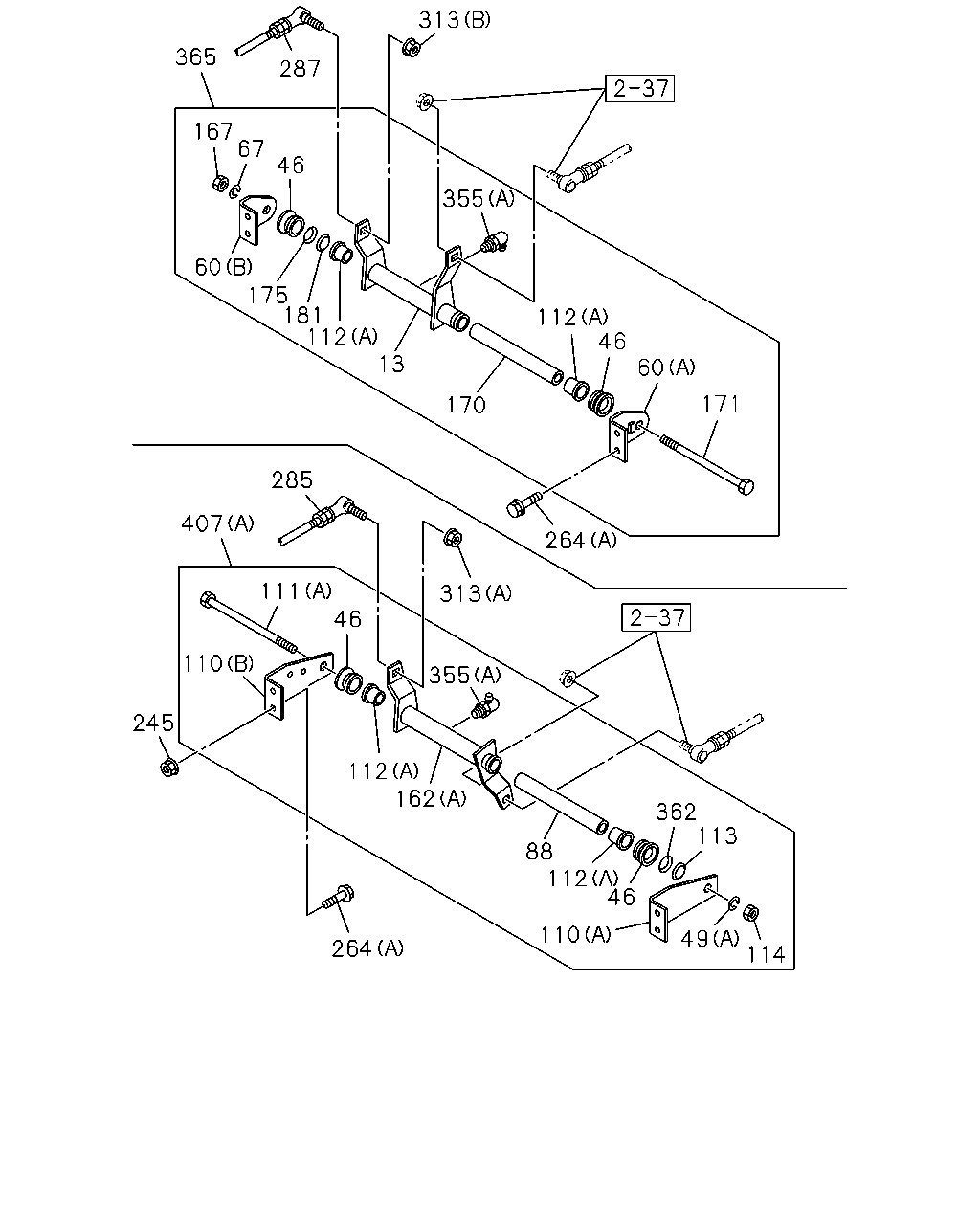

çizim 163308
365 287 313 67 167 46 60 175 181 112 170 112 60 46 171 264 313 111 407 285 355 46 112 162 110 245 88 112 362 113 46 114 49 110 264 13 355
BalonParca AdiParca NoAdetTipApplied Date
13 LEVER; RELAY,1ST SELECT INNER
MLD6Q M/T(X5J) 		1-33651-818-0 01 1 0909-
46 SEAL; DUST,RELAY LEVER
MLD6Q M/T(X5J) 		1-33659-113-0 04 1 0909-
49 WASHER; LK
MZW6P M/T(RSZ) (C) 		1-09500-043-0 02 1 1501-
49 WASHER; LK
MZW6P M/T(RSZ) (B) ID=12.2 		0-91510-512-0 01 1 1501-
49 WASHER; LK
MLD6Q M/T(X5J) (A) ID=14.2 		0-91510-514-0 01 1 0909-
60 BRACKET; RELAY LEVER,SELECT ROD
MLD6Q M/T(X5J) (A) 		1-33657-833-0 01 1 0909-
60 BRACKET; RELAY LEVER,SELECT ROD
MLD6Q M/T(X5J) (B) 		1-33657-834-0 01 1 0909-
67 WASHER; LK,RELAY LEVER,SELECT ROD
MLD6Q M/T(X5J) ID=14.2 		0-91510-514-0 01 1 0909-
88 COLLAR; RELAY LEVER
MLD6Q M/T(X5J) 		1-33659-154-0 01 1 0909-
110 BRACKET; RELAY LEVER,1ST
MZW6P M/T(RSZ) (C) 		8-98075-373-0 01 1 1501-
110 BRACKET; RELAY LEVER,1ST
MLD6Q M/T(X5J) (A) 		1-33657-797-1 01 1 0909-
110 BRACKET; RELAY LEVER,1ST
MLD6Q M/T(X5J) (B) 		1-33657-835-0 01 1 0909-
111 SHAFT; RELAY LEVER,1ST
MZW6P M/T(RSZ) (B) 		8-98075-371-0 01 1 1501-
111 SHAFT; RELAY LEVER,1ST
MLD6Q M/T(X5J) (A) 		1-33619-508-0 01 1 0909-
112 BUSHING; RELAY LEVER
MZW6P M/T(RSZ) (B) 		8-98075-387-0 02 1 1501-
112 BUSHING; RELAY LEVER
MLD6Q M/T(X5J) (A) L=24 		5-33659-054-0 04 1 0909-
113 WASHER; RELAY LEVER
MLD6Q M/T(X5J) 		1-33659-093-0 01 1 0909-
114 NUT; RELAY LEVER
MLD6Q M/T(X5J) M14 		0-91111-514-0 01 1 0909-
162 LEVER; RELAY
MZW6P M/T(RSZ) (B) 		8-98105-940-1 01 1 1501-
162 LEVER; RELAY
MLD6Q M/T(X5J) (A) 		1-33651-817-0 01 1 0909-
167 NUT; RELAY LEVER,SELECT ROD
MLD6Q M/T(X5J) M14 		0-91111-514-0 01 1 0909-
170 COLLAR; RELAY LEVER,SELECT ROD,1ST
MLD6Q M/T(X5J) 		1-33659-154-0 01 1 0909-
171 SHAFT; RELAY LEVER,SELECT ROD,1ST
MLD6Q M/T(X5J) 		1-33619-508-0 01 1 0909-
175 WASHER; RELAY LEVER,SELECT CONT ROD
MLD6Q M/T(X5J) 		1-33659-093-0 01 1 0909-
181 SHIM; RELAY LEVER,SELECT ROD
MLD6Q M/T(X5J) 		1-33659-092-0 01 1 0909-
245 NUT; BRKT,RELAY LEVER
MLD6Q M/T(X5J) M8 FLANGE 		0-91180-108-0 04 1 0909-1412
245 NUT; BRKT,RELAY LEVER
MZW6P M/T(RSZ),MLD6Q M/T(X5J) M8 FLANGE 		0-91180-108-0 04 1 1501-
264 BOLT; BRKT,RELAY LEVER
MZW6P M/T(RSZ) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1501-
264 BOLT; BRKT,RELAY LEVER
MZW6P M/T(RSZ) (B) M14X25 W/LK WASHER 		0-50541-425-0 02 1 1501-
264 BOLT; BRKT,RELAY LEVER
MLD6Q M/T(X5J) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0909-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-057-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98134-640-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-055-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-048-1 01 1 0909-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0909-1101
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-598-0 01 1 1102-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-046-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98105-776-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-045-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-049-0 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0909-1101
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-600-0 01 1 1102-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0909-
313 NUT; CLIP BRKT
ISUZU M/T<X9A> (A) M10 FLANGE 		1-09440-061-0 01 1 0909-
313 NUT; CLIP BRKT
ISUZU M/T<X9A> (B) M8 FLANGE 		1-09440-062-1 01 1 0909-
355 NIPPLE; GREASE,RELAY LEVER
MZW6P M/T(RSZ) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1501-
355 NIPPLE; GREASE,RELAY LEVER
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 02 1 0909-
362 SHIM
MLD6Q M/T(X5J) 		1-33659-092-0 01 1 0909-
365 LEVER; RELAY,SELECT
MLD6Q M/T(X5J) 		1-33671-915-0 01 1 0909-
407 LEVER; RELAY,SHIFT
MZW6P M/T(RSZ) (B) 		8-98105-941-1 01 1 1501-
407 LEVER; RELAY,SHIFT
MLD6Q M/T(X5J) (A) 		1-33671-914-1 01 1 0909-

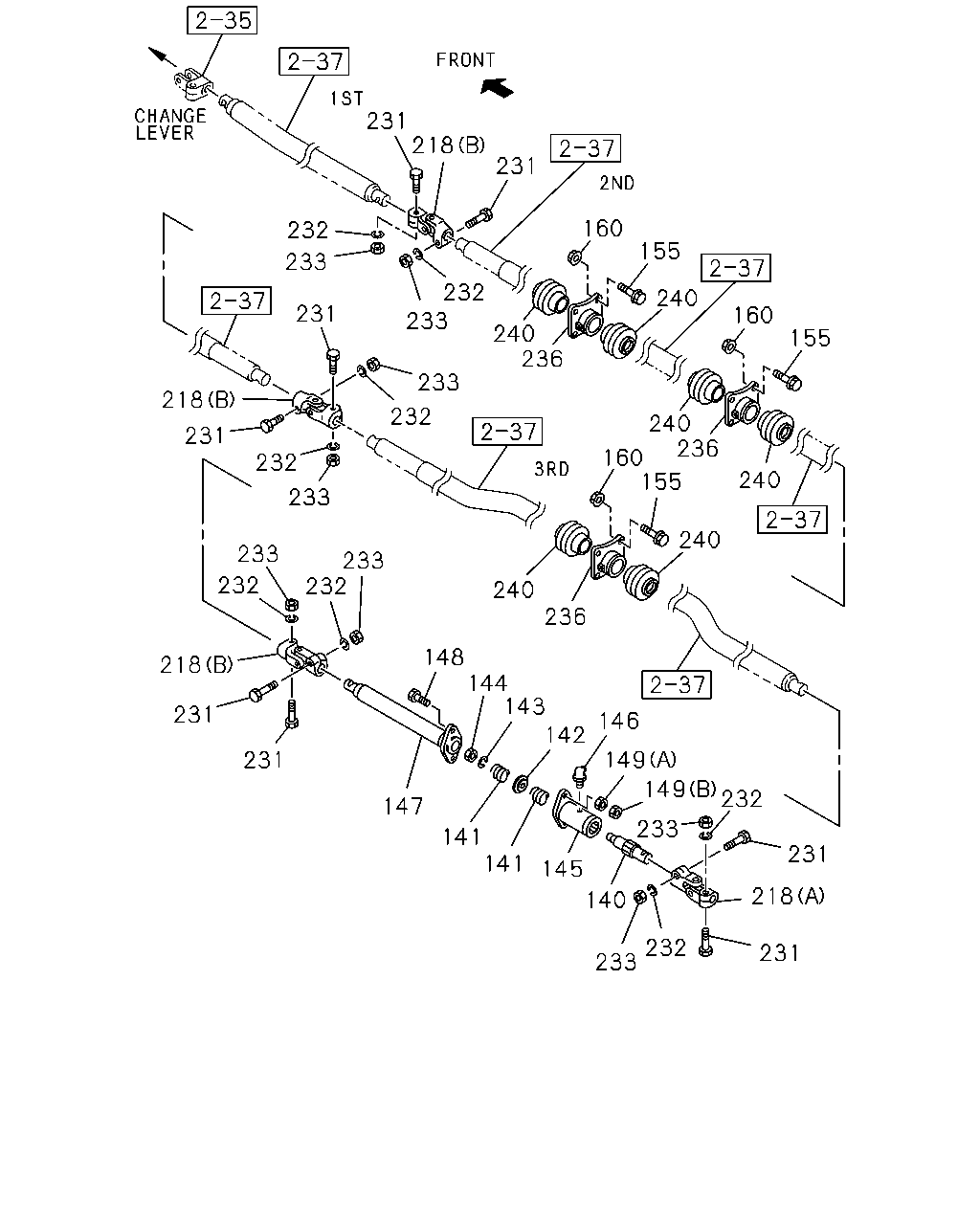

çizim 163310
231 218 231 160 240 155 160 155 240 236 240 160 236 240 232 232 233 233 232 231 233 218 232 231 233 233 232 233 232 231 231 218 147 141 141 145 140 232 218 231 232 149 233 149 142 146 143 144 148 240 236 155 240 233 231
BalonParca AdiParca NoAdetTipApplied Date
140 END; ROD,CONT ROD
FULLER M/T<X9B> 		1-33652-156-0 01 1 0909-
141 SPRING; CONT ROD
FULLER M/T<X9B> 		9-09940-831-0 02 1 0909-
142 GUIDE; CONT ROD
FULLER M/T<X9B> 		9-33659-384-0 01 1 0909-
143 WASHER; LK,CONT ROD
FULLER M/T<X9B> ID=14.2 		0-91510-514-0 01 1 0909-
144 NUT; CONT ROD
FULLER M/T<X9B> M14 		0-91110-514-0 01 1 0909-
145 SLEEVE; CONT ROD
FULLER M/T<X9B> 		9-33659-399-0 01 1 0909-
146 NIPPLE; GREASE,SLEEVE
FULLER M/T<X9B> PT1/8 ELBOW 		0-90301-610-0 01 1 0909-
147 ROD; LINK
FULLER M/T<X9B> 		1-33652-857-0 01 1 0909-
148 BOLT; SLEEVE TO CONT ROD
FULLER M/T<X9B> M10X28 		0-20801-028-0 02 1 0909-
149 NUT; SLEEVE TO CONT ROD
FULLER M/T<X9B> (A) M10 		0-91110-510-0 02 1 0909-
149 NUT; SLEEVE TO CONT ROD
FULLER M/T<X9B> (B) M10 		0-91111-510-0 02 1 0909-
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
FULLER M/T<X9B> M6X30 FLANGE 		0-28650-630-0 12 1 0909-
160 NUT; SUPPORT BRKT TO COVER
FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 12 1 0909-
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
FULLER M/T<X9B> (B) 		1-33655-013-0 03 1 0909-
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
FULLER M/T<X9B> (A) 		1-33655-014-0 01 1 0909-
231 BOLT; UJT,TRANS CONT ROD
FULLER M/T<X9B> M10X50 		1-09000-786-0 08 1 0909-
232 WASHER; LK,UJT,CONT ROD
FULLER M/T<X9B> ID=10.2 		0-91510-510-0 08 1 0909-
233 NUT; UJT,CONT ROD
FULLER M/T<X9B> M10 		0-91110-510-0 08 1 0909-
236 SUPPORT ASM; TRANS CONT ROD
FULLER M/T<X9B> 		1-53380-004-1 03 1 0909-
240 SEAL; DUST,SUPPORT,TRANS CONT ROD
FULLER M/T<X9B> 		1-33659-141-0 06 1 0909-

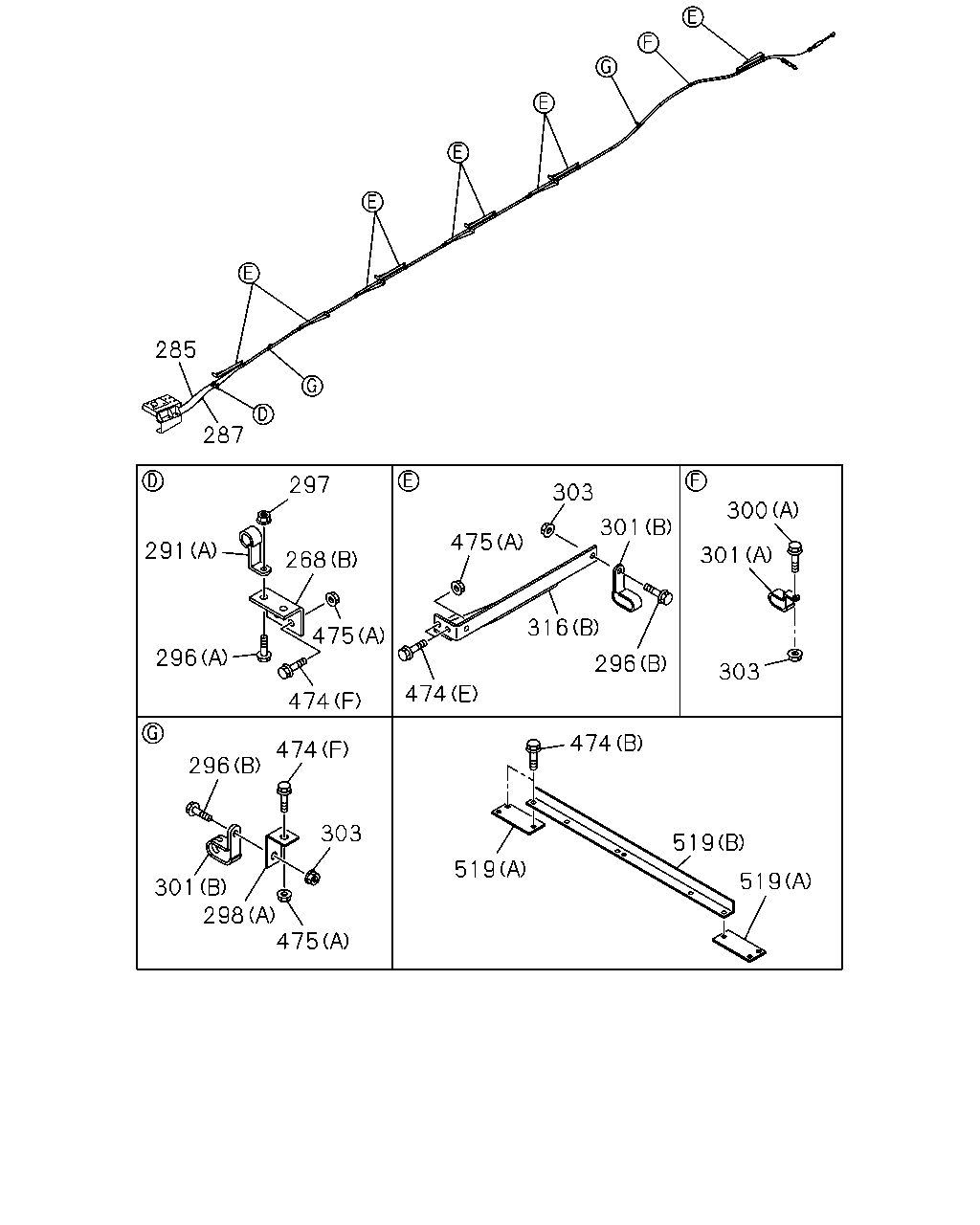

çizim 163312
287 285 303 297 291 268 475 474 296 474 296 303 301 298 475 519 474 475 316 301 296 303 301 300 474 519 519
BalonParca AdiParca NoAdetTipApplied Date
268 BRACKET; LINK ROD
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) 		8-98077-510-2 01 1 0909-
268 BRACKET; LINK ROD
ISUZU M/T<X9A> (B) 		1-47479-107-0 01 1 0909-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-057-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98134-640-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-055-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-048-1 01 1 0909-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0909-1101
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-598-0 01 1 1102-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-046-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98105-776-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-045-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-049-0 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0909-1101
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-600-0 01 1 1102-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0909-
291 CLIP; SHIFT TO SELECT,FRAME
ISUZU M/T<X9A> (A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0909-
291 CLIP; SHIFT TO SELECT,FRAME
ISUZU M/T<X9A> (B) ID=22.2 		1-09701-209-1 01 1 0909-
296 BOLT; CLIP,SHIFT & SELECT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) (B) M8X20 FLANGE 		0-28650-820-0 14 1 1501-
296 BOLT; CLIP,SHIFT & SELECT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) (B) M8X20 FLANGE 		0-28650-820-0 16 1 1501-
296 BOLT; CLIP,SHIFT & SELECT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) (B) M8X20 FLANGE 		0-28650-820-0 13 1 0909-
296 BOLT; CLIP,SHIFT & SELECT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) (B) M8X20 FLANGE 		0-28650-820-0 15 1 0909-
296 BOLT; CLIP,SHIFT & SELECT
ISUZU M/T<X9A> (A) M10X20 FLANGE 		0-28651-020-0 02 1 0909-
297 NUT; CLIP
ISUZU M/T<X9A> M10 FLANGE 		0-91180-210-0 02 1 0909-
298 BRACKET
MZW6P M/T(RSZ) (B) 		8-98150-399-0 01 1 1501-
298 BRACKET
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) L=40 		1-47478-410-0 02 1 0909-
300 BOLT; CLIP
MZW6P M/T(RSZ) (B) M6X20 FLANGE 		0-28050-620-0 02 1 1501-
300 BOLT; CLIP
ISUZU M/T<X9A> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0909-
301 CLIP; WIRE
MZW6P M/T(RSZ) (B) ID=15 		1-09700-845-1 01 1 1501-
301 CLIP; WIRE
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) (B) ID=13X2 L=32 		1-09701-245-0 13 1 0909-1412
301 CLIP; WIRE
MZW6P M/T(RSZ),MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) (B) ID=13X2 L=32 		1-09701-245-0 13 1 1501-
301 CLIP; WIRE
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) (B) ID=13X2 L=32 		1-09701-245-0 15 1 0909-1412
301 CLIP; WIRE
MZW6P M/T(RSZ),MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) (B) ID=13X2 L=32 		1-09701-245-0 15 1 1501-
301 CLIP; WIRE
ISUZU M/T<X9A> (A) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0909-
303 NUT; CLIP
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 14 1 1501-
303 NUT; CLIP
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 16 1 1501-
303 NUT; CLIP
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 13 1 0909-
303 NUT; CLIP
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 15 1 0909-
303 NUT; CLIP
ISUZU M/T<X9A> M8 FLANGE 		0-91180-108-0 01 1 0909-
316 BRACKET; CLIP
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (B) 		1-47479-729-0 09 1 0909-
316 BRACKET; CLIP
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) 		1-47479-729-0 09 1 0909-
316 BRACKET; CLIP
MLD6Q M/T(X5J) (A) 		1-33657-736-0 01 1 0909-
316 BRACKET; CLIP
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (B) 		1-47479-729-0 10 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (F) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
474 BOLT; BRKT
FULLER M/T<X9B> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M12X40 FLANGE 		0-28651-240-0 03 1 0909-
474 BOLT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (E) M8X25 FLANGE 		0-28650-825-0 18 1 0909-
474 BOLT; BRKT
MLD6Q M/T(X5J) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (D) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
474 BOLT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
MLD6Q M/T(X5J) (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 02 1 0909-
475 NUT; BRKT
WHEEL BASE 5000MM(50W) ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 18 1 0909-
475 NUT; BRKT
FULLER M/T<X9B> (B) M12 FLANGE 		0-91180-212-0 03 1 0909-
475 NUT; BRKT
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (A) M8 FLANGE 		0-91180-108-0 20 1 0909-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) 		1-47479-111-0 02 1 0909-
519 BRACKET; FRAME
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (B) 		1-47479-555-0 01 1 0909-
519 BRACKET; FRAME
ISUZU M/T<X9A> EXC. LOW DECK WO/REAR BODY<PK4> (C) 		1-47479-486-0 01 1 0909-

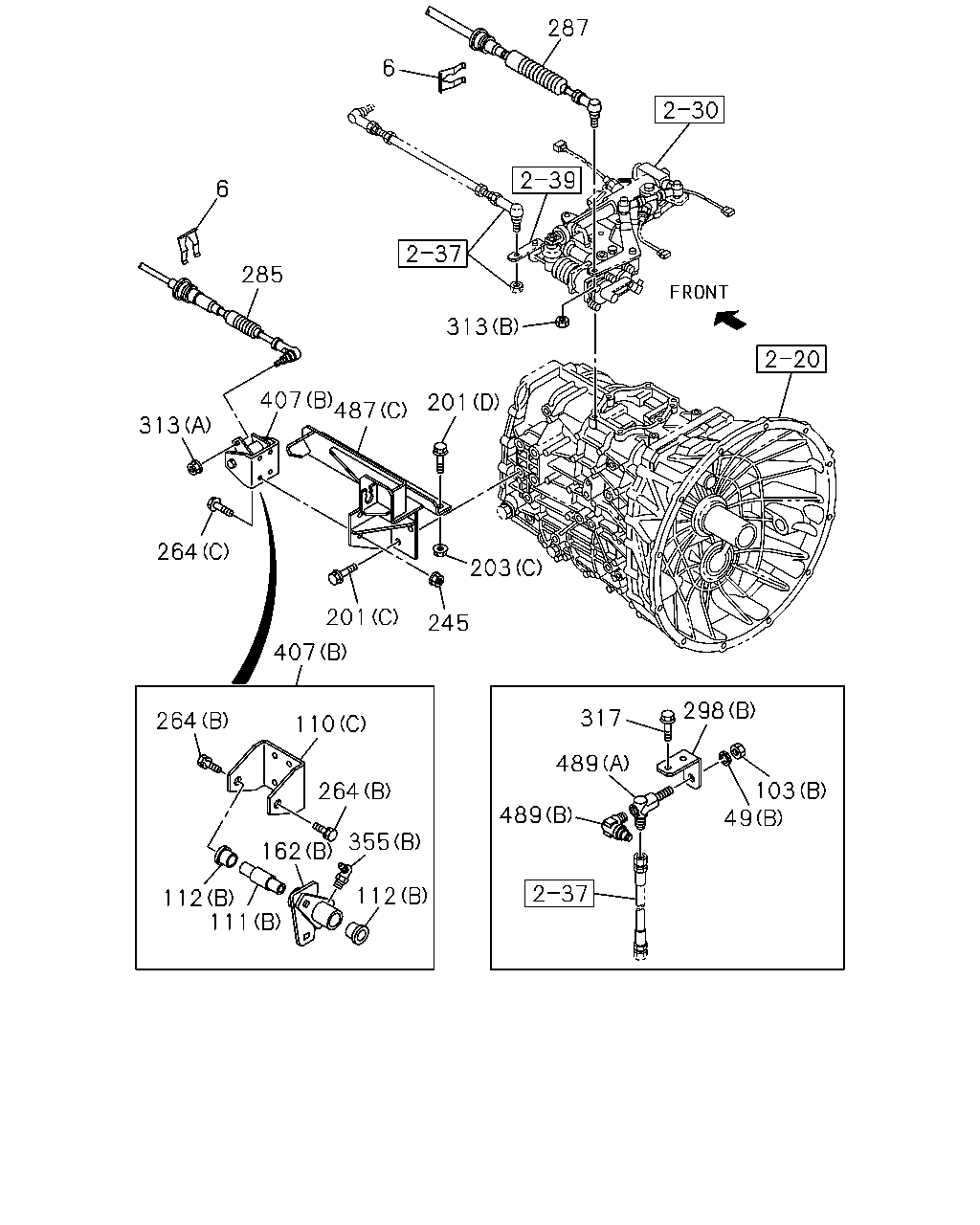

çizim 468032
287 6 6 285 313 201 487 407 313 264 407 201 245 203 317 298 489 103 49 489 110 264 355 112 162 264 112 111
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ISUZU M/T<X9A> ID=22.2 		1-09701-209-1 02 1 0909-
49 WASHER; LK
MZW6P M/T(RSZ) (C) 		1-09500-043-0 02 1 1501-
49 WASHER; LK
MZW6P M/T(RSZ) (B) ID=12.2 		0-91510-512-0 01 1 1501-
49 WASHER; LK
MLD6Q M/T(X5J) (A) ID=14.2 		0-91510-514-0 01 1 0909-
103 NUT
MZW6P M/T(RSZ) (B) M12 		0-91111-512-0 01 1 1501-
103 NUT
ISUZU M/T<X9A> (A) M8 FLANGE 		1-09440-062-1 01 1 0909-
110 BRACKET; RELAY LEVER,1ST
MZW6P M/T(RSZ) (C) 		8-98075-373-0 01 1 1501-
110 BRACKET; RELAY LEVER,1ST
MLD6Q M/T(X5J) (A) 		1-33657-797-1 01 1 0909-
110 BRACKET; RELAY LEVER,1ST
MLD6Q M/T(X5J) (B) 		1-33657-835-0 01 1 0909-
111 SHAFT; RELAY LEVER,1ST
MZW6P M/T(RSZ) (B) 		8-98075-371-0 01 1 1501-
111 SHAFT; RELAY LEVER,1ST
MLD6Q M/T(X5J) (A) 		1-33619-508-0 01 1 0909-
112 BUSHING; RELAY LEVER
MZW6P M/T(RSZ) (B) 		8-98075-387-0 02 1 1501-
112 BUSHING; RELAY LEVER
MLD6Q M/T(X5J) (A) L=24 		5-33659-054-0 04 1 0909-
162 LEVER; RELAY
MZW6P M/T(RSZ) (B) 		8-98105-940-1 01 1 1501-
162 LEVER; RELAY
MLD6Q M/T(X5J) (A) 		1-33651-817-0 01 1 0909-
201 BOLT; BRKT
MZW6P M/T(RSZ) (D) M10X30 FLANGE 		0-28661-030-0 01 1 1501-
201 BOLT; BRKT
MZW6P M/T(RSZ) (C) M14X25 FLANGE 		0-28951-425-0 03 1 1501-
201 BOLT; BRKT
MLD6Q M/T(X5J) (A) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
201 BOLT; BRKT
MLD6Q M/T(X5J) (A) M10X30 FLANGE 		0-28651-030-0 04 1 0909-
201 BOLT; BRKT
ISUZU M/T<X9A> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0909-
203 NUT; BRKT FIX
MZW6P M/T(RSZ) (C) M10 FLANGE 		0-91180-210-0 01 1 1501-
203 NUT; BRKT FIX
MLD6Q M/T(X5J) (B) M10 FLANGE 		0-91180-210-0 04 1 0909-
203 NUT; BRKT FIX
ISUZU M/T<X9A> (A) M8 FLANGE 		0-91180-108-0 04 1 0909-
245 NUT; BRKT,RELAY LEVER
MLD6Q M/T(X5J) M8 FLANGE 		0-91180-108-0 04 1 0909-1412
245 NUT; BRKT,RELAY LEVER
MZW6P M/T(RSZ),MLD6Q M/T(X5J) M8 FLANGE 		0-91180-108-0 04 1 1501-
264 BOLT; BRKT,RELAY LEVER
MZW6P M/T(RSZ) (C) M8X25 FLANGE 		0-28650-825-0 04 1 1501-
264 BOLT; BRKT,RELAY LEVER
MZW6P M/T(RSZ) (B) M14X25 W/LK WASHER 		0-50541-425-0 02 1 1501-
264 BOLT; BRKT,RELAY LEVER
MLD6Q M/T(X5J) (A) M8X30 FLANGE 		0-28650-830-0 08 1 0909-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-057-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98134-640-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-055-2 01 1 1501-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-048-1 01 1 0909-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-479-3 01 1 0909-1101
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-598-0 01 1 1102-
285 WIRE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-010-1 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) 		8-98134-046-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98105-776-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MZW6P M/T(RSZ) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		8-98134-045-1 01 1 1501-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5000MM(50W) 		1-33672-049-0 01 1 0909-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98072-478-2 01 1 0909-1101
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) LOW DECK WO/REAR BODY<PK4> 		8-98180-600-0 01 1 1102-
287 WIRE; SELECT,TRANS CONT
MLD6Q M/T(X5J) WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> 		1-33672-011-0 01 1 0909-
298 BRACKET
MZW6P M/T(RSZ) (B) 		8-98150-399-0 01 1 1501-
298 BRACKET
LOW DECK WO/REAR BODY<PK4> ISUZU M/T<X9A> (A) L=40 		1-47478-410-0 02 1 0909-
313 NUT; CLIP BRKT
ISUZU M/T<X9A> (A) M10 FLANGE 		1-09440-061-0 01 1 0909-
313 NUT; CLIP BRKT
ISUZU M/T<X9A> (B) M8 FLANGE 		1-09440-062-1 01 1 0909-
317 BOLT; BRKT,SIDE MBR
MZW6P M/T(RSZ) M8X20 FLANGE 		0-28650-820-0 02 1 1501-
355 NIPPLE; GREASE,RELAY LEVER
MZW6P M/T(RSZ) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1501-
355 NIPPLE; GREASE,RELAY LEVER
MLD6Q M/T(X5J) (A) PT1/8 ELBOW 		0-90301-610-0 02 1 0909-
407 LEVER; RELAY,SHIFT
MZW6P M/T(RSZ) (B) 		8-98105-941-1 01 1 1501-
407 LEVER; RELAY,SHIFT
MLD6Q M/T(X5J) (A) 		1-33671-914-1 01 1 0909-
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) (A) 		8-98096-018-1 01 1 1501-
487 BRACKET; CONT CABLE
MZW6P M/T(RSZ) (C) 		8-98106-227-1 01 1 1501-
487 BRACKET; CONT CABLE
MLD6Q M/T(X5J) (A) 		1-33657-725-0 01 1 0909-
487 BRACKET; CONT CABLE
MLD6Q M/T(X5J) (B) 		1-33657-803-0 01 1 0909-
489 CONNECTOR
MZW6P M/T(RSZ) (A) 		1-09654-430-0 01 1 1501-
489 CONNECTOR
MZW6P M/T(RSZ) (B) DIN8 & R1/8 ELBOW 		1-09660-702-0 01 1 1501-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
