◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#58256) — 80 parça
çizim 163297
1 1 1 8 13 125 247 271 264 240 105 21 127 281 282 117 283 284 285 25 63 216 216 268 211 215 21 266 8 215
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
ISUZU M/T<X9A> 		1-33611-070-1 01 1 0909-
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> 		1-33611-060-0 01 1 0909-
8 LEVER; CHANGE
FULLER FS6306 M/T(MWO) (C) 		1-33613-355-0 01 1 0909-
8 LEVER; CHANGE
ISUZU M/T<X9A> (B) 		1-33613-354-1 01 1 0909-
8 LEVER; CHANGE
ISUZU M/T<X9A> (A) 		1-33620-106-0 01 1 0909-
8 LEVER; CHANGE
FULLER M/T<X9B> (D) 		1-33610-967-0 01 1 0909-
8 LEVER; CHANGE
FULLER M/T<X9B> (E) 		1-33613-235-2 01 1 0909-
13 WASHER; PL,SUPER SHIFT LEVER
ISUZU M/T<X9A> ID=10.5 		9-09164-510-0 02 1 0909-
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 0909-
21 SEAT; CHANGE LEVER
(B) 		1-33619-081-0 01 1 0909-
25 WASHER
ISUZU M/T<X9A> ID=10.5 OD=26 		9-09160-710-0 01 1 0909-
63 LEVER; RELAY,SELECT
ISUZU M/T<X9A> 		1-33651-760-0 01 1 0909-
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 0909-
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 0909-
117 BUSHING; RELAY LEVER
ISUZU M/T<X9A> 		1-09330-004-0 01 1 0909-
125 NUT; ARM
ISUZU M/T<X9A> M10 		0-91110-510-0 02 1 0909-
127 SUPPORT; CHANGE LEVER
ISUZU M/T<X9A> 		1-33619-092-0 01 1 0909-
127 SUPPORT; CHANGE LEVER
FULLER M/T<X9B> 		1-33619-112-0 01 1 0909-
211 BRACKET; CHANGE LEVER
ISUZU M/T<X9A> 		1-33657-846-0 01 1 0909-
215 BOLT; BRKT,CHANGE LEVER
ISUZU M/T<X9A> M12X40 FLANGE 		0-28651-240-0 03 1 0909-
216 NUT; BRKT,CHANGE LEVER
ISUZU M/T<X9A> M12 FLANGE 		0-91180-212-0 03 1 0909-
240 COVER; SPHERICAL,CHANGE LEVER
ISUZU M/T<X9A> 		1-33614-108-0 01 1 0909-
240 COVER; SPHERICAL,CHANGE LEVER
FULLER M/T<X9B> 		1-33614-049-0 01 1 0909-
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 0909-
264 PLATE; COVER 1-33619-026-0 01 1 0909-
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28650-840-0 04 1 0909-
268 NUT; SEAT SET
M8 FLANGE 		0-91180-108-0 04 1 0909-
271 BOLT; BRKT
ISUZU M/T<X9A> M6X12 W/LK WASHER 		0-50540-612-0 02 1 0909-
281 ARM; SELECT,CHANGE LEVER
ISUZU M/T<X9A> 		1-33651-759-1 01 1 0909-
282 BOLT; ARM
ISUZU M/T<X9A> M10X55 		0-10811-055-0 02 1 0909-
283 WASHER; LK,ARM
ISUZU M/T<X9A> ID=16.5 OD=27.8 H=3.5 		1-09503-047-0 02 1 0909-
284 NUT; RELAY LEVER
ISUZU M/T<X9A> M10 		0-91110-510-0 01 1 0909-
285 WASHER; LK,RELAY LEVER
ISUZU M/T<X9A> ID=10.2 		0-91510-510-0 01 1 0909-

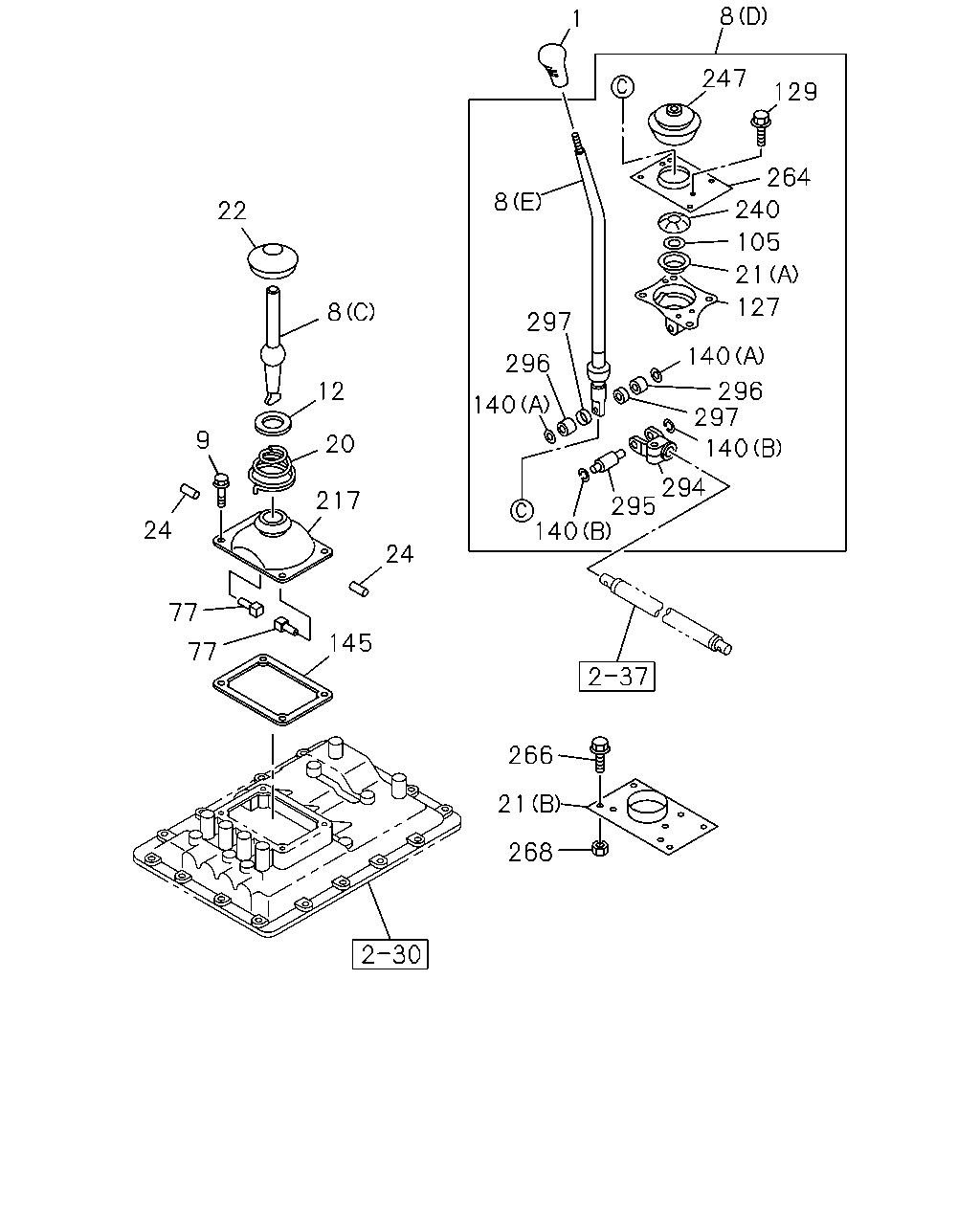

çizim 163303
1 8 247 129 264 240 105 21 127 140 297 294 295 140 140 296 297 8 22 8 12 217 20 24 145 77 77 24 9 268 21 266 296 140
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
ISUZU M/T<X9A> 		1-33611-070-1 01 1 0909-
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> 		1-33611-060-0 01 1 0909-
8 LEVER; CHANGE
FULLER FS6306 M/T(MWO) (C) 		1-33613-355-0 01 1 0909-
8 LEVER; CHANGE
ISUZU M/T<X9A> (B) 		1-33613-354-1 01 1 0909-
8 LEVER; CHANGE
ISUZU M/T<X9A> (A) 		1-33620-106-0 01 1 0909-
8 LEVER; CHANGE
FULLER M/T<X9B> (D) 		1-33610-967-0 01 1 0909-
8 LEVER; CHANGE
FULLER M/T<X9B> (E) 		1-33613-235-2 01 1 0909-
9 BOLT; CHANGE LEVER
FULLER FS6306 M/T(MWO) 		1-87060-777-0 01 1 0909-
12 WASHER; PL,CHANGE LEVER
FULLER FS6306 M/T(MWO) 		1-33619-643-0 01 1 0909-
20 SPRING; CHANGE LEVER
FULLER FS6306 M/T(MWO) 		1-33619-642-0 01 1 0909-
21 SEAT; CHANGE LEVER
(A) 		1-33619-293-0 01 1 0909-
21 SEAT; CHANGE LEVER
(B) 		1-33619-081-0 01 1 0909-
22 COVER; DUST,CHANGE LEVER
FULLER FS6306 M/T(MWO) 		1-33614-137-0 01 1 0909-
24 BUSHING; CHANGE LEVER
FULLER FS6306 M/T(MWO) 		1-33619-640-0 02 1 0909-
77 PIN; CHANGE LEVER
FULLER FS6306 M/T(MWO) 		1-33619-641-0 02 1 0909-
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 0909-
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 0909-
127 SUPPORT; CHANGE LEVER
ISUZU M/T<X9A> 		1-33619-092-0 01 1 0909-
127 SUPPORT; CHANGE LEVER
FULLER M/T<X9B> 		1-33619-112-0 01 1 0909-
129 BOLT; SUPPORT,CHANGE LEVER
FULLER M/T<X9B> M6X12 W/LK WASHER 		0-50540-612-0 02 1 0909-
140 RING; SNAP
FULLER M/T<X9B> (B) ID=14.7 		0-91800-616-0 02 1 0909-
140 RING; SNAP
FULLER M/T<X9B> (A) T=0.9 OD=19.5 		1-09587-068-0 AR 1 0909-
140 RING; SNAP
FULLER M/T<X9B> (A) T=1.00 OD=19.5 		1-09587-069-0 AR 1 0909-
140 RING; SNAP
FULLER M/T<X9B> (A) T=1.025 OD=19.5 		1-09587-070-0 AR 1 0909-
140 RING; SNAP
FULLER M/T<X9B> (A) T=1.05 OD=19.5 		1-09587-071-0 AR 1 0909-
145 GASKET; CHANGE LEVER TO TRANS
FULLER FS6306 M/T(MWO) 		1-33619-644-0 01 1 0909-
217 HOUSING; LEVER DETENT
FULLER FS6306 M/T(MWO) 		1-33619-645-0 01 1 0909-
240 COVER; SPHERICAL,CHANGE LEVER
ISUZU M/T<X9A> 		1-33614-108-0 01 1 0909-
240 COVER; SPHERICAL,CHANGE LEVER
FULLER M/T<X9B> 		1-33614-049-0 01 1 0909-
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 0909-
264 PLATE; COVER 1-33619-026-0 01 1 0909-
266 BOLT; SEAT SET
M8X40 FLANGE 		0-28650-840-0 04 1 0909-
268 NUT; SEAT SET
M8 FLANGE 		0-91180-108-0 04 1 0909-
294 YOKE; CHANGE LEVER
FULLER M/T<X9B> 		1-33655-009-1 01 1 0909-
295 PIN; KNOCK PIN
FULLER M/T<X9B> 		1-33659-091-0 01 1 0909-
296 BEARING; NEEDLE ROLLER
FULLER M/T<X9B> 		1-09811-280-0 02 1 0909-
297 SEAL; DUST,CHANGE LEVER
FULLER M/T<X9B> 		1-33614-092-0 02 1 0909-

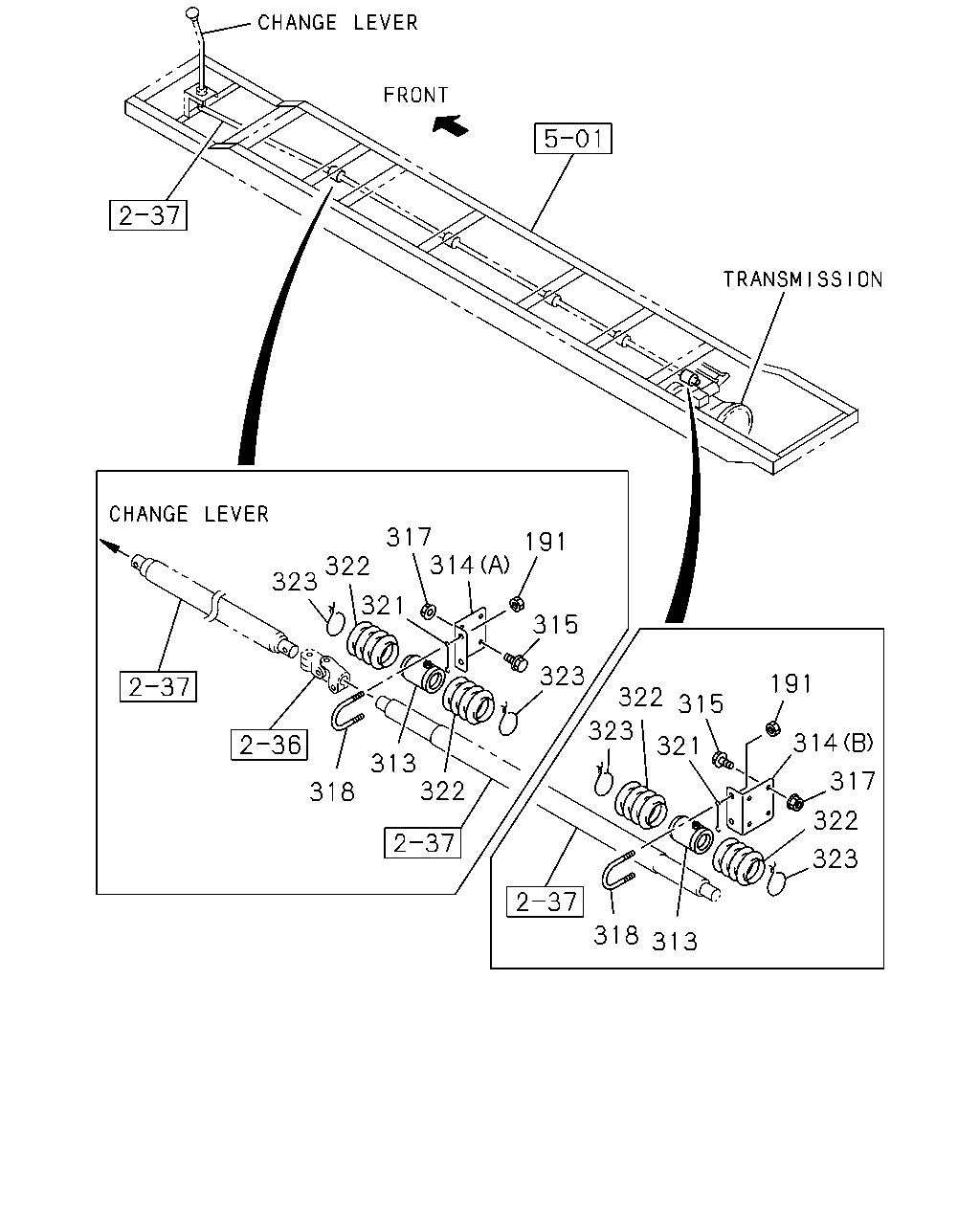

çizim 163306
323 322 317 314 191 321 315 323 322 313 318 318 313 321 323 322 315 191 314 317 322 323
BalonParca AdiParca NoAdetTipApplied Date
191 NUT; U BOLT
FULLER M/T<X9B> M8 FLANGE 		1-09440-062-1 04 1 0909-
313 BUSHING; BALL,GUIDE ROD
FULLER M/T<X9B> 		1-23333-003-0 02 1 0909-
314 BRACKET; BALL BUSHING
FULLER M/T<X9B> (A) 		1-53419-339-0 01 1 0909-
314 BRACKET; BALL BUSHING
FULLER M/T<X9B> (B) 		1-53419-340-0 01 1 0909-
315 BOLT; BRKT
FULLER M/T<X9B> M10X30 FLANGE 		0-28651-030-0 06 1 0909-
317 NUT; BRKT
FULLER M/T<X9B> M10 FLANGE 		0-91180-210-0 06 1 0909-
318 U-BOLT; BALL BUSHING
FULLER M/T<X9B> 		1-33659-022-0 02 1 0909-
321 GUIDE; U BOLT
FULLER M/T<X9B> 		1-33659-021-0 02 1 0909-
322 SEAL; DUST,BALL BUSHING
FULLER M/T<X9B> 		1-33659-047-0 04 1 0909-
323 WIRE; SEAL
FULLER M/T<X9B> L=200 		9-08351-020-0 04 1 0909-
