Isuzu WW
▶
BUSES
▶
LT
▶
11206 - LT134 LHD EURO2/3/5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30B - GEAR SHIFTER AND QUADRANT BOX
▶

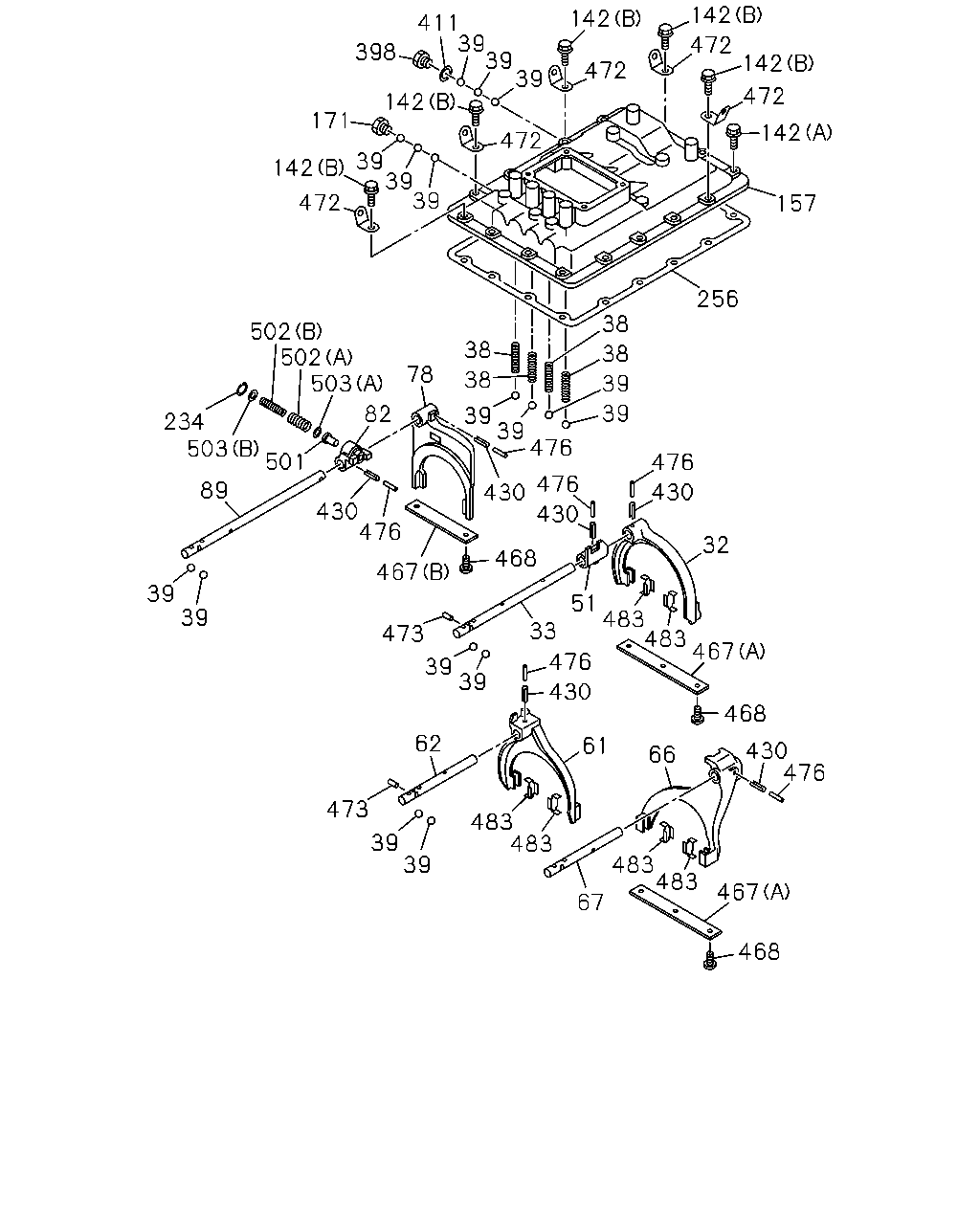

2-30B — GEAR SHIFTER AND QUADRANT BOX
(#58255) — 33 parça
411
398
171
142
39
39
39
142
472
39
39
39
472
142
142
472
142
472
142
157
256
38
38
39
39
38
78
38
39
39
476
476
430
430
430
476
32
51
483
33
476
467
483
468
430
476
66
61
39
39
473
467
476
430
501
503
234
39
39
89
503
502
502
82
468
472
62
473
39
39
67
483
483
483
483
467
468
430
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
ARM; SHIFT,1ST & 2ND
1-33511-596-0
01
1
0909-
33
ROD; SHIFT,LOW & 2ND
1-33531-463-0
01
1
0909-
38
SPRING; DETENT
1-33549-340-0
04
1
0909-
39
BALL; DETENT
1-33549-341-0
16
1
0909-
51
BLOCK; SHIFT,1ST & 2ND
1-33511-595-0
01
1
0909-
61
ARM; SHIFT,3RD & 4TH
1-33511-597-0
01
1
0909-
62
ROD; SHIFT,3RD & 4TH
1-33531-464-0
01
1
0909-
66
ARM; SHIFT,5TH & 6TH
1-33511-598-0
01
1
0909-
67
ROD; SHIFT,5TH & 6TH
1-33531-465-0
01
1
0909-
78
ARM; SHIFT,REV
1-33511-594-0
01
1
0909-
82
BLOCK; SHIFT,REV
1-33511-593-0
01
1
0909-
89
ROD; SHIFT,REV
1-33531-462-0
01
1
0909-
142
BOLT; QUAD BOX
(A)
1-33549-339-0
12
1
0909-
142
BOLT; QUAD BOX
(B)
1-33549-342-0
05
1
0909-
157
BOX; QUAD,TRANS
1-33541-516-0
01
1
0909-
171
SWITCH; NEUTRAL
1-87061-488-0
01
1
0909-
234
RING; SNAP
1-33539-067-0
01
1
0909-
256
GASKET; QUAD BOX TO TRANS CASE
1-33542-060-0
01
1
0909-
398
SWITCH; REV LAMP
1-82440-117-0
01
1
0909-
411
GASKET; REV LAMP SW
1-87060-781-0
01
1
0909-
430
PIN; SPR,SHIFT ROD
1-33534-009-0
06
1
0909-
467
RETAINER; SHIFT ROD
(A)
1-33539-071-0
02
1
0909-
467
RETAINER; SHIFT ROD
(B)
1-33539-072-0
01
1
0909-
468
SCREW; CAP,RET
1-87060-810-0
08
1
0909-
472
EYE; LIFTING
1-33549-343-0
05
1
0909-
473
PIN; ROLL
1-33534-007-0
02
1
0909-
476
PIN; SHIFT ROD
1-33534-008-0
06
1
0909-
483
BUSHING; SHIFT ARM
1-33519-134-0
06
1
0909-
501
PLUNGER; SHIFT BLOCK
1-33539-068-0
01
1
0909-
502
SPRING; PLUNGER
(A)
1-87060-799-0
01
1
0909-
502
SPRING; PLUNGER
(B)
1-87060-800-0
01
1
0909-
503
WASHER; PLUNGER
(A)
1-33539-069-0
01
1
0909-
503
WASHER; PLUNGER
(B)
1-33539-070-0
01
1
0909-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
