2-26B — MANUAL TRANSMISSION GEAR
(#58253) — 60 parça
◀

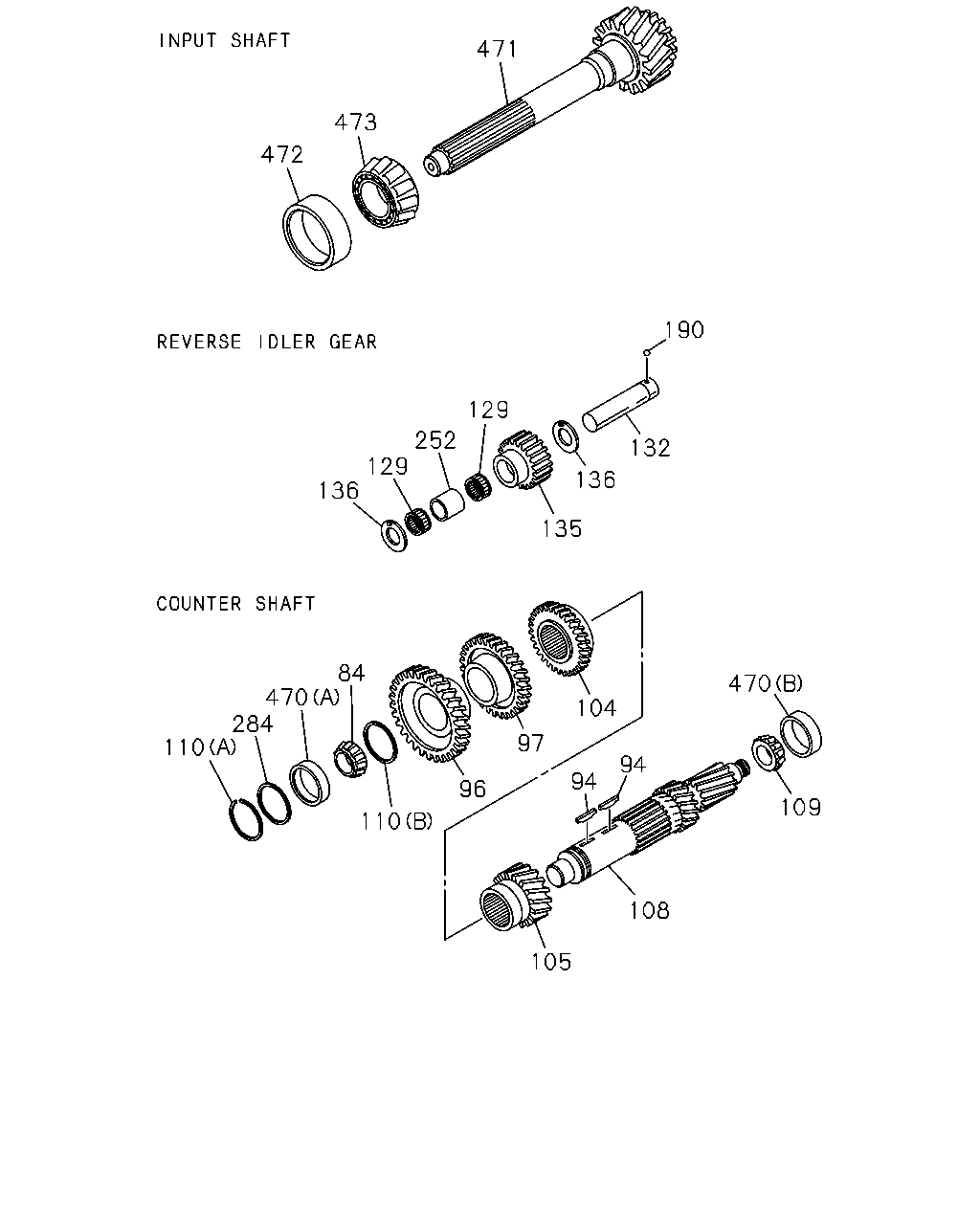

[226B] COUNTER,INPUT AND REVERSE SHAFT GEARS (22 parça)
[226B] OTHERS (7 parça)

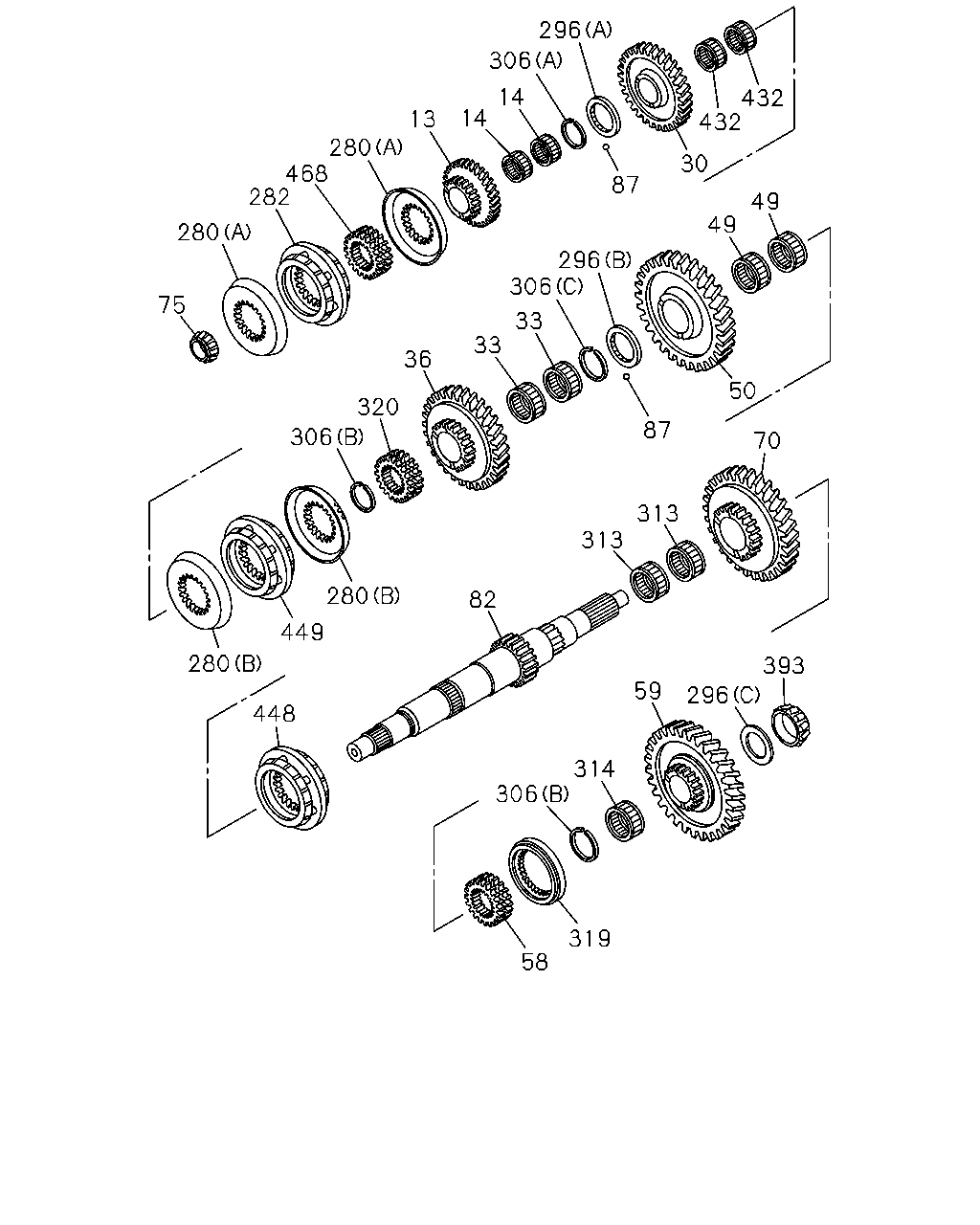

[226B] MAIN SHAFT GEARS (31 parça)
▶
471
473
472
190
132
136
135
129
252
129
136
470
109
94
94
104
97
96
110
84
470
284
110
108
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
BEARING; COUNTER SHAFT,FRT
1-33272-014-0
01
1
0909-
94
KEY; FEATHER,COUNTER SHAFT
1-33339-090-0
02
1
0909-
96
GEAR; COUNTER DRIVE
1-33331-262-0
01
1
0909-
97
GEAR; 5TH,COUNTER
1-33338-377-0
01
1
0909-
104
GEAR; 4TH,COUNTER
1-33338-378-0
01
1
0909-
105
GEAR; 3RD,COUNTER
1-33333-165-0
01
1
0909-
108
SHAFT; COUNTER
1-33311-316-0
01
1
0909-
109
BEARING; COUNTER SHAFT,RR
1-33272-015-0
01
1
0909-
110
RING; SNAP,COUNTER BRG
(A)
1-33279-028-0
01
1
0909-
110
RING; SNAP,COUNTER BRG
(B)
1-33279-030-0
01
1
0909-
129
BEARING; NEEDLE,IDLER
1-33272-019-0
02
1
0909-
132
SHAFT; REV
1-33351-036-0
01
1
0909-
135
GEAR; REV IDLER
1-33361-084-0
01
1
0909-
136
WASHER; THRUST,REV IDLE,RR
1-33279-031-0
02
1
0909-
190
BALL; LK,REV SHAFT
1-33239-310-0
01
1
0909-
252
SPACER
1-33363-039-0
01
1
0909-
284
WASHER; COUNTER SHAFT
1-33279-029-0
01
1
0909-
470
CUP; BEARING,COUNTER SHAFT
(A)
1-33272-013-0
01
1
0909-
470
CUP; BEARING,COUNTER SHAFT
(B)
1-33272-016-0
01
1
0909-
471
SHAFT; INPUT
1-33211-976-0
01
1
0909-
472
CUP; BEARING,INPUT SHAFT
1-33272-017-0
01
1
0909-
473
BEARING; INPUT SHAFT
1-33272-018-0
01
1
0909-
80
469
325
325
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
GEAR; SPD DRIVE
1-33371-071-0
01
1
0909-
325
SHIM; COUNTER SHAFT BRG
T=0.004
1-33139-098-0
01
1
0909-
325
SHIM; COUNTER SHAFT BRG
T=0.007
1-33139-099-0
01
1
0909-
325
SHIM; COUNTER SHAFT BRG
T=0.010
1-33139-100-0
01
1
0909-
325
SHIM; COUNTER SHAFT BRG
T=0.020
1-33139-101-0
01
1
0909-
325
SHIM; COUNTER SHAFT BRG
T=0.040
1-33139-102-0
01
1
0909-
469
CUP; BEARING,MAIN SHAFT
1-33272-005-0
01
1
0909-
296
306
14
14
13
280
468
282
280
75
432
432
30
87
49
49
296
306
33
33
36
320
306
87
50
70
313
313
82
280
449
280
448
393
296
59
314
306
319
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
GEAR; 5TH,MAINSHAFT
1-33253-685-0
01
1
0909-
14
BEARING; NEEDLE,5TH
1-33272-007-0
02
1
0909-
30
GEAR; 4TH,MAINSHAFT
1-33252-467-0
01
1
0909-
33
BEARING; NEEDLE,3RD GEAR
1-33272-009-0
02
1
0909-
36
GEAR; 3RD,MAINSHAFT
1-33252-468-0
01
1
0909-
49
BEARING; NEEDLE,2ND GEAR
1-33272-010-0
02
1
0909-
50
GEAR; 2ND,MAINSHAFT
1-33251-406-0
01
1
0909-
58
HUB; CLU,REV
1-33261-264-0
01
1
0909-
59
GEAR; REV MAINSHAFT
1-33257-084-0
01
1
0909-
70
GEAR; 1ST,MAINSHAFT
1-33251-407-0
01
1
0909-
75
BEARING; MAINSHAFT
1-33272-006-0
01
1
0909-
82
SHAFT; MAIN,TRANS
1-33231-303-0
01
1
0909-
87
BALL; THRUST WASHER
1-33239-310-0
02
1
0909-
280
CUP; SYN
(A)
1-33269-085-0
02
1
0909-
280
CUP; SYN
(B)
1-33269-086-0
02
1
0909-
282
SYNCHRONIZER; 5TH & 6TH
1-33265-528-0
01
1
0909-
296
WASHER; THRUST
(A)
1-33279-023-0
01
1
0909-
296
WASHER; THRUST
(B)
1-33279-026-0
01
1
0909-
296
WASHER; THRUST
(C)
1-33279-027-0
01
1
0909-
306
RING; SNAP,MAINSHAFT
(A)
1-33279-022-0
01
1
0909-
306
RING; SNAP,MAINSHAFT
(B)
1-33279-024-0
01
1
0909-
306
RING; SNAP,MAINSHAFT
(C)
1-33279-025-0
01
1
0909-
313
BEARING; NEEDLE,LOW GEAR
1-33272-010-0
02
1
0909-
314
BEARING; NEEDLE,REV GEAR
1-33272-012-0
01
1
0909-
319
CLUTCH; SLIDING
1-33265-531-0
01
1
0909-
320
HUB; CLU,4TH & 3RD
1-33261-263-0
01
1
0909-
393
BEARING; MAINSHAFT END
1-33272-011-0
01
1
0909-
432
BEARING; NEEDLE,4TH
1-33272-008-0
02
1
0909-
448
SYNCHRONIZER ASM; 1ST & 2ND
1-33265-530-0
01
1
0909-
449
SYNCHRONIZER ASM; 3RD & 4TH
1-33265-529-0
01
1
0909-
468
HUB; CLU,5TH & 6TH
1-33261-262-0
01
1
0909-
