Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#58252) — 246 parça

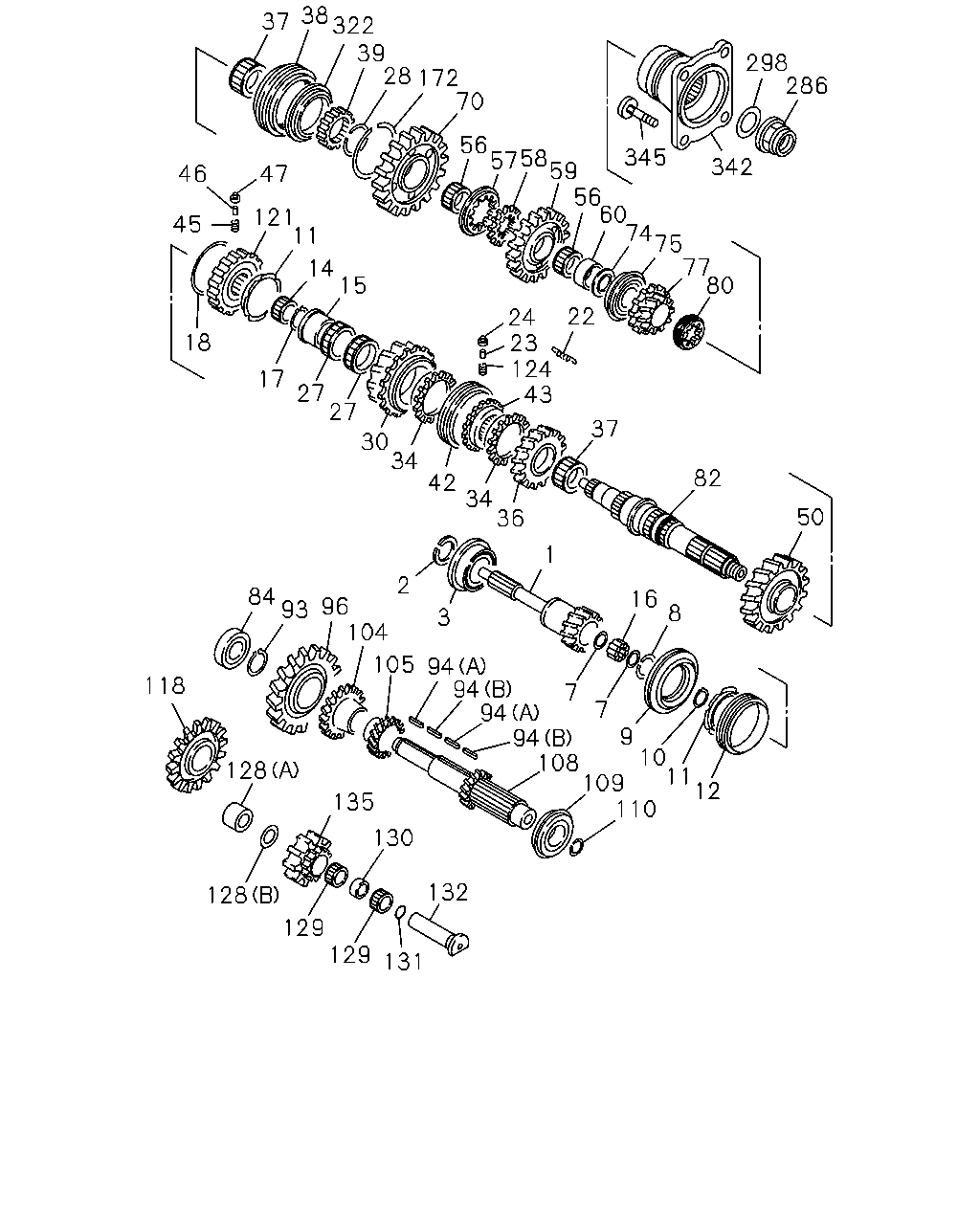

37 38 322 28 172 70 56 57 58 59 56 60 74 75 77 80 342 345 298 286 22 24 23 124 43 37 82 50 8 16 1 36 34 42 34 30 27 27 17 18 45 46 47 121 11 15 14 93 84 96 104 105 94 94 94 94 108 109 110 12 11 10 9 7 7 132 130 135 128 118 39 129 131 129 128 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	0909-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0909-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0909-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0909-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0909-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0909-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0909-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0909-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0909-	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0909-	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1501-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0909-	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0909-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0909-	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1501-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0909-	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0909-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0909-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1501-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0909-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0909-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0909-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1501-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0909-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0909-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0909-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0909-1107	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0909-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1501-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0909-	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0909-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0909-	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0909-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1501-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0909-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0909-	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0909-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0909-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0909-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0909-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0909-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0909-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1501-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0909-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1501-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0909-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0909-	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0909-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0909-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0909-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0909-	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0909-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1501-		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0909-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1501-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0909-	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1501-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0909-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1501-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0909-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1501-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0909-	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0909-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0909-	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0909-	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1501-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0909-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1501-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0909-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1501-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0909-	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0909-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0909-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0909-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1501-		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0909-	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0909-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0909-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0909-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0909-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0909-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0909-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0909-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1501-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0909-	●
132	SHAFT; REV	8-98009-372-0	01	1	1501-		●
132	SHAFT; REV	1-33351-017-0	01	1	0909-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1501-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0909-	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0909-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0909-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0909-1412	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1501-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0909-	●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	8-98155-334-0	01	1	1501-		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-307-1	01	1	0909-	●
345	BOLT; FLANGE TO YOKE EXC. BRAKE SYSTEM RETARDER<RE2> M14X43 KNURL	8-98014-003-0	04	1	0909-	●

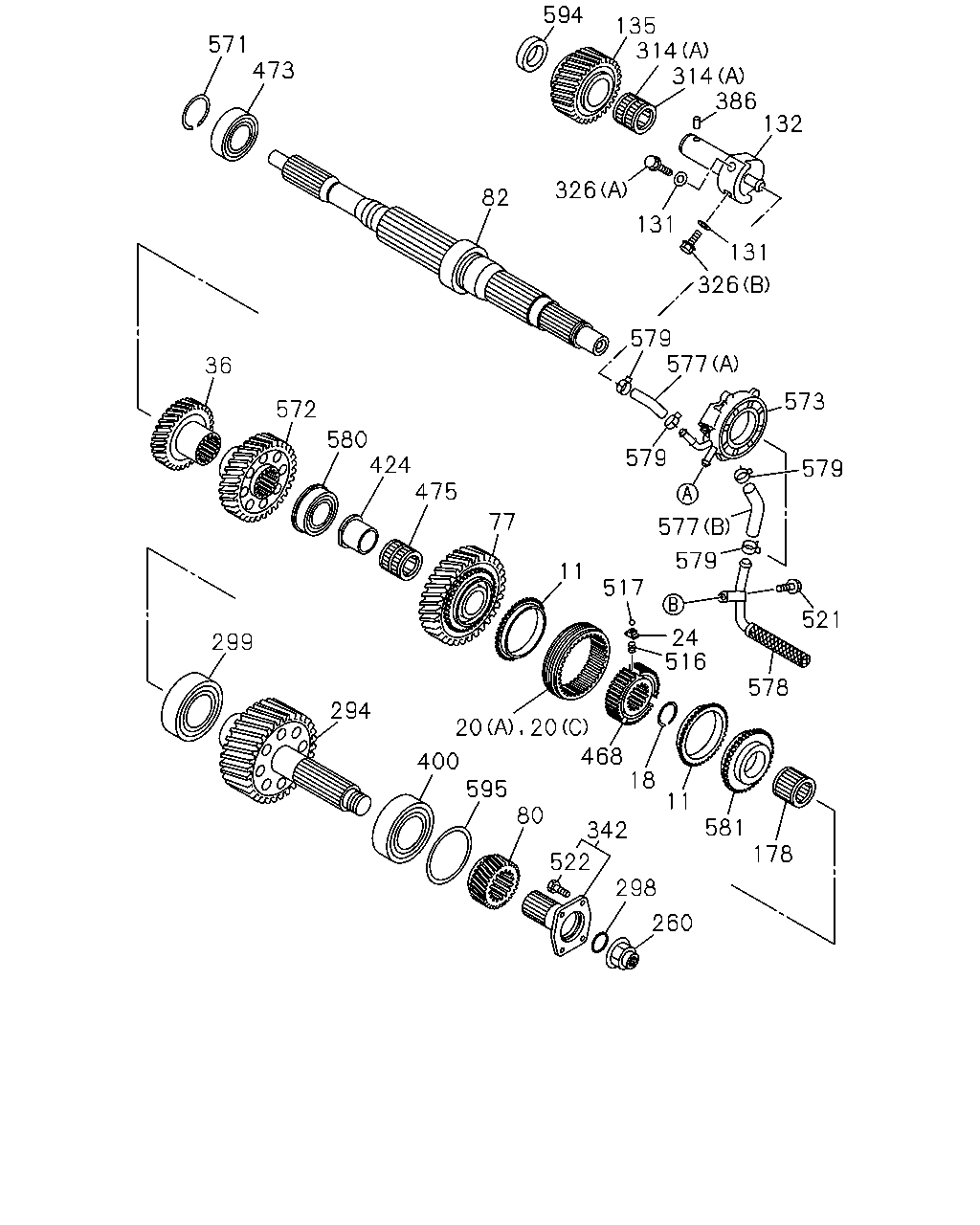

260 298 522 342 80 595 400 294 299 20 20 468 18 11 581 178 578 516 517 24 11 77 475 424 580 572 36 579 521 577 579 579 573 577 579 326 131 131 326 82 132 386 314 314 135 594 473 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1501-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0909-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1501-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0909-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1501-1508		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1501-1508		●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1501-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0909-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1501-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0909-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1501-		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0909-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1501-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0909-	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1501-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0909-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1501-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0909-	●
132	SHAFT; REV	8-98009-372-0	01	1	1501-		●
132	SHAFT; REV	1-33351-017-0	01	1	0909-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1501-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0909-	●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1501-		●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1501-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1501-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0909-1412	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1501-	●	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1501-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1501-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1501-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1501-		●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1501-		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	8-98155-334-0	01	1	1501-		●
342	FLANGE; OUTPUT EXC. BRAKE SYSTEM RETARDER<RE2>	1-37243-307-1	01	1	0909-	●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1501-		●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1501-		●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1501-		●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1501-		●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1501-		●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1501-		●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1501-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1501-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1501-		●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1501-		●
522	BOLT; FLANGE EXC. BRAKE SYSTEM RETARDER<RE2> M14X43 KNURL	8-98014-003-0	04	1	1501-		●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1501-		●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1501-		●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1501-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1501-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1501-		●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	1501-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1501-		●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1501-		●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1501-		●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1501-		●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1501-		●

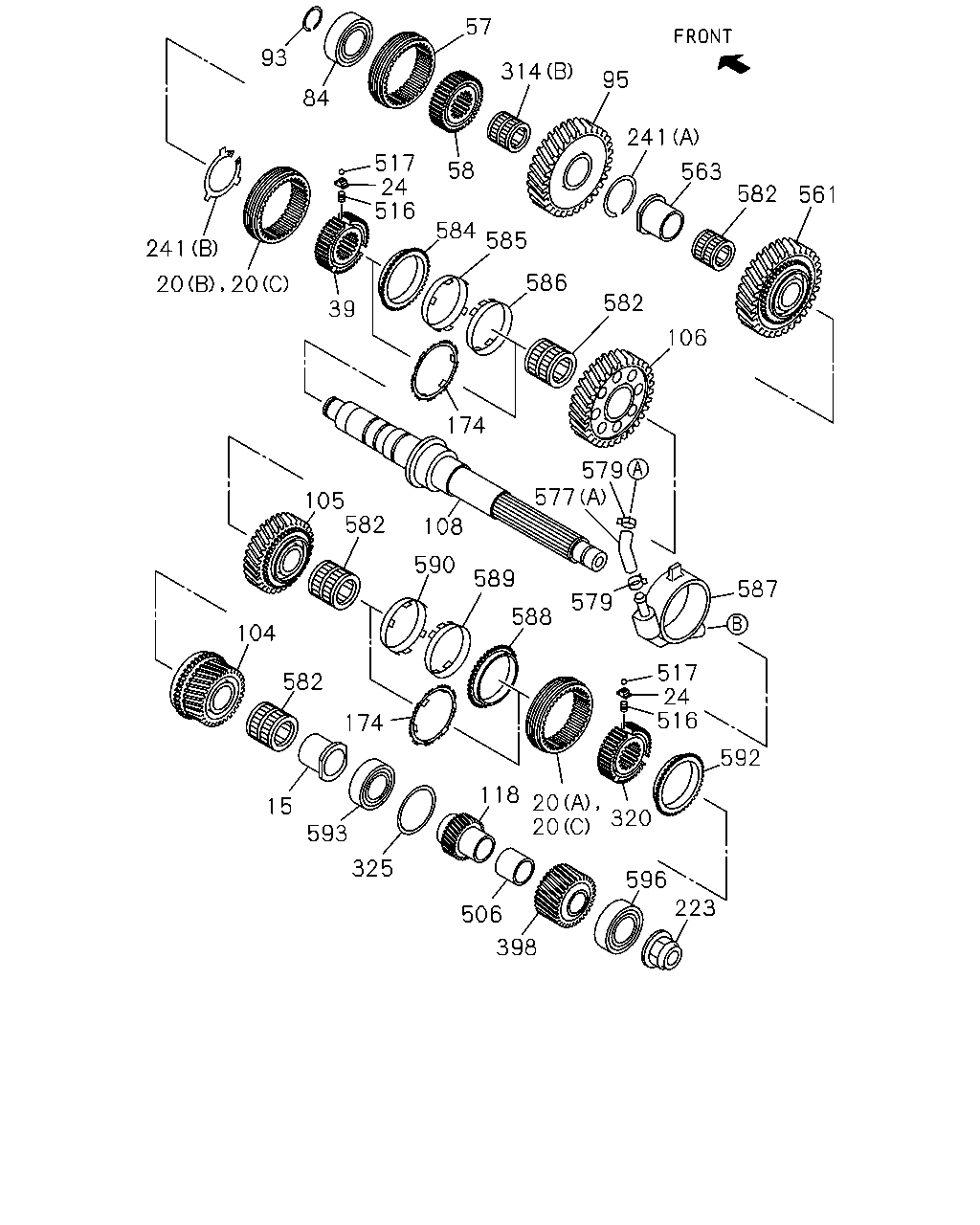

57 95 314 241 582 561 563 517 584 58 24 93 241 84 585 582 586 516 20 20 39 174 106 579 577 506 398 596 223 20 118 320 174 20 588 589 590 582 579 587 517 24 516 592 325 593 15 582 104 105 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1501-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0909-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1501-1508		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1501-1508		●
20	SLEEVE (C) Z=45	8-98258-279-0	03	1	1509-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1501-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0909-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1501-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0909-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1501-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0909-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1501-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0909-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1501-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0909-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1501-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0909-	●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1501-		●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1501-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0909-1107	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1501-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0909-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1501-		●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1501-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0909-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1501-		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0909-	●
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-		●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1501-		●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1501-		●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1501-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1501-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1501-		●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1501-1501		●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507		●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-		●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1501-		●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1501-		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1501-		●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1501-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1501-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1501-		●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1501-		●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1501-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1501-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1501-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1501-		●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1501-		●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1501-1508		●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1501-1508		●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1501-1508		●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1501-1501		●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-		●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1501-1508		●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1501-1508		●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1501-1508		●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1501-		●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1501-		●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1501-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
