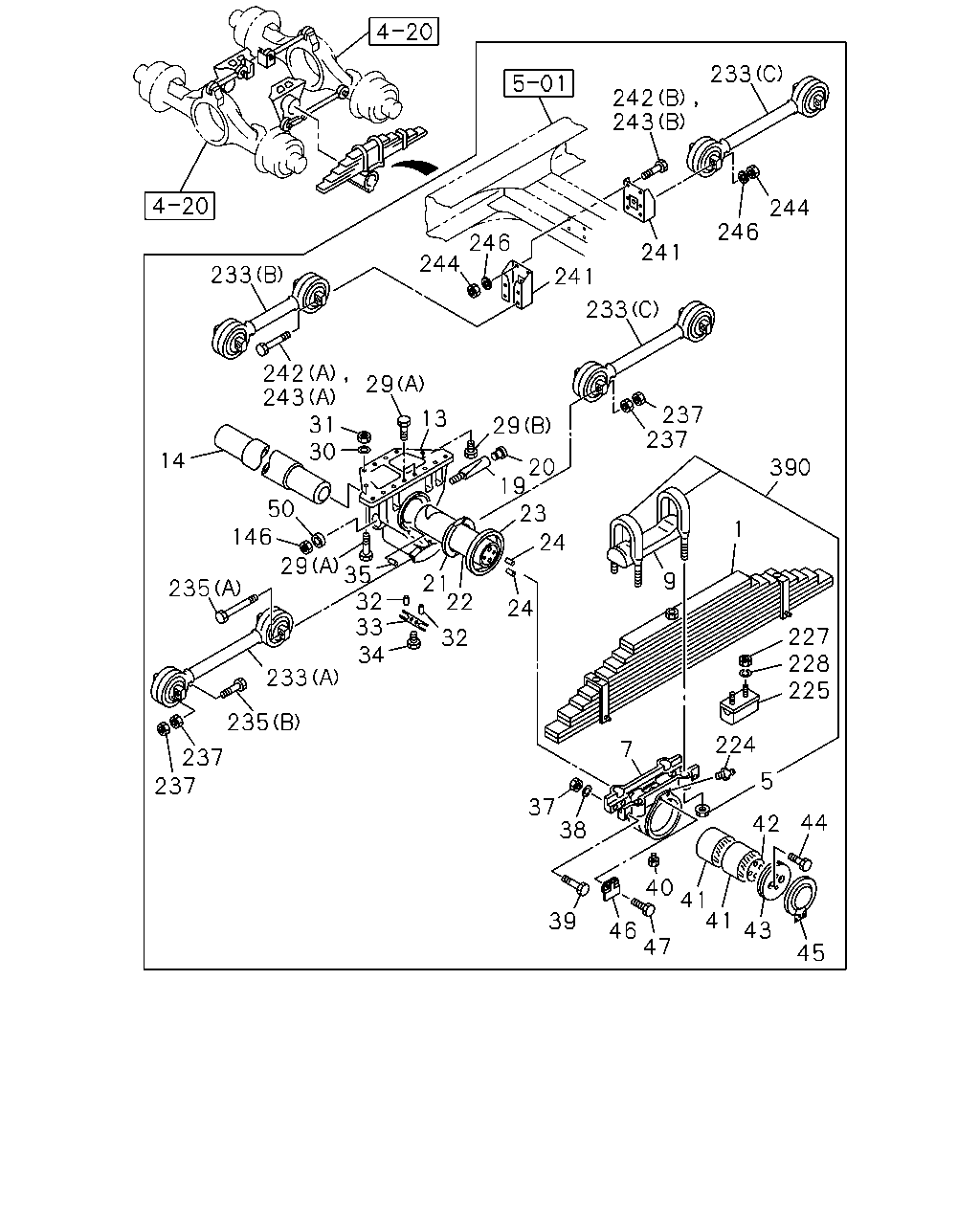

4-60 — REAR SUSPENSION (#5825) — 101 parça

233 242 243 244 246 246 244 241 233 241 233 242 243 31 30 29 237 237 13 29 29 14 20 19 23 390 50 146 1 24 35 32 33 34 9 21 22 235 24 227 228 225 32 233 235 224 7 237 237 5 37 38 44 42 40 41 41 39 43 46 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 9-LEAF	1-51410-055-1	02	1	9603-9904	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 8-LEAF	1-51310-432-3	02	1	9603-	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41) 12-LEAF	1-51310-436-2	02	1	9603-9904	●	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 12-LEAF	1-51310-436-2	02	1	9905-	●	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	9-09844-662-1	08	1	9603-9804	●	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	9805-	●	●
7	SEAT; SPR,LWR	1-51385-091-2	02	1	9603-	●	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	9603-	●	●
13	BRACKET; TRUNNION SHAFT NEW ZEALAND EQUIPMENT(PK5)	1-53361-079-0	02	1	9612-	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9603-9611	●	●
13	BRACKET; TRUNNION SHAFT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-53361-065-0	02	1	9612-	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9612-		●
14	PIPE; TRUNNION BRKT	1-51389-032-0	01	1	9603-	●	●
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9603-9805	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9806-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9603-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	9603-	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-2	02	1	9603-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	9603-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	9603-	●	●
29	BOLT; BRKT TO FRAME (A) M18X75	1-09000-221-1	24	1	9603-	●	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	9603-	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	9603-	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	9603-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	9603-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	9603-	●	●
34	BOLT; LOCK PLATE M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9603-9606	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9607-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	9603-	●	●
37	NUT; SPR SETTING M22	9-09110-522-0	04	1	9603-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	9603-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	9603-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	9603-	●	●
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	9603-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	9603-	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	9603-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	9603-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	9603-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	9603-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9603-	●	●
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	9603-	●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9603-	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9603-	●	●
225	RUBBER; CUSHION,RR SPR FORWARD RH REARWARD LH	1-53366-045-0	02	1	9603-	●	●
225	RUBBER; CUSHION,RR SPR FORWARD RH REARWARD RH	1-53366-046-0	02	1	9603-	●	●
227	NUT; CUSHION RUBBER M12	9-99110-512-0	08	1	9603-9606	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	9607-	●	●
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9603-9606	●	●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD UPPER L=550	1-51511-659-0	01	1	9603-	●	●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD LOWER L=550	1-51511-659-0	02	1	9603-	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD LOWER L=525	1-51511-656-0	02	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	9603-9904	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD LOWER L=535	1-51511-657-0	02	1	9603-	●	●
233	ROD ASM; TORQUE,RR SUSP 6WA1 TC-S(56L) (A) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9904	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP 6WA1 TC-S(56L) (B) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9904	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-	●	●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9603-	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9603-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	9603-	●	●
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	9603-	●	●
242	BOLT; BRKT TO FRAME (A) M14X205	1-09000-147-0	02	1	9603-	●	●
242	BOLT; BRKT TO FRAME (B) M14X50	9-92061-450-0	02	1	9603-	●	●
243	BOLT; BRKT,TORQUE ROD L TYPE ENG<90L> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,SILENCER SINGLE VERTICAL<N28> (A) M14X205	1-09000-147-0	02	1	9707-9707	●
243	BOLT; BRKT,TORQUE ROD FRAME EQUIPMENT HEAVY DUTY<F01> (A) M14X205	1-09000-147-0	02	1	9708-9803	●	●
243	BOLT; BRKT,TORQUE ROD BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M14X205	1-09000-147-0	02	1	9708-9803	●	●
243	BOLT; BRKT,TORQUE ROD (A) M14X205	1-09000-147-0	02	1	9804-	●	●
243	BOLT; BRKT,TORQUE ROD L TYPE ENG<90L> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,SILENCER SINGLE VERTICAL<N28> (B) M14X50	9-92061-450-0	02	1	9707-9707	●
243	BOLT; BRKT,TORQUE ROD FRAME EQUIPMENT HEAVY DUTY<F01> (B) M14X50	9-92061-450-0	02	1	9708-9803	●	●
243	BOLT; BRKT,TORQUE ROD BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M14X50	9-92061-450-0	02	1	9708-9803	●	●
243	BOLT; BRKT,TORQUE ROD (B) M14X50	9-92061-450-0	02	1	9804-	●	●
244	NUT; BRKT M14	9-99110-514-0	04	1	9603-	●	●
246	WASHER; TORQUE ROD ID=15	9-09651-069-0	08	1	9603-	●	●
390	U-BOLT SET; RR SPRING FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=330	1-87870-164-3	04	1	9603-	●	●
390	U-BOLT SET; RR SPRING EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=350	1-87870-392-1	04	1	9603-	●	●

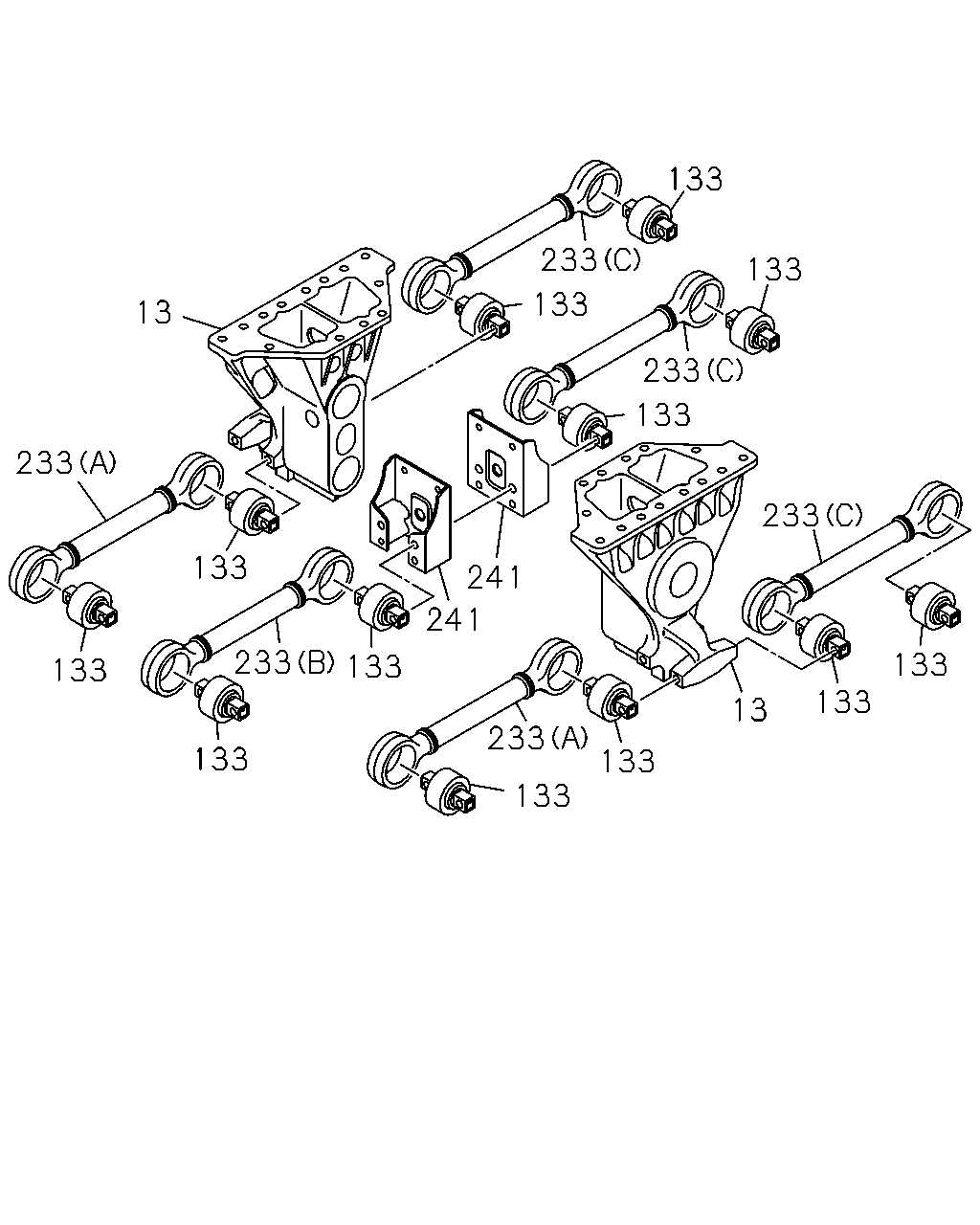

133 233 133 133 13 233 133 233 233 133 241 241 233 133 133 133 133 13 233 133 133 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BRACKET; TRUNNION SHAFT NEW ZEALAND EQUIPMENT(PK5)	1-53361-079-0	02	1	9612-	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9603-9611	●	●
13	BRACKET; TRUNNION SHAFT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-53361-065-0	02	1	9612-	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	9612-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9904	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9603-9904	●	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	02	1	9905-	●	●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	02	1	9905-	●	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	9905-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	9905-	●	●
133	BUSHING; RUBBER,TORQUE ROD V TYPE ENG<91L> OD=105	1-51519-113-1	04	1	9905-	●	●
133	BUSHING; RUBBER,TORQUE ROD L TYPE ENG<90L> CAB UP +110MM<TGG> OD=105	1-51519-113-1	04	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD UPPER L=550	1-51511-659-0	01	1	9603-	●	●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD LOWER L=550	1-51511-659-0	02	1	9603-	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (A) FORWARD LOWER L=525	1-51511-656-0	02	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	9603-9904	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> CAB UP +110MM<TGG> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP V TYPE ENG<91L> (A) FORWARD LOWER L=535	1-51511-657-0	02	1	9603-	●	●
233	ROD ASM; TORQUE,RR SUSP 6WA1 TC-S(56L) (A) FORWARD LOWER L=515	1-51511-655-0	02	1	9603-9904	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (A) FORWARD LOWER L=515	1-51511-655-0	02	1	9905-	●	●
233	ROD ASM; TORQUE,RR SUSP 6WA1 TC-S(56L) (B) FORWARD UPPER L=535	1-51511-657-0	01	1	9603-9904	●	●
233	ROD ASM; TORQUE,RR SUSP L TYPE ENG<90L> EXC. CAB UP +110MM<TGG> (B) FORWARD UPPER L=535	1-51511-657-0	01	1	9905-	●	●
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	9603-	●	●
