2-20B — MANUAL TRANSMISSION ASM AND CASE (#58249) — 33 parça

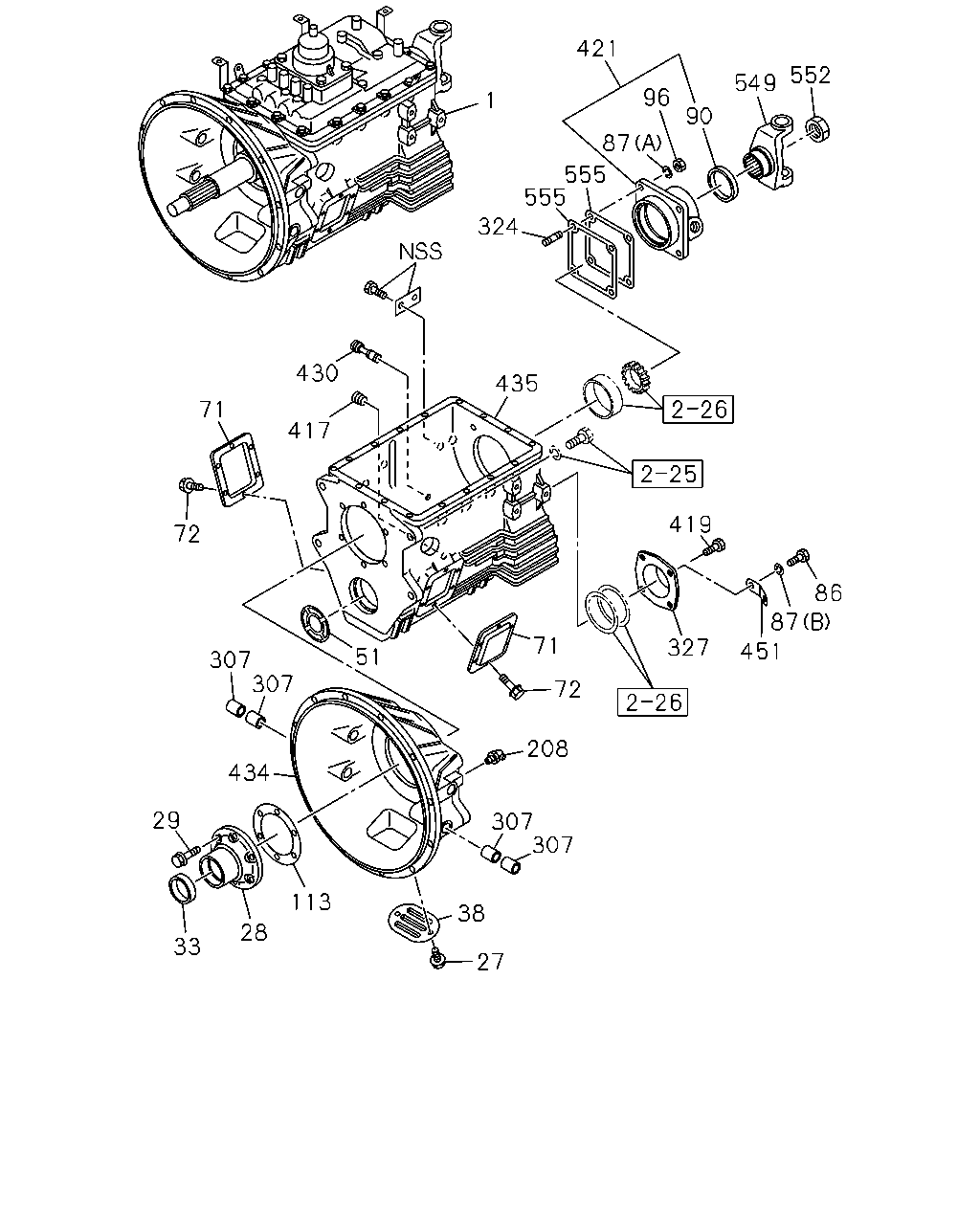

çizim 163294
1 421 90 549 552 96 87 555 555 324 430 417 71 72 307 307 51 71 72 327 451 86 87 419 435 208 307 307 38 27 113 28 33 29 434
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL 1-33042-461-1 01 1 0909-
27 BOLT; COVER TO CLU HSG 1-31139-019-0 02 1 0909-
28 COVER; FRT,TRANS CASE 1-33121-156-0 01 1 0909-
29 BOLT; FRT COVER 1-33129-010-0 06 1 0909-
33 SEAL; OIL,FRT COVER,T/M 1-87061-765-0 01 1 0909-
38 COVER; CHECK HOLE,LWR 1-31131-042-0 01 1 0909-
51 COVER; SEAL,COUNTER,FRT 1-33121-155-0 01 1 0909-
71 COVER; SIDE,TRANS CASE 1-33141-062-0 02 1 0909-
72 BOLT; SIDE COVER 1-33149-013-0 12 1 0909-
86 BOLT; RR COVER 1-33139-111-0 04 1 0909-
87 WASHER; LK,RR COVER
(A) 		1-33139-109-0 04 1 0909-
87 WASHER; LK,RR COVER
(B) 		1-33139-112-0 04 1 0909-
90 SEAL; OIL,RR COVER 1-33139-108-0 01 1 0909-
96 NUT; RR COVER 1-33139-110-0 04 1 0909-
113 GASKET; FRT COVER TO TRANS CASE 1-33122-022-0 01 1 0909-
208 NIPPLE; GREASE,CLU HSG 1-31119-037-0 02 1 0909-
307 BUSHING; SHIFT FORK SHAFT 1-87061-485-0 04 1 0909-
324 STUD; RR COVER 1-33139-113-0 04 1 0909-
327 COVER; RR,COUNTER 1-33131-235-0 01 1 0909-
417 PLUG; OIL FILLER,TRANS 1-33119-416-0 01 1 0909-
419 PLUG; RR COVER 1-33139-114-0 01 1 0909-
421 COVER; RR,TRANS 1-33131-236-0 01 1 0909-
430 PLUG; OIL DRAIN 1-33119-415-0 01 1 0909-
434 HOUSING; CLU 1-31111-199-0 01 1 0909-
435 CASE; TRANS 1-33111-293-0 01 1 0909-
451 PLATE; RR COVER 1-33549-343-0 01 1 0909-
549 FLANGE; COUPLING 1-37243-378-0 01 1 0909-
552 NUT; FLANGE 1-37249-187-0 01 1 0909-
555 SHIM; RR COVER
T=0.004 		1-33139-103-0 01 1 0909-
555 SHIM; RR COVER
T=0.007 		1-33139-104-0 01 1 0909-
555 SHIM; RR COVER
T=0.010 		1-33139-105-0 01 1 0909-
555 SHIM; RR COVER
T=0.020 		1-33139-106-0 01 1 0909-
555 SHIM; RR COVER
T=0.040 		1-33139-107-0 01 1 0909-
