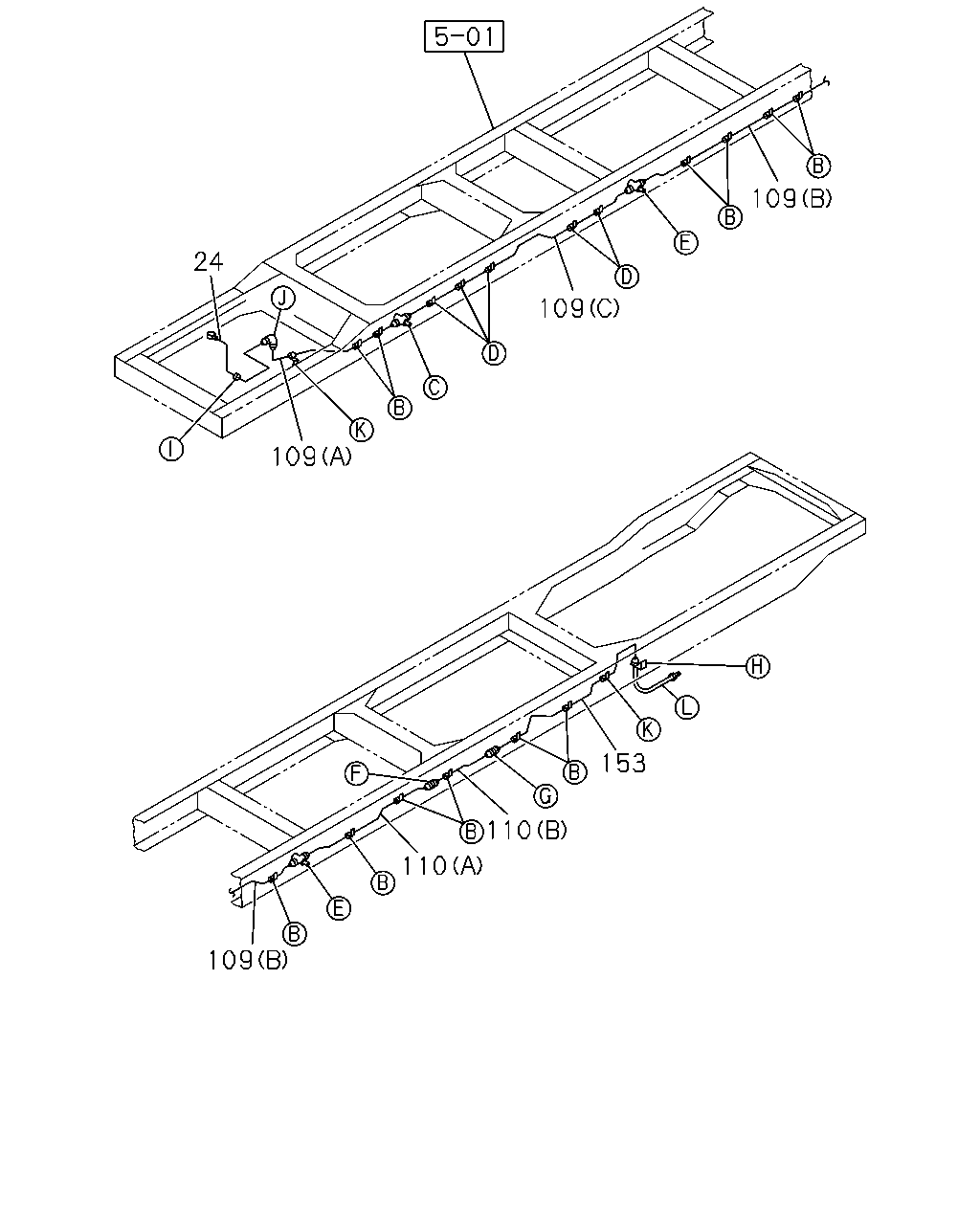

2-05 — CLUTCH PIPING (#58243) — 117 parça

57 86 24 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98072-458-0	01	1	0909-1002
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98157-710-0	01	1	1003-
24	PIPE ASM; CLU,M/CYL TO UNION EXC. LOW DECK WO/REAR BODY<PK4>	1-49167-507-0	01	1	0909-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0909-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0909-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0909-

24 109 109 109 153 110 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98072-458-0	01	1	0909-1002
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98157-710-0	01	1	1003-
24	PIPE ASM; CLU,M/CYL TO UNION EXC. LOW DECK WO/REAR BODY<PK4>	1-49167-507-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (A) L=1249 SERVICED BY L=1250	1-47428-764-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=997 SERVICED BY L=1000	1-47428-762-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1127 SERVICED BY L=1250	1-47428-764-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) (B) L=1355 SERVICED BY L=1400	1-47428-765-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (A) L=489	1-49167-828-0	01	1	0909-
110	PIPE; OIL,UNION TO UNION TAIWAN EQUIPMENT(WW5) (A) L=1939 SERVICED BY L=1950	1-47428-769-0	01	1	1501-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=952 SERVICED BY L=970	1-47428-761-0	01	1	0909-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1168 SERVICED BY L=1250	1-47428-764-0	01	1	0909-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	0909-1412
110	PIPE; OIL,UNION TO UNION EXC. TAIWAN EQUIPMENT(WW5) (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	1501-
110	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0909-
153	PIPE ASM; CLU,UNION TO FLEX LOW DECK WO/REAR BODY<PK4> L=1639 SERVICED BY L=1700	1-47428-767-0	01	1	0909-
153	PIPE ASM; CLU,UNION TO FLEX EXC. LOW DECK WO/REAR BODY<PK4> L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0909-

109 109 107 106 35 33 34 153 111 110 110 110 111 110 109 106 35 33 34 50 37 36 38 36 38 37 154 28 92 29 147 26 109 87 89 88 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98072-458-0	01	1	0909-1002
24	PIPE ASM; CLU,M/CYL TO UNION LOW DECK WO/REAR BODY<PK4>	8-98157-710-0	01	1	1003-
24	PIPE ASM; CLU,M/CYL TO UNION EXC. LOW DECK WO/REAR BODY<PK4>	1-49167-507-0	01	1	0909-
26	NUT; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0909-
28	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0909-
29	BOLT; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	06	1	0909-
29	BOLT; CLIP,OIL PIPE LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	01	1	0909-
29	BOLT; CLIP,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE	0-28650-825-0	01	1	0909-
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	02	1	0909-
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=9 L=25 H=45	1-09700-867-0	01	1	0909-
33	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0909-
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) EXC. LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0909-
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	05	1	0909-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	07	1	0909-
33	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	06	1	0909-
34	BOLT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	02	1	0909-
34	BOLT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	04	1	0909-
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) EXC. LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	03	1	0909-
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	05	1	0909-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	07	1	0909-
34	BOLT; PIPE CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE	0-28650-830-0	06	1	0909-
35	NUT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	02	1	0909-
35	NUT; PIPE CLIP LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	03	1	0909-
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	05	1	0909-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	07	1	0909-
35	NUT; PIPE CLIP EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	06	1	0909-
36	BRACKET; CLIP LOW DECK WO/REAR BODY<PK4> (A) L=40	1-47478-410-0	01	1	0909-
36	BRACKET; CLIP LOW DECK WO/REAR BODY<PK4> (B)	8-98088-888-0	01	1	0909-
36	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47477-865-0	01	1	0909-
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0909-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
50	NUT; UNION MZW6P M/T(RSZ) (B) M12	9-09840-280-0	01	1	1501-
50	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	0909-
87	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> M14 2WAY	1-09654-176-2	02	1	0909-
87	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> M14	0-92125-108-0	01	1	0909-
88	NUT; PIPE UNION LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	01	1	0909-
88	NUT; PIPE UNION EXC. LOW DECK WO/REAR BODY<PK4> M14	0-91111-514-0	01	1	0909-
89	WASHER; LK,PIPE UNION EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	01	1	0909-
92	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	03	1	0909-
92	CLIP; OIL PIPE LOW DECK WO/REAR BODY<PK4> ID=9 L=25 H=45	1-09700-867-0	01	1	0909-
92	CLIP; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> ID=8 H=20 L=20	1-09700-604-0	01	1	0909-
106	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (A) M14 2WAY	1-09654-176-2	01	1	0909-
106	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	02	1	0909-
106	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (B) M14	0-92125-108-0	01	1	0909-
107	NUT; UNION,OIL PIPE LOW DECK WO/REAR BODY<PK4> M12 FLANGE	0-91180-212-0	01	1	0909-
107	NUT; UNION,OIL PIPE M12 FLANGE	0-91180-212-0	02	1	0909-
107	NUT; UNION,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> M14	0-91111-514-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (A) L=1249 SERVICED BY L=1250	1-47428-764-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (C) L=997 SERVICED BY L=1000	1-47428-762-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1127 SERVICED BY L=1250	1-47428-764-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) (B) L=1355 SERVICED BY L=1400	1-47428-765-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) EXC. LOW DECK WO/REAR BODY<PK4> (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0909-
109	PIPE; AIR,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (A) L=489	1-49167-828-0	01	1	0909-
110	PIPE; OIL,UNION TO UNION TAIWAN EQUIPMENT(WW5) (A) L=1939 SERVICED BY L=1950	1-47428-769-0	01	1	1501-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=952 SERVICED BY L=970	1-47428-761-0	01	1	0909-
110	PIPE; OIL,UNION TO UNION LOW DECK WO/REAR BODY<PK4> (B) L=1168 SERVICED BY L=1250	1-47428-764-0	01	1	0909-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	0909-1412
110	PIPE; OIL,UNION TO UNION EXC. TAIWAN EQUIPMENT(WW5) (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	1501-
110	PIPE; OIL,UNION TO UNION EXC. LOW DECK WO/REAR BODY<PK4> (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0909-
111	UNION; OIL PIPE LOW DECK WO/REAR BODY<PK4> (B) M14 STRAIGHT	0-92113-008-0	01	1	0909-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	0909-
111	UNION; OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> (A) M14 2WAY	1-09654-176-2	01	1	0909-
147	NUT; CLIP FIX LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	04	1	0909-
147	NUT; CLIP FIX EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE	0-91180-108-0	01	1	0909-
153	PIPE ASM; CLU,UNION TO FLEX LOW DECK WO/REAR BODY<PK4> L=1639 SERVICED BY L=1700	1-47428-767-0	01	1	0909-
153	PIPE ASM; CLU,UNION TO FLEX EXC. LOW DECK WO/REAR BODY<PK4> L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0909-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0909-

93 115 116 36 47 153 48 144 173 173 47 153 115 116 36 48 47 49 53 52 53 51 50 46 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	BRACKET; CLIP LOW DECK WO/REAR BODY<PK4> (A) L=40	1-47478-410-0	01	1	0909-
36	BRACKET; CLIP LOW DECK WO/REAR BODY<PK4> (B)	8-98088-888-0	01	1	0909-
36	BRACKET; CLIP EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-47477-865-0	01	1	0909-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) M12	9-09840-280-0	01	1	1501-
46	WASHER; LK,FLEX HOSE,CLU CONT MZW6P M/T(RSZ) ID=12.2	0-91510-812-0	01	1	1501-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) (C) AIR L=470	1-09363-682-0	01	1	1501-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) OIL L=500	1-09364-329-0	01	1	0909-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) OIL L=415	1-09364-490-0	01	1	0909-
47	HOSE; FLEX,CLU CONT FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) (A) AIR L=300	1-09363-611-0	01	1	0909-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0909-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) L=239	1-49117-401-0	01	1	1501-
50	NUT; UNION MZW6P M/T(RSZ) (B) M12	9-09840-280-0	01	1	1501-
50	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	0909-
51	WASHER; LK MZW6P M/T(RSZ) ID=12.2	0-91510-512-0	01	1	1501-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ) M14X27 FLANGE	1-09675-086-0	01	1	1501-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) ID=14.2 OD=19.2	8-98251-345-0	02	1	1501-
93	WASHER; LK,UNION,OIL PIPE EXC. LOW DECK WO/REAR BODY<PK4> ID=14.2	0-91510-814-0	01	1	0909-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0909-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0909-
144	GASKET; AIR PIPE FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) ID=14.2 OD=20.0	9-09571-414-0	01	1	0909-
153	PIPE ASM; CLU,UNION TO FLEX LOW DECK WO/REAR BODY<PK4> L=1639 SERVICED BY L=1700	1-47428-767-0	01	1	0909-
153	PIPE ASM; CLU,UNION TO FLEX EXC. LOW DECK WO/REAR BODY<PK4> L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0909-
173	CONNECTOR FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0909-
173	CONNECTOR FULLER FS6306 M/T(MWO),MLD6Q M/T(X5J) (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0909-
