Isuzu WW
▶
BUSES
▶
LT
▶
11206 - LT134 LHD EURO2/3/5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

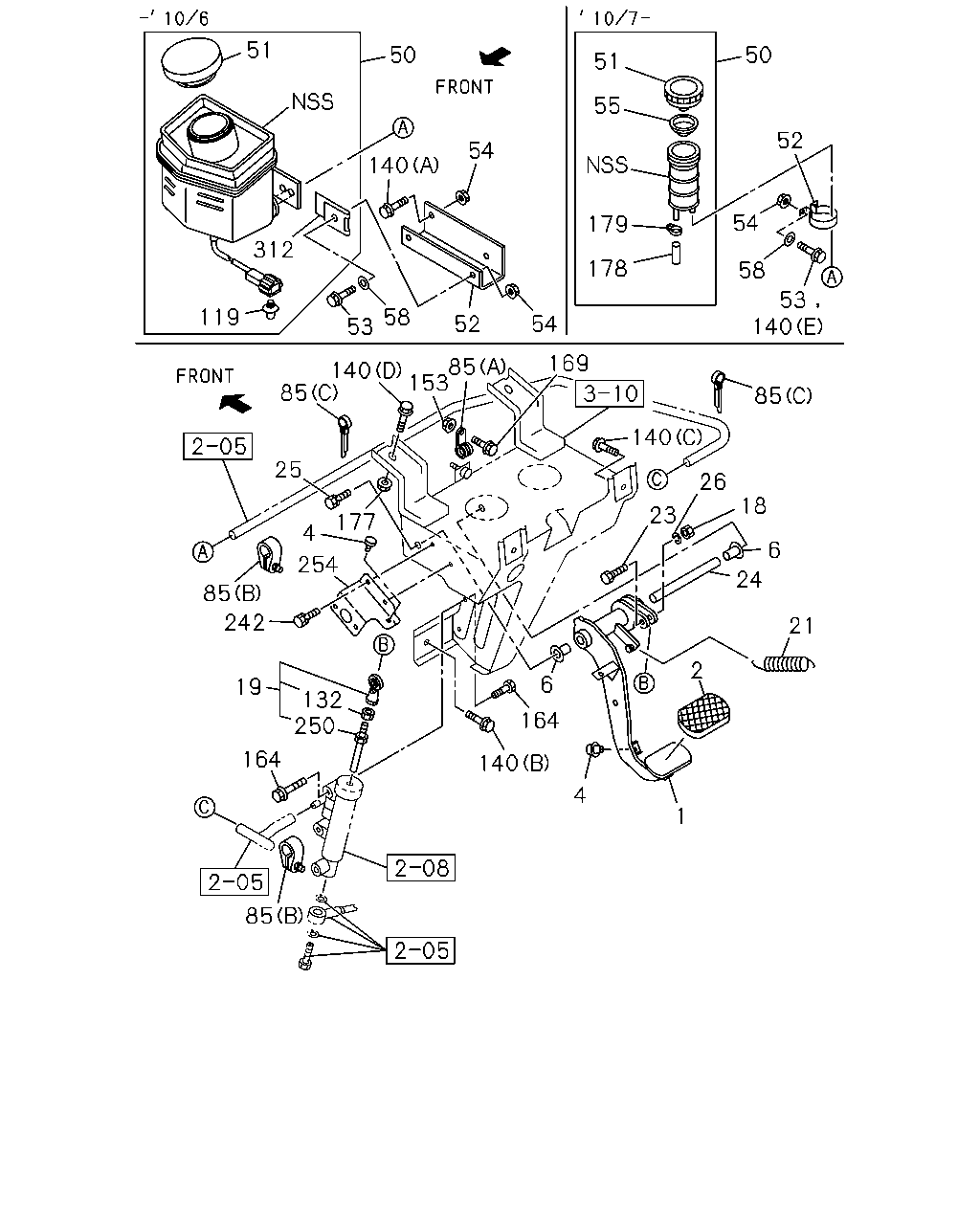

2-03 — CLUTCH PEDAL AND CONTROL
(#58242) — 43 parça
51
50
54
140
52
54
58
53
312
119
85
140
153
85
169
178
179
55
51
50
52
54
58
53
140
85
18
6
24
21
2
1
23
26
140
4
164
6
140
132
250
177
4
254
25
85
242
19
164
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73908-171-3
01
1
0909-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0909-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
0909-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0909-
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
0909-
19
ROD ASM; PUSH,CLU
1-73996-144-1
01
1
0909-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
0909-
23
BOLT; PUSH ROD
M8X35
0-10960-835-0
01
1
0909-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
0909-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0909-
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
0909-
50
TANK; OIL,CLU
1-47530-182-0
01
1
0909-1006
50
TANK; OIL,CLU
1-47530-183-1
01
1
1007-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0909-1006
51
CAP; OIL TANK,CLU
9-47525-032-1
01
1
1007-
52
BRACKET; OIL TANK,CLU M/CYL
1-47537-182-0
01
1
0909-1006
52
BRACKET; OIL TANK,CLU M/CYL
9-47537-023-1
01
1
1007-
53
BOLT; BRKT,OIL TANK,CLU M/CYL
M8X20 FLANGE
0-28060-820-0
02
1
0909-1006
53
BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16
0-20800-516-0
01
1
1007-
54
NUT; BRKT,OIL TANK,CLU M/CYL
M8 FLANGE
0-91180-108-0
04
1
0909-1006
54
NUT; BRKT,OIL TANK,CLU M/CYL
M5
1-09984-124-0
03
1
1007-
55
BAFFLE; RUBBER,CLU M/CYL
9-47529-031-0
01
1
1007-
58
WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3
0-91610-505-0
02
1
0909-
85
CLIP; HOSE TO M/CYL
(A) ID=16 L=60
0-95235-596-0
01
1
0909-1006
85
CLIP; HOSE TO M/CYL
(B) ID=15
9-09715-098-0
02
1
0909-
85
CLIP; HOSE TO M/CYL
(C) ID=14 L=44
9-09917-427-0
02
1
0909-
119
CLIP; CONNECTOR
OD=7 H=1.2
8-94364-750-0
01
1
0909-1006
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
0909-
140
BOLT; BRKT
(A) M8X20 FLANGE
0-28060-820-0
02
1
0909-1006
140
BOLT; BRKT
(E) M5X16
0-20800-516-0
02
1
1007-
140
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
02
1
0909-
140
BOLT; BRKT
(C) M8X30 FLANGE
0-28650-830-0
02
1
0909-
140
BOLT; BRKT
(D) M10X25 FLANGE
0-28651-025-0
02
1
0909-
153
NUT; CABLE CLIP
M8 FLANGE
0-91180-108-0
01
1
0909-1006
164
BOLT; CLU M/CYL
M10X70 FLANGE
0-28051-070-0
02
1
0909-
169
BOLT; CLIP
M8X20 FLANGE
0-28060-820-0
01
1
0909-1006
177
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0909-
178
CAP; OIL TANK HOSE
1-47539-005-0
01
1
1007-
179
CLIP; CAP TO OIL TANK
ID=15
9-09715-098-0
01
1
1007-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50540-616-0
02
1
0909-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0909-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
0909-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0909-1006
