Sayfa 1-50 - Isuzu EPC

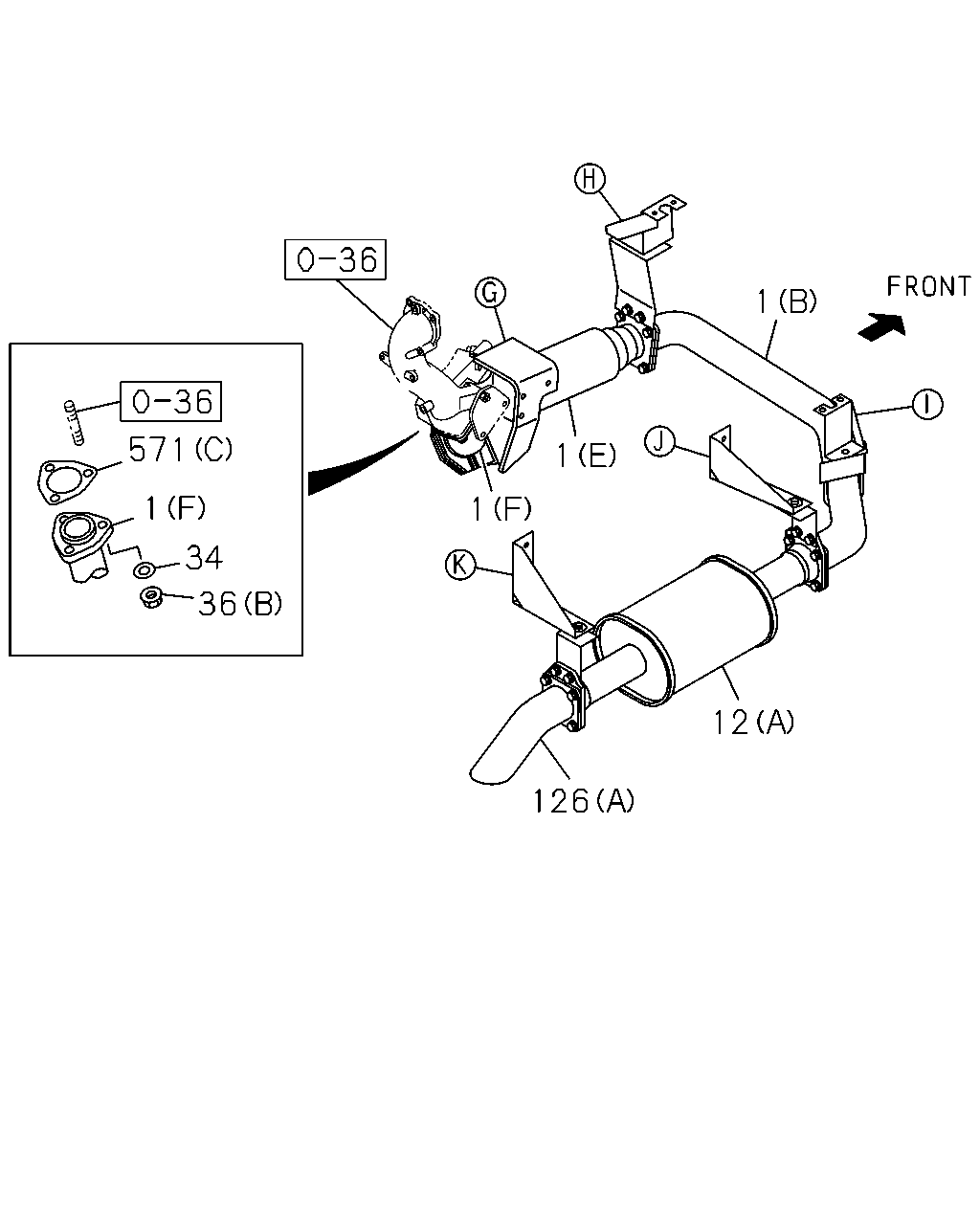

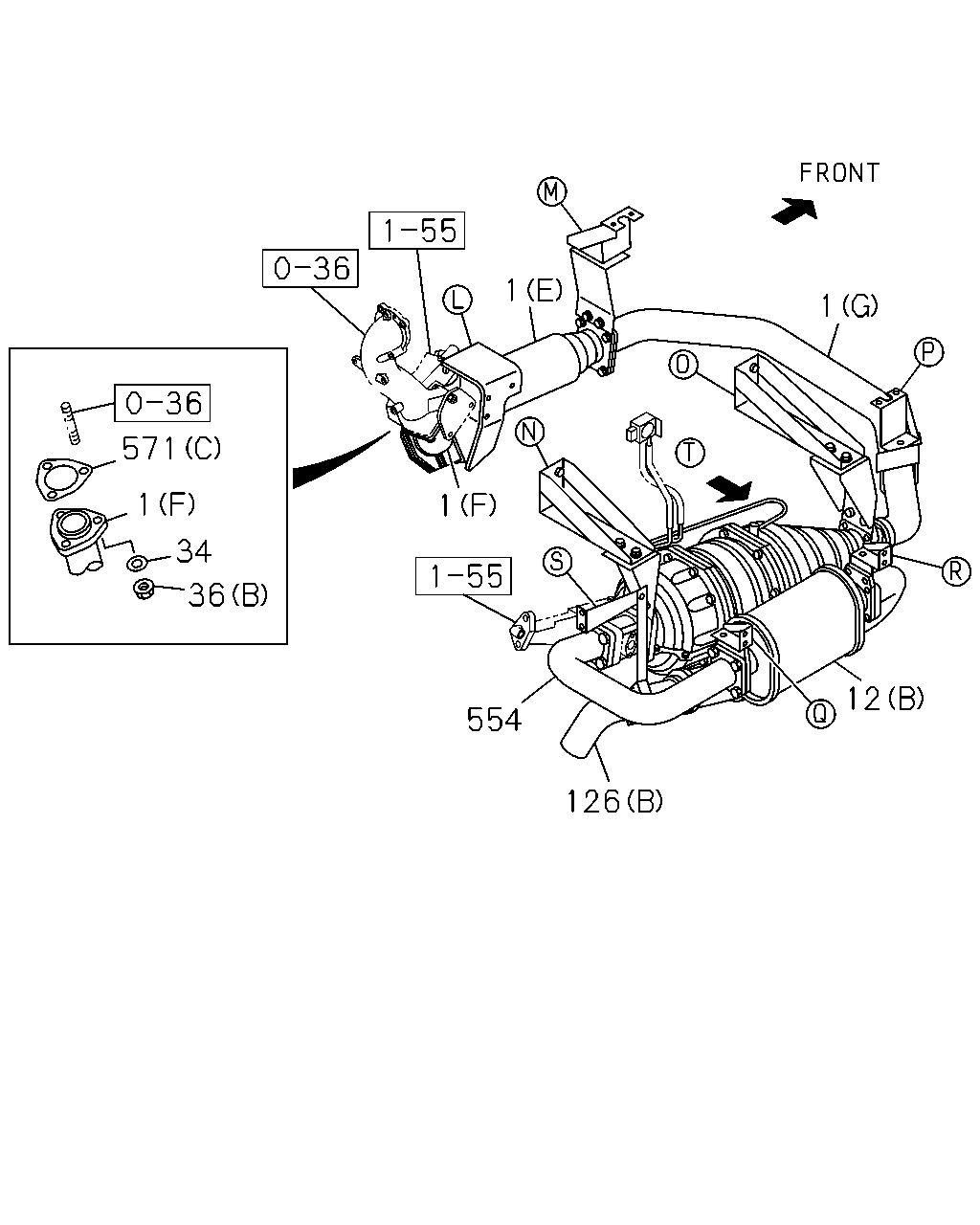

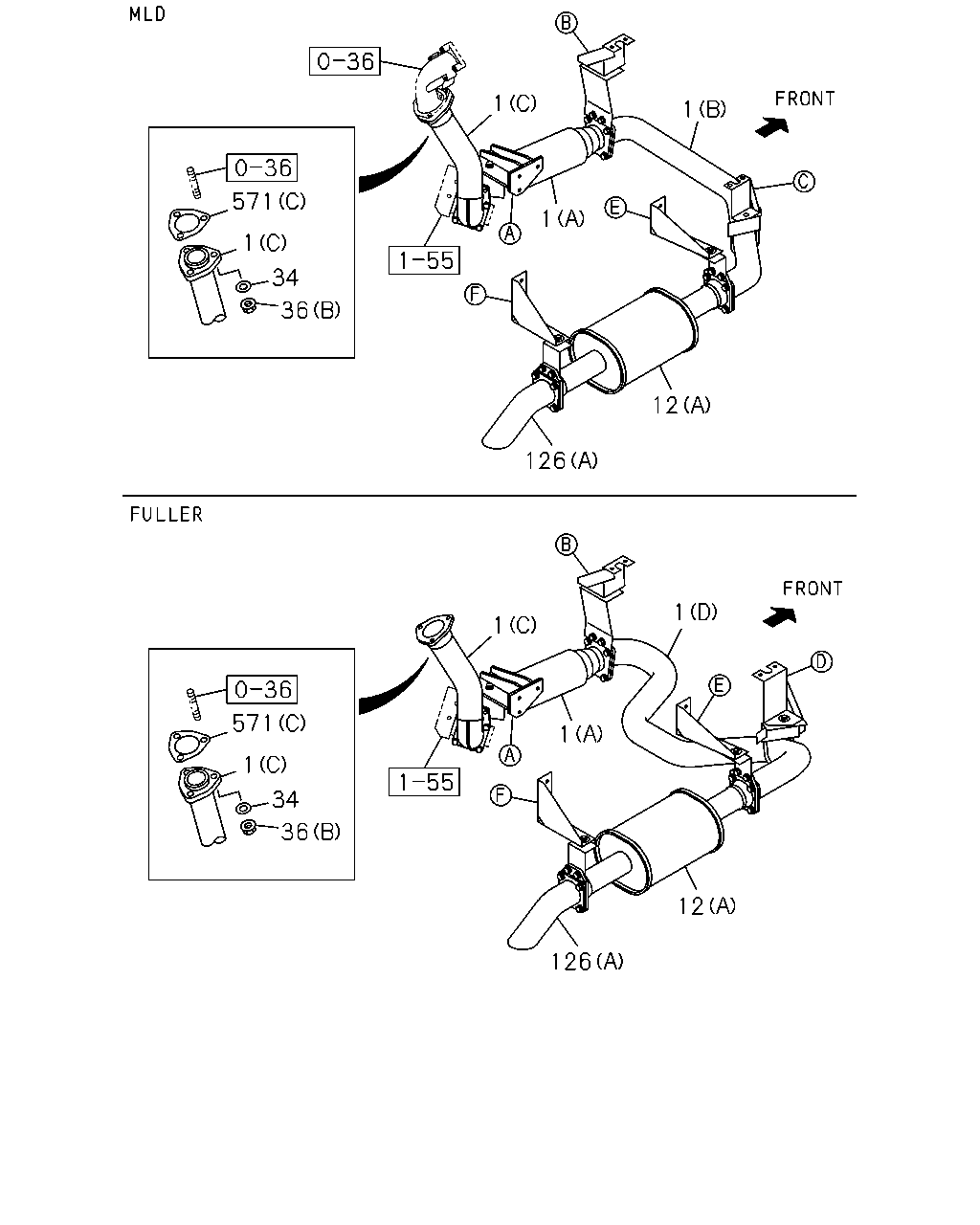

1-50 — EXHAUST PIPE AND SILENCER (#58237) — 775 parça

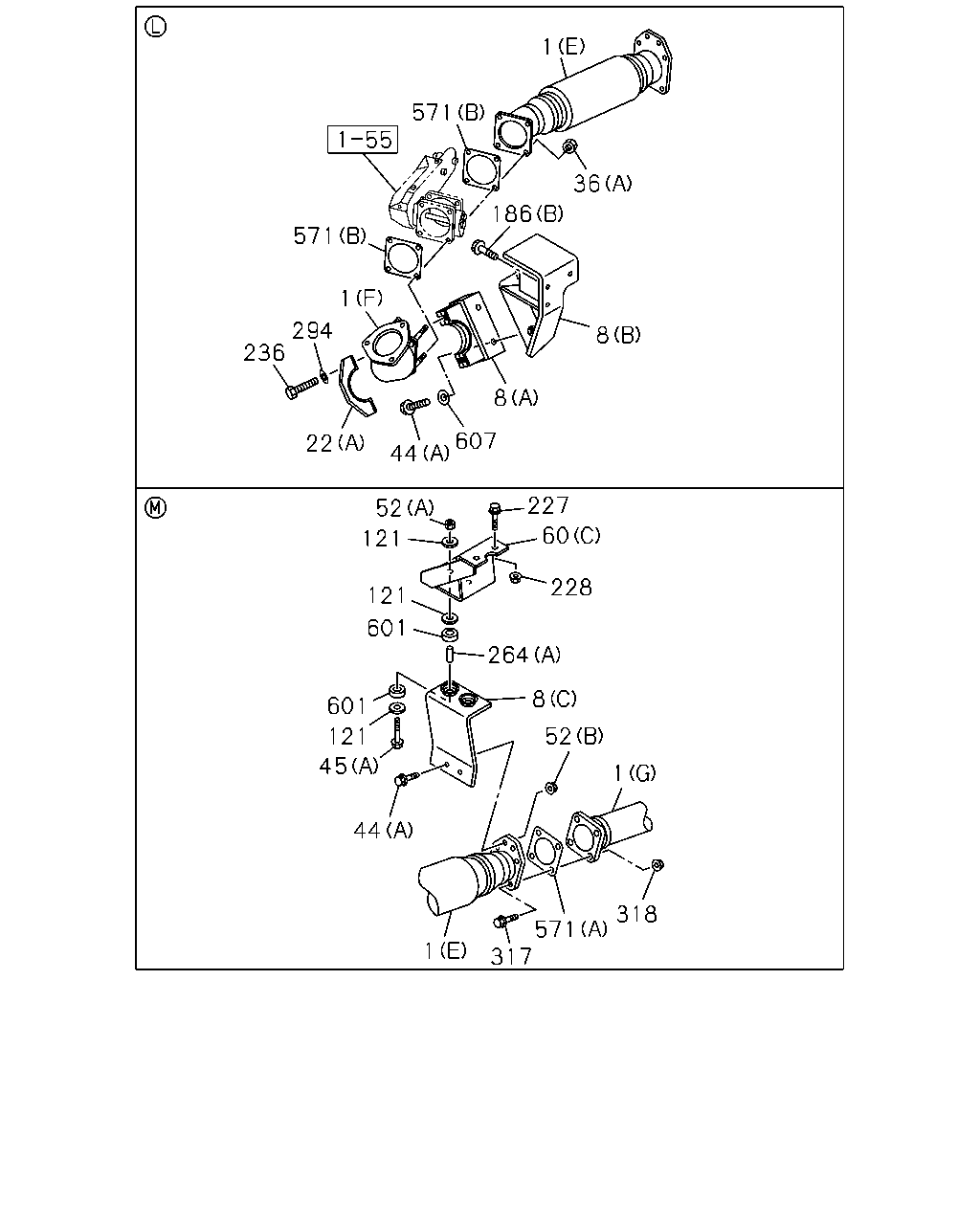

1 571 36 46 529 186 571 1 542 529 46 227 60 228 52 121 121 601 264 8 52 1 1 601 121 45 44 1 317 571 318 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (G)	1-22152-394-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (H)	1-22152-395-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (I)	8-98055-634-0	01	1	1501-
8	BRACKET; EXH PIPE FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (F)	8-98117-582-0	01	1	0909-
8	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2) (E)	8-98133-593-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (B)	8-98125-921-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98125-921-0	01	1	1501-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98125-922-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98125-922-0	01	1	1501-
8	BRACKET; EXH PIPE MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE (C)	8-98055-633-0	01	1	0909-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
44	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X30 FLANGE	0-28651-030-0	12	1	1501-
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
44	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
45	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X50	0-10856-050-0	01	1	1501-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-
46	BOLT; BRKT,EXH PIPE EURO2 SPECIFICATION(NT2) M10X35 FLANGE	0-28651-035-0	06	1	0909-
52	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 FLANGE	0-91180-210-0	13	1	1501-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0909-
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0909-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	02	1	0909-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
186	BOLT; BRKT TO ENG EURO2 SPECIFICATION(NT2) (A) M10X20 FLANGE	0-28151-020-0	03	1	0909-
186	BOLT; BRKT TO ENG EURO3 SPECIFICATION(NT3) (B) M10X25 FLANGE	0-28151-025-0	03	1	0909-1412
186	BOLT; BRKT TO ENG EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28151-025-0	03	1	1501-
227	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0909-
228	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
264	TUBE; DIST,SUPPORT RUBBER FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (B) L=22	1-22159-392-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (A) L=25	1-14234-083-0	02	1	0909-
264	TUBE; DIST,SUPPORT RUBBER MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER EURO3 SPECIFICATION(NT3) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	0910-1412
264	TUBE; DIST,SUPPORT RUBBER EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	01	1	1501-
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	1501-
317	BOLT; EXH PIPE,FRT M12X35 FLANGE	0-28651-235-0	04	1	0909-
318	NUT; EXH PIPE,FRT M12 FLANGE	0-91180-212-0	04	1	0909-
529	NUT; BRKT,EXH PIPE EURO2 SPECIFICATION(NT2) M10 FLANGE	0-91180-210-0	06	1	0909-
542	BRACKET EURO2 SPECIFICATION(NT2)	8-98133-594-0	01	1	0909-
571	GASKET (A)	1-22116-040-0	01	1	0909-
571	GASKET (B) ID=85.8	1-22116-043-0	02	1	0909-
571	GASKET (C) ID=81	8-98043-481-0	01	1	0909-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-

484 52 121 60 297 297 8 483 121 601 264 601 121 45 296 483 297 297 8 484 52 121 60 121 601 264 601 121 45 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (G)	1-22152-394-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (H)	1-22152-395-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (I)	8-98055-634-0	01	1	1501-
8	BRACKET; EXH PIPE FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (F)	8-98117-582-0	01	1	0909-
8	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2) (E)	8-98133-593-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (B)	8-98125-921-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98125-921-0	01	1	1501-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98125-922-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98125-922-0	01	1	1501-
8	BRACKET; EXH PIPE MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE (C)	8-98055-633-0	01	1	0909-
45	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X50	0-10856-050-0	01	1	1501-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-
52	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 FLANGE	0-91180-210-0	13	1	1501-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0909-
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0909-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	02	1	0909-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
264	TUBE; DIST,SUPPORT RUBBER FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (B) L=22	1-22159-392-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (A) L=25	1-14234-083-0	02	1	0909-
264	TUBE; DIST,SUPPORT RUBBER MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER EURO3 SPECIFICATION(NT3) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	0910-1412
264	TUBE; DIST,SUPPORT RUBBER EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	01	1	1501-
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	1501-
296	U-BOLT; FRT EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22113-009-0	01	1	1501-
296	U-BOLT; FRT EXH PIPE (A)	1-22113-101-0	01	1	0909-1412
296	U-BOLT; FRT EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	1-22113-101-0	01	1	1501-
297	NUT; U-BOLT,FRT EXH PIPE M8	0-91110-508-0	04	1	0909-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	02	1	0909-
484	NUT; BRKT,HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0909-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-

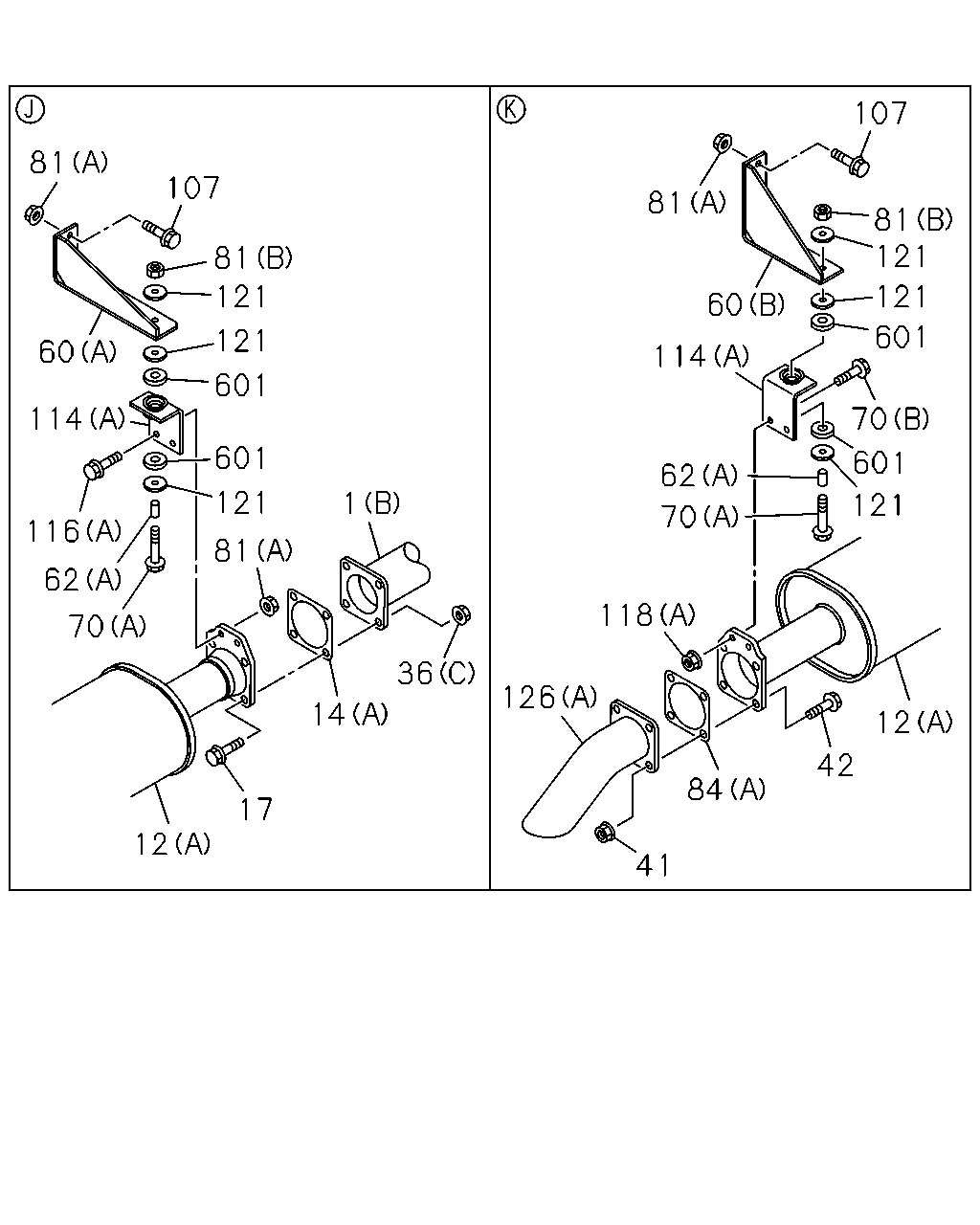

81 107 81 121 121 601 601 121 1 1 81 116 62 70 17 12 14 36 118 70 62 126 84 42 12 41 121 601 70 601 121 121 81 107 81 60 114 60 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
12	SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (B)	1-22141-201-1	01	1	1501-
12	SILENCER ASM; EXH (A)	8-98142-620-0	01	1	0909-1412
12	SILENCER ASM; EXH EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98142-620-0	01	1	1501-
14	GASKET; SILENCER TO EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22116-042-0	01	1	1501-
14	GASKET; SILENCER TO EXH PIPE (A)	8-98096-305-0	01	1	0909-1412
14	GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-305-0	01	1	1501-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28651-235-0	04	1	0909-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91180-212-0	04	1	0909-
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	0-28651-235-0	04	1	0909-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
62	TUBE; DIST,BRKT EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	04	1	1501-
62	TUBE; DIST,BRKT (A) L=25	1-14234-083-0	02	1	0909-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	06	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (C) M8X30 FLANGE	0-28650-830-0	02	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (D) M12X35 FLANGE	0-28651-235-0	02	1	1501-
70	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X60 FLANGE	0-28051-060-0	02	1	1501-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X35 FLANGE	0-28651-035-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 LOCK NUT	0-91370-010-0	06	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10 FLANGE	0-91180-210-0	02	1	1501-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 LOCK NUT	0-91370-010-0	02	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0909-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (C)	1-22116-040-0	01	1	1501-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22116-042-0	01	1	1501-
84	GASKET; EXH PIPE (A)	8-98096-305-0	01	1	0909-1412
84	GASKET; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-305-0	01	1	1501-
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0909-
114	BRACKET; EXH SILENCER EURO5 SPECIFICATION(NT5) (B)	1-22139-348-0	02	1	1501-
114	BRACKET; EXH SILENCER (A)	8-98117-589-0	02	1	0909-1412
114	BRACKET; EXH SILENCER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-589-0	02	1	1501-
116	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M12X35 FLANGE	0-28651-235-0	02	1	1501-
116	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
116	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
118	NUT; SILENCER MTG BRKT EURO5 SPECIFICATION(NT5) (B) M12 FLANGE	0-91180-212-0	02	1	1501-
118	NUT; SILENCER MTG BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0909-1412
118	NUT; SILENCER MTG BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10 FLANGE	0-91180-210-0	02	1	1501-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
126	PIPE; EXH,RR EURO5 SPECIFICATION(NT5) (B)	8-98053-012-2	01	1	1501-
126	PIPE; EXH,RR (A)	8-98117-593-0	01	1	0909-1412
126	PIPE; EXH,RR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-593-0	01	1	1501-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-

1 1 1 12 126 571 1 34 36 1 1 1 12 126 571 1 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
12	SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (B)	1-22141-201-1	01	1	1501-
12	SILENCER ASM; EXH (A)	8-98142-620-0	01	1	0909-1412
12	SILENCER ASM; EXH EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98142-620-0	01	1	1501-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0909-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
126	PIPE; EXH,RR EURO5 SPECIFICATION(NT5) (B)	8-98053-012-2	01	1	1501-
126	PIPE; EXH,RR (A)	8-98117-593-0	01	1	0909-1412
126	PIPE; EXH,RR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-593-0	01	1	1501-
571	GASKET (A)	1-22116-040-0	01	1	0909-
571	GASKET (B) ID=85.8	1-22116-043-0	02	1	0909-
571	GASKET (C) ID=81	8-98043-481-0	01	1	0909-

571 1 36 34 1 1 1 12 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
12	SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (B)	1-22141-201-1	01	1	1501-
12	SILENCER ASM; EXH (A)	8-98142-620-0	01	1	0909-1412
12	SILENCER ASM; EXH EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98142-620-0	01	1	1501-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0909-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
126	PIPE; EXH,RR EURO5 SPECIFICATION(NT5) (B)	8-98053-012-2	01	1	1501-
126	PIPE; EXH,RR (A)	8-98117-593-0	01	1	0909-1412
126	PIPE; EXH,RR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-593-0	01	1	1501-
571	GASKET (A)	1-22116-040-0	01	1	0909-
571	GASKET (B) ID=85.8	1-22116-043-0	02	1	0909-
571	GASKET (C) ID=81	8-98043-481-0	01	1	0909-

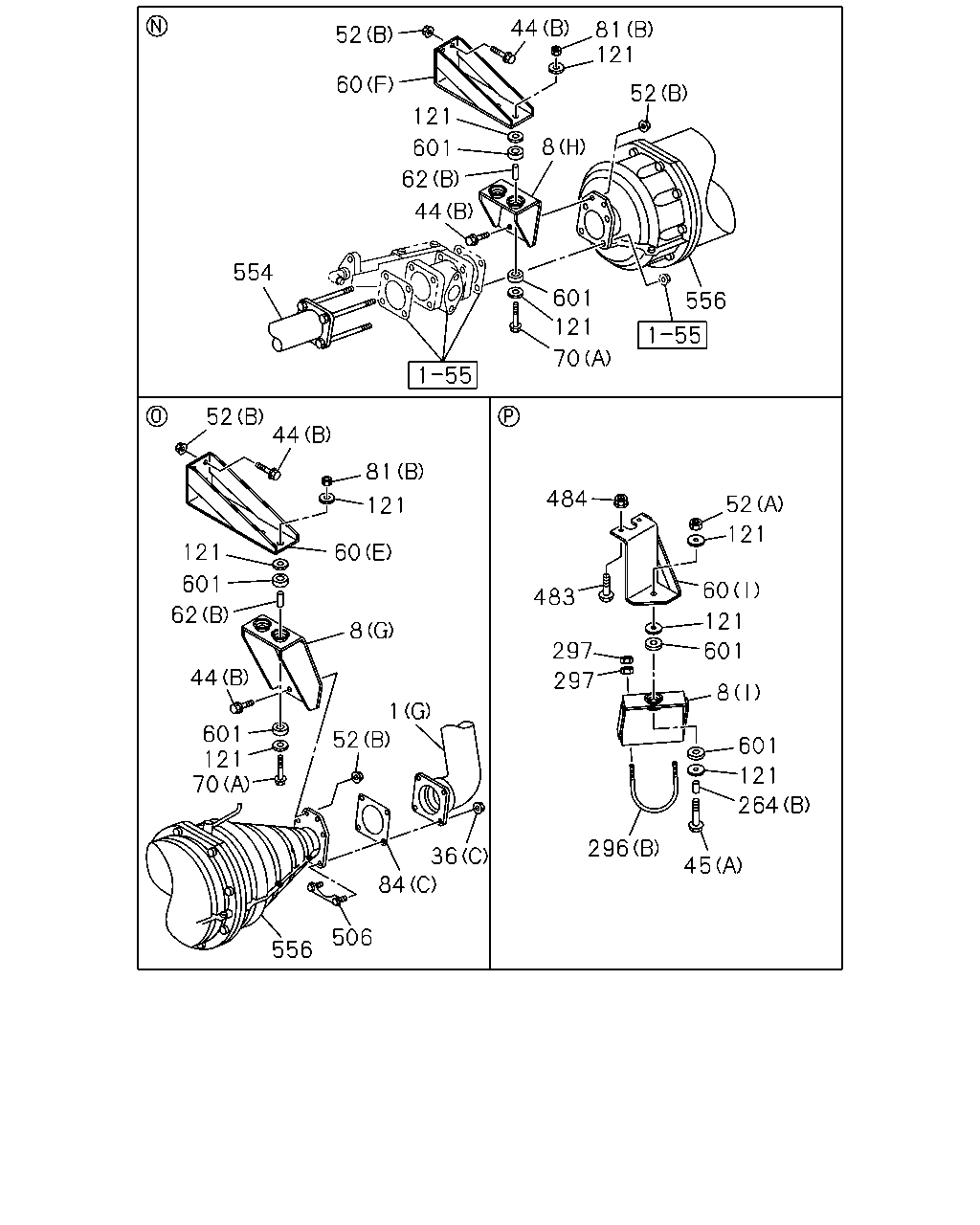

571 1 34 36 1 554 126 12 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
12	SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (B)	1-22141-201-1	01	1	1501-
12	SILENCER ASM; EXH (A)	8-98142-620-0	01	1	0909-1412
12	SILENCER ASM; EXH EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98142-620-0	01	1	1501-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0909-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
126	PIPE; EXH,RR EURO5 SPECIFICATION(NT5) (B)	8-98053-012-2	01	1	1501-
126	PIPE; EXH,RR (A)	8-98117-593-0	01	1	0909-1412
126	PIPE; EXH,RR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-593-0	01	1	1501-
554	PIPE; EXH,SILENCER EURO5 SPECIFICATION(NT5)	8-98053-011-0	01	1	1501-
571	GASKET (A)	1-22116-040-0	01	1	0909-
571	GASKET (B) ID=85.8	1-22116-043-0	02	1	0909-
571	GASKET (C) ID=81	8-98043-481-0	01	1	0909-

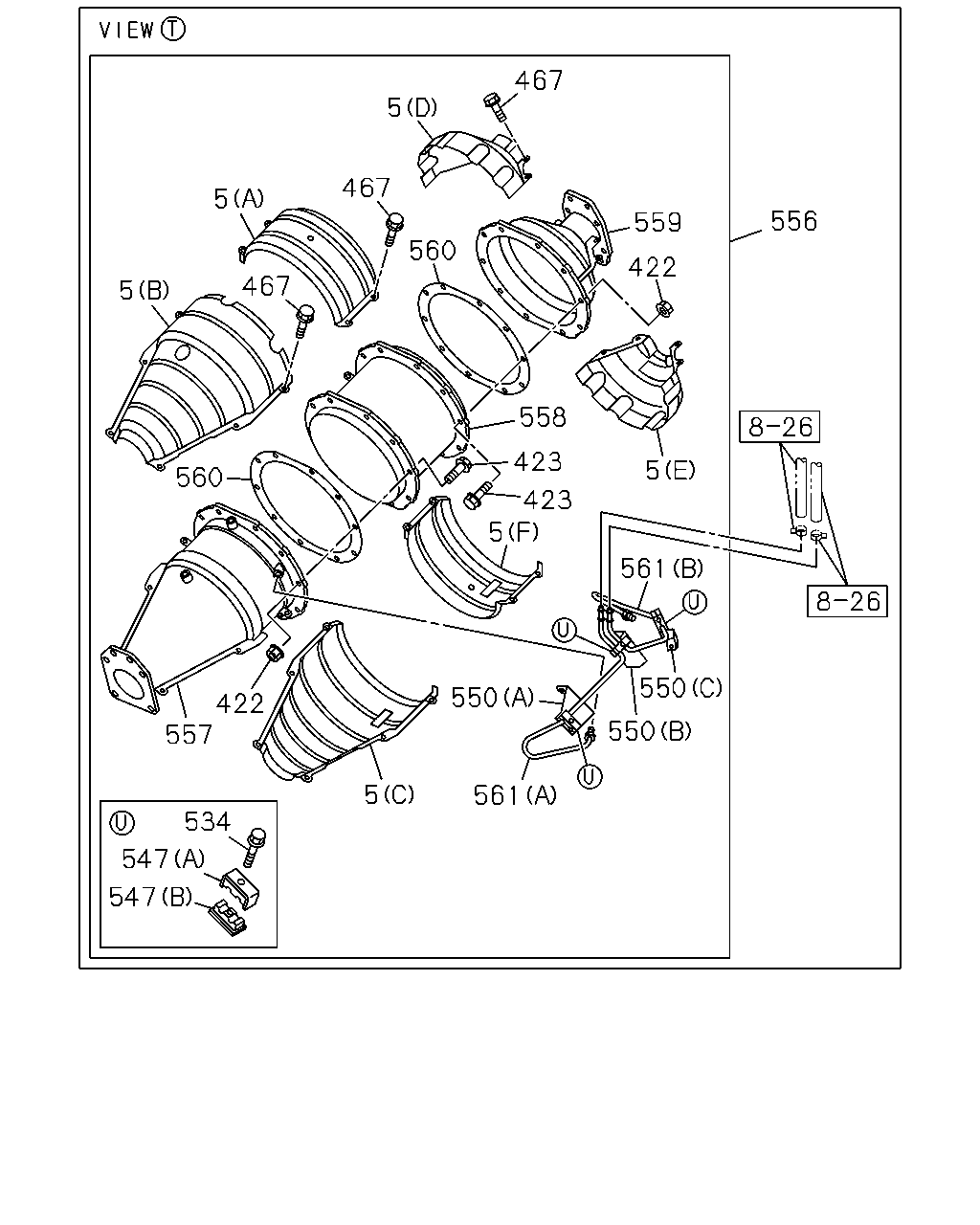

5 467 5 467 5 467 559 556 422 5 561 550 550 561 550 5 422 557 534 547 547 5 423 423 558 560 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT EURO5 SPECIFICATION(NT5) (A)	8-97605-172-0	01	1	1501-
5	PROTECTOR; HEAT EURO5 SPECIFICATION(NT5) (B)	8-97611-086-0	01	1	1501-
5	PROTECTOR; HEAT EURO5 SPECIFICATION(NT5) (C)	8-97611-087-0	01	1	1501-
5	PROTECTOR; HEAT EURO5 SPECIFICATION(NT5) (D)	8-97611-088-0	01	1	1501-
5	PROTECTOR; HEAT EURO5 SPECIFICATION(NT5) (E)	8-97611-089-0	01	1	1501-
5	PROTECTOR; HEAT EURO5 SPECIFICATION(NT5) (F)	8-97613-390-0	01	1	1501-
422	NUT; PIPE EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	20	1	1501-
423	BOLT; PIPE EURO5 SPECIFICATION(NT5) M8X35 FLANGE	0-28650-835-0	20	1	1501-
467	BOLT; PROTECTOR EURO5 SPECIFICATION(NT5) M6X16	8-98019-179-0	14	1	1501-
534	BOLT; CLIP EURO5 SPECIFICATION(NT5) M6X35 FLANGE	0-28650-635-0	03	1	1501-
547	CLIP; PIPE EURO5 SPECIFICATION(NT5) (A) ID=7 & 7 L=22	8-97381-635-0	03	1	1501-
547	CLIP; PIPE EURO5 SPECIFICATION(NT5) (B) ID=7 & 7 L=22	8-97381-636-0	03	1	1501-
550	BRACKET; DPD EURO5 SPECIFICATION(NT5) (A)	8-97611-083-0	01	1	1501-
550	BRACKET; DPD EURO5 SPECIFICATION(NT5) (B)	8-97611-084-0	01	1	1501-
550	BRACKET; DPD EURO5 SPECIFICATION(NT5) (C)	8-97611-085-0	01	1	1501-
556	DPD ASM EURO5 SPECIFICATION(NT5)	8-97622-891-4	01	1	1501-
557	CATALYST ASM EURO5 SPECIFICATION(NT5)	8-97608-055-8	01	1	1501-
558	FILTER ASM EURO5 SPECIFICATION(NT5)	8-97608-057-3	01	1	1501-
559	COVER; RR EURO5 SPECIFICATION(NT5)	8-97622-887-0	01	1	1501-
560	GASKET; DPD EURO5 SPECIFICATION(NT5)	8-97611-080-0	02	1	1501-
561	PIPE; DPD EURO5 SPECIFICATION(NT5) (A)	8-97622-892-0	01	1	1501-
561	PIPE; DPD EURO5 SPECIFICATION(NT5) (B)	8-97622-893-0	01	1	1501-

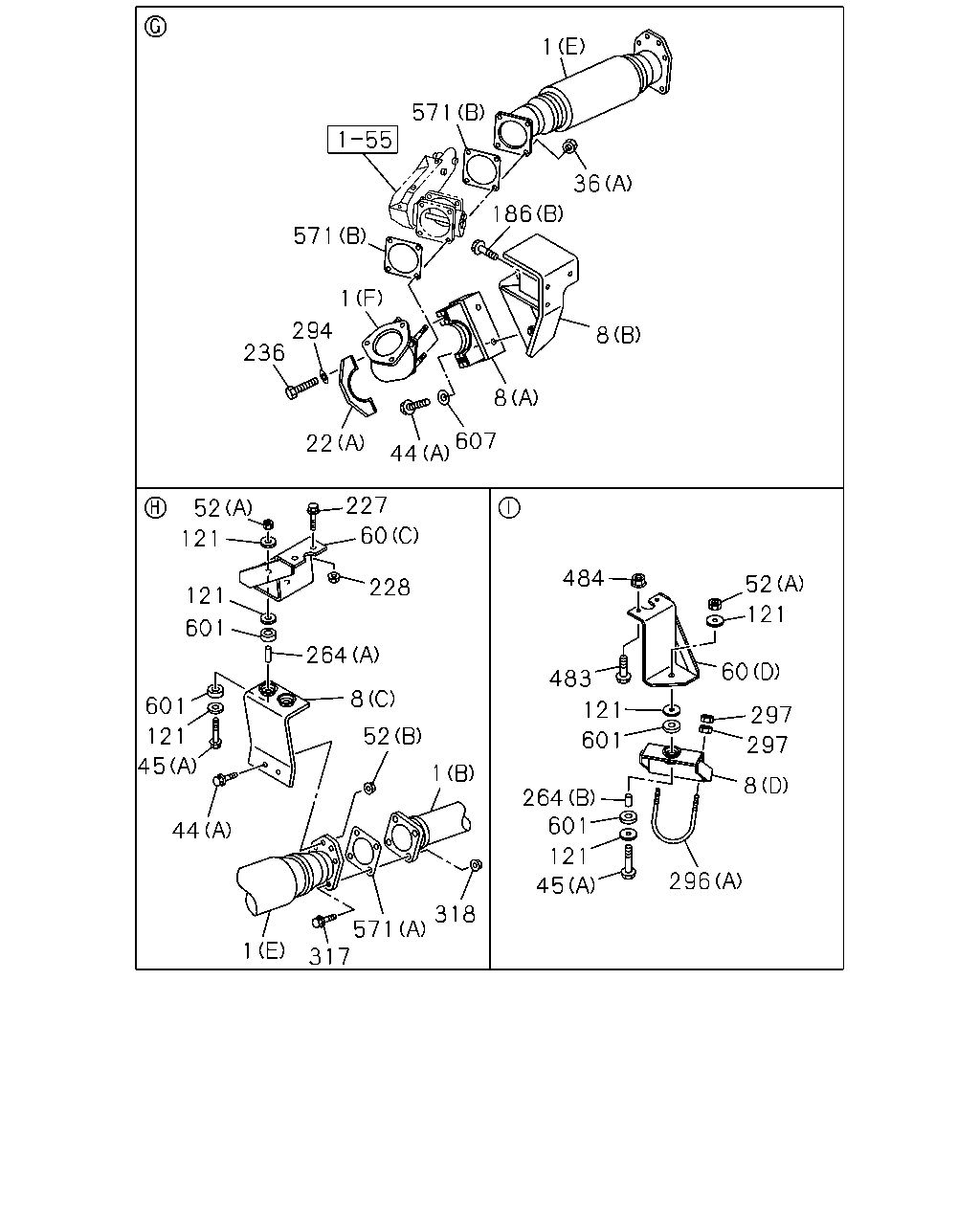

1 36 186 8 8 607 44 22 294 1 571 236 52 121 121 227 60 228 264 8 52 1 318 571 317 1 44 45 121 601 601 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (G)	1-22152-394-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (H)	1-22152-395-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (I)	8-98055-634-0	01	1	1501-
8	BRACKET; EXH PIPE FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (F)	8-98117-582-0	01	1	0909-
8	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2) (E)	8-98133-593-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (B)	8-98125-921-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98125-921-0	01	1	1501-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98125-922-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98125-922-0	01	1	1501-
8	BRACKET; EXH PIPE MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE (C)	8-98055-633-0	01	1	0909-
22	CLAMP; EXH PIPE EURO5 SPECIFICATION(NT5) (B) ID=80-84	1-22133-233-0	02	1	1501-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98073-250-0	02	1	0909-1412
22	CLAMP; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98073-250-0	02	1	1501-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
44	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X30 FLANGE	0-28651-030-0	12	1	1501-
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
44	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
45	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X50	0-10856-050-0	01	1	1501-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-
52	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 FLANGE	0-91180-210-0	13	1	1501-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0909-
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0909-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	02	1	0909-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
186	BOLT; BRKT TO ENG EURO2 SPECIFICATION(NT2) (A) M10X20 FLANGE	0-28151-020-0	03	1	0909-
186	BOLT; BRKT TO ENG EURO3 SPECIFICATION(NT3) (B) M10X25 FLANGE	0-28151-025-0	03	1	0909-1412
186	BOLT; BRKT TO ENG EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28151-025-0	03	1	1501-
227	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0909-
228	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
236	BOLT; PIPE CLAMP TO BRKT EURO3 SPECIFICATION(NT3) M10X35	0-20851-035-0	04	1	0909-1412
236	BOLT; PIPE CLAMP TO BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M10X35	0-20851-035-0	04	1	1501-
264	TUBE; DIST,SUPPORT RUBBER FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (B) L=22	1-22159-392-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (A) L=25	1-14234-083-0	02	1	0909-
264	TUBE; DIST,SUPPORT RUBBER MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER EURO3 SPECIFICATION(NT3) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	0910-1412
264	TUBE; DIST,SUPPORT RUBBER EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	01	1	1501-
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	1501-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE EURO3 SPECIFICATION(NT3) ID=10.5	0-91610-510-0	04	1	0909-1412
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=10.5	0-91610-510-0	04	1	1501-
317	BOLT; EXH PIPE,FRT M12X35 FLANGE	0-28651-235-0	04	1	0909-
318	NUT; EXH PIPE,FRT M12 FLANGE	0-91180-212-0	04	1	0909-
571	GASKET (A)	1-22116-040-0	01	1	0909-
571	GASKET (B) ID=85.8	1-22116-043-0	02	1	0909-
571	GASKET (C) ID=81	8-98043-481-0	01	1	0909-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-
607	WASHER; BRKT EURO3 SPECIFICATION(NT3) OD=32 T=6.0	8-94416-693-0	02	1	0909-1412
607	WASHER; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) OD=32 T=6.0	8-94416-693-0	02	1	1501-

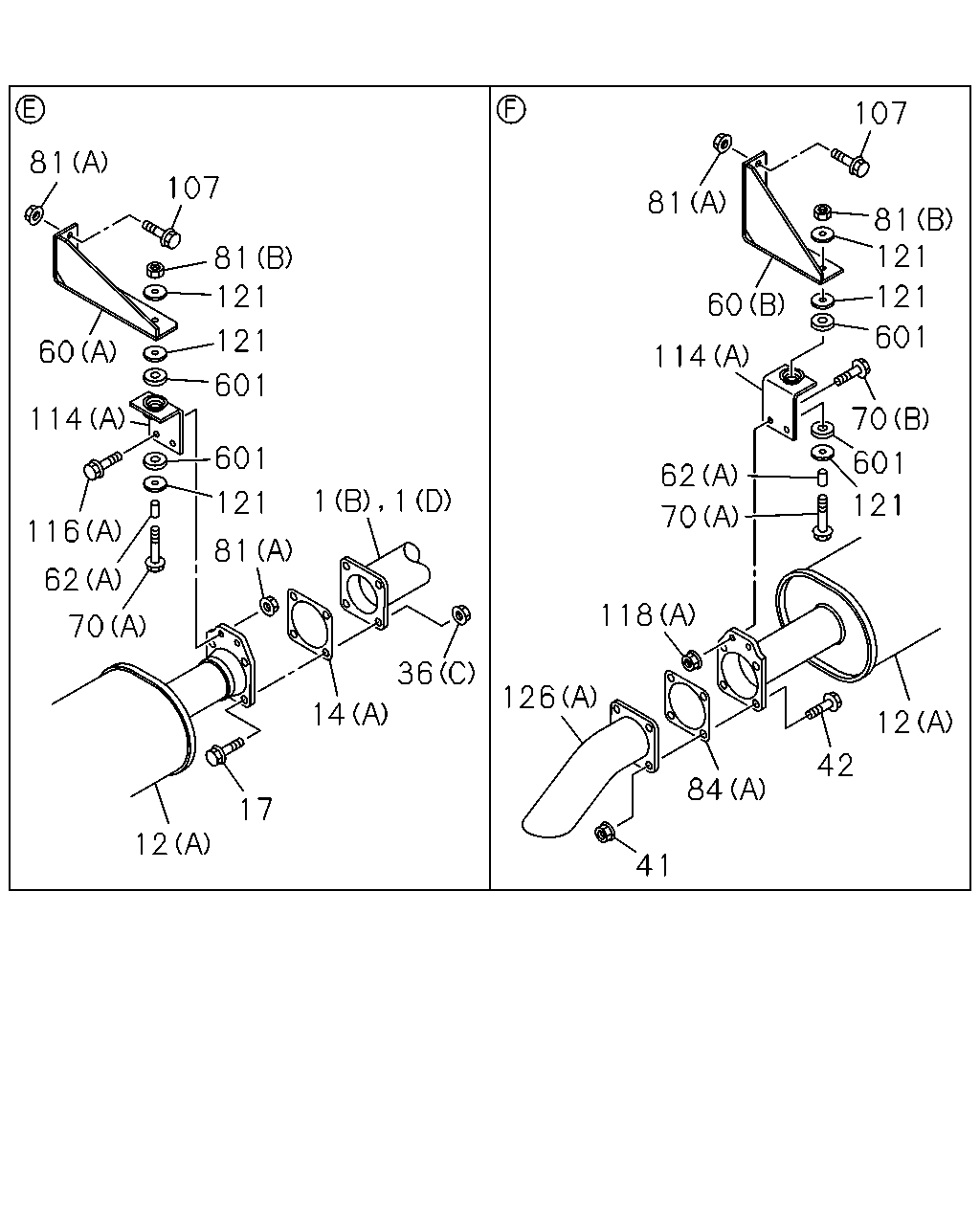

107 60 116 81 114 81 121 121 601 62 601 121 70 81 554 17 14 12 36 12 118 121 62 601 121 60 121 81 107 81 70 114 601 70 126 42 84 41 52 121 601 601 264 121 121 45 70 60 94 56 22 97 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (B)	1-22141-201-1	01	1	1501-
12	SILENCER ASM; EXH (A)	8-98142-620-0	01	1	0909-1412
12	SILENCER ASM; EXH EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98142-620-0	01	1	1501-
14	GASKET; SILENCER TO EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22116-042-0	01	1	1501-
14	GASKET; SILENCER TO EXH PIPE (A)	8-98096-305-0	01	1	0909-1412
14	GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-305-0	01	1	1501-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28651-235-0	04	1	0909-
22	CLAMP; EXH PIPE EURO5 SPECIFICATION(NT5) (B) ID=80-84	1-22133-233-0	02	1	1501-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98073-250-0	02	1	0909-1412
22	CLAMP; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98073-250-0	02	1	1501-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91180-212-0	04	1	0909-
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	0-28651-235-0	04	1	0909-
45	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X50	0-10856-050-0	01	1	1501-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-
52	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 FLANGE	0-91180-210-0	13	1	1501-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0909-
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0909-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	02	1	0909-
56	BRACKET; CLAMP,EXH PIPE EURO5 SPECIFICATION(NT5)	1-22131-629-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
62	TUBE; DIST,BRKT EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	04	1	1501-
62	TUBE; DIST,BRKT (A) L=25	1-14234-083-0	02	1	0909-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	06	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (C) M8X30 FLANGE	0-28650-830-0	02	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (D) M12X35 FLANGE	0-28651-235-0	02	1	1501-
70	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X60 FLANGE	0-28051-060-0	02	1	1501-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X35 FLANGE	0-28651-035-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 LOCK NUT	0-91370-010-0	06	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10 FLANGE	0-91180-210-0	02	1	1501-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 LOCK NUT	0-91370-010-0	02	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0909-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (C)	1-22116-040-0	01	1	1501-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22116-042-0	01	1	1501-
84	GASKET; EXH PIPE (A)	8-98096-305-0	01	1	0909-1412
84	GASKET; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-305-0	01	1	1501-
94	BOLT; CLAMP EURO5 SPECIFICATION(NT5) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1501-
97	WASHER; PL,CLAMP EURO5 SPECIFICATION(NT5) ID=10.5	0-91614-510-0	02	1	1501-
105	NUT; CLAMP EURO5 SPECIFICATION(NT5) M10	0-91110-510-0	02	1	1501-
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0909-
114	BRACKET; EXH SILENCER EURO5 SPECIFICATION(NT5) (B)	1-22139-348-0	02	1	1501-
114	BRACKET; EXH SILENCER (A)	8-98117-589-0	02	1	0909-1412
114	BRACKET; EXH SILENCER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-589-0	02	1	1501-
116	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M12X35 FLANGE	0-28651-235-0	02	1	1501-
116	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
116	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
118	NUT; SILENCER MTG BRKT EURO5 SPECIFICATION(NT5) (B) M12 FLANGE	0-91180-212-0	02	1	1501-
118	NUT; SILENCER MTG BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0909-1412
118	NUT; SILENCER MTG BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10 FLANGE	0-91180-210-0	02	1	1501-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
126	PIPE; EXH,RR EURO5 SPECIFICATION(NT5) (B)	8-98053-012-2	01	1	1501-
126	PIPE; EXH,RR (A)	8-98117-593-0	01	1	0909-1412
126	PIPE; EXH,RR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-593-0	01	1	1501-
264	TUBE; DIST,SUPPORT RUBBER FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (B) L=22	1-22159-392-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (A) L=25	1-14234-083-0	02	1	0909-
264	TUBE; DIST,SUPPORT RUBBER MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER EURO3 SPECIFICATION(NT3) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	0910-1412
264	TUBE; DIST,SUPPORT RUBBER EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	01	1	1501-
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	1501-
554	PIPE; EXH,SILENCER EURO5 SPECIFICATION(NT5)	8-98053-011-0	01	1	1501-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-

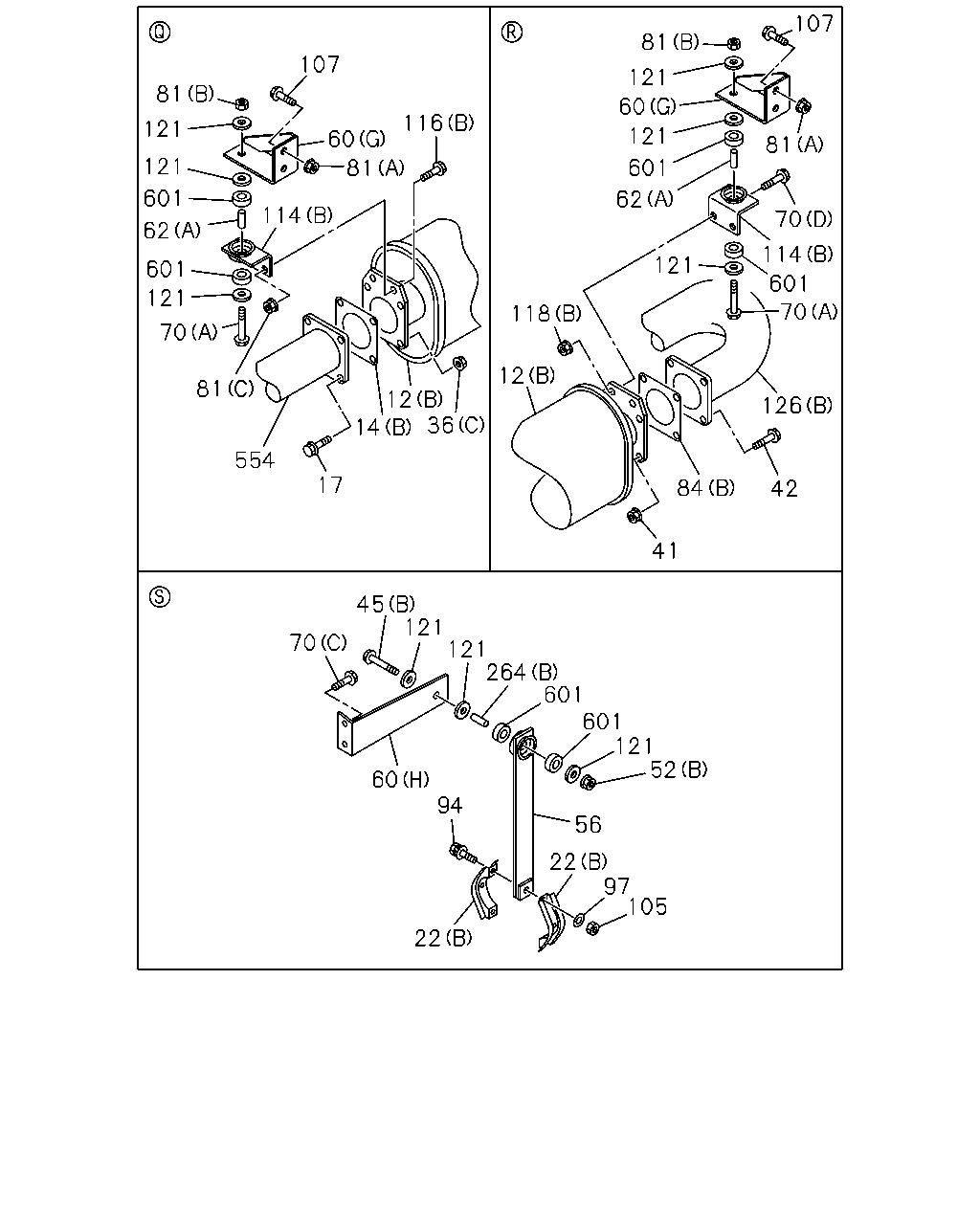

81 107 81 121 121 601 601 121 81 1 36 14 17 12 70 62 116 114 60 107 81 121 121 601 70 121 601 70 62 114 60 81 12 42 84 41 118 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
12	SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (B)	1-22141-201-1	01	1	1501-
12	SILENCER ASM; EXH (A)	8-98142-620-0	01	1	0909-1412
12	SILENCER ASM; EXH EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98142-620-0	01	1	1501-
14	GASKET; SILENCER TO EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22116-042-0	01	1	1501-
14	GASKET; SILENCER TO EXH PIPE (A)	8-98096-305-0	01	1	0909-1412
14	GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-305-0	01	1	1501-
17	BOLT; EXH PIPE M12X35 FLANGE	0-28651-235-0	04	1	0909-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91180-212-0	04	1	0909-
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	0-28651-235-0	04	1	0909-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
62	TUBE; DIST,BRKT EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	04	1	1501-
62	TUBE; DIST,BRKT (A) L=25	1-14234-083-0	02	1	0909-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	06	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (C) M8X30 FLANGE	0-28650-830-0	02	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (D) M12X35 FLANGE	0-28651-235-0	02	1	1501-
70	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X60 FLANGE	0-28051-060-0	02	1	1501-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X35 FLANGE	0-28651-035-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 LOCK NUT	0-91370-010-0	06	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10 FLANGE	0-91180-210-0	02	1	1501-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 LOCK NUT	0-91370-010-0	02	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0909-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (C)	1-22116-040-0	01	1	1501-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22116-042-0	01	1	1501-
84	GASKET; EXH PIPE (A)	8-98096-305-0	01	1	0909-1412
84	GASKET; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-305-0	01	1	1501-
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0909-
114	BRACKET; EXH SILENCER EURO5 SPECIFICATION(NT5) (B)	1-22139-348-0	02	1	1501-
114	BRACKET; EXH SILENCER (A)	8-98117-589-0	02	1	0909-1412
114	BRACKET; EXH SILENCER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-589-0	02	1	1501-
116	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M12X35 FLANGE	0-28651-235-0	02	1	1501-
116	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
116	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
118	NUT; SILENCER MTG BRKT EURO5 SPECIFICATION(NT5) (B) M12 FLANGE	0-91180-212-0	02	1	1501-
118	NUT; SILENCER MTG BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0909-1412
118	NUT; SILENCER MTG BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10 FLANGE	0-91180-210-0	02	1	1501-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
126	PIPE; EXH,RR EURO5 SPECIFICATION(NT5) (B)	8-98053-012-2	01	1	1501-
126	PIPE; EXH,RR (A)	8-98117-593-0	01	1	0909-1412
126	PIPE; EXH,RR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-593-0	01	1	1501-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-

44 121 81 52 556 70 121 601 8 44 62 601 121 60 52 554 44 52 81 121 60 8 1 52 36 84 506 556 70 121 601 44 62 601 121 484 52 121 60 121 601 8 601 121 264 45 296 297 297 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (G)	1-22152-394-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (H)	1-22152-395-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (I)	8-98055-634-0	01	1	1501-
8	BRACKET; EXH PIPE FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (F)	8-98117-582-0	01	1	0909-
8	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2) (E)	8-98133-593-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (B)	8-98125-921-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98125-921-0	01	1	1501-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98125-922-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98125-922-0	01	1	1501-
8	BRACKET; EXH PIPE MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE (C)	8-98055-633-0	01	1	0909-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
44	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X30 FLANGE	0-28651-030-0	12	1	1501-
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
44	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
45	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X50	0-10856-050-0	01	1	1501-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-
52	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 FLANGE	0-91180-210-0	13	1	1501-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0909-
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0909-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	02	1	0909-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
62	TUBE; DIST,BRKT EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	04	1	1501-
62	TUBE; DIST,BRKT (A) L=25	1-14234-083-0	02	1	0909-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	06	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (C) M8X30 FLANGE	0-28650-830-0	02	1	1501-
70	BOLT; BRKT EURO5 SPECIFICATION(NT5) (D) M12X35 FLANGE	0-28651-235-0	02	1	1501-
70	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X60 FLANGE	0-28051-060-0	02	1	1501-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
70	BOLT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10X35 FLANGE	0-28651-035-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	02	1	1501-
81	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 LOCK NUT	0-91370-010-0	06	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10 FLANGE	0-91180-210-0	02	1	1501-
81	NUT; BRKT (B) M10 LOCK NUT	0-91370-010-0	02	1	0909-1412
81	NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 LOCK NUT	0-91370-010-0	02	1	1501-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0909-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (C)	1-22116-040-0	01	1	1501-
84	GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22116-042-0	01	1	1501-
84	GASKET; EXH PIPE (A)	8-98096-305-0	01	1	0909-1412
84	GASKET; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-305-0	01	1	1501-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
264	TUBE; DIST,SUPPORT RUBBER FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (B) L=22	1-22159-392-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (A) L=25	1-14234-083-0	02	1	0909-
264	TUBE; DIST,SUPPORT RUBBER MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER EURO3 SPECIFICATION(NT3) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	0910-1412
264	TUBE; DIST,SUPPORT RUBBER EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	01	1	1501-
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	1501-
296	U-BOLT; FRT EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22113-009-0	01	1	1501-
296	U-BOLT; FRT EXH PIPE (A)	1-22113-101-0	01	1	0909-1412
296	U-BOLT; FRT EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	1-22113-101-0	01	1	1501-
297	NUT; U-BOLT,FRT EXH PIPE M8	0-91110-508-0	04	1	0909-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	02	1	0909-
484	NUT; BRKT,HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0909-
506	BRACKET; STUD EURO5 SPECIFICATION(NT5) M12X35	1-22131-963-0	02	1	1501-
554	PIPE; EXH,SILENCER EURO5 SPECIFICATION(NT5)	8-98053-011-0	01	1	1501-
556	DPD ASM EURO5 SPECIFICATION(NT5)	8-97622-891-4	01	1	1501-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-

1 571 186 36 8 8 607 44 22 236 294 1 571 52 121 60 297 297 8 296 45 121 601 264 601 121 483 484 60 227 228 264 8 52 1 318 571 317 1 44 45 121 601 601 121 121 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO5 SPECIFICATION(NT5) (G)	8-98106-538-0	01	1	1501-
1	PIPE; EXH FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (D)	8-98117-579-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (C)	8-98133-584-1	01	1	0909-
1	PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98133-586-2	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (E)	8-98053-009-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98053-009-0	01	1	1501-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (F)	8-98127-078-0	01	1	0909-1412
1	PIPE; EXH EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (F)	8-98127-078-0	01	1	1501-
1	PIPE; EXH MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B)	8-98132-642-1	01	1	0909-
1	PIPE; EXH EURO3 SPECIFICATION(NT3) (B)	8-98132-642-1	01	1	0909-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (G)	1-22152-394-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (H)	1-22152-395-1	01	1	1501-
8	BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) (I)	8-98055-634-0	01	1	1501-
8	BRACKET; EXH PIPE FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (F)	8-98117-582-0	01	1	0909-
8	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2) (E)	8-98133-593-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (B)	8-98125-921-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98125-921-0	01	1	1501-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98125-922-0	01	1	0909-1412
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98125-922-0	01	1	1501-
8	BRACKET; EXH PIPE MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3) (D)	8-98133-457-0	01	1	0909-
8	BRACKET; EXH PIPE (C)	8-98055-633-0	01	1	0909-
22	CLAMP; EXH PIPE EURO5 SPECIFICATION(NT5) (B) ID=80-84	1-22133-233-0	02	1	1501-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION(NT3) (A)	8-98073-250-0	02	1	0909-1412
22	CLAMP; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98073-250-0	02	1	1501-
36	NUT; EXH PIPE (A) M10	0-91110-510-0	04	1	0909-
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	0909-1412
36	NUT; EXH PIPE (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE EURO5 SPECIFICATION(NT5) (C) M12 FLANGE	0-91180-212-0	04	1	1501-
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	0909-
44	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X30 FLANGE	0-28651-030-0	12	1	1501-
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M10X35 FLANGE	0-28651-035-0	02	1	0909-1412
44	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
44	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X35 FLANGE	0-28651-035-0	02	1	1501-
45	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M10X50	0-10856-050-0	01	1	1501-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-
45	BOLT; BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	0909-
52	NUT; BRKT EURO5 SPECIFICATION(NT5) (B) M10 FLANGE	0-91180-210-0	13	1	1501-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0909-
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0909-
52	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	02	1	0909-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (E)	1-22152-390-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (F)	1-22152-391-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (G)	1-22152-392-0	02	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (H)	8-98055-700-0	01	1	1501-
60	BRACKET; FRAME TO BRKT EURO5 SPECIFICATION(NT5) (I)	8-98055-635-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (D)	8-98117-581-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98117-581-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (A)	8-98117-587-1	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98117-587-1	01	1	1501-
60	BRACKET; FRAME TO BRKT (B)	8-98117-588-0	01	1	0909-1412
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98117-588-0	01	1	1501-
60	BRACKET; FRAME TO BRKT (C)	8-98055-632-0	01	1	0909-
121	WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) ID=10.5 OD=40 T=3.2	8-98010-405-0	21	1	1501-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	03	1	0909-
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	0909-1412
121	WASHER; PL,BRKT ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
121	WASHER; PL,BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) ID=10.5 OD=40 T=3.2	8-98010-405-0	06	1	1501-
186	BOLT; BRKT TO ENG EURO2 SPECIFICATION(NT2) (A) M10X20 FLANGE	0-28151-020-0	03	1	0909-
186	BOLT; BRKT TO ENG EURO3 SPECIFICATION(NT3) (B) M10X25 FLANGE	0-28151-025-0	03	1	0909-1412
186	BOLT; BRKT TO ENG EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28151-025-0	03	1	1501-
227	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0909-
228	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0909-
236	BOLT; PIPE CLAMP TO BRKT EURO3 SPECIFICATION(NT3) M10X35	0-20851-035-0	04	1	0909-1412
236	BOLT; PIPE CLAMP TO BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M10X35	0-20851-035-0	04	1	1501-
264	TUBE; DIST,SUPPORT RUBBER FULLER FS6306 M/T(MWO) EURO2 SPECIFICATION(NT2) (B) L=22	1-22159-392-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (A) L=25	1-14234-083-0	02	1	0909-
264	TUBE; DIST,SUPPORT RUBBER MLD6Q M/T(X5J) EURO2 SPECIFICATION(NT2) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER EURO3 SPECIFICATION(NT3) (B) L=22	9-22159-024-0	01	1	0909-0909
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	0910-1412
264	TUBE; DIST,SUPPORT RUBBER EURO5 SPECIFICATION(NT5) (B) L=22	9-22159-024-0	01	1	1501-
264	TUBE; DIST,SUPPORT RUBBER (B) L=22	9-22159-024-0	01	1	1501-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE EURO3 SPECIFICATION(NT3) ID=10.5	0-91610-510-0	04	1	0909-1412
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=10.5	0-91610-510-0	04	1	1501-
296	U-BOLT; FRT EXH PIPE EURO5 SPECIFICATION(NT5) (B)	1-22113-009-0	01	1	1501-
296	U-BOLT; FRT EXH PIPE (A)	1-22113-101-0	01	1	0909-1412
296	U-BOLT; FRT EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	1-22113-101-0	01	1	1501-
297	NUT; U-BOLT,FRT EXH PIPE M8	0-91110-508-0	04	1	0909-
317	BOLT; EXH PIPE,FRT M12X35 FLANGE	0-28651-235-0	04	1	0909-
318	NUT; EXH PIPE,FRT M12 FLANGE	0-91180-212-0	04	1	0909-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	02	1	0909-
484	NUT; BRKT,HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0909-
571	GASKET (A)	1-22116-040-0	01	1	0909-
571	GASKET (B) ID=85.8	1-22116-043-0	02	1	0909-
571	GASKET (C) ID=81	8-98043-481-0	01	1	0909-
601	MOUNTING EURO5 SPECIFICATION(NT5)	8-98055-817-0	14	1	1501-
601	MOUNTING	8-98055-817-0	02	1	0909-
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	0909-1412
601	MOUNTING	8-98055-817-0	04	1	1501-
601	MOUNTING EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98055-817-0	04	1	1501-
607	WASHER; BRKT EURO3 SPECIFICATION(NT3) OD=32 T=6.0	8-94416-693-0	02	1	0909-1412
607	WASHER; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) OD=32 T=6.0	8-94416-693-0	02	1	1501-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
