◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#58235) — 51 parça
çizim 163266
290 418 291 32 32 303
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
LOW DECK WO/REAR BODY<PK4> PRE FUEL FILTER(W21) (C) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
LOW DECK WO/REAR BODY<PK4> PRE FUEL FILTER(W21) (B) L=4750 SERVICED BY L=8000 		0-01260-800-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
EXC. PRE FUEL FILTER(W21) (B) L=7000 SERVICED BY L=8000 		0-01260-800-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4> (B) L=7000 SERVICED BY L=8000 		0-01260-800-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
(A) L=1200 		8-98130-493-0 01 1 0909-
290 NUT; FILTER TO BRKT
PRE FUEL FILTER(W21) M10 FLANGE 		0-91180-210-0 02 1 0909-
291 BOLT; FILER TO BRKT
PRE FUEL FILTER(W21) M10X50 FLANGE 		0-28051-050-0 02 1 0909-
303 BOLT; BRKT
PRE FUEL FILTER(W21) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
418 BRACKET; PRE FUEL FILTER
PRE FUEL FILTER(W21) 		8-98119-021-0 01 1 0909-

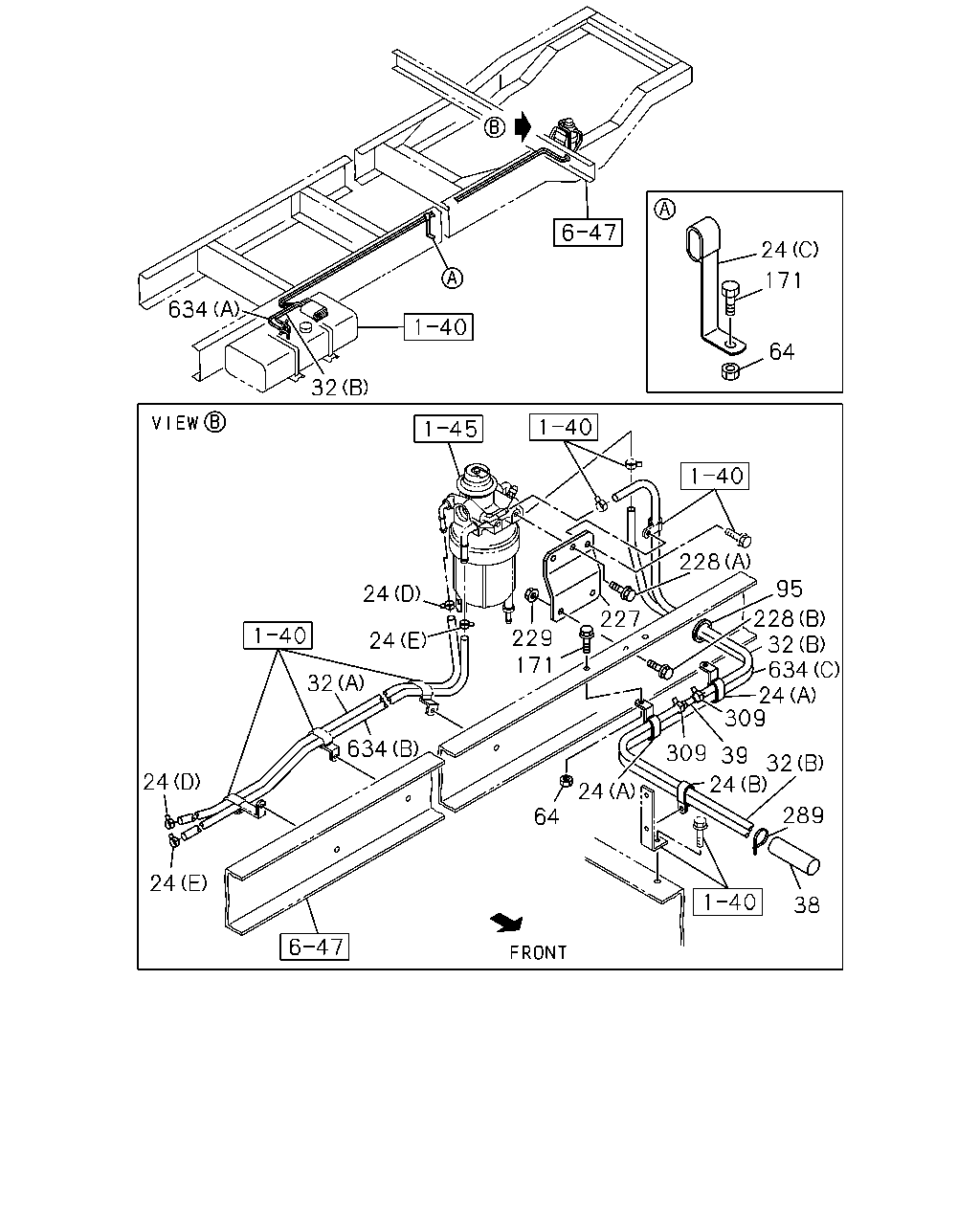

çizim 163269
24 171 64 32 634 229 171 227 228 228 32 634 24 309 309 39 32 24 24 64 38 289 634 32 24 24 24 24 95
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
LOW DECK WO/REAR BODY<PK4> (C) 		1-09700-537-0 01 1 0909-
24 CLIP; FUEL HOSE
LOW DECK WO/REAR BODY<PK4> (A) ID=14X29 H=30 L=25 		1-09701-101-0 11 1 0909-
24 CLIP; FUEL HOSE
(B) ID=16X2 L=20 		0-95325-536-0 01 1 0909-
24 CLIP; FUEL HOSE
(D) ID=14 		1-09704-102-0 02 1 0909-
24 CLIP; FUEL HOSE
(E) ID=13 		8-94238-571-0 02 1 0909-
24 CLIP; FUEL HOSE
EXC. LOW DECK WO/REAR BODY<PK4> (C) ID=14X2 H=85 L=30 		1-09701-062-0 01 1 0909-
24 CLIP; FUEL HOSE
EXC. LOW DECK WO/REAR BODY<PK4> (A) ID=14X29 H=30 L=25 		1-09701-101-0 12 1 0909-
32 PIPE; DELIVERY,FUEL TANK
LOW DECK WO/REAR BODY<PK4> PRE FUEL FILTER(W21) (C) L=2600 SERVICED BY L=3000 		0-01260-300-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
LOW DECK WO/REAR BODY<PK4> PRE FUEL FILTER(W21) (B) L=4750 SERVICED BY L=8000 		0-01260-800-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4> (C) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
EXC. PRE FUEL FILTER(W21) (B) L=7000 SERVICED BY L=8000 		0-01260-800-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4> (B) L=7000 SERVICED BY L=8000 		0-01260-800-0 01 1 0909-
32 PIPE; DELIVERY,FUEL TANK
(A) L=1200 		8-98130-493-0 01 1 0909-
38 SLEEVE; RUBBER,RUBBER HOSE
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0909-1412
38 SLEEVE; RUBBER,RUBBER HOSE
TAIWAN EQUIPMENT(WW5) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1501-
38 SLEEVE; RUBBER,RUBBER HOSE
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 1501-
39 PIPE; FUEL 8-98009-438-1 01 1 0909-1412
39 PIPE; FUEL
EXC. TAIWAN EQUIPMENT(WW5) 		8-98009-438-1 01 1 1501-
64 NUT; CLIP
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 13 1 0909-
64 NUT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 14 1 0909-
95 BUSHING; PIPE,FUEL TANK 9-09575-632-0 01 1 0909-
171 BOLT; CLIP
LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 10 1 0909-
171 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0909-
171 BOLT; CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8X25 FLANGE 		0-28650-825-0 11 1 0909-
227 BRACKET; FUEL SEDIMENTER 1-19755-234-1 01 1 0909-
228 BOLT; BRKT,SEDIMENTER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0909-
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 02 1 0909-
289 CLIP; BAND,HOSE
LOW DECK WO/REAR BODY<PK4> L=250 		5-09707-030-1 03 1 0909-1412
289 CLIP; BAND,HOSE
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4> L=250 		5-09707-030-1 03 1 0909-1412
289 CLIP; BAND,HOSE
LOW DECK WO/REAR BODY<PK4> L=250 		5-09707-030-1 03 1 1501-
289 CLIP; BAND,HOSE
TAIWAN EQUIPMENT(WW5) L=250 		5-09707-030-1 03 1 1501-
289 CLIP; BAND,HOSE
PRE FUEL FILTER(W21) EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=250 		5-09707-030-1 03 1 1501-
289 CLIP; BAND,HOSE
EXC. LOW DECK WO/REAR BODY<PK4> L=250 		5-09707-030-1 02 1 0909-
309 CLIP; PIPE
ID=14 		1-09704-102-0 01 1 0909-1412
309 CLIP; PIPE
EXC. TAIWAN EQUIPMENT(WW5) ID=14 		1-09704-102-0 01 1 1501-
309 CLIP; PIPE
ID=13 		8-94238-571-0 01 1 0909-
634 HOSE; RUBBER RETURN
(A) L=100 SERVICED BY L=3000 		0-01260-300-0 01 1 0909-1412
634 HOSE; RUBBER RETURN
EXC. TAIWAN EQUIPMENT(WW5) (A) L=100 SERVICED BY L=3000 		0-01260-300-0 01 1 1501-
634 HOSE; RUBBER RETURN
(B) L=1200 SERVICED BY L=3000 		0-01558-300-0 01 1 0909-
634 HOSE; RUBBER RETURN
(C) SERVICED BY L=7000 		0-01558-700-0 01 1 0909-
