Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#58234) — 221 parça

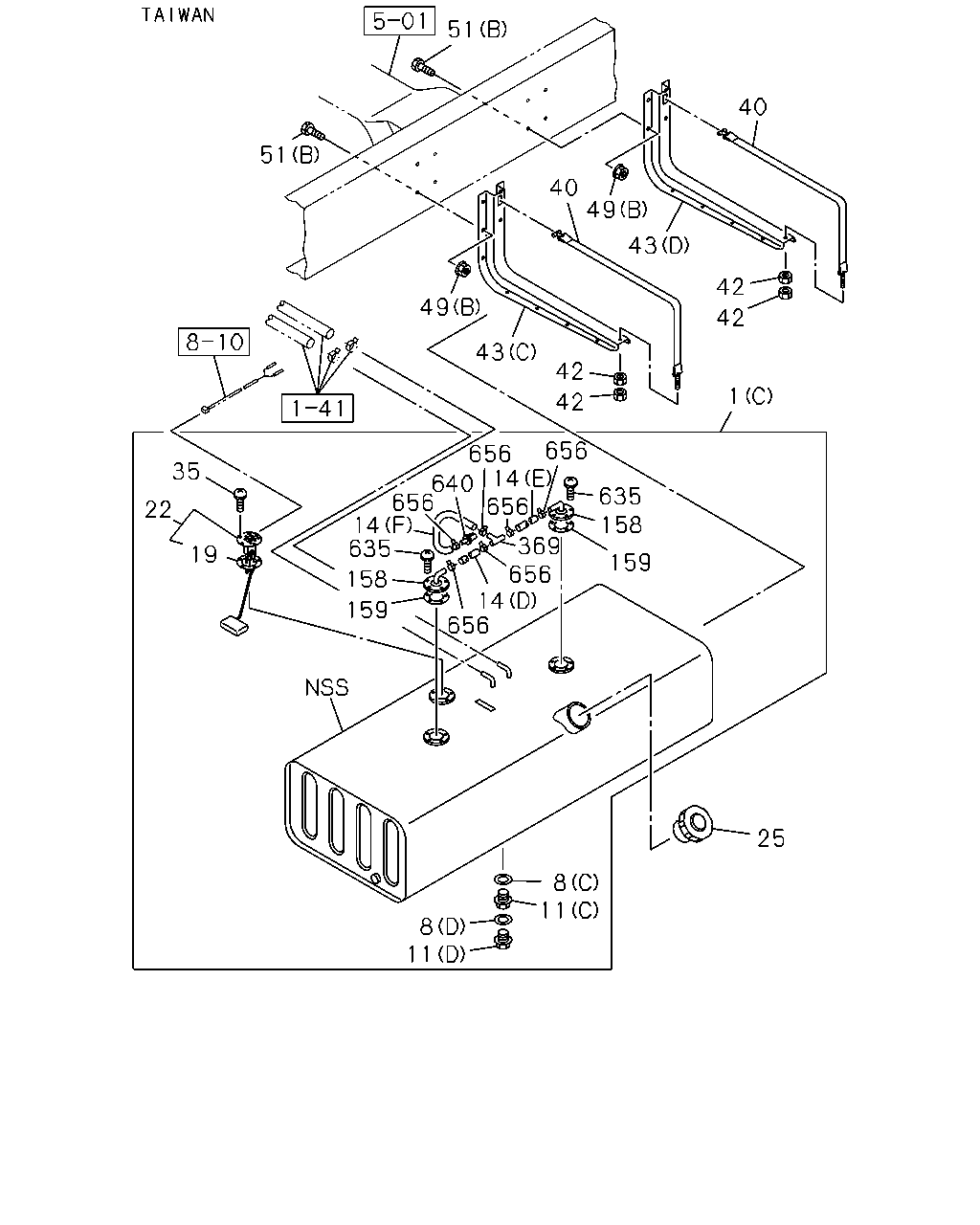

11 8 8 11 25 19 22 51 51 40 49 43 42 42 1 42 42 43 49 40 35 159 158 635 14 656 640 656 656 14 635 158 159 656 369 656 14 656

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) 1345X532X322 200L	8-98243-997-0	01	1	1501-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X533X323 200L	1-22400-995-2	01	1	0909-1412
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) 1220X533X323 200L	1-22400-995-2	01	1	1501-
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	1-22401-108-2	01	1	0909-1505
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	8-98298-799-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) ID=30	8-98067-041-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) ID=18.2 OD=26.0	9-09571-418-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=2.0	8-98030-375-0	01	1	0909-1412
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) T=2.0	8-98030-375-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 280L<RF4> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0909-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) M18X12	0-92002-418-0	01	1	1501-1504
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) M18	8-98068-006-0	01	1	1505-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) M30	8-98067-038-0	01	1	1501-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0909-1412
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M36	1-09604-052-0	01	1	1501-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 280L<RF4> (B) M14X14	9-09862-156-0	01	1	0909-
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (A) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1501-1504
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) L=430	8-98131-037-0	01	1	1505-
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	1501-1504
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (E) L=90	8-98304-415-0	01	1	1505-
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	1501-1504
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (F) L=540	8-98304-417-0	01	1	1505-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0909-
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4> ID=45 OD=67	1-83149-003-0	01	1	0909-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98099-320-0	01	1	1501-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	0909-1412
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-83141-084-1	01	1	1501-
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	1-83141-118-0	01	1	0909-1505
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	8-98296-673-0	01	1	1506-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-97387-179-0	01	1	1501-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	0909-1412
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-028-0	01	1	1501-
25	CAP; FILLER,FUEL TANK FUEL TANK 280L<RF4>	1-22440-046-1	01	1	0909-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M5X12 W/LK WASHER	0-36220-512-0	05	1	1501-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER	0-36220-510-0	05	1	0909-1412
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) M5X10 W/LK WASHER	0-36220-510-0	05	1	1501-
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/PL WASHER	0-36210-410-0	05	1	0909-1505
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK WASHER	0-36220-410-0	05	1	1506-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=880	8-98042-715-1	02	1	1501-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=790	1-22550-186-2	02	1	0909-1412
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=790	1-22550-186-2	02	1	1501-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 280L<RF4>	1-22550-222-3	02	1	0909-
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1501-
42	NUT; SUPPORT BELT EXC. LOW DECK WO/REAR BODY<PK4> M10	0-91110-510-0	04	1	0909-1412
42	NUT; SUPPORT BELT EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) M10	0-91110-510-0	04	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C)	8-98254-478-0	01	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D)	8-98254-479-0	01	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (B)	9-22555-005-0	04	1	0909-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53461-206-1	02	1	0909-1412
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A)	1-53461-206-1	02	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 280L<RF4> (A)	1-53461-544-0	02	1	0909-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M10 FLANGE	0-91180-210-0	12	1	1501-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (A) M12	0-91111-512-0	08	1	0909-
49	NUT; BRKT PRE FUEL FILTER(W21) (B) M10 FLANGE	0-91180-210-0	02	1	0909-
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) M12	0-91110-512-0	08	1	0909-1412
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A) M12	0-91110-512-0	08	1	1501-
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M10X35 FLANGE	0-28651-035-0	12	1	1501-
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (C) M12X359	9-22559-030-2	04	1	0909-
51	BOLT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-1412
51	BOLT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A) M12X35 FLANGE	0-28651-235-0	08	1	1501-
158	VALVE; ROLL OVER & FLOAT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98067-039-0	02	1	1501-
159	SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=45 OD=67	1-83149-003-0	02	1	1501-
369	JOINT; HOSE FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98067-080-0	01	1	1501-
635	SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M5X10 W/LK WASHER	0-36220-510-0	10	1	1501-
640	VENTILATOR; HOSE,BREATHER FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98092-398-0	01	1	1501-
656	CLAMP; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98304-416-0	06	1	1505-

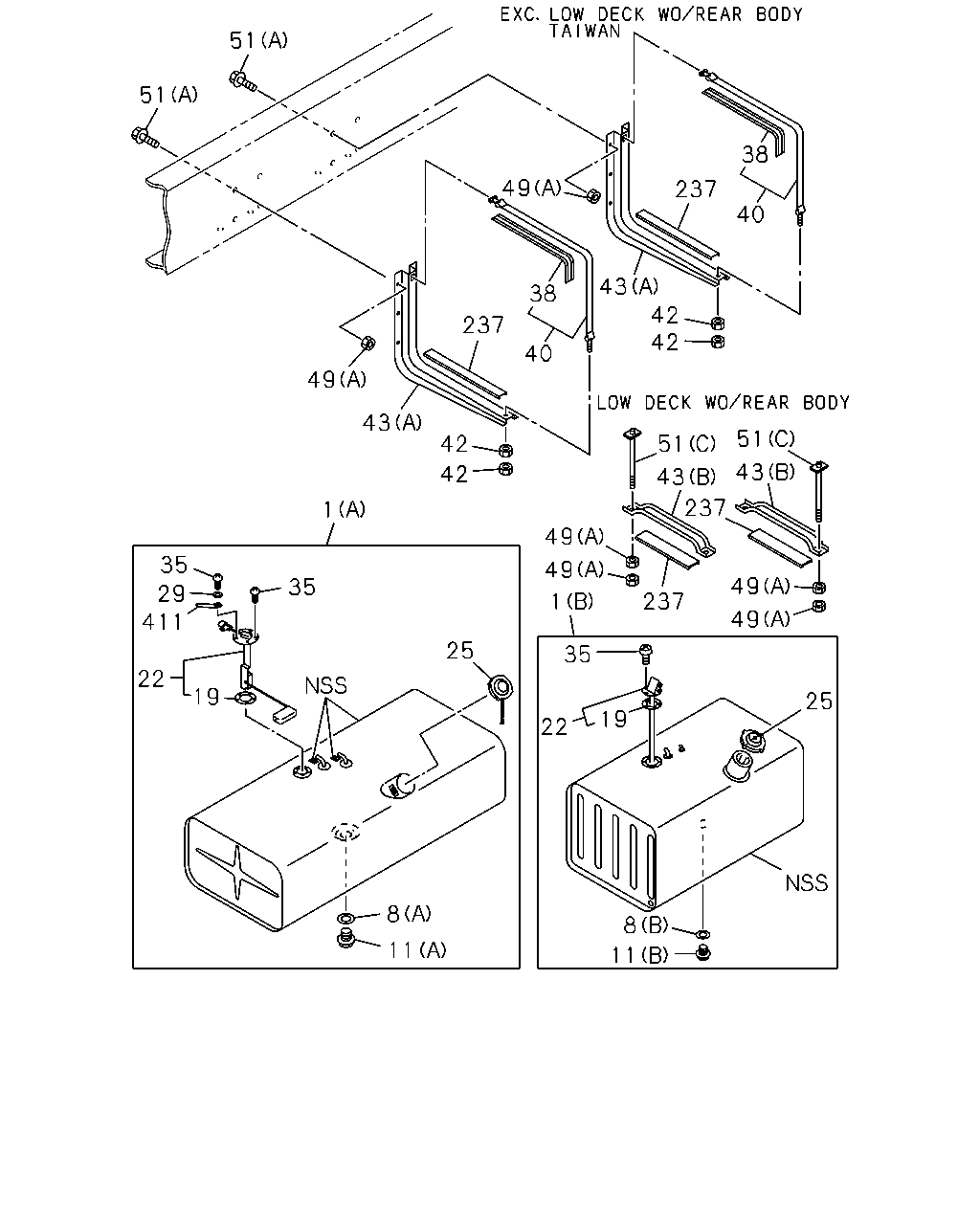

51 51 49 38 237 49 43 42 42 40 43 42 42 237 38 40 51 43 51 43 237 49 49 1 237 49 49 35 22 19 25 8 11 11 8 25 19 22 411 29 35 35 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) 1345X532X322 200L	8-98243-997-0	01	1	1501-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X533X323 200L	1-22400-995-2	01	1	0909-1412
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) 1220X533X323 200L	1-22400-995-2	01	1	1501-
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	1-22401-108-2	01	1	0909-1505
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	8-98298-799-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) ID=30	8-98067-041-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) ID=18.2 OD=26.0	9-09571-418-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=2.0	8-98030-375-0	01	1	0909-1412
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) T=2.0	8-98030-375-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 280L<RF4> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0909-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) M18X12	0-92002-418-0	01	1	1501-1504
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) M18	8-98068-006-0	01	1	1505-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) M30	8-98067-038-0	01	1	1501-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0909-1412
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M36	1-09604-052-0	01	1	1501-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 280L<RF4> (B) M14X14	9-09862-156-0	01	1	0909-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0909-
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4> ID=45 OD=67	1-83149-003-0	01	1	0909-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98099-320-0	01	1	1501-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	0909-1412
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-83141-084-1	01	1	1501-
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	1-83141-118-0	01	1	0909-1505
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	8-98296-673-0	01	1	1506-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-97387-179-0	01	1	1501-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	0909-1412
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-028-0	01	1	1501-
25	CAP; FILLER,FUEL TANK FUEL TANK 280L<RF4>	1-22440-046-1	01	1	0909-
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0909-1412
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) ID=5.3	0-91610-505-0	01	1	1501-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M5X12 W/LK WASHER	0-36220-512-0	05	1	1501-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER	0-36220-510-0	05	1	0909-1412
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) M5X10 W/LK WASHER	0-36220-510-0	05	1	1501-
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/PL WASHER	0-36210-410-0	05	1	0909-1505
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK WASHER	0-36220-410-0	05	1	1506-
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=540	1-22553-014-2	02	1	0909-1412
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=540	1-22553-014-2	02	1	1501-
38	INSULATION; SUPPORT BELT FUEL TANK 280L<RF4> L=650	1-22553-022-1	02	1	0909-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=880	8-98042-715-1	02	1	1501-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=790	1-22550-186-2	02	1	0909-1412
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=790	1-22550-186-2	02	1	1501-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 280L<RF4>	1-22550-222-3	02	1	0909-
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1501-
42	NUT; SUPPORT BELT EXC. LOW DECK WO/REAR BODY<PK4> M10	0-91110-510-0	04	1	0909-1412
42	NUT; SUPPORT BELT EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) M10	0-91110-510-0	04	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C)	8-98254-478-0	01	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D)	8-98254-479-0	01	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (B)	9-22555-005-0	04	1	0909-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53461-206-1	02	1	0909-1412
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A)	1-53461-206-1	02	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 280L<RF4> (A)	1-53461-544-0	02	1	0909-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M10 FLANGE	0-91180-210-0	12	1	1501-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (A) M12	0-91111-512-0	08	1	0909-
49	NUT; BRKT PRE FUEL FILTER(W21) (B) M10 FLANGE	0-91180-210-0	02	1	0909-
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) M12	0-91110-512-0	08	1	0909-1412
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A) M12	0-91110-512-0	08	1	1501-
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M10X35 FLANGE	0-28651-035-0	12	1	1501-
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (C) M12X359	9-22559-030-2	04	1	0909-
51	BOLT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-1412
51	BOLT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A) M12X35 FLANGE	0-28651-235-0	08	1	1501-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> L=540	1-22553-006-0	04	1	0909-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=480	1-22553-002-0	02	1	0909-1412
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=480	1-22553-002-0	02	1	1501-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 280L<RF4> L=580	1-22553-003-0	02	1	0909-
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50	1-09700-416-0	01	1	0909-1412
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) L=50	1-09700-416-0	01	1	1501-

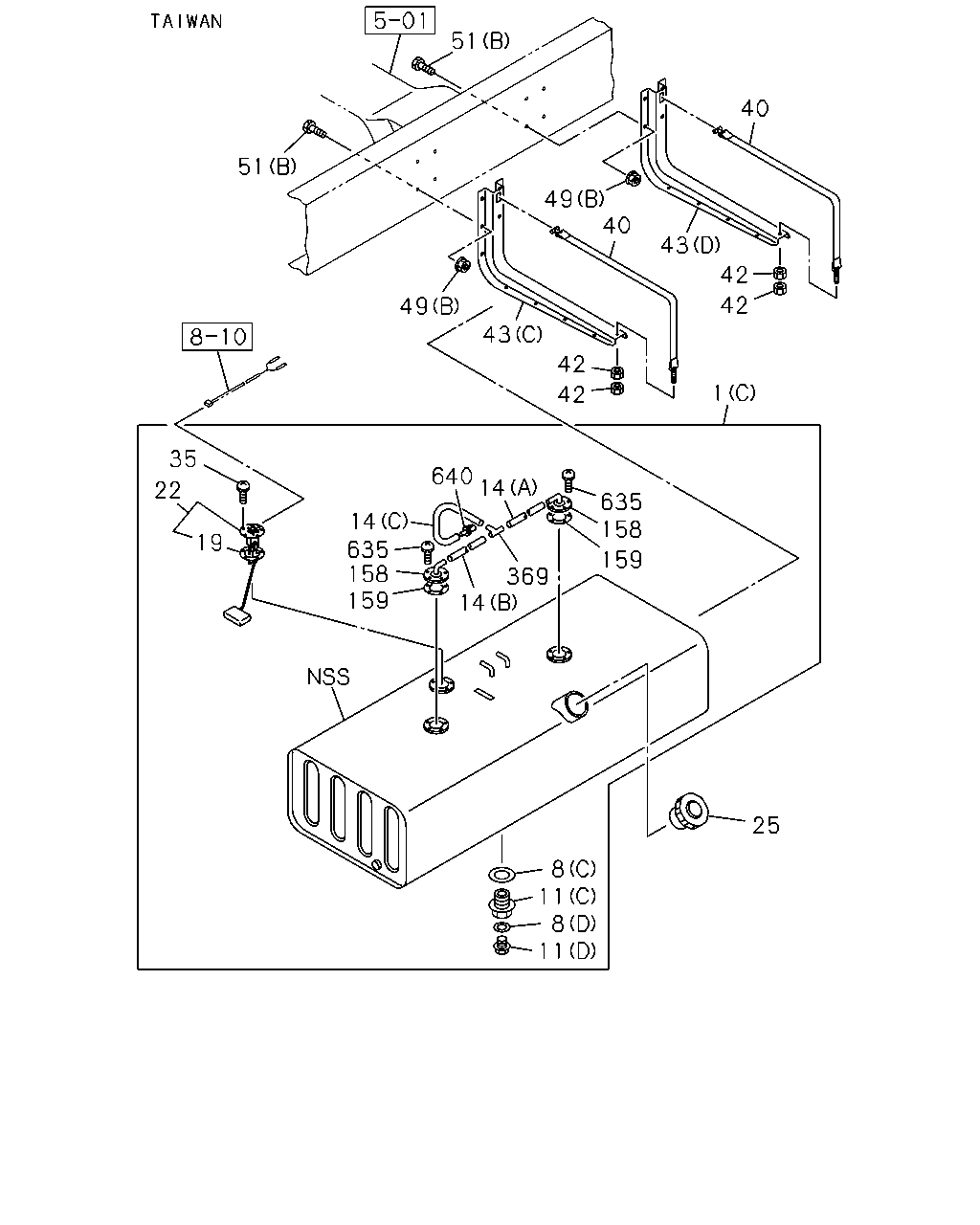

51 51 40 49 40 43 42 42 42 42 43 49 1 35 22 19 14 635 158 159 640 14 369 14 635 158 159 8 11 8 11 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) 1345X532X322 200L	8-98243-997-0	01	1	1501-
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X533X323 200L	1-22400-995-2	01	1	0909-1412
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) 1220X533X323 200L	1-22400-995-2	01	1	1501-
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	1-22401-108-2	01	1	0909-1505
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	8-98298-799-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) ID=30	8-98067-041-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) ID=18.2 OD=26.0	9-09571-418-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=2.0	8-98030-375-0	01	1	0909-1412
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) T=2.0	8-98030-375-0	01	1	1501-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 280L<RF4> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0909-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) M18X12	0-92002-418-0	01	1	1501-1504
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) M18	8-98068-006-0	01	1	1505-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) M30	8-98067-038-0	01	1	1501-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0909-1412
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) (A) M36	1-09604-052-0	01	1	1501-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 280L<RF4> (B) M14X14	9-09862-156-0	01	1	0909-
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (A) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1501-1504
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D) L=430	8-98131-037-0	01	1	1505-
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	1501-1504
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (E) L=90	8-98304-415-0	01	1	1505-
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	1501-1504
14	HOSE; BREATHER,OUTLET FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (F) L=540	8-98304-417-0	01	1	1505-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0909-
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4> ID=45 OD=67	1-83149-003-0	01	1	0909-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98099-320-0	01	1	1501-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	0909-1412
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-83141-084-1	01	1	1501-
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	1-83141-118-0	01	1	0909-1505
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	8-98296-673-0	01	1	1506-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-97387-179-0	01	1	1501-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	0909-1412
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5)	1-22440-028-0	01	1	1501-
25	CAP; FILLER,FUEL TANK FUEL TANK 280L<RF4>	1-22440-046-1	01	1	0909-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M5X12 W/LK WASHER	0-36220-512-0	05	1	1501-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER	0-36220-510-0	05	1	0909-1412
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. TAIWAN EQUIPMENT(WW5) M5X10 W/LK WASHER	0-36220-510-0	05	1	1501-
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/PL WASHER	0-36210-410-0	05	1	0909-1505
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK WASHER	0-36220-410-0	05	1	1506-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) L=880	8-98042-715-1	02	1	1501-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> L=790	1-22550-186-2	02	1	0909-1412
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) L=790	1-22550-186-2	02	1	1501-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 280L<RF4>	1-22550-222-3	02	1	0909-
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M12	0-91110-512-0	04	1	1501-
42	NUT; SUPPORT BELT EXC. LOW DECK WO/REAR BODY<PK4> M10	0-91110-510-0	04	1	0909-1412
42	NUT; SUPPORT BELT EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) M10	0-91110-510-0	04	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (C)	8-98254-478-0	01	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (D)	8-98254-479-0	01	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (B)	9-22555-005-0	04	1	0909-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4> (A)	1-53461-206-1	02	1	0909-1412
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A)	1-53461-206-1	02	1	1501-
43	BRACKET; FUEL TANK FUEL TANK 280L<RF4> (A)	1-53461-544-0	02	1	0909-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M10 FLANGE	0-91180-210-0	12	1	1501-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (A) M12	0-91111-512-0	08	1	0909-
49	NUT; BRKT PRE FUEL FILTER(W21) (B) M10 FLANGE	0-91180-210-0	02	1	0909-
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) M12	0-91110-512-0	08	1	0909-1412
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A) M12	0-91110-512-0	08	1	1501-
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M10X35 FLANGE	0-28651-035-0	12	1	1501-
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (C) M12X359	9-22559-030-2	04	1	0909-
51	BOLT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4> (A) M12X35 FLANGE	0-28651-235-0	08	1	0909-1412
51	BOLT; BRKT TO FRAME EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A) M12X35 FLANGE	0-28651-235-0	08	1	1501-
158	VALVE; ROLL OVER & FLOAT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98067-039-0	02	1	1501-
159	SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) ID=45 OD=67	1-83149-003-0	02	1	1501-
369	JOINT; HOSE FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98067-080-0	01	1	1501-
635	SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) M5X10 W/LK WASHER	0-36220-510-0	10	1	1501-
640	VENTILATOR; HOSE,BREATHER FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5)	8-98092-398-0	01	1	1501-

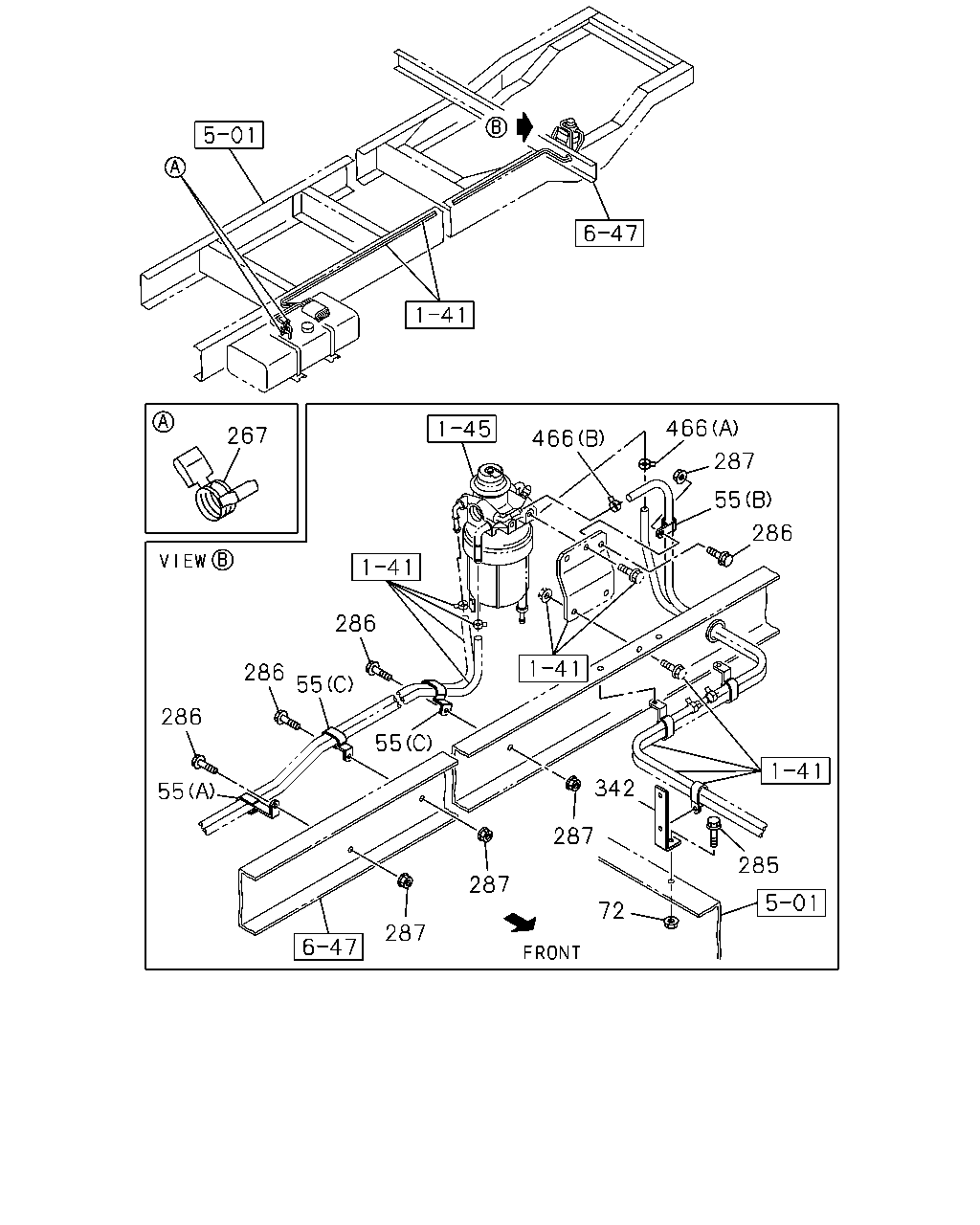

55 286 287 466 466 267 286 286 286 55 55 287 72 287 287 342 285 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	CLIP; FUEL PIPE (A) ID=20 L=60	1-09700-901-0	01	1	0909-
55	CLIP; FUEL PIPE (B) ID=14.5 L=20	1-09701-012-0	01	1	0909-
55	CLIP; FUEL PIPE (C) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0909-
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0909-
267	CLIP; BAND,VINYL PIPE PRE FUEL FILTER(W21) ID=14	1-09704-102-0	02	1	1501-
267	CLIP; BAND,VINYL PIPE EXC. TAIWAN EQUIPMENT(WW5) ID=14	1-09704-102-0	02	1	1501-
267	CLIP; BAND,VINYL PIPE ID=14	1-09704-102-0	02	1	0909-1412
267	CLIP; BAND,VINYL PIPE PRE FUEL FILTER(W21) ID=14	1-09704-102-0	02	1	0909-1412
267	CLIP; BAND,VINYL PIPE TAIWAN EQUIPMENT(WW5) ID=14	1-09704-102-0	01	1	1501-
285	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0909-
286	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0909-
286	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0909-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0909-
342	BRACKET; FUEL HOSE L=120 H=35	1-82698-088-0	01	1	0909-
466	CLIP (A) ID=14	1-09704-102-0	01	1	0909-
466	CLIP (B) ID=13	8-94238-571-0	01	1	0909-

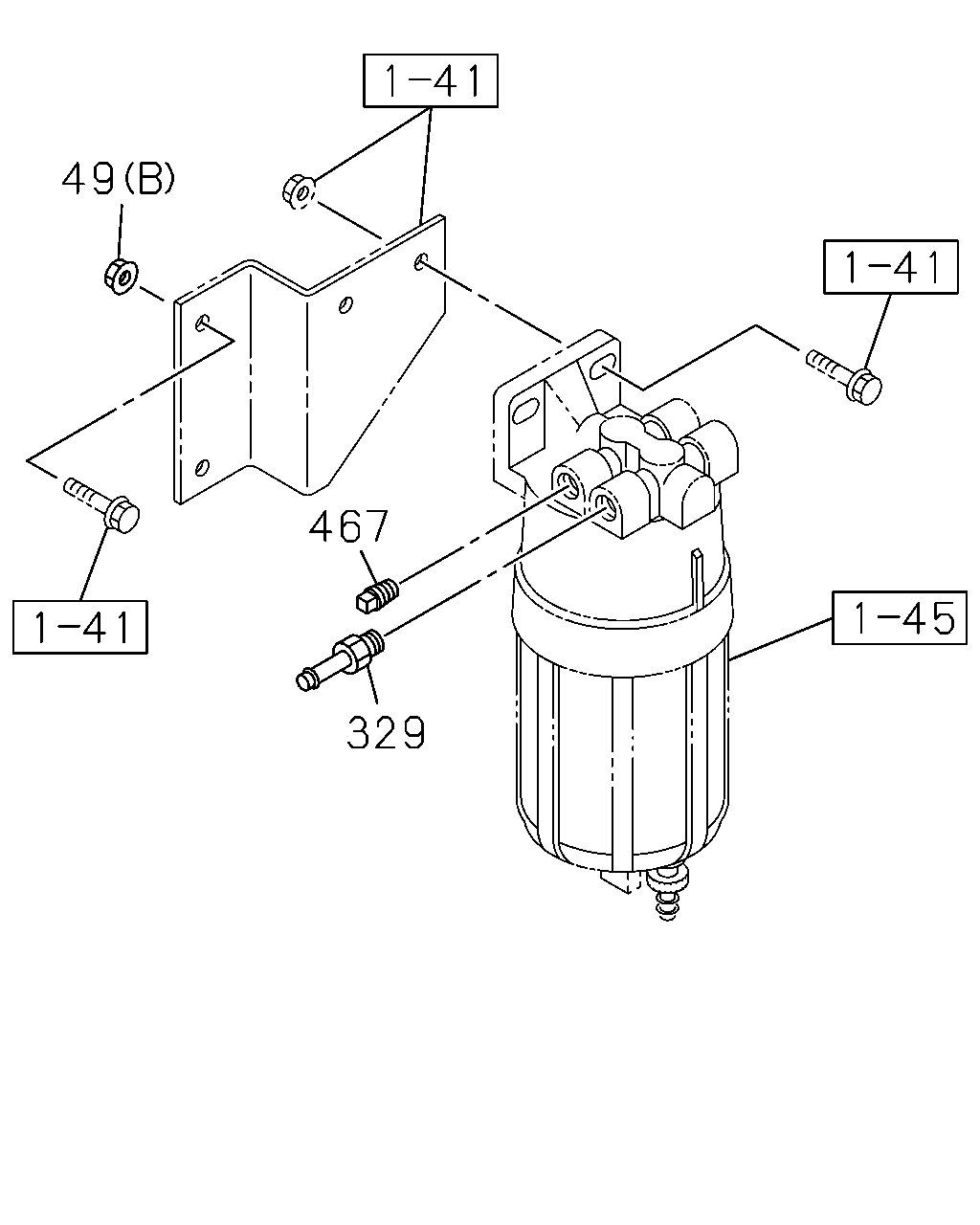

49 467 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> TAIWAN EQUIPMENT(WW5) (B) M10 FLANGE	0-91180-210-0	12	1	1501-
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> LOW DECK WO/REAR BODY<PK4> (A) M12	0-91111-512-0	08	1	0909-
49	NUT; BRKT PRE FUEL FILTER(W21) (B) M10 FLANGE	0-91180-210-0	02	1	0909-
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4> (A) M12	0-91110-512-0	08	1	0909-1412
49	NUT; BRKT EXC. LOW DECK WO/REAR BODY<PK4>,TAIWAN EQUIPMENT(WW5) (A) M12	0-91110-512-0	08	1	1501-
329	JOINT ASM; EYE,FUEL PIPE NPTF3/8-18 OD=10	8-98122-953-0	02	1	0909-1412
329	JOINT ASM; EYE,FUEL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1501-
467	BOLT NPTF3/8-18	8-97329-623-0	02	1	0909-1412
467	BOLT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) NPTF3/8-18	8-97329-623-0	02	1	1501-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
