1-31 — AIR DUCT (#58232) — 135 parça

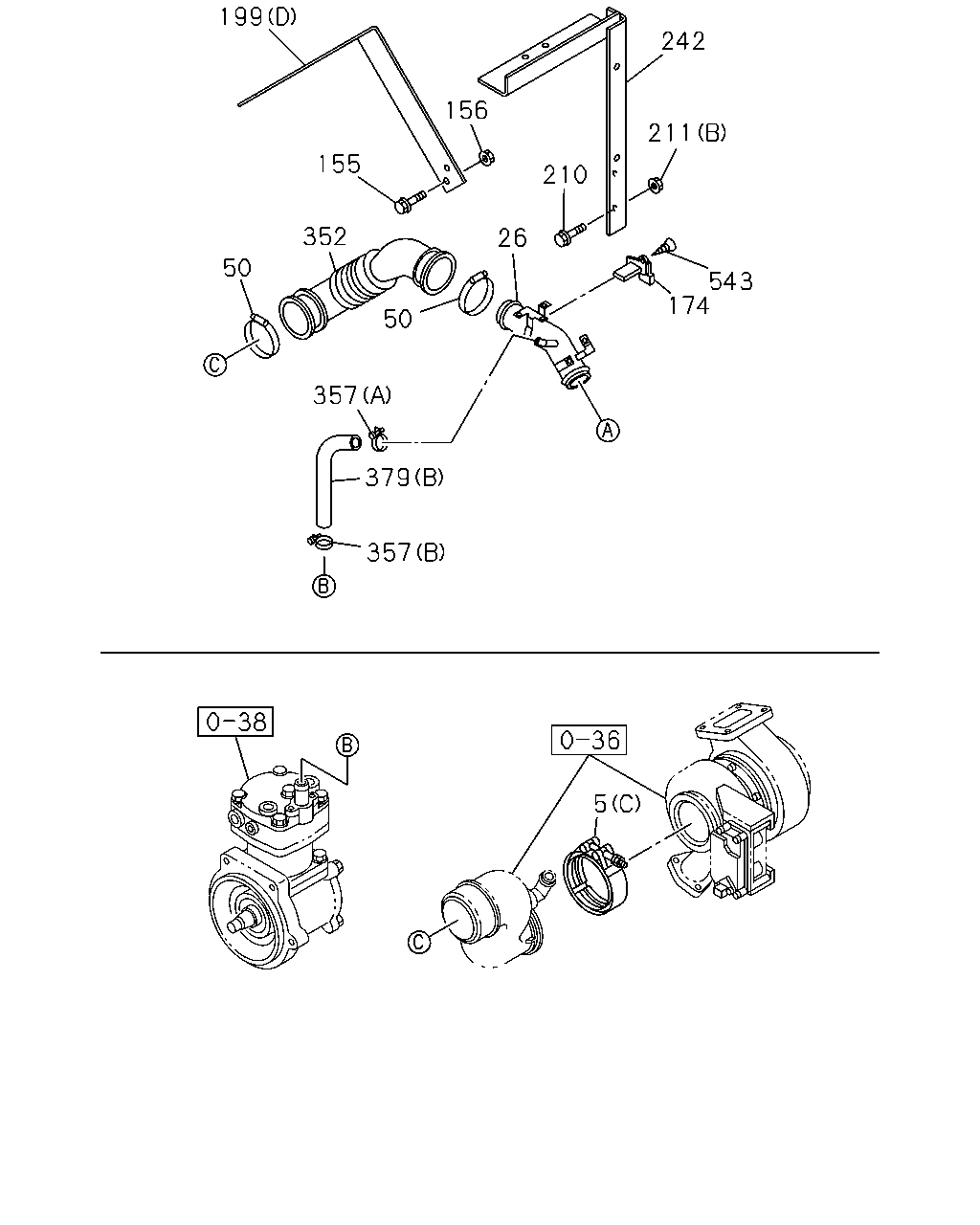

199 156 155 352 50 210 211 242 543 174 26 50 357 379 357 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	0911-
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169	8-98155-950-0	01	1	0911-
5	CLIP; AIR DUCT EURO3 SPECIFICATION(NT3) (C) ID=114	8-15178-030-0	01	1	0909-1412
5	CLIP; AIR DUCT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=114	8-15178-030-0	01	1	1501-
5	CLIP; AIR DUCT (D) ID=104-142	1-09707-155-0	01	1	0909-1211
5	CLIP; AIR DUCT (E) ID=130-169	1-09707-157-0	01	1	0909-1211
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0909-0910
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	0911-
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0909-0910
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=130-150	8-98133-360-0	01	1	0911-
26	DUCT; AIR INT	8-98030-607-3	01	1	0909-
50	CLIP; JOINT HOSE EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	02	1	1002-
50	CLIP; JOINT HOSE EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	02	1	0911-0911
50	CLIP; JOINT HOSE EXC. KD PREPARATORY PACK<6HF> ID=104-142	1-09707-139-0	02	1	0911-0911
50	CLIP; JOINT HOSE EURO2 SPECIFICATION(NT2) ID=100-120	8-98133-366-0	01	1	0909-0910
50	CLIP; JOINT HOSE EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> ID=100-120	8-98133-366-0	01	1	0911-0911
50	CLIP; JOINT HOSE KD PREPARATORY PACK<6HF> ID=100-120	8-98133-366-0	01	1	0911-0911
50	CLIP; JOINT HOSE ID=100-120	8-98133-366-0	01	1	0911-1001
50	CLIP; JOINT HOSE KD PREPARATORY PACK<6HF> ID=100-120	8-98133-366-0	01	1	1002-
50	CLIP; JOINT HOSE EURO2 SPECIFICATION(NT2) ID=120-140	8-98133-367-0	01	1	0909-0910
50	CLIP; JOINT HOSE EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> ID=120-140	8-98133-367-0	01	1	0911-0911
50	CLIP; JOINT HOSE EURO2 SPECIFICATION(NT2) ID=120-140	8-98133-367-0	01	1	0911-1001
50	CLIP; JOINT HOSE EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> ID=120-140	8-98133-367-0	01	1	1002-
50	CLIP; JOINT HOSE EURO3 SPECIFICATION(NT3) ID=120-140	8-98133-367-0	02	1	0909-0910
50	CLIP; JOINT HOSE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> ID=120-140	8-98133-367-0	02	1	0911-0911
50	CLIP; JOINT HOSE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	01	1	0911-0911
50	CLIP; JOINT HOSE EURO3 SPECIFICATION(NT3) ID=110-130	8-98133-359-0	01	1	0911-1001
50	CLIP; JOINT HOSE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	01	1	0911-1001
50	CLIP; JOINT HOSE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	02	1	1002-1412
50	CLIP; JOINT HOSE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> ID=110-130	8-98133-359-0	02	1	1501-
155	BOLT; BRKT M10X30 FLANGE	0-28061-030-0	02	1	0909-
155	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0909-
155	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0909-
156	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0909-
174	SENSOR; AIR FLOW CONT EURO3 SPECIFICATION(NT3)	8-97601-967-0	01	1	0909-1412
174	SENSOR; AIR FLOW CONT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97601-967-0	01	1	1501-
199	BRACKET; PIPE (B)	1-14239-272-1	01	1	0909-
199	BRACKET; PIPE (C)	1-14239-273-2	01	1	0909-
199	BRACKET; PIPE (D)	8-97615-577-0	01	1	0909-
199	BRACKET; PIPE (A)	8-98105-136-0	01	1	0909-
210	BOLT; ACL BRKT M8X25 FLANGE	0-28650-825-0	02	1	0909-
210	BOLT; ACL BRKT M10X30 FLANGE	0-28651-030-0	10	1	0909-
211	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0909-1507
211	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
211	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	08	1	0909-
242	BRACKET; AIR DUCT	8-97615-748-1	01	1	0909-
352	HOSE; RUBBER,AIR DUCT TO ENG EURO2 SPECIFICATION(NT2)	8-98118-538-0	01	1	0909-
352	HOSE; RUBBER,AIR DUCT TO ENG EURO3 SPECIFICATION(NT3)	8-98004-246-0	01	1	0909-1412
352	HOSE; RUBBER,AIR DUCT TO ENG EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98004-246-0	01	1	1501-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (D) ID=87-116	1-09707-138-0	01	1	0911-
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	02	1	0911-
357	CLIP; RUBBER HOSE (A) ID=36	1-09704-094-0	01	1	0909-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0909-
357	CLIP; RUBBER HOSE (C) ID=75-95	8-98133-357-0	02	1	0909-0910
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	02	1	0911-
357	CLIP; RUBBER HOSE (D) ID=80-100	8-98133-358-0	01	1	0909-0910
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (D) ID=80-100	8-98133-358-0	01	1	0911-
379	HOSE; RUBBER (A)	1-09360-998-0	01	1	0909-1408
379	HOSE; RUBBER (A)	8-98245-236-0	01	1	1409-
379	HOSE; RUBBER (B)	8-98041-307-0	01	1	0909-
543	SCREW; SENSOR EURO2 SPECIFICATION(NT2) M5X14 W/LK WASHER	0-36220-514-0	01	1	0909-
543	SCREW; SENSOR EURO2 SPECIFICATION(NT2) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0909-
543	SCREW; SENSOR EURO3 SPECIFICATION(NT3) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0909-1412
543	SCREW; SENSOR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1501-

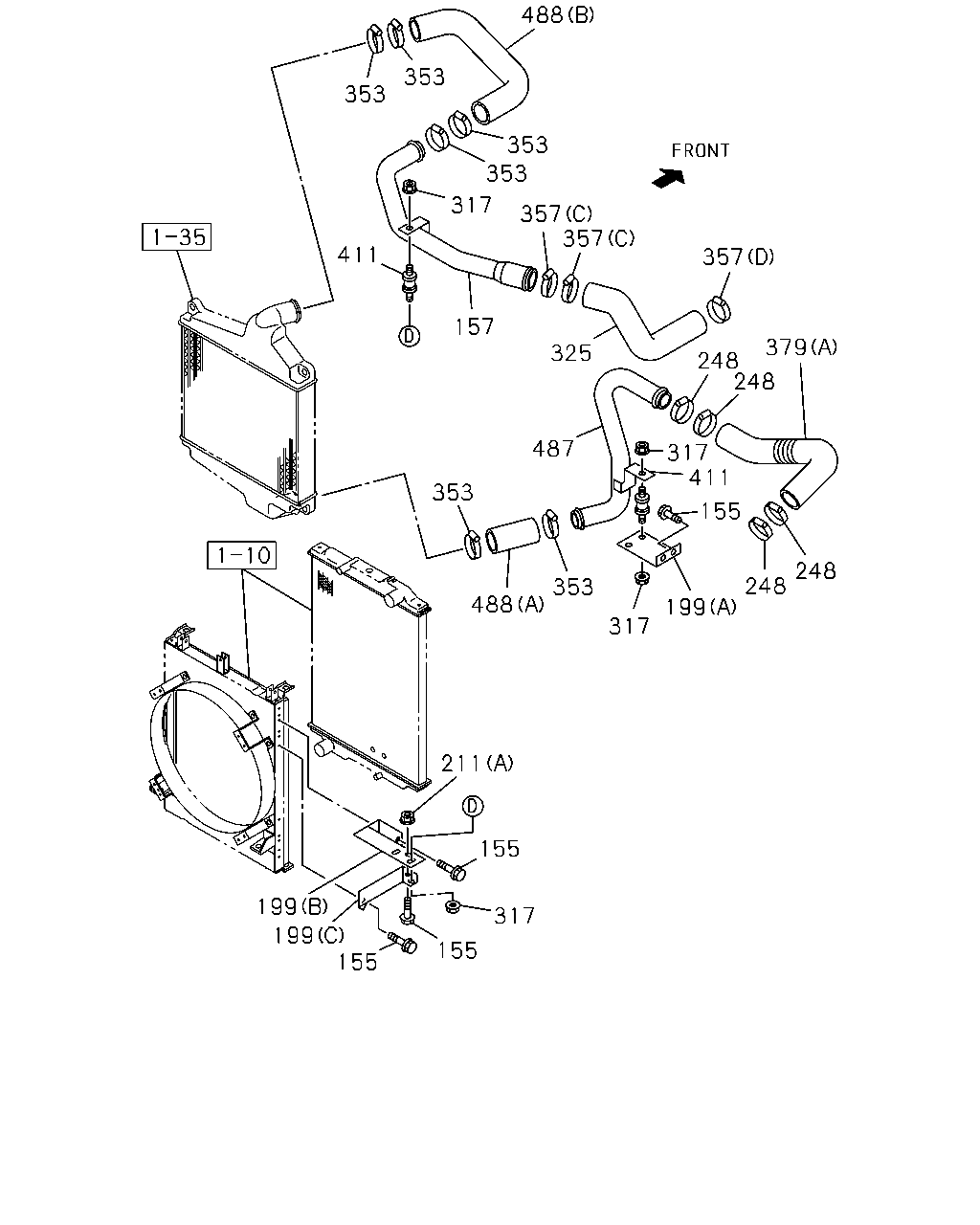

488 353 353 353 353 317 411 357 357 157 325 357 379 248 248 317 411 155 248 248 199 317 353 488 353 487 211 155 317 155 155 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	BOLT; BRKT M10X30 FLANGE	0-28061-030-0	02	1	0909-
155	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0909-
155	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0909-
157	PIPE; AIR	1-14121-181-0	01	1	0909-
199	BRACKET; PIPE (B)	1-14239-272-1	01	1	0909-
199	BRACKET; PIPE (C)	1-14239-273-2	01	1	0909-
199	BRACKET; PIPE (D)	8-97615-577-0	01	1	0909-
199	BRACKET; PIPE (A)	8-98105-136-0	01	1	0909-
211	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0909-1507
211	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
211	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	08	1	0909-
248	CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	03	1	0911-
248	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	04	1	0911-1412
248	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	04	1	1501-
248	CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) ID=65-85	8-98133-350-0	03	1	0909-0910
248	CLIP; RUBBER HOSE EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	03	1	0911-
248	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) ID=65-85	8-98133-350-0	04	1	0909-0910
248	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	04	1	0911-1412
248	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	04	1	1501-
317	NUT; CUSHION RUBBER M8 FLANGE	0-91180-108-0	04	1	0909-
325	HOSE; RUBBER,ENG TO PIPE	1-09361-149-0	01	1	0909-
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	06	1	0911-
353	CLIP; RUBBER HOSE ID=65-85	8-98133-350-0	06	1	0909-0910
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	06	1	0911-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (D) ID=87-116	1-09707-138-0	01	1	0911-
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=75-95	8-98133-357-0	02	1	0911-
357	CLIP; RUBBER HOSE (A) ID=36	1-09704-094-0	01	1	0909-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0909-
357	CLIP; RUBBER HOSE (C) ID=75-95	8-98133-357-0	02	1	0909-0910
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99	1-09707-141-0	02	1	0911-
357	CLIP; RUBBER HOSE (D) ID=80-100	8-98133-358-0	01	1	0909-0910
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (D) ID=80-100	8-98133-358-0	01	1	0911-
379	HOSE; RUBBER (A)	1-09360-998-0	01	1	0909-1408
379	HOSE; RUBBER (A)	8-98245-236-0	01	1	1409-
379	HOSE; RUBBER (B)	8-98041-307-0	01	1	0909-
411	RUBBER; CUSHION	8-94394-268-1	02	1	0909-
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION(NT2)	8-98117-493-1	01	1	0909-
487	PIPE; TURBO TO CHARGE AIR COOLER EURO3 SPECIFICATION(NT3)	8-98105-143-1	01	1	0909-1412
487	PIPE; TURBO TO CHARGE AIR COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98105-143-1	01	1	1501-
488	HOSE; RUBBER,PIPE EURO2 SPECIFICATION(NT2) (A)	8-98251-412-0	01	1	1409-
488	HOSE; RUBBER,PIPE (B)	1-09361-002-0	01	1	0909-
488	HOSE; RUBBER,PIPE (A)	8-98105-423-0	01	1	0909-1408
488	HOSE; RUBBER,PIPE EURO3 SPECIFICATION(NT3) (A)	8-98251-411-0	01	1	1409-1412
488	HOSE; RUBBER,PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98251-411-0	01	1	1501-

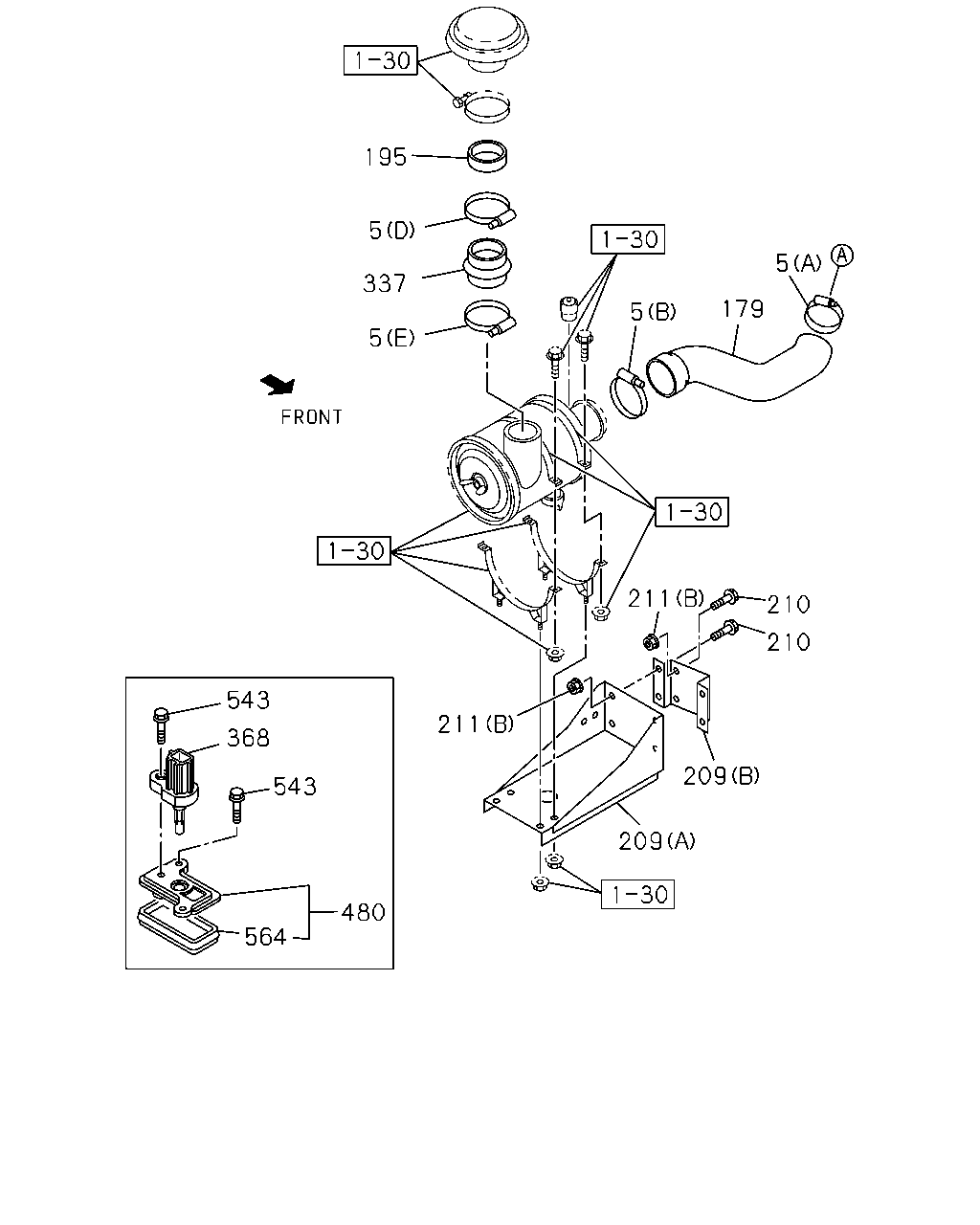

195 5 5 337 5 179 5 211 210 210 209 209 211 543 368 543 480 564

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	0911-
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169	8-98155-950-0	01	1	0911-
5	CLIP; AIR DUCT EURO3 SPECIFICATION(NT3) (C) ID=114	8-15178-030-0	01	1	0909-1412
5	CLIP; AIR DUCT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) ID=114	8-15178-030-0	01	1	1501-
5	CLIP; AIR DUCT (D) ID=104-142	1-09707-155-0	01	1	0909-1211
5	CLIP; AIR DUCT (E) ID=130-169	1-09707-157-0	01	1	0909-1211
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0909-0910
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	0911-
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0909-0910
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=130-150	8-98133-360-0	01	1	0911-
179	HOSE; AIR INT	8-98101-783-1	01	1	0909-
195	PIPE; CONN	8-98105-942-0	01	1	0909-1211
209	BRACKET; ACL (A)	1-53497-605-3	01	1	0909-
209	BRACKET; ACL (B)	1-53497-668-0	01	1	0909-
210	BOLT; ACL BRKT M8X25 FLANGE	0-28650-825-0	02	1	0909-
210	BOLT; ACL BRKT M10X30 FLANGE	0-28651-030-0	10	1	0909-
211	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0909-1507
211	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1508-
211	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	08	1	0909-
337	HOSE; CONN,DUCT TO RESONATOR	1-14231-970-0	01	1	0909-1211
368	SENSOR; TEMP EURO2 SPECIFICATION(NT2)	8-98065-377-0	01	1	0909-
480	ADAPTER EURO2 SPECIFICATION(NT2)	8-98086-417-0	01	1	0909-
543	SCREW; SENSOR EURO2 SPECIFICATION(NT2) M5X14 W/LK WASHER	0-36220-514-0	01	1	0909-
543	SCREW; SENSOR EURO2 SPECIFICATION(NT2) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0909-
543	SCREW; SENSOR EURO3 SPECIFICATION(NT3) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0909-1412
543	SCREW; SENSOR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1501-
564	GASKET; ADAPTER EURO2 SPECIFICATION(NT2)	8-98071-416-0	01	1	0909-
