◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#58231) — 22 parça

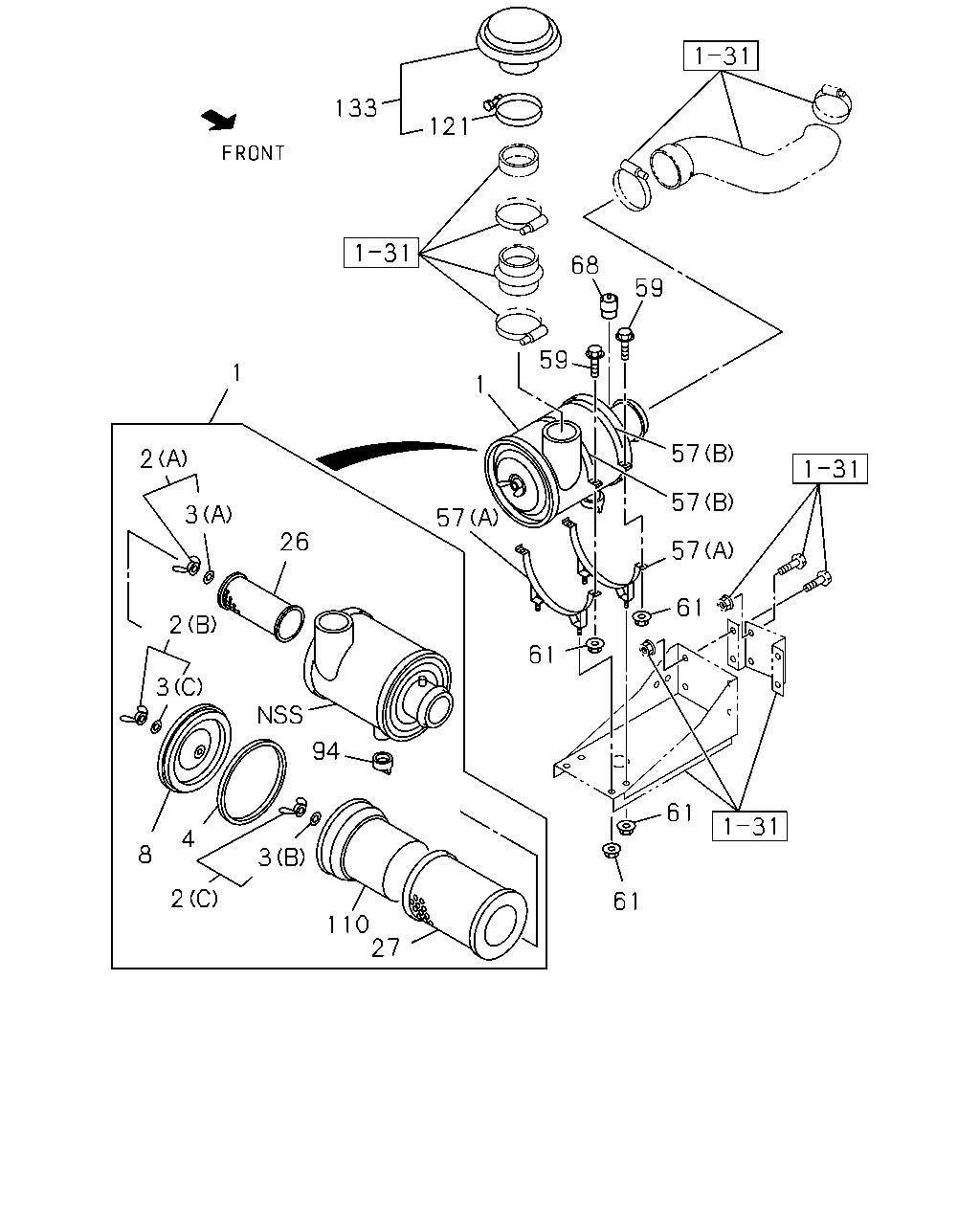

çizim 163272
133 68 121 59 59 1 57 57 57 61 57 61 26 2 1 3 2 3 94 110 27 3 2 8 4 61 61
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 8-97600-038-0 01 1 0909-
2 NUT; WING,ELEMENT
(A) 		1-14217-003-0 01 1 0909-
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 0909-
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 0909-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-032-0 01 1 0909-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 0909-
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 0909-
4 GASKET; COVER TO BODY 1-14218-128-0 01 1 0909-
8 COVER ASM; ACL 1-14212-064-0 01 1 0909-
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0909-
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0909-
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0909-
57 BAND; ACL
(A) 		1-53419-249-0 02 1 0909-
57 BAND; ACL
(B) 		1-53419-251-0 02 1 0909-
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28651-030-0 04 1 0909-
61 NUT; ACL BAND
M10 FLANGE 		0-91180-210-0 08 1 0909-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0909-
94 VALVE; VACUATOR 1-14219-129-0 01 1 0909-
110 ADAPTER; ACL 1-14219-175-0 01 1 0909-
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 0909-1211
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 0909-1211
133 HOOD ASM; INL,ACL 1-14219-200-0 01 1 1212-
