4-50 — FRONT SUSPENSION (#5823) — 121 parça

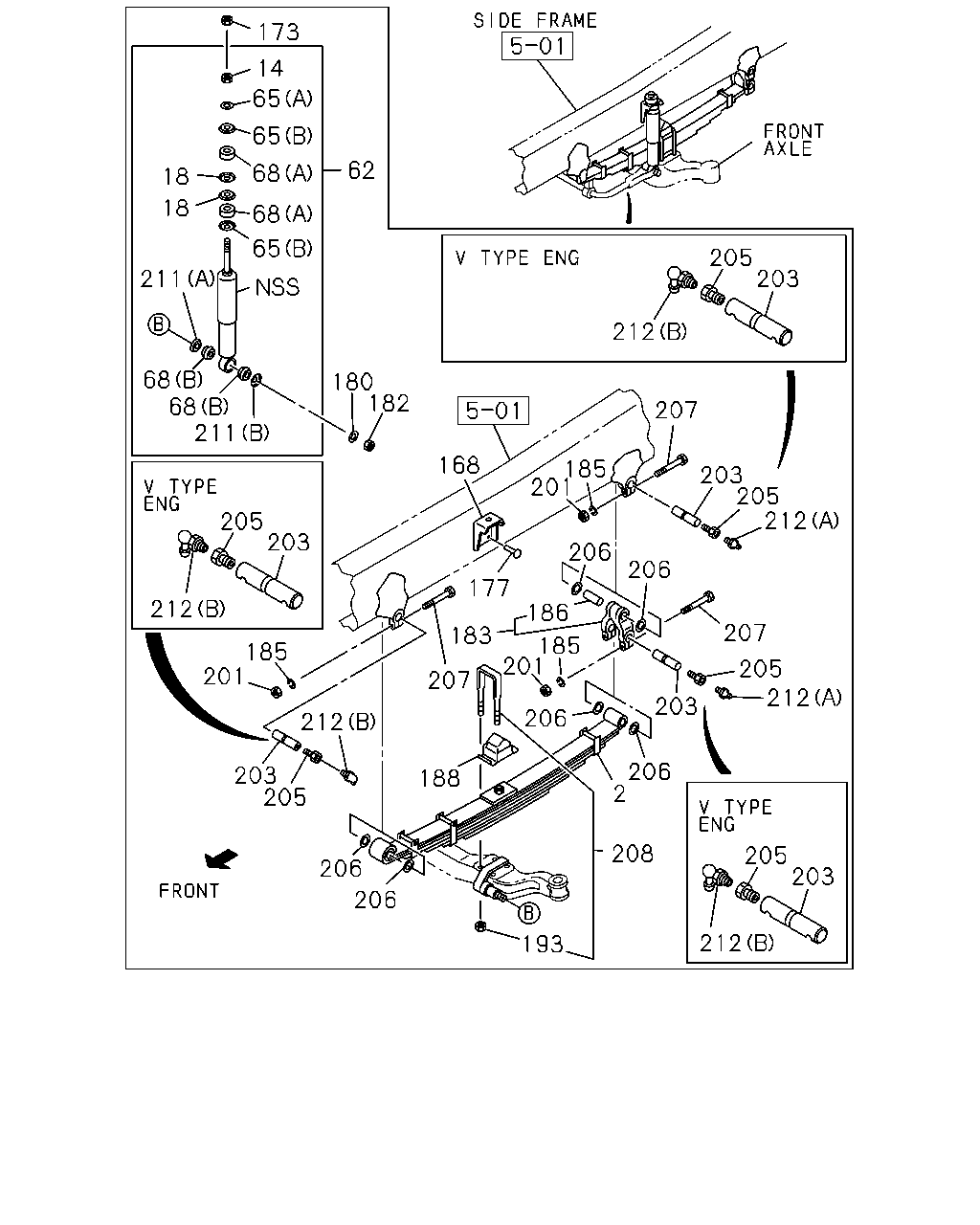

çizim 7656
173 14 65 65 62 68 18 18 68 65 205 203 211 212 68 68 211 180 182 207 168 185 201 203 205 212 205 203 206 206 177 186 212 207 183 185 201 185 201 205 212 207 203 206 212 206 2 203 205 188 208 205 203 206 206 212 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) NEW ZEALAND EQUIPMENT(PK5) 		1-51130-776-0 02 1 0012- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) NEW ZEALAND EQUIPMENT(PK5) 		1-51130-776-0 02 1 0012- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-245-0 02 1 9603-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-207-0 02 1 9603-0011 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-207-0 02 1 9603-0011 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-51130-207-0 02 1 0012- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-51130-207-0 02 1 0012- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-246-0 02 1 9603-9904 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-246-0 02 1 9905- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9603- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9603- ● ●
62 ABSORBER ASM; SHOCK,FRT
NEW ZEALAND EQUIPMENT(PK5) 		1-51630-433-1 02 1 0012- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9603-0011 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-51630-417-0 02 1 0012- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0012- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9603- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9603- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9603- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9603- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9603- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9603- ● ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9603-9611 ● ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9612- ● ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9603- ● ●
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9603- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9603- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9603-9606 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9609- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9603- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51172-086-0 02 1 9603-9904 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 9603- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9603- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-096-0 02 1 9603-9904 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-096-0 02 1 9905- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9603- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9603-9606 ● ●
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9603- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9603- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9603- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9603-9606 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-1 04 1 9603-9904 ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41) L=230 		1-87870-269-1 04 1 9603-9904 ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9905- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-1 04 1 9905- ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-380-0 04 1 9603-9904 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-380-0 04 1 9905- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9603- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) PT1/8 ELBOW 		9-09031-210-0 06 1 9603- ● ●

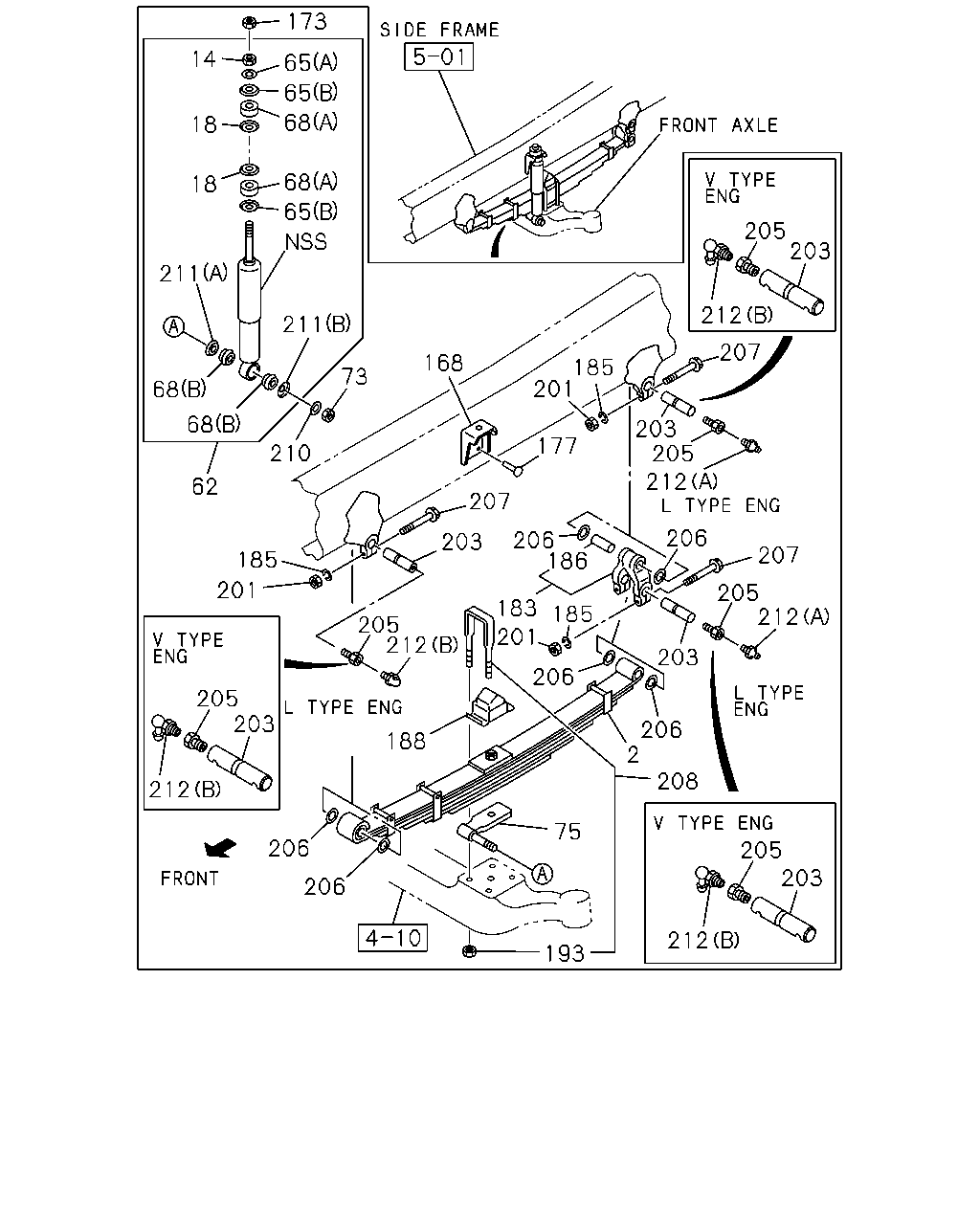

çizim 7817
173 14 65 65 68 18 68 18 65 205 203 211 212 211 207 168 185 201 73 68 68 203 205 212 177 210 207 62 206 206 186 203 207 185 201 205 212 183 205 212 185 201 203 206 205 203 206 2 188 208 212 75 206 205 203 206 212 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) NEW ZEALAND EQUIPMENT(PK5) 		1-51130-776-0 02 1 0012- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) NEW ZEALAND EQUIPMENT(PK5) 		1-51130-776-0 02 1 0012- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-245-0 02 1 9603-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-207-0 02 1 9603-0011 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-207-0 02 1 9603-0011 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-51130-207-0 02 1 0012- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-51130-207-0 02 1 0012- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-246-0 02 1 9603-9904 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-246-0 02 1 9905- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9603- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9603- ● ●
62 ABSORBER ASM; SHOCK,FRT
NEW ZEALAND EQUIPMENT(PK5) 		1-51630-433-1 02 1 0012- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9603-0011 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-51630-417-0 02 1 0012- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 0012- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9603- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9603- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9603- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9603- ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9603- ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-2 01 1 9603-0002 ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 0003- ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-2 01 1 9603-0002 ● ●
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 0003- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9603- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9603- ● ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9603-9611 ● ●
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		9-06771-336-0 08 1 9612- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9603- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9603-9606 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9609- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9603- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-51172-086-0 02 1 9603-9904 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 9603- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9603- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-096-0 02 1 9603-9904 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-096-0 02 1 9905- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9603- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9603-9606 ● ●
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9603- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9603- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9603- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9603-9606 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-1 04 1 9603-9904 ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41) L=230 		1-87870-269-1 04 1 9603-9904 ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9905- ● ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) L=230 		1-87870-269-1 04 1 9905- ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SUSPENSION HEAVY DUTY VAR2(F41),FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-380-0 04 1 9603-9904 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60) L=210 		1-87870-380-0 04 1 9905- ● ●
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9603- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9603- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) PT1/8 ELBOW 		9-09031-210-0 06 1 9603- ● ●
çizim 10457
140 377 393 138 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-111-0 01 1 9603- ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-112-0 01 1 9603- ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 02 1 9603- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X50 		9-92061-450-0 04 1 9603- ● ●
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 04 1 9707- ● ●
393 WASHER; PL
FRONT STABILIZER SHAFT<F59> ID=15 		9-09651-069-0 04 1 9603-9706 ● ●
393 WASHER; PL
FRONT STABILIZER SHAFT<F59> EXC. SILENCER SINGLE VERTICAL<N28> ID=15 		9-09651-069-0 04 1 9707-9904 ● ●
