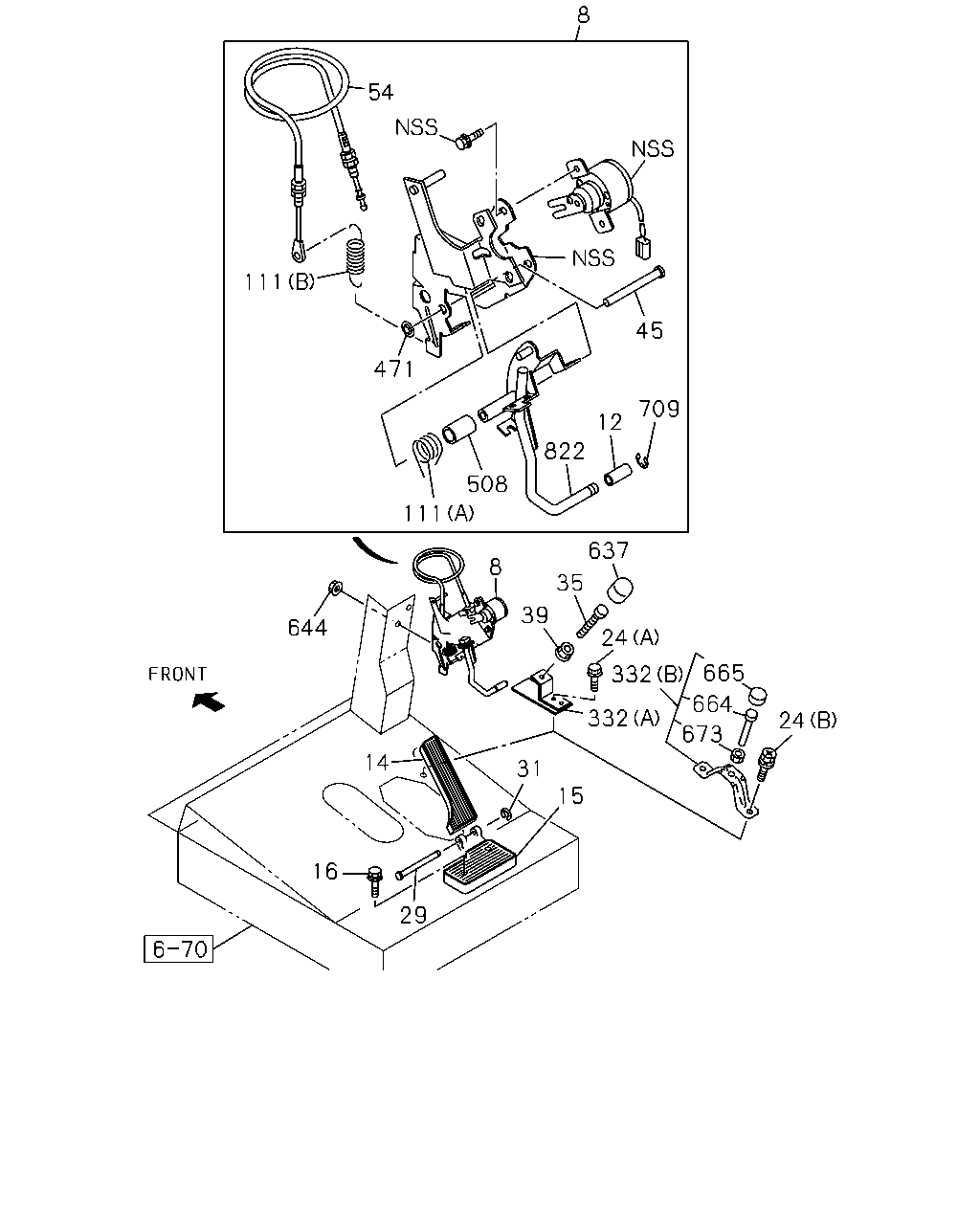

1-01 — ACCELERATOR PEDAL AND CONTROL (#58227) — 26 parça

8 54 111 471 45 12 709 822 508 111 8 35 39 637 24 332 332 665 664 673 24 15 31 14 16 29 644

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LINK ASM; ENG CONT	1-23240-112-2	01	1	0909-
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	0909-1101
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0909-
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0909-
16	SCREW; HEEL STAND,ACCEL PEDAL M6X30 W/PL WASHER	1-09981-448-0	02	1	0909-
24	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0909-1302
24	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1303-
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	0909-
31	RING; SNAP,ACCEL PEDAL ID=6	0-91805-506-0	01	1	0909-
35	STOPPER; ACCEL PEDAL M8X45	0-20800-845-0	01	1	0909-1302
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	0-91180-108-0	01	1	0909-1302
45	PIN; ACCEL CONT PEDAL OD=8.0 L=69	1-71907-298-0	01	1	0909-
54	CABLE; ENG CONT L=846	1-71907-634-1	01	1	0909-
111	SPRING; RETURN (A)	8-97853-205-1	01	1	0909-
111	SPRING; RETURN (B)	8-97997-917-0	01	1	0909-
332	BRACKET; ACCEL PEDAL STOPPER (A)	1-23335-521-0	01	1	0909-1302
332	BRACKET; ACCEL PEDAL STOPPER (B)	1-73998-937-1	01	1	1303-
471	NUT; LEVER ID=7.9 PUSH NUT	8-94368-617-0	01	1	0909-
508	BUSHING; LINK ROD L=31.5	1-53459-627-0	01	1	0909-
637	GROMMET; ACCEL CABLE RUBBER	1-23249-009-0	01	1	0909-1302
644	NUT; LINK,ENG CONT M8 FLANGE	0-91180-108-0	02	1	0909-
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	1303-
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	1303-
673	NUT; STOPPER M8	0-91111-508-0	01	1	1303-
709	RING; SNAP ID=6	0-91805-506-0	01	1	0909-1101
822	LEVER ASM; ENG CONT	1-23249-030-1	01	1	0909-
