◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11206 - LT134 LHD EURO2/3/5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#58226) — 24 parça

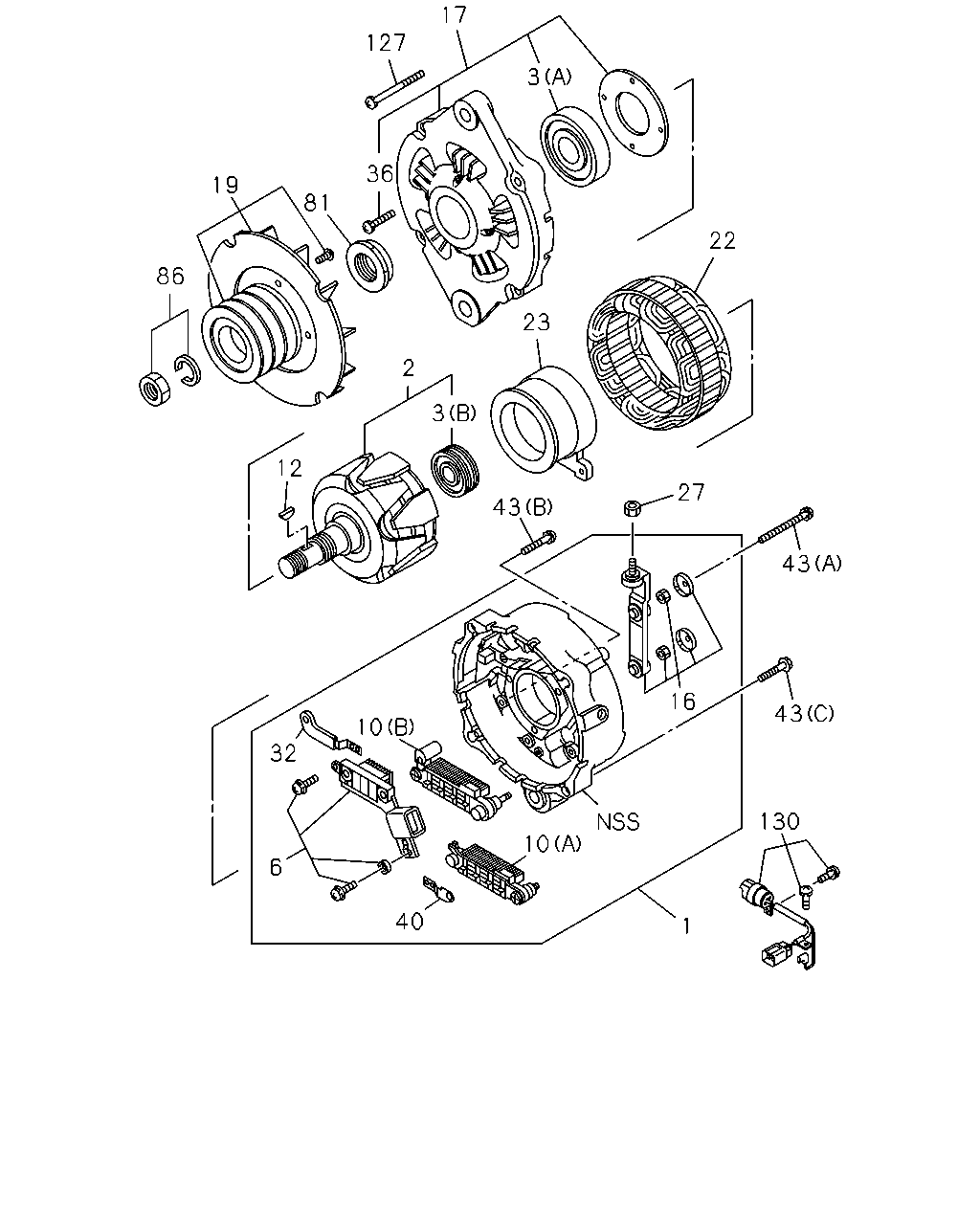

çizim 163251
19 127 17 3 86 81 36 23 22 3 2 12 43 27 43 16 43 10 32 6 40 10 130 1
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98020-154-2 		8-98047-077-1 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98020-154-2 		1-81221-106-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98020-154-2 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98020-154-2 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98020-154-2 		8-98047-080-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 8-98020-154-2 		8-98047-085-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 8-98020-154-2 		8-98047-086-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 8-98020-154-2 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 8-98020-154-2 		1-81229-826-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98020-154-2 		1-81213-110-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98020-154-2 		1-81222-150-3 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98020-154-2 		1-81211-132-1 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 8-98020-154-2 		1-81212-020-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 8-98020-154-2 		1-81229-821-0 01 1 -
32 TERMINAL; RECTIFIER,GEN
ASM PART: A = 8-98020-154-2 		8-98047-090-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 8-98020-154-2 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: A = 8-98020-154-2 		1-81222-148-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 8-98020-154-2 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 8-98020-154-2 		1-81229-817-0 01 1 -
43 SCREW; RR END COVER
(C) ASM PART: A = 8-98020-154-2 		1-81229-925-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 8-98020-154-2 		1-81229-813-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 8-98020-154-2 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 8-98020-154-2 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 8-98020-154-2 		1-81229-829-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
