0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#58224) — 56 parça

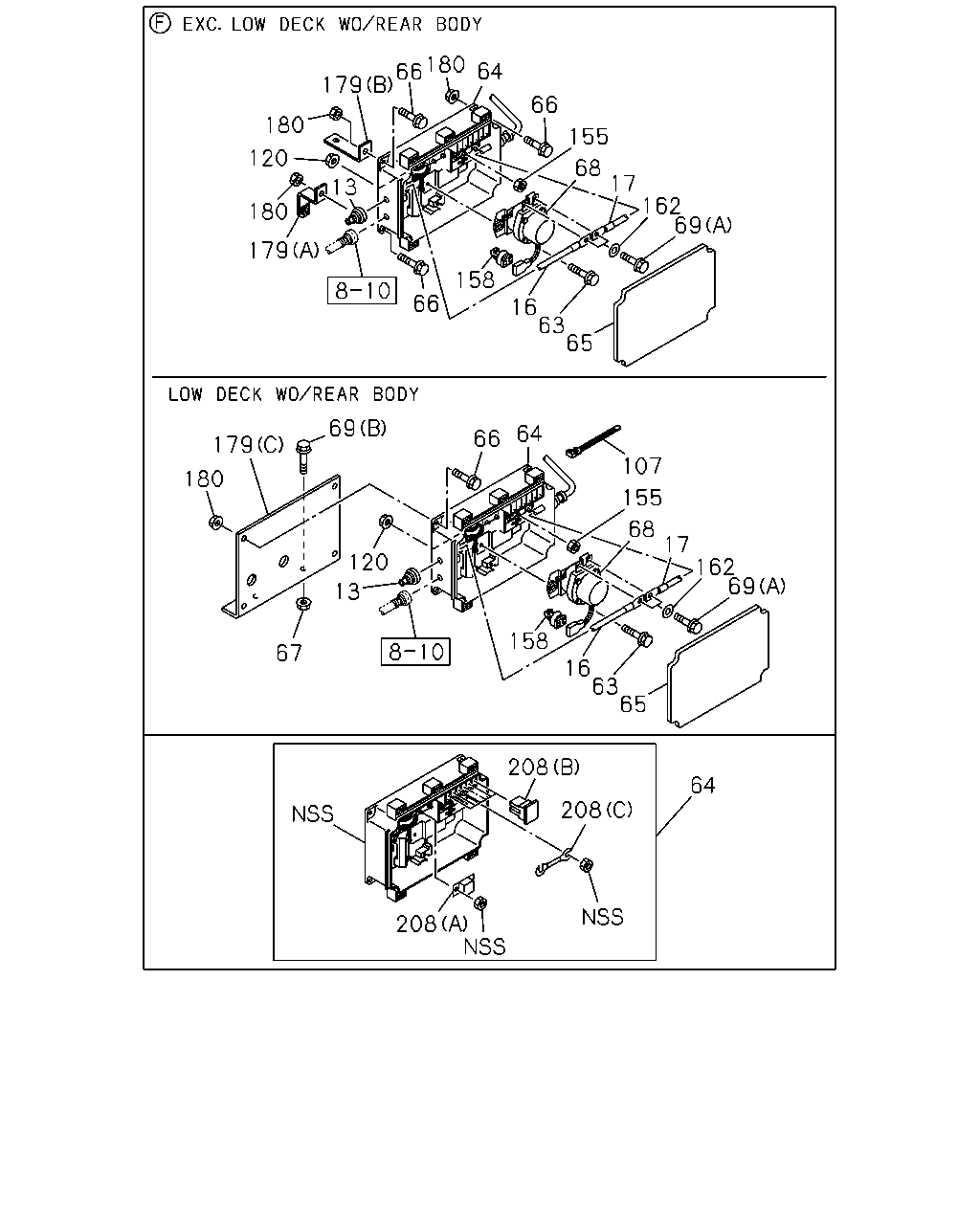

çizim 163249
66 64 180 66 179 180 120 180 179 66 158 65 63 16 17 68 155 162 69 107 68 17 155 162 69 65 63 16 158 13 120 180 179 67 64 208 208 208 66 64 13 69
BalonParca AdiParca NoAdetTipApplied Date
13 GROMMET; BATTERY CABLE
ID=26 		1-09333-140-0 01 1 0909-
16 CABLE; STARTER TO RELAY
L=4400 		1-82652-924-0 01 1 0909-
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 0909-
63 BOLT; RELAY BATTERY
M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0909-
64 BOX; BATTERY RELAY 1-82510-651-0 01 1 0909-
65 COVER; BATTERY RELAY 1-82510-654-1 01 1 0909-
66 BOLT; COVER,BATTERY RELAY
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0909-
67 NUT; BRKT
LOW DECK WO/REAR BODY<PK4> M10 FLANGE 		0-91180-210-0 02 1 0909-
68 RELAY; BATTERY 1-82550-313-0 01 1 0909-
69 BOLT; CABLE BATTERY
LOW DECK WO/REAR BODY<PK4> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0909-
69 BOLT; CABLE BATTERY
(A) M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0909-
107 CLIP; BAND
LOW DECK WO/REAR BODY<PK4> L=250 		5-09707-030-1 06 1 0909-
120 NUT; RELAY BATTERY
M8 FLANGE 		0-91180-108-0 02 1 0909-
155 NUT; RELAY,BATTERY
M8 FLANGE 		0-91180-108-0 01 1 0909-
158 CLIP; RELAY
OD=7 H=1.2 		8-94364-750-0 02 1 0909-
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		0-91614-608-0 02 1 0909-
179 BRACKET; COVER
LOW DECK WO/REAR BODY<PK4> (C) 		8-98072-634-1 01 1 0909-
179 BRACKET; COVER
EXC. LOW DECK WO/REAR BODY<PK4> (A) 		1-47478-981-0 02 1 0909-
179 BRACKET; COVER
EXC. LOW DECK WO/REAR BODY<PK4> (B) L=95 		1-82699-085-0 02 1 0909-
180 NUT; COVER
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 02 1 1511-
180 NUT; COVER
M8 FLANGE 		0-91180-108-0 04 1 0909-1510
180 NUT; COVER
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 04 1 1511-
208 FUSE
(A) 80A 		1-82516-031-0 01 1 0909-
208 FUSE
(B) 40A GREEN 		8-94468-662-0 05 1 0909-
208 FUSE
(C) 125A 		9-82941-130-1 01 1 0909-

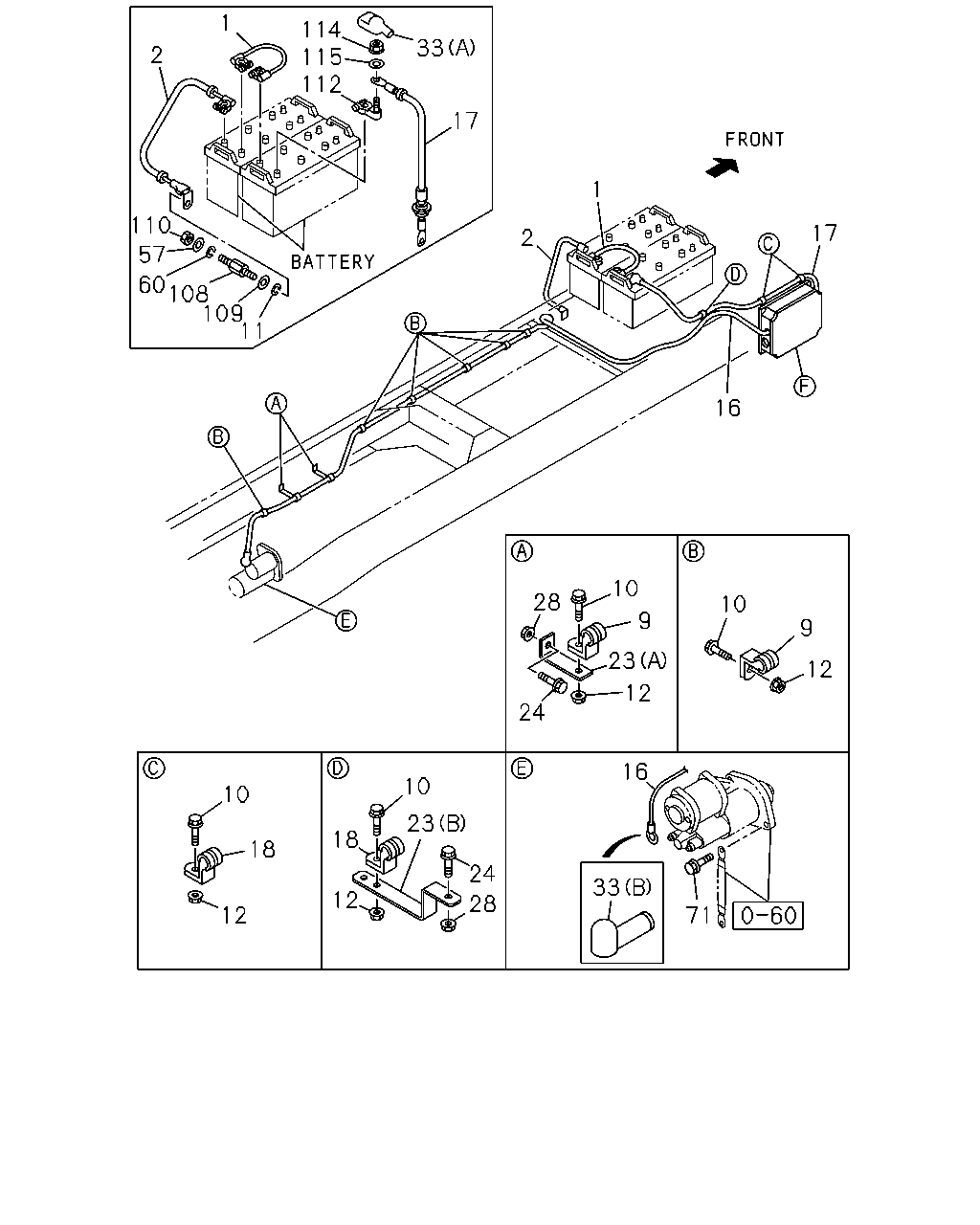

çizim 163250
114 115 112 33 17 1 2 110 57 60 108 109 11 2 1 17 16 10 9 12 71 33 16 12 23 9 10 28 24 10 23 24 28 12 18 12 18 10
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=450 		1-82650-389-1 01 1 0909-
2 CABLE; BATTERY
L=1400 		1-82650-408-0 01 1 0909-
9 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 08 1 0909-
10 BOLT; BATTERY CABLE CLIP
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 08 1 1501-
10 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0909-1412
10 BOLT; BATTERY CABLE CLIP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M8X20 FLANGE 		0-28650-820-0 01 1 1501-
10 BOLT; BATTERY CABLE CLIP
M8X30 FLANGE 		0-28650-830-0 07 1 0909-
10 BOLT; BATTERY CABLE CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8X30 FLANGE 		0-28650-830-0 03 1 0909-
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		0-91614-708-0 01 1 0909-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 07 1 0909-
12 NUT; BATTERY CABLE CLIP
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 03 1 0909-
16 CABLE; STARTER TO RELAY
L=4400 		1-82652-924-0 01 1 0909-
17 CABLE; BATTERY (+) TO RELAY
L=1700 		1-82650-366-1 01 1 0909-
18 CLIP; BATTERY CABLE
EXC. LOW DECK WO/REAR BODY<PK4> ID=20 H=23 L=27 		1-09700-861-0 03 1 0909-
23 BRACKET; CABLE CLIP TO FRAME
(A) L=95 		1-82699-085-0 02 1 0909-
23 BRACKET; CABLE CLIP TO FRAME
EXC. LOW DECK WO/REAR BODY<PK4> (B) 		1-83573-052-0 01 1 0909-
24 BOLT; BRKT TO FRAME
LOW DECK WO/REAR BODY<PK4> M8X35 FLANGE 		0-28650-835-0 02 1 0909-
24 BOLT; BRKT TO FRAME
EXC. LOW DECK WO/REAR BODY<PK4> M8X35 FLANGE 		0-28650-835-0 03 1 0909-
28 NUT; BRKT TO FRAME
LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 02 1 0909-
28 NUT; BRKT TO FRAME
EXC. LOW DECK WO/REAR BODY<PK4> M8 FLANGE 		0-91180-108-0 03 1 0909-
33 CAP; INSULATOR
(A) BLACK 		1-82699-106-0 01 1 0909-
33 CAP; INSULATOR
(B) 		1-82699-431-0 01 1 0909-
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0909-
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0909-
71 BOLT; BATTERY CABLE
M10X20 FLANGE 		0-28051-020-0 01 1 0909-
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0909-
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0909-
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0909-
112 TERMINAL; BATTERY
<+> 		1-82695-175-0 01 1 0909-
114 NUT; CABLE,BATTERY TERMINAL
M10 		0-91110-510-0 01 1 0909-
115 WASHER; LK,CABLE,BATTERY
ID=10.2 		0-91510-510-0 01 1 0909-
