0-57 — EMISSION PIPING (#58222) — 111 parça

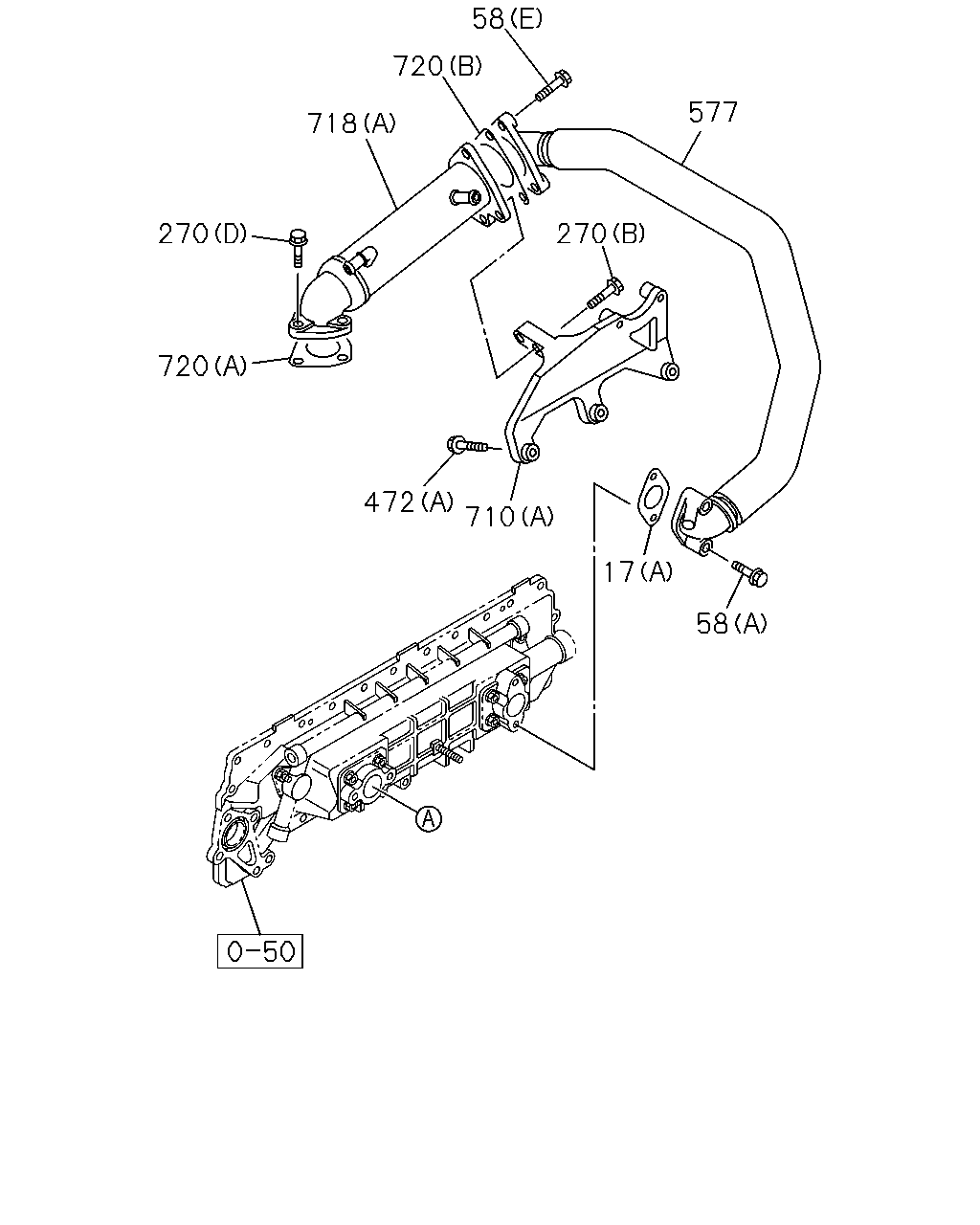

58 720 718 577 270 270 720 472 17 710 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A) ID=44.5	8-97601-144-0	02	1	0909-1412
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=55	8-97600-167-0	01	1	1501-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) ID=44.5	8-97601-144-0	02	1	1501-
58	BOLT; PIPE EURO5 SPECIFICATION(NT5) (A) M8X60 FLANGE	0-28050-860-0	05	1	1501-
58	BOLT; PIPE EURO5 SPECIFICATION(NT5) (E) M10X35 FLANGE	0-28751-035-0	04	1	1501-
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (A) M8X60 FLANGE	0-28050-860-0	02	1	0909-
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (E) M10X35 FLANGE	0-28751-035-0	03	1	0909-
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0909-
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0909-
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0909-
270	BOLT EURO3 SPECIFICATION(NT3) (A) M8X25 FLANGE	0-28050-825-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE	0-28050-825-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (B) M8X35 FLANGE	0-28050-835-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X35 FLANGE	0-28050-835-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (C) M10X45 FLANGE	0-28151-045-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) M10X45 FLANGE	0-28151-045-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (D) M8X28 FLANGE	8-98043-528-0	03	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) M8X28 FLANGE	8-98043-528-0	03	1	1501-
472	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X35 FLANGE	0-28060-835-0	03	1	1501-
472	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X35 FLANGE	0-28060-835-0	03	1	0909-1412
472	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M8X30 FLANGE	0-28050-830-0	02	1	1501-
577	PIPE; AIR,EGR EURO5 SPECIFICATION(NT5)	8-97604-968-1	01	1	1501-
577	PIPE; AIR,EGR EURO3 SPECIFICATION(NT3)	8-98031-049-0	01	1	0909-
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98186-437-0	01	1	1501-
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (A)	8-98125-359-0	01	1	0909-1202
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (A)	8-98186-437-0	01	1	1203-1412
710	BRACKET; EGR COOLER EURO5 SPECIFICATION(NT5) (B)	8-98030-584-0	01	1	1501-
718	COOLER; EGR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98250-860-0	01	1	1501-
718	COOLER; EGR EURO3 SPECIFICATION(NT3) (A)	8-98030-582-3	01	1	0909-1401
718	COOLER; EGR EURO3 SPECIFICATION(NT3) (A)	8-98250-860-0	01	1	1402-1412
718	COOLER; EGR EURO5 SPECIFICATION(NT5) (B)	8-98030-583-1	01	1	1501-
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B) ID=80	8-97603-889-0	01	1	0909-1412
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=80	8-97603-889-0	01	1	1501-
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A) ID=51.5	8-98046-192-1	01	1	0909-1412
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) ID=51.5	8-98046-192-1	01	1	1501-

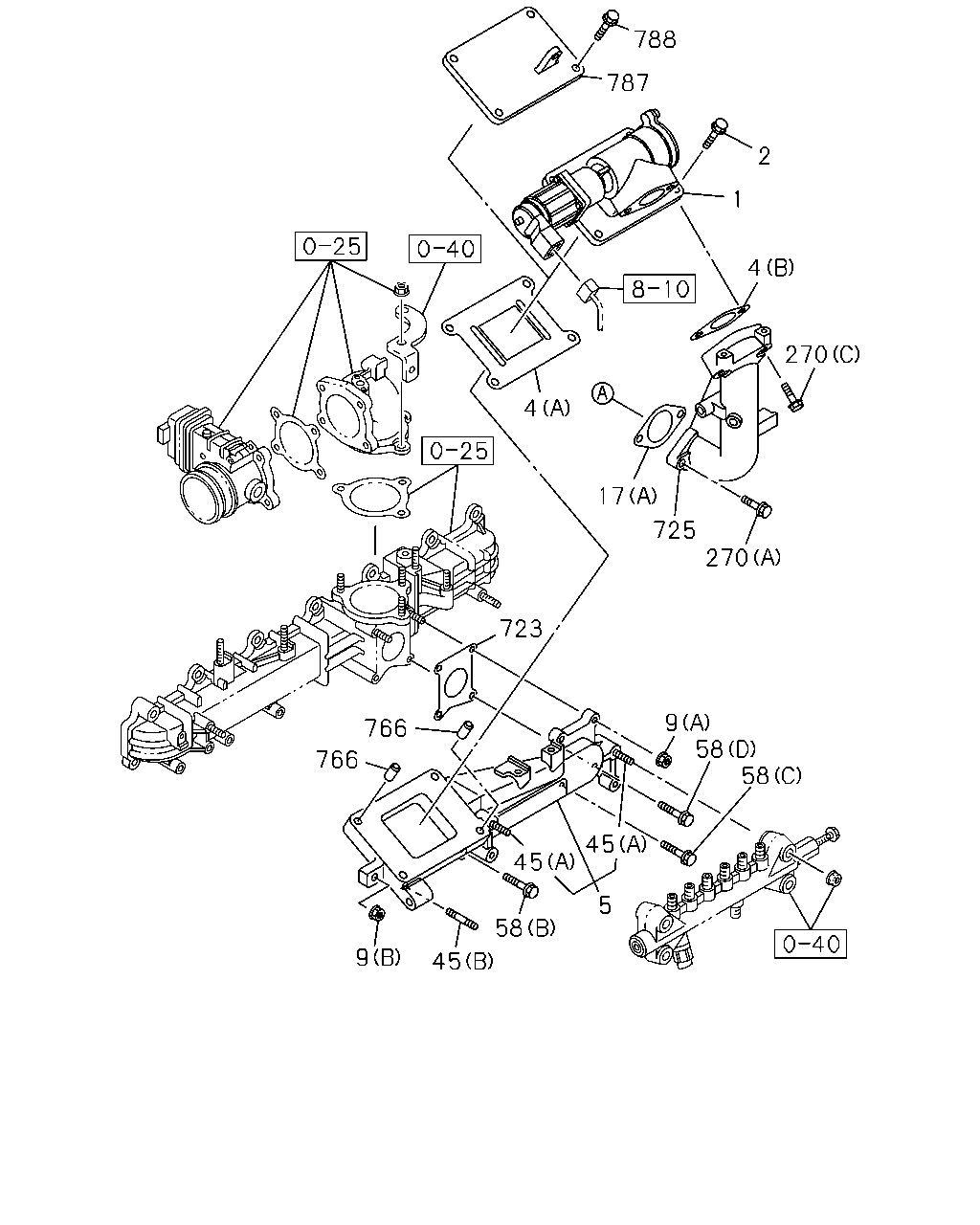

788 787 1 2 4 270 4 17 270 725 9 723 58 58 766 766 45 58 45 9 5 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97383-005-8	01	1	0909-1412
1	VALVE; EGR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97383-005-9	01	1	1501-
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3) M10X35 FLANGE	0-28751-035-0	04	1	0909-1412
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M10X35 FLANGE	0-28751-035-0	04	1	1501-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B) ID=47	8-97603-282-0	01	1	0909-1412
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=47	8-97603-282-0	01	1	1501-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	0909-
5	ADAPTER ASM	8-97606-201-3	01	1	0909-1305
5	ADAPTER ASM	8-98240-157-0	01	1	1306-
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	0909-
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	0909-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A) ID=44.5	8-97601-144-0	02	1	0909-1412
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=55	8-97600-167-0	01	1	1501-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) ID=44.5	8-97601-144-0	02	1	1501-
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	0909-
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	0909-
58	BOLT; PIPE EURO5 SPECIFICATION(NT5) (A) M8X60 FLANGE	0-28050-860-0	05	1	1501-
58	BOLT; PIPE EURO5 SPECIFICATION(NT5) (E) M10X35 FLANGE	0-28751-035-0	04	1	1501-
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (A) M8X60 FLANGE	0-28050-860-0	02	1	0909-
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (E) M10X35 FLANGE	0-28751-035-0	03	1	0909-
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0909-
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0909-
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0909-
270	BOLT EURO3 SPECIFICATION(NT3) (A) M8X25 FLANGE	0-28050-825-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE	0-28050-825-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (B) M8X35 FLANGE	0-28050-835-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X35 FLANGE	0-28050-835-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (C) M10X45 FLANGE	0-28151-045-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) M10X45 FLANGE	0-28151-045-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (D) M8X28 FLANGE	8-98043-528-0	03	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) M8X28 FLANGE	8-98043-528-0	03	1	1501-
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	0909-
725	DUCT; EGR VLV EURO3 SPECIFICATION(NT3)	8-97604-972-2	01	1	0909-1305
725	DUCT; EGR VLV EURO3 SPECIFICATION(NT3)	8-98240-120-0	01	1	1306-1412
725	DUCT; EGR VLV EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98240-120-0	01	1	1501-
766	DOWEL; EGR VLV EURO3 SPECIFICATION(NT3) OD=14 L=10	9-11319-065-3	02	1	0909-1412
766	DOWEL; EGR VLV EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) OD=14 L=10	9-11319-065-3	02	1	1501-
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION(NT2)	8-98058-709-0	01	1	0909-1402
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION(NT2)	8-98238-416-0	01	1	1403-
788	BOLT; COVER EURO2 SPECIFICATION(NT2) M10X35 FLANGE	0-28751-035-0	04	1	0909-1402
788	BOLT; COVER EURO2 SPECIFICATION(NT2) M10X25 FLANGE	0-28751-025-0	04	1	1403-

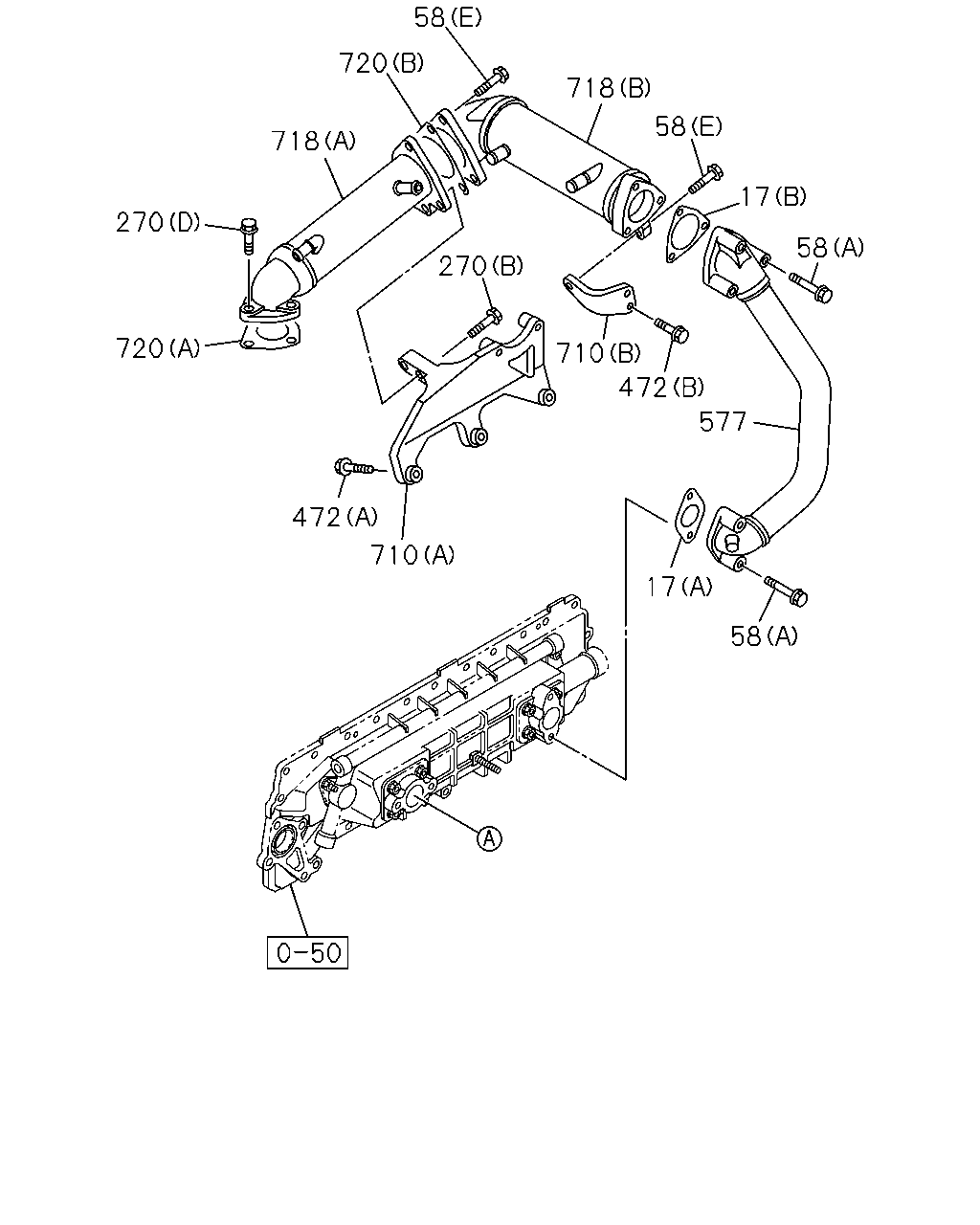

58 720 718 270 720 472 710 710 577 472 58 17 58 718 58 17 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A) ID=44.5	8-97601-144-0	02	1	0909-1412
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION(NT5) (B) ID=55	8-97600-167-0	01	1	1501-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) ID=44.5	8-97601-144-0	02	1	1501-
58	BOLT; PIPE EURO5 SPECIFICATION(NT5) (A) M8X60 FLANGE	0-28050-860-0	05	1	1501-
58	BOLT; PIPE EURO5 SPECIFICATION(NT5) (E) M10X35 FLANGE	0-28751-035-0	04	1	1501-
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (A) M8X60 FLANGE	0-28050-860-0	02	1	0909-
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (E) M10X35 FLANGE	0-28751-035-0	03	1	0909-
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0909-
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0909-
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0909-
270	BOLT EURO3 SPECIFICATION(NT3) (A) M8X25 FLANGE	0-28050-825-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE	0-28050-825-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (B) M8X35 FLANGE	0-28050-835-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X35 FLANGE	0-28050-835-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (C) M10X45 FLANGE	0-28151-045-0	02	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) M10X45 FLANGE	0-28151-045-0	02	1	1501-
270	BOLT EURO3 SPECIFICATION(NT3) (D) M8X28 FLANGE	8-98043-528-0	03	1	0909-1412
270	BOLT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) M8X28 FLANGE	8-98043-528-0	03	1	1501-
472	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X35 FLANGE	0-28060-835-0	03	1	1501-
472	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X35 FLANGE	0-28060-835-0	03	1	0909-1412
472	BOLT; BRKT EURO5 SPECIFICATION(NT5) (B) M8X30 FLANGE	0-28050-830-0	02	1	1501-
577	PIPE; AIR,EGR EURO5 SPECIFICATION(NT5)	8-97604-968-1	01	1	1501-
577	PIPE; AIR,EGR EURO3 SPECIFICATION(NT3)	8-98031-049-0	01	1	0909-
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98186-437-0	01	1	1501-
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (A)	8-98125-359-0	01	1	0909-1202
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (A)	8-98186-437-0	01	1	1203-1412
710	BRACKET; EGR COOLER EURO5 SPECIFICATION(NT5) (B)	8-98030-584-0	01	1	1501-
718	COOLER; EGR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98250-860-0	01	1	1501-
718	COOLER; EGR EURO3 SPECIFICATION(NT3) (A)	8-98030-582-3	01	1	0909-1401
718	COOLER; EGR EURO3 SPECIFICATION(NT3) (A)	8-98250-860-0	01	1	1402-1412
718	COOLER; EGR EURO5 SPECIFICATION(NT5) (B)	8-98030-583-1	01	1	1501-
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B) ID=80	8-97603-889-0	01	1	0909-1412
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=80	8-97603-889-0	01	1	1501-
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A) ID=51.5	8-98046-192-1	01	1	0909-1412
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) ID=51.5	8-98046-192-1	01	1	1501-
