0-52 — OIL AND VACUUM PIPING; ENGINE (#58221) — 95 parça

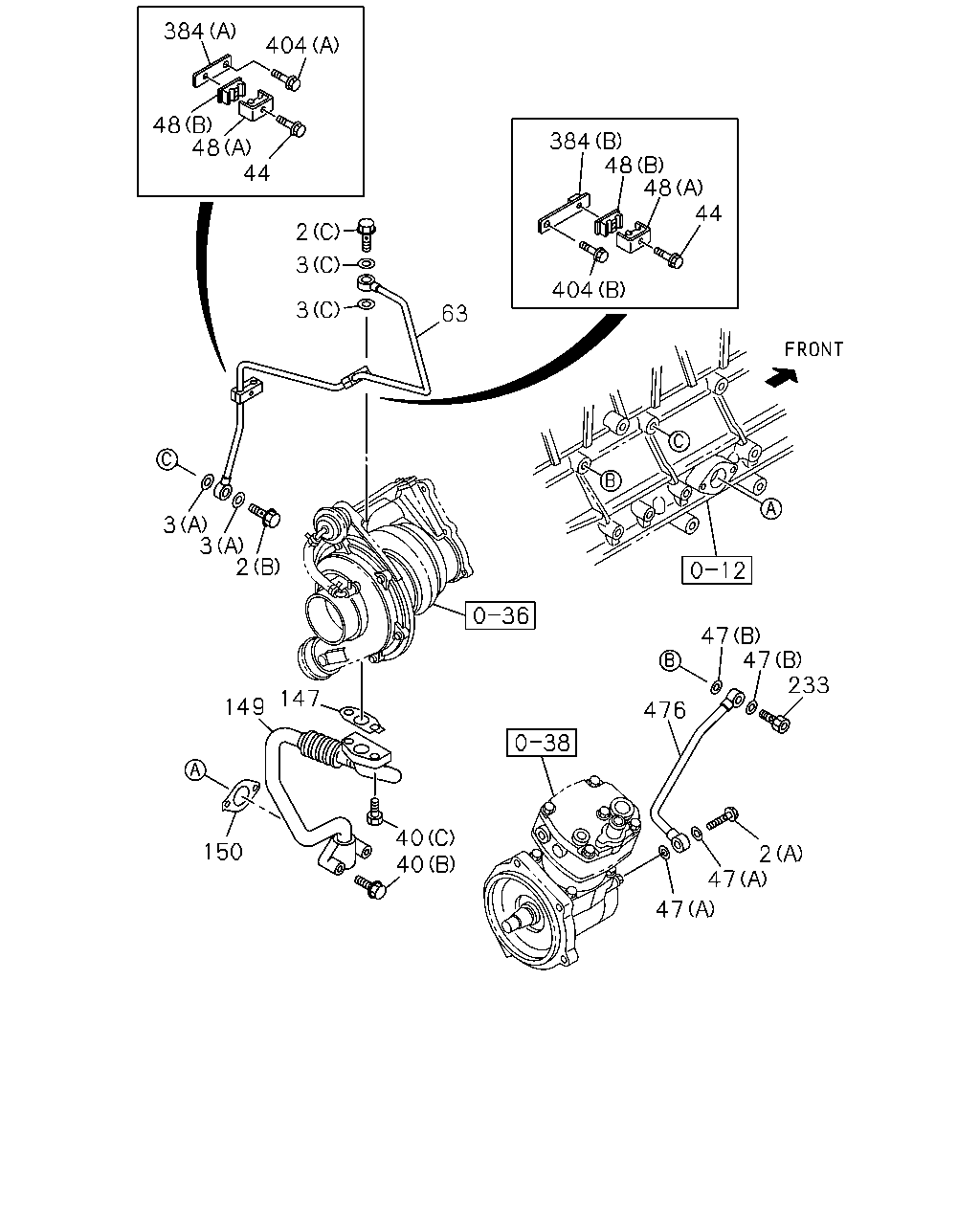

404 384 48 48 44 2 3 3 3 3 2 384 48 48 44 404 63 476 47 47 233 2 47 47 40 40 150 149 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3) (A) M10X21 FLANGE	8-97372-238-0	02	1	0909-1412
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X21 FLANGE	8-97372-238-0	02	1	1501-
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3) (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0909-1412
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1501-
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0909-1412
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	1501-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0909-
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (C) M12X25	5-09675-006-1	01	1	0909-
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (A) M10X21 FLANGE	8-97372-238-0	01	1	0909-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B) ID=12.6	8-97331-137-1	01	1	0909-1412
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=12.6	8-97331-137-1	01	1	1501-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	1-09630-084-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	8-98251-344-0	02	1	1401-
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NT3) (A) M8X30 FLANGE	0-28650-830-0	02	1	0909-1412
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	02	1	1501-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0909-
40	BOLT; OIL PIPE EURO2 SPECIFICATION(NT2) (C) M10X30 FLANGE	0-28151-030-0	02	1	0909-
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION(NT2) M6X30 FLANGE	0-28050-630-0	02	1	0909-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3) (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3) (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-1412
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1501-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
48	CLIP; OIL PIPE EURO2 SPECIFICATION(NT2) (A) ID=7 & 9 L=25	1-09701-228-3	02	1	0909-
48	CLIP; OIL PIPE EURO2 SPECIFICATION(NT2) (B) ID=7 & 9 L=25	1-09701-229-2	02	1	0909-
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97606-204-0	01	1	0909-1412
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97606-204-0	01	1	1501-
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2)	8-98074-254-0	01	1	0909-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-94390-641-1	01	1	0909-1412
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-94390-641-1	01	1	1501-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2)	1-09637-058-2	01	1	0909-
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NT3)	8-97606-205-3	01	1	0909-1412
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97606-205-3	01	1	1501-
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION(NT2)	8-98147-092-0	01	1	0909-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0909-
233	BOLT; EYE EURO2 SPECIFICATION(NT2)	8-98046-713-0	01	1	0909-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	1-13319-020-0	01	1	0909-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) (B)	1-13319-041-0	01	1	0909-
404	BOLT; BRKT EURO2 SPECIFICATION(NT2) (A) M8X20	0-20950-820-0	01	1	0909-
404	BOLT; BRKT EURO2 SPECIFICATION(NT2) (B) M8X15	1-09000-114-0	01	1	0909-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0909-

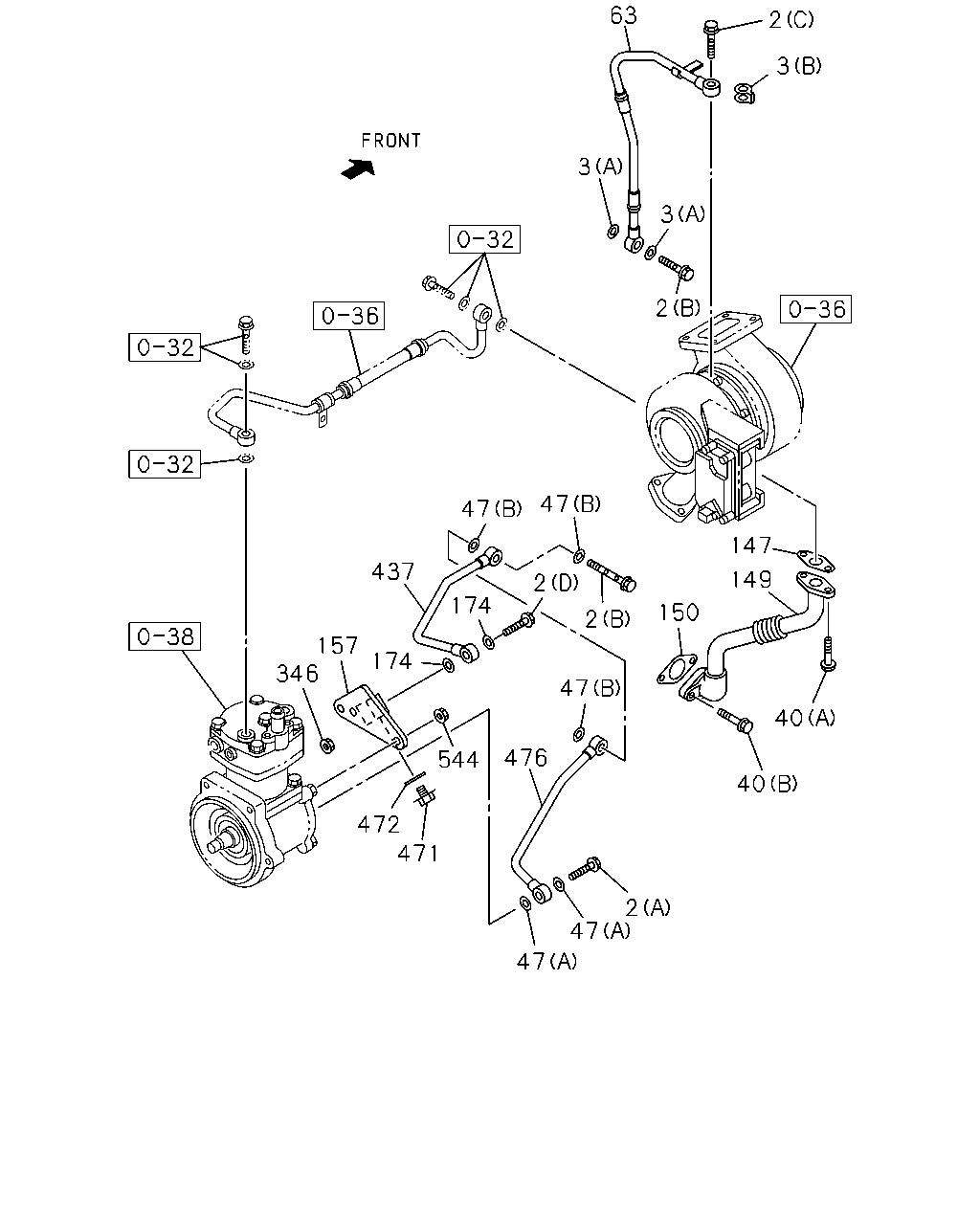

437 47 47 2 174 157 174 346 544 472 471 476 47 150 2 147 149 40 40 2 47 47 2 3 63 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3) (A) M10X21 FLANGE	8-97372-238-0	02	1	0909-1412
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X21 FLANGE	8-97372-238-0	02	1	1501-
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3) (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0909-1412
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1501-
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	0909-1412
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) M14X43 EYE-BOLT	8-98037-829-0	01	1	1501-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0909-
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (C) M12X25	5-09675-006-1	01	1	0909-
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION(NT2) (A) M10X21 FLANGE	8-97372-238-0	01	1	0909-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B) ID=12.6	8-97331-137-1	01	1	0909-1412
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=12.6	8-97331-137-1	01	1	1501-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	1-09630-084-0	02	1	0909-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.2	8-98251-344-0	02	1	1401-
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NT3) (A) M8X30 FLANGE	0-28650-830-0	02	1	0909-1412
40	BOLT; OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	02	1	1501-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0909-
40	BOLT; OIL PIPE EURO2 SPECIFICATION(NT2) (C) M10X30 FLANGE	0-28151-030-0	02	1	0909-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3) (B) ID=14.2 OD=19.2	1-09630-085-0	03	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3) (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-1412
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=14.2 OD=19.2	8-98251-345-0	03	1	1501-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97606-204-0	01	1	0909-1412
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97606-204-0	01	1	1501-
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2)	8-98074-254-0	01	1	0909-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-94390-641-1	01	1	0909-1412
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-94390-641-1	01	1	1501-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2)	1-09637-058-2	01	1	0909-
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NT3)	8-97606-205-3	01	1	0909-1412
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97606-205-3	01	1	1501-
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION(NT2)	8-98147-092-0	01	1	0909-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0909-
157	BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3)	8-98053-248-0	01	1	0909-1412
157	BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98053-248-0	01	1	1501-
174	GASKET; OIL PIPE,VLV OVERFLOW ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-1412
174	GASKET; OIL PIPE,VLV OVERFLOW ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=10.2 OD=15.2	1-09630-083-0	02	1	1501-
346	NUT; CONNECTOR EURO3 SPECIFICATION(NT3) M10 FLANGE	0-91180-210-0	01	1	0909-1412
346	NUT; CONNECTOR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M10 FLANGE	0-91180-210-0	01	1	1501-
437	PIPE; OIL EURO3 SPECIFICATION(NT3)	8-98053-119-0	01	1	0909-1412
437	PIPE; OIL EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98053-119-0	01	1	1501-
471	PLUG; OIL EURO3 SPECIFICATION(NT3) M14X14	9-09862-156-0	01	1	0909-1412
471	PLUG; OIL EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M14X14	9-09862-156-0	01	1	1501-
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) ID=14.2 OD=19.2	1-09630-085-0	01	1	0909-1312
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-1412
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	8-98251-345-0	01	1	1501-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0909-
544	NUT; BRKT EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	02	1	1501-
544	NUT; BRKT EURO3 SPECIFICATION(NT3) M8 FLANGE	0-91180-108-0	01	1	0909-
