0-50 — OIL COOLER AND OIL FILTER (#58219) — 77 parça

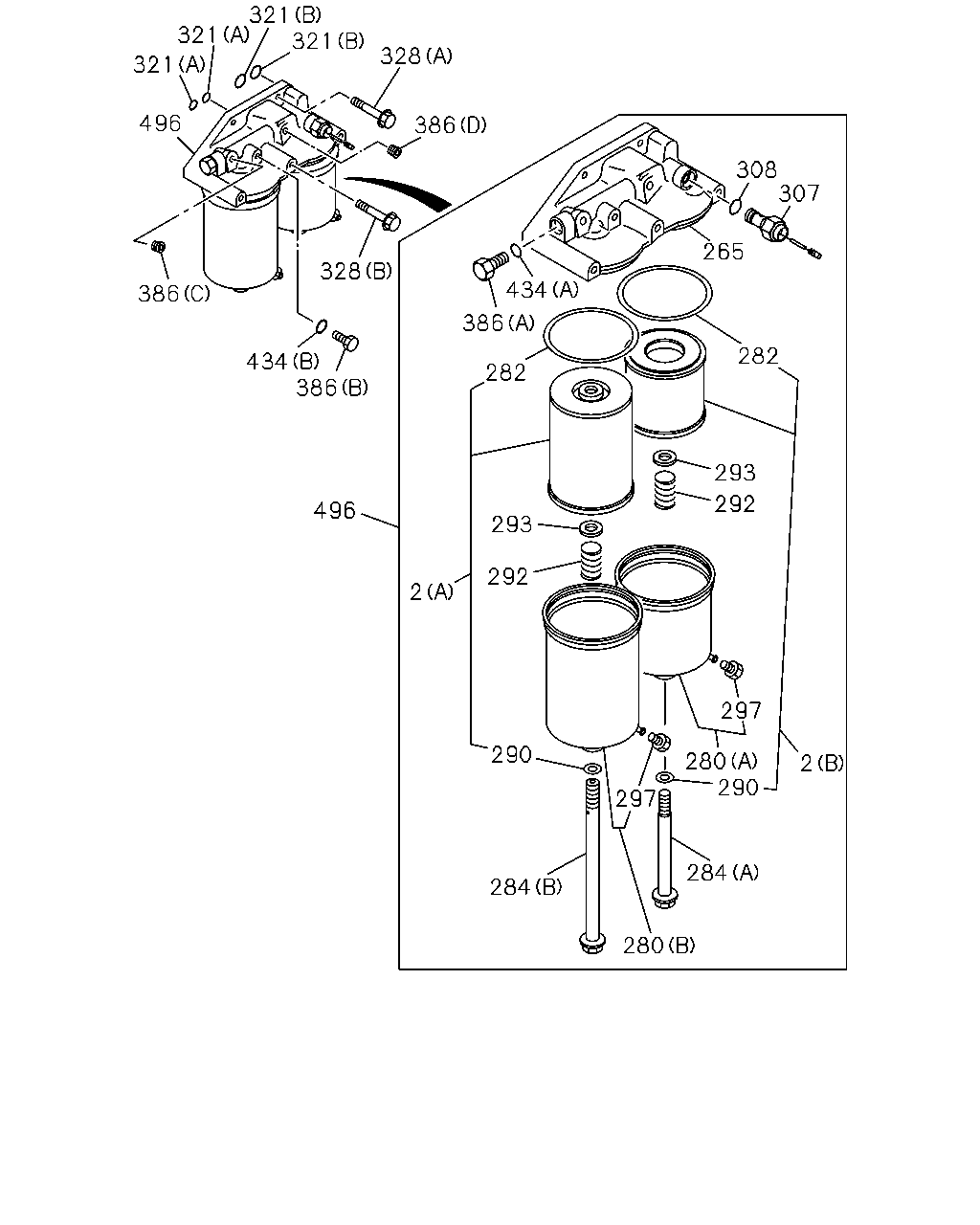

321 496 386 328 434 386 496 386 328 321 321 321 434 386 282 293 292 2 290 284 297 297 280 290 284 2 280 292 293 282 265 307 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (A)	8-98140-515-0	01	1	0909-1406
2	ELEMENT; OIL FILTER (B)	8-98274-487-0	01	1	1407-
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	0909-1406
2	ELEMENT; OIL FILTER (A)	8-98274-486-0	01	1	1407-
265	BODY; OIL FILTER	1-13212-169-0	01	1	0909-
280	CASE ASM; OIL FILTER (A)	8-94393-504-1	01	1	0909-
280	CASE ASM; OIL FILTER (B)	8-94393-505-1	01	1	0909-
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	0909-1406
282	GASKET; BODY TO CASE	8-98274-489-0	02	1	1407-
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	0909-
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	0909-
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	0909-1406
290	GASKET; PLUG,OIL DRAIN ID=15.5	8-98274-488-0	02	1	1407-
292	SPRING; ELEMENT	9-09941-283-0	02	1	0909-
293	SEAT; SPR	9-13239-025-0	02	1	0909-
297	PLUG; COVER	1-13219-275-0	02	1	0909-
307	VALVE; OVERFLOW	8-97073-740-0	01	1	0909-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0909-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=9.8	8-94399-339-0	02	1	0909-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=22.1	8-94399-399-0	02	1	0909-
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0909-
328	BOLT; OIL FILTER (B) M10X135	8-94397-139-1	03	1	0909-
386	PLUG; OIL FILTER (B) M10X10	1-09604-074-0	01	1	0909-
386	PLUG; OIL FILTER (C)	8-97320-204-0	01	1	0909-
386	PLUG; OIL FILTER (D) PT1/8	8-97369-552-1	01	1	0909-
386	PLUG; OIL FILTER (A) M16X9	9-13226-011-0	01	1	0909-
434	GASKET; PLUG,OIL FILTER (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0909-
434	GASKET; PLUG,OIL FILTER (A)	9-09920-526-0	01	1	0909-
496	FILTER ASM; OIL	8-98140-514-0	01	1	0909-1406
496	FILTER ASM; OIL	8-98274-484-0	01	1	1407-

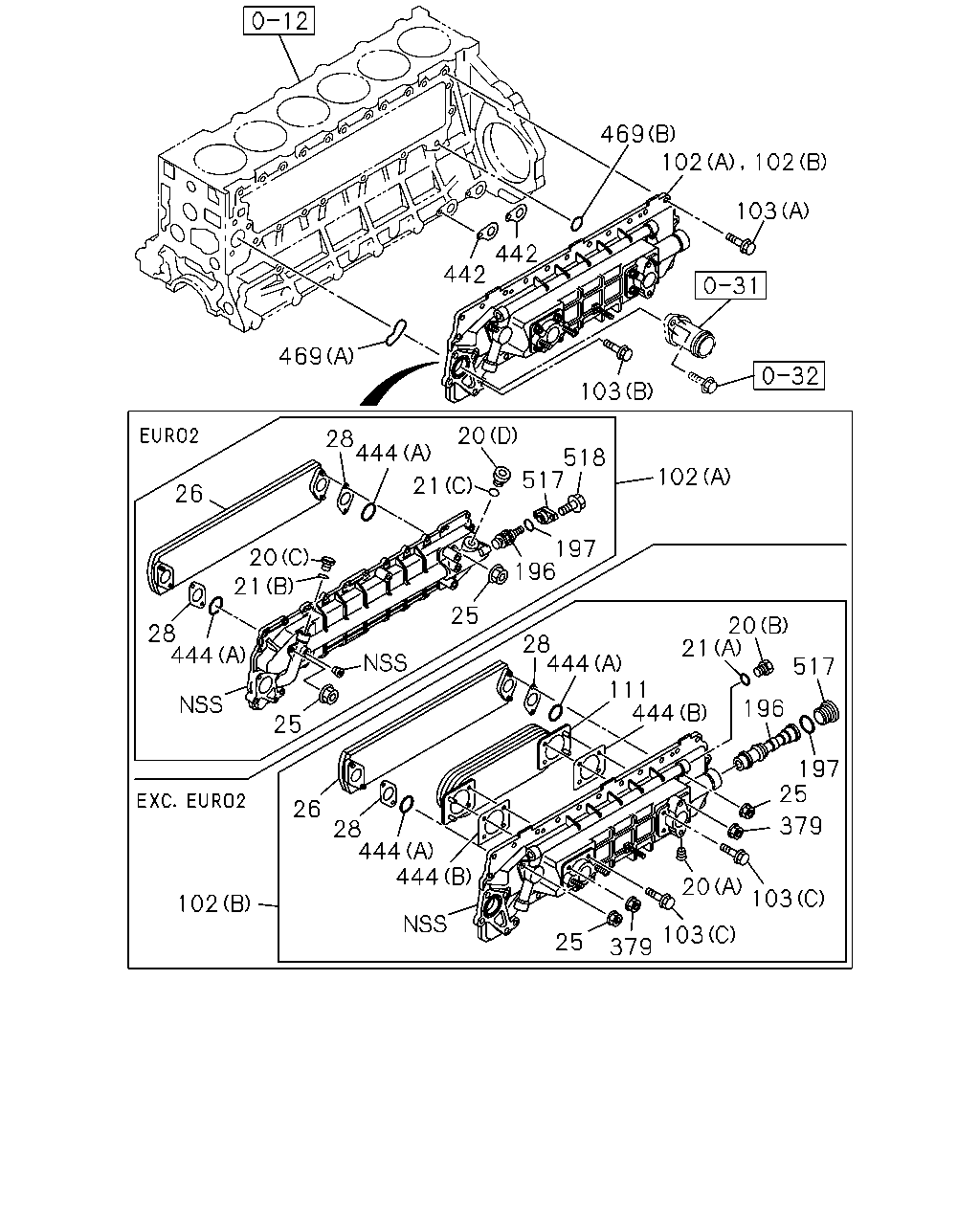

469 442 442 469 102 103 102 103 102 518 517 197 196 25 21 20 444 28 26 20 21 444 28 25 26 28 444 444 102 28 444 111 444 21 20 517 196 197 25 379 103 20 103 379 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	PLUG; COOLER BODY EURO3 SPECIFICATION(NT3) (A)	1-13219-240-0	02	1	0909-1412
20	PLUG; COOLER BODY EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	1-13219-240-0	02	1	1501-
20	PLUG; COOLER BODY EURO3 SPECIFICATION(NT3) (B)	8-97608-567-0	02	1	0909-1412
20	PLUG; COOLER BODY EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-97608-567-0	02	1	1501-
20	PLUG; COOLER BODY EURO2 SPECIFICATION(NT2) (C)	8-94393-604-0	01	1	0909-
20	PLUG; COOLER BODY EURO2 SPECIFICATION(NT2) (D)	8-94396-753-0	01	1	0909-
21	GASKET; PLUG EURO3 SPECIFICATION(NT3) (A) ID=17.8	8-97608-568-0	02	1	0909-1412
21	GASKET; PLUG EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) ID=17.8	8-97608-568-0	02	1	1501-
21	GASKET; PLUG EURO2 SPECIFICATION(NT2) (B)	1-13219-253-0	01	1	0909-
21	GASKET; PLUG EURO2 SPECIFICATION(NT2) (C) M24	8-94396-755-0	01	1	0909-
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0909-
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION(NT3)	8-98062-207-0	01	1	0909-1412
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98062-207-0	01	1	1501-
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION(NT2)	8-94391-738-1	01	1	0909-
28	GASKET; CORE TO BODY EURO3 SPECIFICATION(NT3)	8-98063-865-0	02	1	0909-1004
28	GASKET; CORE TO BODY EURO2 SPECIFICATION(NT2)	8-94394-930-0	02	1	0909-1004
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-
102	COOLER ASM; OIL EURO3 SPECIFICATION(NT3) (B)	8-98130-995-0	01	1	0909-1307
102	COOLER ASM; OIL EURO3 SPECIFICATION(NT3) (B)	8-98236-650-0	01	1	1308-1412
102	COOLER ASM; OIL EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98236-650-0	01	1	1501-
102	COOLER ASM; OIL EURO2 SPECIFICATION(NT2) (A)	8-97600-156-1	01	1	0909-
103	BOLT; OIL COOLER EURO3 SPECIFICATION(NT3) (C) M8X18 FLANGE	8-98251-758-0	04	1	1309-1412
103	BOLT; OIL COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) M8X18 FLANGE	8-98251-758-0	04	1	1501-
103	BOLT; OIL COOLER EURO3 SPECIFICATION(NT3) (A) M8X30 FLANGE	0-28650-830-0	24	1	0909-1412
103	BOLT; OIL COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	24	1	1501-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0909-
103	BOLT; OIL COOLER EURO2 SPECIFICATION(NT2) (A) M8X22 FLANGE	0-28080-822-0	24	1	0909-
111	CORE; OIL COOLER EURO3 SPECIFICATION(NT3)	8-98063-863-0	01	1	1309-1412
111	CORE; OIL COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98063-863-0	01	1	1501-
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0909-
197	GASKET; THERMOSTAT EURO3 SPECIFICATION(NT3)	8-94391-728-0	01	1	0909-1412
197	GASKET; THERMOSTAT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-94391-728-0	01	1	1501-
197	GASKET; THERMOSTAT EURO2 SPECIFICATION(NT2) ID=25.7	8-94399-279-0	01	1	0909-
379	NUT; OIL COOLER EURO3 SPECIFICATION(NT3) M8 FLANGE	0-91180-108-0	04	1	1309-1412
379	NUT; OIL COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	04	1	1501-
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0909-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION(NT3) (B)	8-97601-801-0	02	1	1309-1412
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-97601-801-0	02	1	1501-
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION(NT3) (A) ID=38.7	1-09623-299-0	02	1	0909-1412
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) ID=38.7	1-09623-299-0	02	1	1501-
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION(NT2) (A)	8-94396-810-0	02	1	0909-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0909-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0909-
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION(NT3)	8-94391-731-0	01	1	0909-1412
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-94391-731-0	01	1	1501-
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION(NT2)	8-94391-740-0	01	1	0909-
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION(NT2) M8X16 FLANGE	0-28050-816-0	02	1	0909-
