0-36 — TURBOCHARGER SYSTEM (#58213) — 143 parça

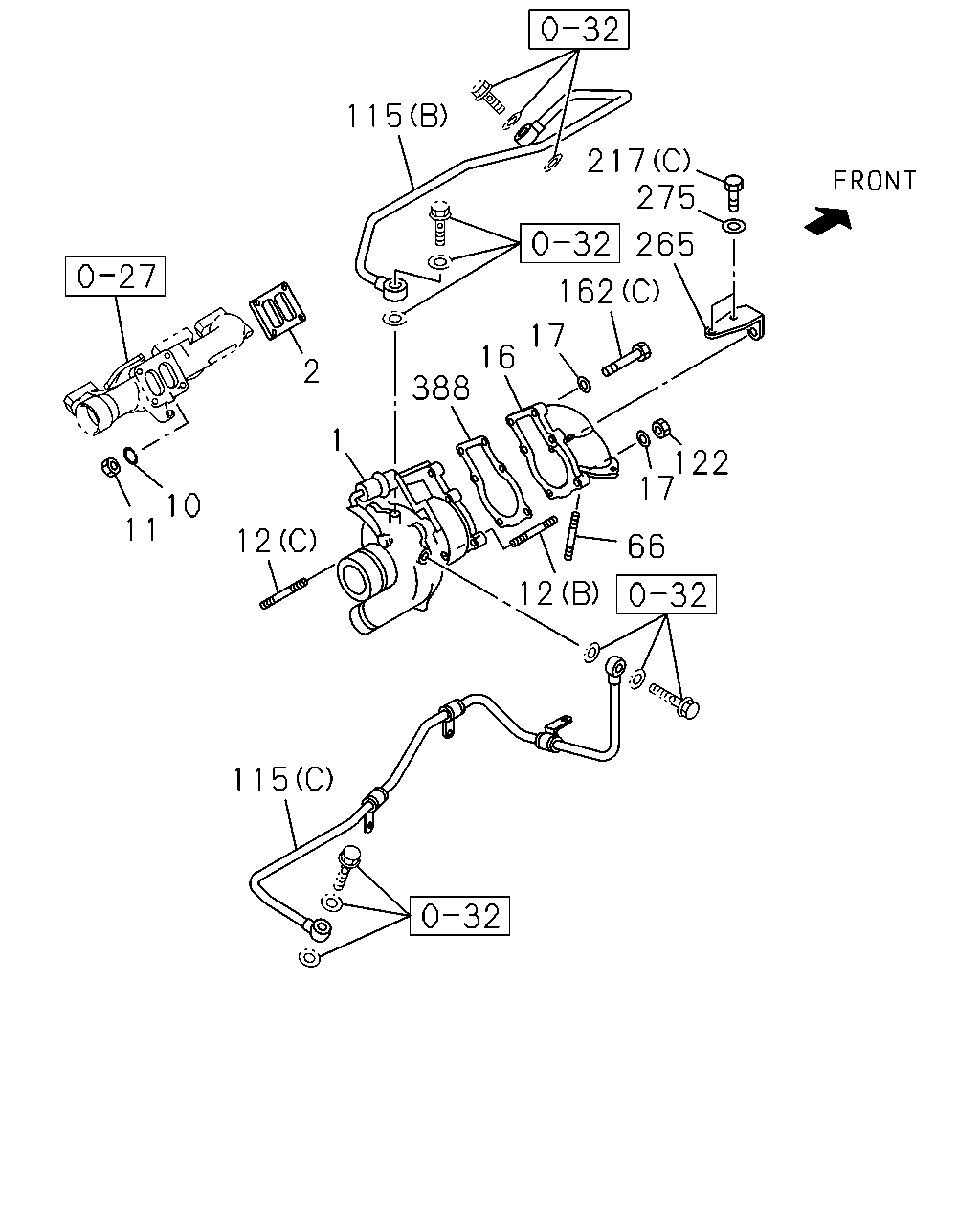

11 2 1 10 12 115 12 17 122 275 265 217 115 17 16 388 162 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO3 SPECIFICATION(NT3)	8-97604-975-9	01	1	0909-1412
1	TURBOCHARGER ASM EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97604-975-9	01	1	1501-
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) COLOMBIA EQUIPMENT(WJ2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	0909-1202
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	1203-
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(WJ2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98138-426-0	01	1	0909-1202
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3)	8-97024-124-0	01	1	0909-1412
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97024-124-0	01	1	1501-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-94390-044-0	01	1	0909-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION(NT3) T=2.2	1-09556-015-0	04	1	0909-1412
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) T=2.2	1-09556-015-0	04	1	1501-
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION(NT2) T=2.2	1-09556-015-0	02	1	0909-
11	NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2) M10	1-09420-005-0	04	1	0909-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION(NT3) (A) M8X25 L=36	8-94476-282-0	02	1	0909-1412
12	STUD; TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X25 L=36	8-94476-282-0	02	1	1501-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (B) M8X25	9-04130-825-0	01	1	0909-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (C) M10X80	9-04731-080-0	02	1	0909-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION(NT3)	8-98018-241-1	01	1	0909-1412
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98018-241-1	01	1	1501-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98069-083-0	01	1	0909-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION(NT3) T=1.9	5-09500-012-0	04	1	0909-1412
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) T=1.9	5-09500-012-0	04	1	1501-
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION(NT2) T=1.9	5-09500-012-0	06	1	0909-
66	STUD; EXH PIPE EURO2 SPECIFICATION(NT2) M12X30 L=48	8-98059-951-0	03	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (A)	8-97615-877-0	01	1	0909-1412
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-97615-877-0	01	1	1501-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98123-401-0	01	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98137-196-0	01	1	0909-
122	NUT; ADAPTER EURO3 SPECIFICATION(NT3) M8	1-09400-118-1	02	1	0909-1412
122	NUT; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8	1-09400-118-1	02	1	1501-
122	NUT; ADAPTER EURO2 SPECIFICATION(NT2) M8	1-09400-118-1	01	1	0909-
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3) (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-1412
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	01	1	1501-
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3) (B) M8X60	1-09000-464-0	02	1	0909-0910
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3) (B) M8X60	8-98158-604-0	02	1	0911-1412
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X60	8-98158-604-0	02	1	1501-
162	BOLT; ADAPTER EURO2 SPECIFICATION(NT2) (C) M8X57	5-09000-275-0	05	1	0909-
217	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X20 FLANGE	0-28650-820-0	01	1	0909-1412
217	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X20 FLANGE	0-28650-820-0	01	1	1501-
217	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M10X25 FLANGE	0-28751-025-0	01	1	0909-1412
217	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28751-025-0	01	1	1501-
217	BOLT; BRKT EURO2 SPECIFICATION(NT2) (C) M12X30	8-94394-324-0	03	1	0909-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3)	8-98260-415-0	01	1	0909-1412
265	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98260-415-0	01	1	1501-
265	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2)	8-94395-764-2	01	1	0909-
275	WASHER; PL EURO2 SPECIFICATION(NT2) ID=12.2	1-09503-008-0	03	1	0909-
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-94394-248-2	01	1	0909-

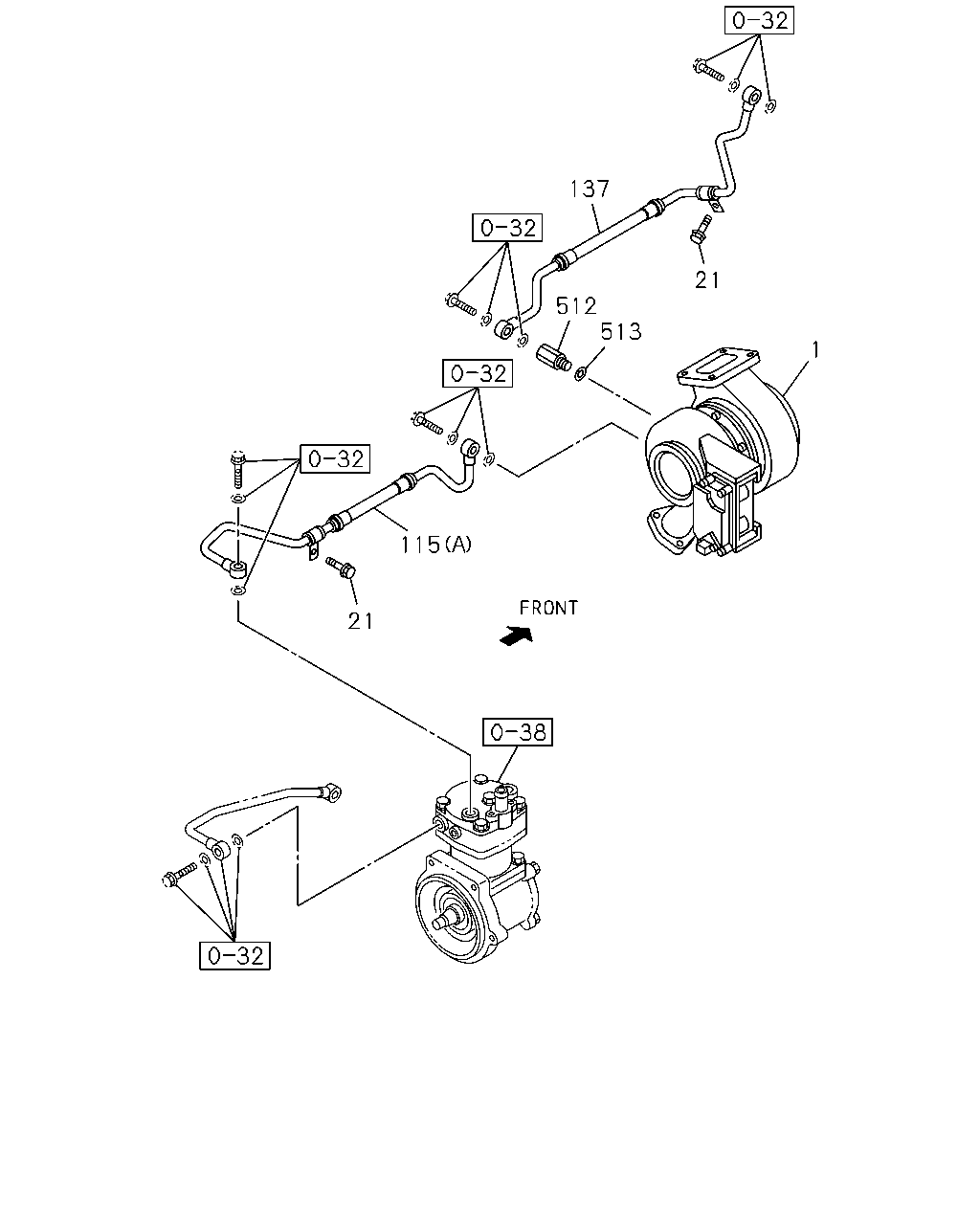

137 21 1 513 512 115 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO3 SPECIFICATION(NT3)	8-97604-975-9	01	1	0909-1412
1	TURBOCHARGER ASM EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97604-975-9	01	1	1501-
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) COLOMBIA EQUIPMENT(WJ2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	0909-1202
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	1203-
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(WJ2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98138-426-0	01	1	0909-1202
21	BOLT; PIPE EURO3 SPECIFICATION(NT3) M8X16 FLANGE	0-28050-816-0	02	1	0909-1412
21	BOLT; PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8X16 FLANGE	0-28050-816-0	02	1	1501-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (A)	8-97615-877-0	01	1	0909-1412
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-97615-877-0	01	1	1501-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98123-401-0	01	1	0909-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98137-196-0	01	1	0909-
137	PIPE; WATER,TURBOCHARGER IN EURO3 SPECIFICATION(NT3)	8-98046-783-0	01	1	0909-1412
137	PIPE; WATER,TURBOCHARGER IN EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98046-783-0	01	1	1501-
512	CONNECTOR; TURBO EURO3 SPECIFICATION(NT3)	8-98031-856-0	01	1	0909-1412
512	CONNECTOR; TURBO EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98031-856-0	01	1	1501-
513	GASKET; CONNECTOR EURO3 SPECIFICATION(NT3) ID=14.2 OD=19.2	1-09630-085-0	01	1	0909-1312
513	GASKET; CONNECTOR EURO3 SPECIFICATION(NT3) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-1412
513	GASKET; CONNECTOR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=14.2 OD=19.2	8-98251-345-0	01	1	1501-

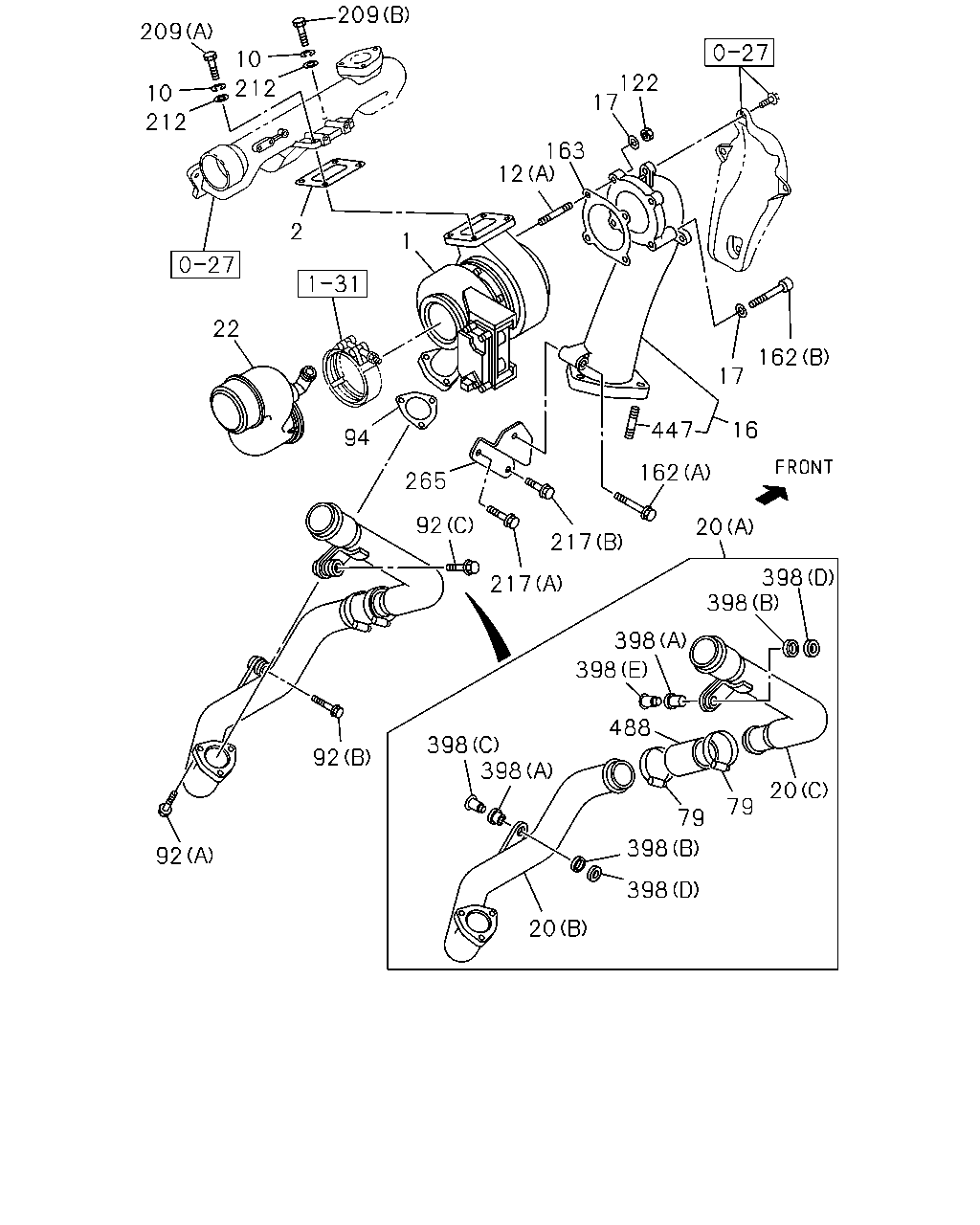

209 209 10 10 212 212 122 17 163 12 1 2 22 94 265 92 217 217 20 162 447 16 17 162 92 92 398 398 20 398 398 79 79 20 488 398 398 398 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO3 SPECIFICATION(NT3)	8-97604-975-9	01	1	0909-1412
1	TURBOCHARGER ASM EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97604-975-9	01	1	1501-
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) COLOMBIA EQUIPMENT(WJ2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	0909-1202
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98139-615-0	01	1	1203-
1	TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(WJ2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98138-426-0	01	1	0909-1202
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3)	8-97024-124-0	01	1	0909-1412
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-97024-124-0	01	1	1501-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2)	8-94390-044-0	01	1	0909-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION(NT3) T=2.2	1-09556-015-0	04	1	0909-1412
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) T=2.2	1-09556-015-0	04	1	1501-
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION(NT2) T=2.2	1-09556-015-0	02	1	0909-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION(NT3) (A) M8X25 L=36	8-94476-282-0	02	1	0909-1412
12	STUD; TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X25 L=36	8-94476-282-0	02	1	1501-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (B) M8X25	9-04130-825-0	01	1	0909-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) (C) M10X80	9-04731-080-0	02	1	0909-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION(NT3)	8-98018-241-1	01	1	0909-1412
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98018-241-1	01	1	1501-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98069-083-0	01	1	0909-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION(NT3) T=1.9	5-09500-012-0	04	1	0909-1412
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) T=1.9	5-09500-012-0	04	1	1501-
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION(NT2) T=1.9	5-09500-012-0	06	1	0909-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (A)	8-98048-811-4	01	1	0909-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (A)	8-98251-583-0	01	1	1409-1412
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98251-583-0	01	1	1501-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (B)	8-98048-812-1	01	1	0909-1412
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98048-812-1	01	1	1501-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98048-813-2	01	1	0909-1412
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C)	8-98048-813-2	01	1	1501-
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION(NT3)	8-98036-881-1	01	1	0909-1412
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98036-881-1	01	1	1501-
79	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) ID=58-79	1-09707-136-0	02	1	0909-1412
79	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=58-79	1-09707-136-0	02	1	1501-
92	BOLT; INL PIPE EURO3 SPECIFICATION(NT3) (A) M8X30 FLANGE	0-28650-830-0	03	1	0909-1412
92	BOLT; INL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X30 FLANGE	0-28650-830-0	03	1	1501-
92	BOLT; INL PIPE EURO3 SPECIFICATION(NT3) (B) M8X35 FLANGE	0-28650-835-0	01	1	0909-1412
92	BOLT; INL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X35 FLANGE	0-28650-835-0	01	1	1501-
92	BOLT; INL PIPE EURO3 SPECIFICATION(NT3) (C) M8X40 FLANGE	0-28650-840-0	01	1	0909-1412
92	BOLT; INL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) M8X40 FLANGE	0-28650-840-0	01	1	1501-
94	GASKET; INL PIPE EURO3 SPECIFICATION(NT3) ID=55	8-98053-830-0	01	1	0909-1412
94	GASKET; INL PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=55	8-98053-830-0	01	1	1501-
122	NUT; ADAPTER EURO3 SPECIFICATION(NT3) M8	1-09400-118-1	02	1	0909-1412
122	NUT; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8	1-09400-118-1	02	1	1501-
122	NUT; ADAPTER EURO2 SPECIFICATION(NT2) M8	1-09400-118-1	01	1	0909-
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3) (A) M10X60 FLANGE	0-28051-060-0	01	1	0909-1412
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X60 FLANGE	0-28051-060-0	01	1	1501-
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3) (B) M8X60	1-09000-464-0	02	1	0909-0910
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3) (B) M8X60	8-98158-604-0	02	1	0911-1412
162	BOLT; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X60	8-98158-604-0	02	1	1501-
162	BOLT; ADAPTER EURO2 SPECIFICATION(NT2) (C) M8X57	5-09000-275-0	05	1	0909-
163	GASKET; ADAPTER TO EXH PIPE EURO3 SPECIFICATION(NT3) ID=83	8-94392-553-2	01	1	0909-1412
163	GASKET; ADAPTER TO EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=83	8-94392-553-2	01	1	1501-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION(NT3) (B) M10X80	8-98049-825-0	02	1	0909-1412
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M10X80	8-98049-825-0	02	1	1501-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION(NT3) (A) M10X40	9-09604-007-1	02	1	0909-1412
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M10X40	9-09604-007-1	02	1	1501-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0909-
217	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X20 FLANGE	0-28650-820-0	01	1	0909-1412
217	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X20 FLANGE	0-28650-820-0	01	1	1501-
217	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M10X25 FLANGE	0-28751-025-0	01	1	0909-1412
217	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28751-025-0	01	1	1501-
217	BOLT; BRKT EURO2 SPECIFICATION(NT2) (C) M12X30	8-94394-324-0	03	1	0909-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3)	8-98260-415-0	01	1	0909-1412
265	BRACKET; EXH PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-98260-415-0	01	1	1501-
265	BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2)	8-94395-764-2	01	1	0909-
398	MOUNTING EURO3 SPECIFICATION(NT3) (B) ID=19 OD=26	8-94160-177-0	02	1	0909-1412
398	MOUNTING EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) ID=19 OD=26	8-94160-177-0	02	1	1501-
398	MOUNTING EURO3 SPECIFICATION(NT3) (C) OD=28	8-94390-551-1	01	1	0909-1412
398	MOUNTING EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C) OD=28	8-94390-551-1	01	1	1501-
398	MOUNTING EURO3 SPECIFICATION(NT3) (D) ID=13 OD=28	8-94394-504-0	02	1	0909-1412
398	MOUNTING EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D) ID=13 OD=28	8-94394-504-0	02	1	1501-
398	MOUNTING EURO3 SPECIFICATION(NT3) (A) OD=26	8-94394-529-0	02	1	0909-1412
398	MOUNTING EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) OD=26	8-94394-529-0	02	1	1501-
398	MOUNTING EURO3 SPECIFICATION(NT3) (E)	8-98048-939-0	01	1	0909-1412
398	MOUNTING EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (E)	8-98048-939-0	01	1	1501-
447	STUD; ADAPTER EURO3 SPECIFICATION(NT3) M12X30 L=48	0-44011-230-0	03	1	0909-1412
447	STUD; ADAPTER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M12X30 L=48	0-44011-230-0	03	1	1501-
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3)	8-98046-356-0	01	1	0909-1408
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3) ID=52.5 L=70	8-98245-242-0	01	1	1409-1412
488	HOSE; RUBBER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=52.5 L=70	8-98245-242-0	01	1	1501-
