0-32 — WATER PIPING; ENGINE (#58211) — 111 parça

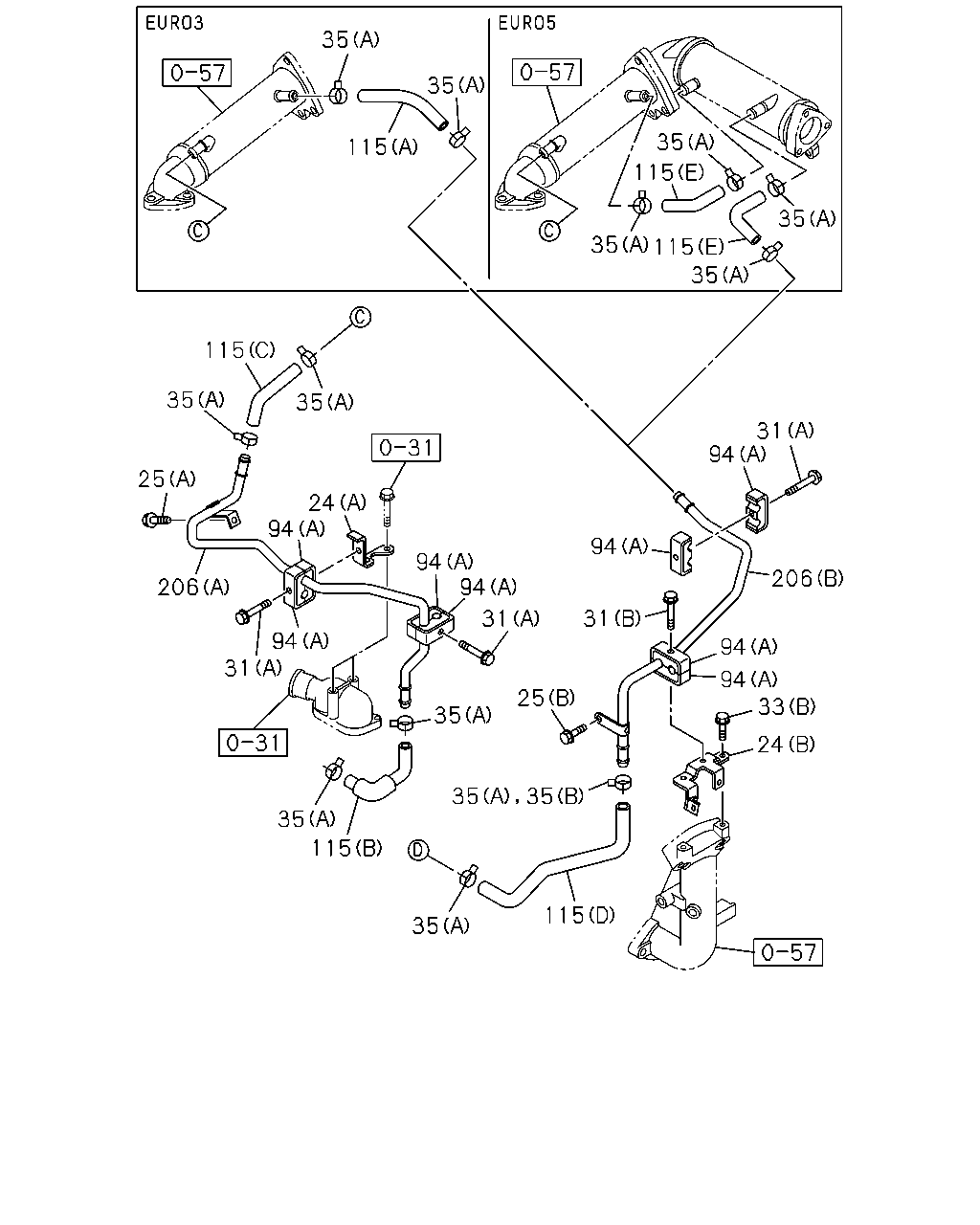

35 35 115 35 115 35 35 115 35 35 115 35 25 206 31 94 94 24 94 31 94 94 31 25 35 35 35 35 115 35 115 94 94 33 24 206 94 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3) (A)	8-98000-557-2	01	1	0909-1412
24	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-98000-557-2	01	1	1501-
24	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3) (B)	8-98000-558-3	01	1	0909-1412
24	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98000-558-3	01	1	1501-
25	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (A) M8X12 FLANGE	0-28050-812-0	01	1	0909-1412
25	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X12 FLANGE	0-28050-812-0	01	1	1501-
25	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) (B) M8X20 FLANGE	0-28650-820-0	01	1	0909-1412
25	BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X20 FLANGE	0-28650-820-0	01	1	1501-
31	BOLT; CLIP EURO3 SPECIFICATION(NT3) (B) M6X45 FLANGE	0-28050-645-0	01	1	0909-1412
31	BOLT; CLIP EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M6X45 FLANGE	0-28050-645-0	01	1	1501-
31	BOLT; CLIP EURO3 SPECIFICATION(NT3) (A) M6X40 FLANGE	0-28650-640-0	03	1	0909-1412
31	BOLT; CLIP EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M6X40 FLANGE	0-28650-640-0	03	1	1501-
31	BOLT; CLIP EURO2 SPECIFICATION(NT2) (C) M6X35 FLANGE	0-28650-635-0	01	1	0909-
33	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X16 FLANGE	0-28050-816-0	01	1	0909-1412
33	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE	0-28050-816-0	01	1	1501-
33	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M8X20 FLANGE	0-28650-820-0	03	1	0909-1412
33	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X20 FLANGE	0-28650-820-0	03	1	1501-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	02	1	0909-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) (B) M8X20 FLANGE	0-28050-820-0	02	1	0909-
35	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) (B) ID=20.8	8-94125-862-1	01	1	1501-
35	CLIP; RUBBER HOSE EURO5 SPECIFICATION(NT5) (A) ID=20	8-98127-648-0	10	1	1501-
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) (A) ID=20	8-98127-648-0	07	1	0909-1104
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) (A) ID=20	8-98127-648-0	08	1	1105-
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NT3) (A)	8-97605-129-1	08	1	0909-1412
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-97605-129-1	08	1	1501-
94	CLIP; WATER PIPE EURO2 SPECIFICATION(NT2) (B)	8-94396-860-0	01	1	0909-
115	HOSE; RUBBER EURO5 SPECIFICATION(NT5) (E)	8-97606-749-0	02	1	1501-
115	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0909-
115	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B)	8-97606-735-1	01	1	0909-1412
115	HOSE; RUBBER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-97606-735-1	01	1	1501-
115	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (D)	8-97607-488-1	01	1	0909-1412
115	HOSE; RUBBER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (D)	8-97607-488-1	01	1	1501-
115	HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98043-192-0	01	1	0909-1412
115	HOSE; RUBBER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (C)	8-98043-192-0	01	1	1501-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION(NT3) (A)	8-97604-928-2	01	1	0909-1412
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-97604-928-2	01	1	1501-
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98000-480-1	01	1	0909-1412
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98000-480-1	01	1	1501-

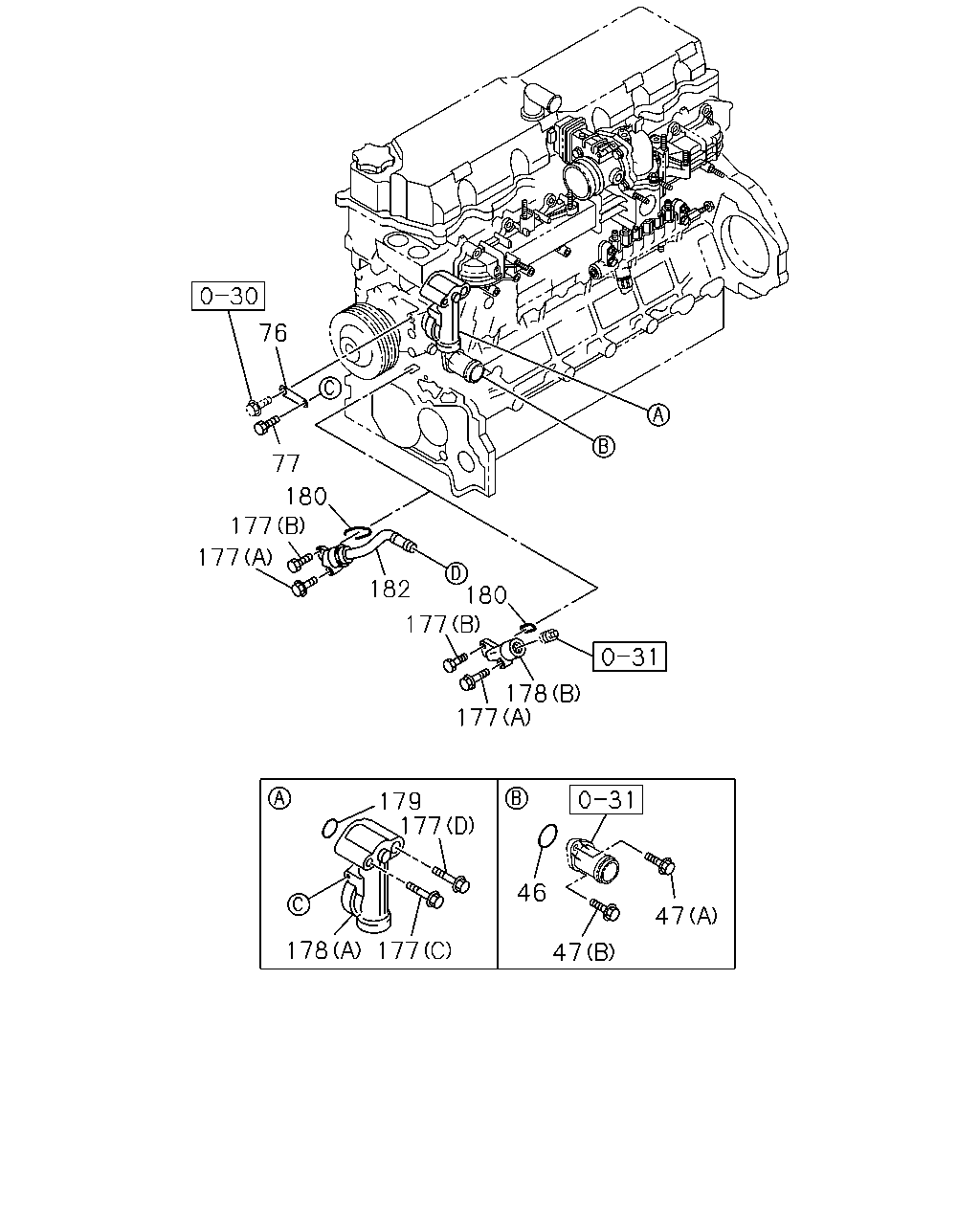

76 77 180 177 177 182 177 180 178 177 179 177 46 47 47 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0909-
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0909-
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0909-
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0909-
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0909-
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0909-
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0909-
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0909-
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0909-
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	0909-
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION(NT2) (B)	8-94390-644-0	01	1	0909-
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0909-1408
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0909-
182	DUCT; WATER,HTR EURO3 SPECIFICATION(NT3)	8-94396-724-4	01	1	0909-1412
182	DUCT; WATER,HTR EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)	8-94396-724-4	01	1	1501-

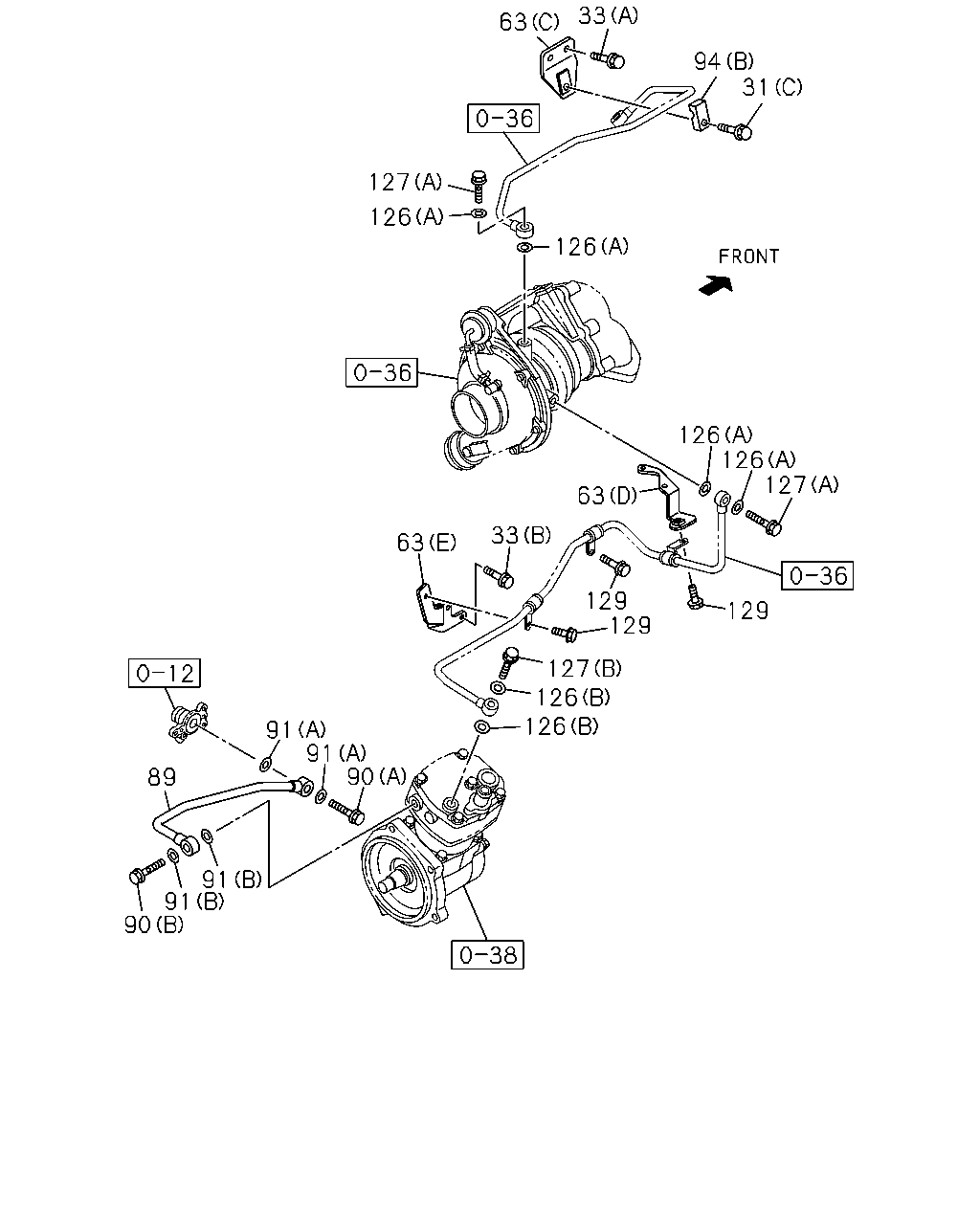

33 63 94 31 126 126 127 126 126 127 129 129 129 63 33 63 127 126 126 90 91 91 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BOLT; CLIP EURO3 SPECIFICATION(NT3) (B) M6X45 FLANGE	0-28050-645-0	01	1	0909-1412
31	BOLT; CLIP EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M6X45 FLANGE	0-28050-645-0	01	1	1501-
31	BOLT; CLIP EURO3 SPECIFICATION(NT3) (A) M6X40 FLANGE	0-28650-640-0	03	1	0909-1412
31	BOLT; CLIP EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M6X40 FLANGE	0-28650-640-0	03	1	1501-
31	BOLT; CLIP EURO2 SPECIFICATION(NT2) (C) M6X35 FLANGE	0-28650-635-0	01	1	0909-
33	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X16 FLANGE	0-28050-816-0	01	1	0909-1412
33	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE	0-28050-816-0	01	1	1501-
33	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M8X20 FLANGE	0-28650-820-0	03	1	0909-1412
33	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X20 FLANGE	0-28650-820-0	03	1	1501-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	02	1	0909-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) (B) M8X20 FLANGE	0-28050-820-0	02	1	0909-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98046-784-0	01	1	1501-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3) (A)	8-97615-878-0	01	1	0909-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3) (B)	8-98046-784-0	01	1	0909-1412
63	BRACKET; WATER PIPE EURO5 SPECIFICATION(NT5) (F)	8-98153-457-0	01	1	1501-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (C)	8-94392-951-0	01	1	0909-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (D)	8-98074-252-0	01	1	0909-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (E)	8-98074-253-0	01	1	0909-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0909-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0909-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0909-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0909-
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NT3) (A)	8-97605-129-1	08	1	0909-1412
94	CLIP; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A)	8-97605-129-1	08	1	1501-
94	CLIP; WATER PIPE EURO2 SPECIFICATION(NT2) (B)	8-94396-860-0	01	1	0909-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0909-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0909-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0909-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0909-
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION(NT2) M8X16 FLANGE	0-28050-816-0	03	1	0909-

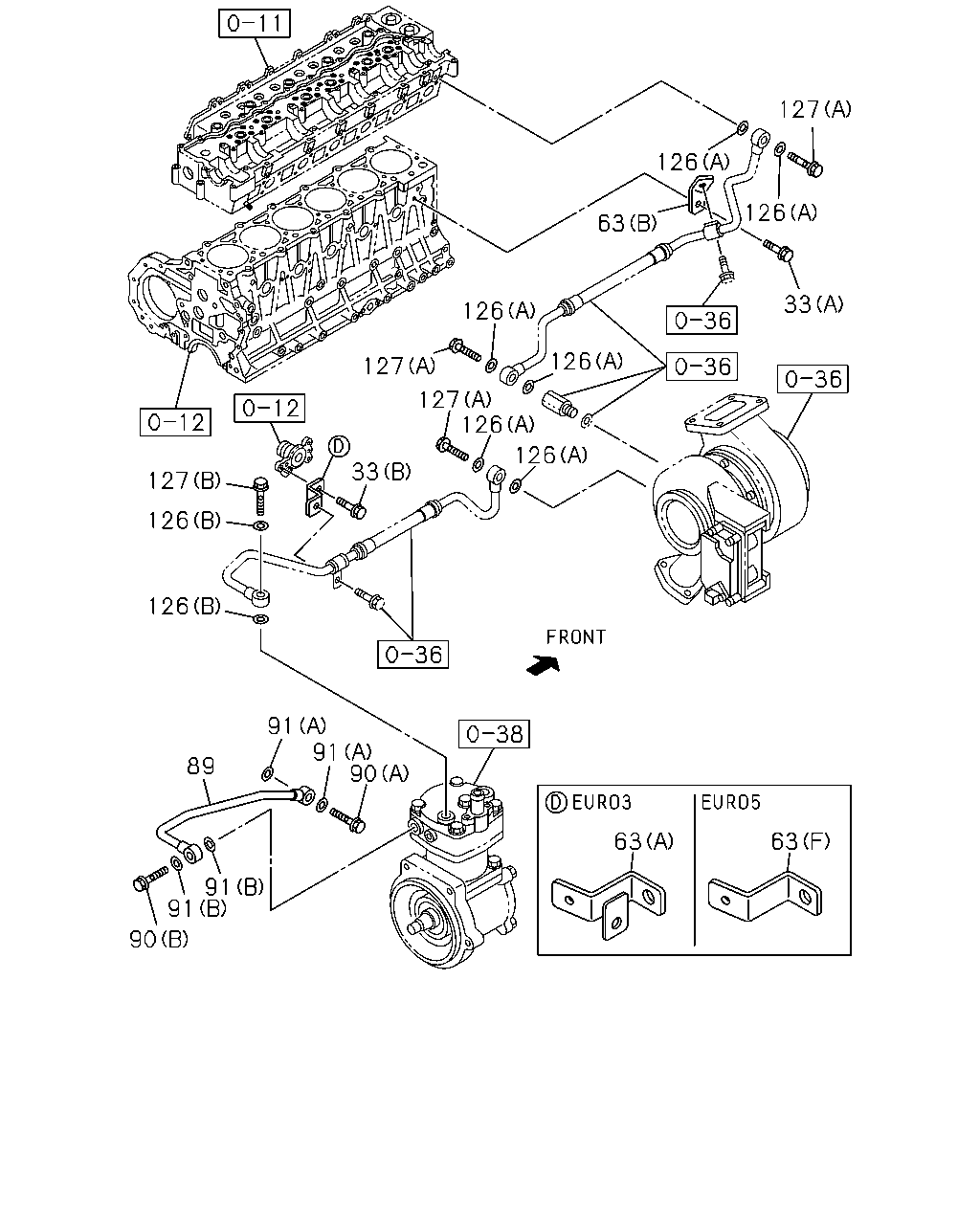

127 126 126 91 91 90 89 91 91 90 63 63 33 127 127 126 126 126 126 63 126 127 126 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT EURO3 SPECIFICATION(NT3) (A) M8X16 FLANGE	0-28050-816-0	01	1	0909-1412
33	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE	0-28050-816-0	01	1	1501-
33	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M8X20 FLANGE	0-28650-820-0	03	1	0909-1412
33	BOLT; BRKT EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X20 FLANGE	0-28650-820-0	03	1	1501-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	02	1	0909-
33	BOLT; BRKT EURO2 SPECIFICATION(NT2) (B) M8X20 FLANGE	0-28050-820-0	02	1	0909-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B)	8-98046-784-0	01	1	1501-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3) (A)	8-97615-878-0	01	1	0909-
63	BRACKET; WATER PIPE EURO3 SPECIFICATION(NT3) (B)	8-98046-784-0	01	1	0909-1412
63	BRACKET; WATER PIPE EURO5 SPECIFICATION(NT5) (F)	8-98153-457-0	01	1	1501-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (C)	8-94392-951-0	01	1	0909-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (D)	8-98074-252-0	01	1	0909-
63	BRACKET; WATER PIPE EURO2 SPECIFICATION(NT2) (E)	8-98074-253-0	01	1	0909-
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0909-
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0909-
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0909-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0909-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0909-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0909-1312
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0909-
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0909-
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0909-
