Isuzu WW
▶
BUSES
▶
LT
▶
11206 - LT134 LHD EURO2/3/5
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

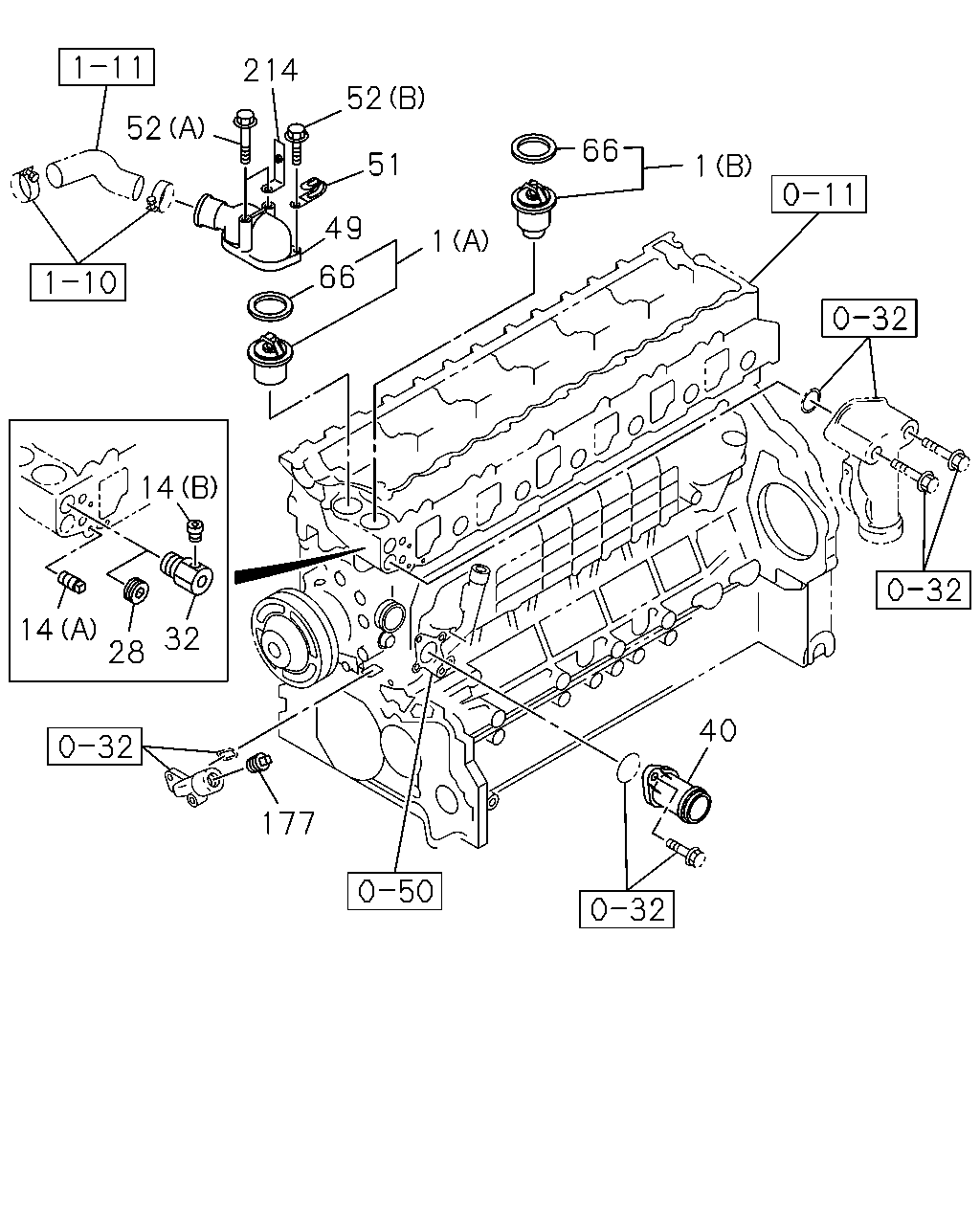

0-31 — THERMOSTAT AND HOUSING
(#58210) — 22 parça
52
214
52
51
49
66
1
66
1
14
32
28
14
177
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
(A) 82 CELSIUS
8-97602-048-3
01
1
0909-
1
THERMOSTAT
(B) 82 CELSIUS
8-97602-393-1
01
1
0909-1501
1
THERMOSTAT
(B) 82 CELSIUS
8-98295-921-0
01
1
1502-
14
PLUG; SW
EURO3 SPECIFICATION(NT3) (B) PT1/4
1-09605-019-0
01
1
0909-1008
14
PLUG; SW
EURO3 SPECIFICATION(NT3) (A) PT3/8
8-94397-338-0
01
1
0909-1412
14
PLUG; SW
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) PT3/8
8-94397-338-0
01
1
1501-
28
PLUG; HTR
EURO2 SPECIFICATION(NT2) PT3/4
1-09605-020-0
01
1
0909-
32
CONNECTOR; HTR
EURO3 SPECIFICATION(NT3)
8-94395-851-1
01
1
0909-1008
32
CONNECTOR; HTR
EURO3 SPECIFICATION(NT3)
8-98177-501-0
01
1
1009-1412
32
CONNECTOR; HTR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5)
8-98177-501-0
01
1
1501-
40
DUCT; WATER,SUCTION
8-94391-091-1
01
1
0909-
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
0909-
51
CLIP; JOINT,THERMOSTAT
EURO3 SPECIFICATION(NT3) ID=18 L=44
8-97367-985-1
01
1
0909-1412
51
CLIP; JOINT,THERMOSTAT
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) ID=18 L=44
8-97367-985-1
01
1
1501-
52
BOLT; JOINT,THERMOSTAT
EURO3 SPECIFICATION(NT3) (A) M8X85 FLANGE
8-97023-062-0
02
1
0909-1412
52
BOLT; JOINT,THERMOSTAT
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X85 FLANGE
8-97023-062-0
02
1
1501-
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0909-
52
BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION(NT2) (A) M8X80 FLANGE
0-28050-880-0
02
1
0909-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-97300-793-0
02
1
0909-1501
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1502-
177
PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION(NT2) PT1/2
9-09204-521-0
01
1
0909-
214
BRACKET; HARNESS
8-94393-074-1
01
1
0909-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
