0-27 — EXHAUST MANIFOLD (#58207) — 58 parça

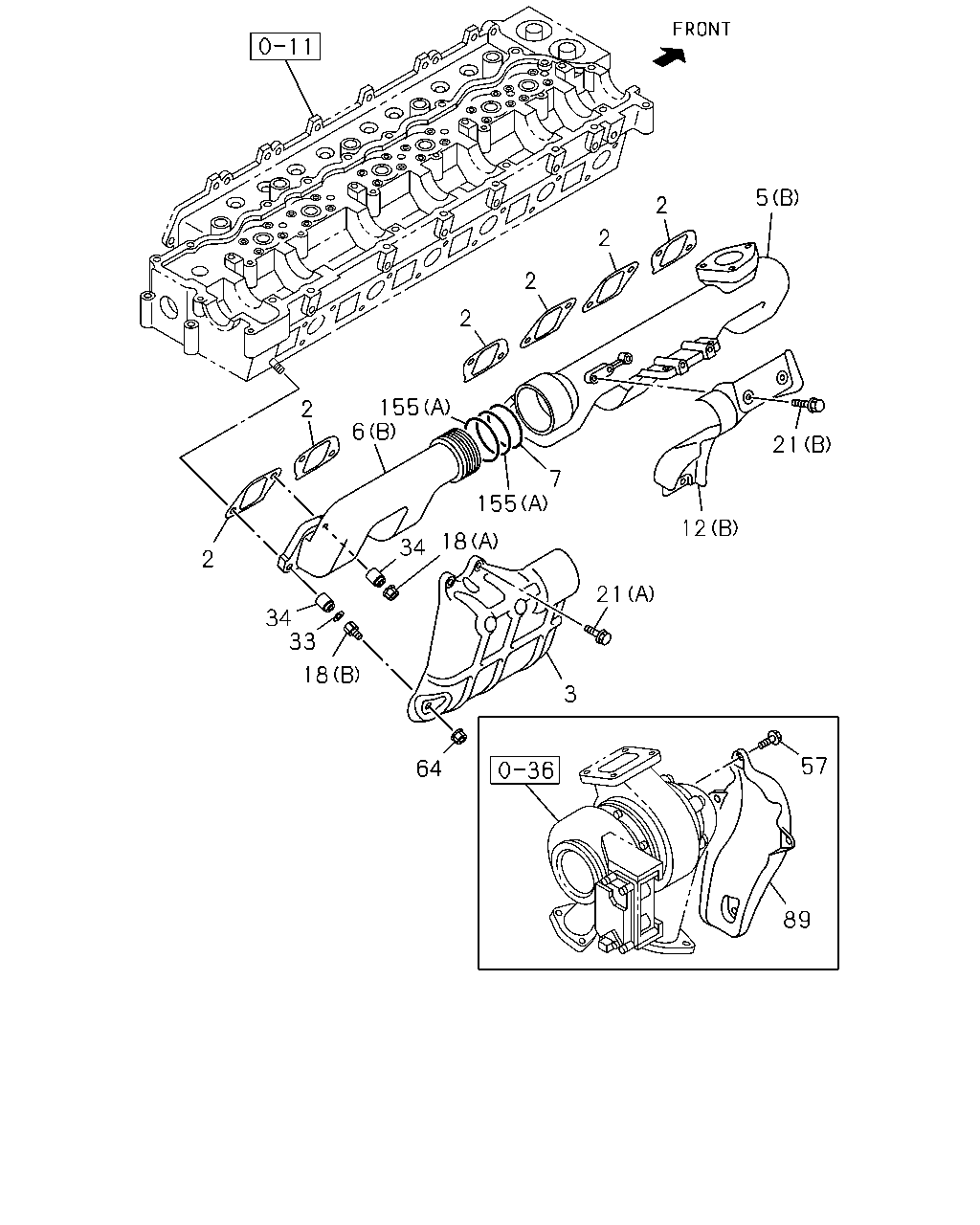

çizim 163204
2 2 2 2 5 21 12 21 3 64 18 33 34 2 2 155 6 155 7 18 34 57 89
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0909-
3 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION(NT3) 		8-97611-986-1 01 1 0909-1202
3 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION(NT3) 		8-98205-395-0 01 1 1203-1412
3 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		8-98205-395-0 01 1 1501-
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION(NT3) (B) 		8-97604-942-1 01 1 0909-1412
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) 		8-97604-942-1 01 1 1501-
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION(NT2) (A) 		8-97602-056-0 01 1 0909-
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION(NT3) (B) 		8-97604-944-0 01 1 0909-1412
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) 		8-97604-944-0 01 1 1501-
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION(NT2) (A) 		8-97600-970-0 01 1 0909-
7 RING; SEAL,EXH MANIF
EURO3 SPECIFICATION(NT3) STAMP RH 		1-14149-151-0 01 1 0909-1412
7 RING; SEAL,EXH MANIF
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) STAMP RH 		1-14149-151-0 01 1 1501-
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION(NT3) (B) 		8-97610-717-3 01 1 0909-1412
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) 		8-97610-717-3 01 1 1501-
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION(NT2) (A) 		8-98150-449-0 01 1 0909-
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0909-
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0909-1202
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203-
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0909-1412
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1501-
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3) (B) M8X14 FLANGE 		8-97378-075-0 04 1 0909-1412
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X14 FLANGE 		8-97378-075-0 04 1 1501-
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0909-
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0909-
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0909-
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO3 SPECIFICATION(NT3) M8X14 FLANGE 		8-97378-075-0 03 1 0909-1412
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) M8X14 FLANGE 		8-97378-075-0 03 1 1501-
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0909-
89 PROTECTOR; HEAT
EURO3 SPECIFICATION(NT3) 		8-97611-985-3 01 1 0909-1412
89 PROTECTOR; HEAT
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) 		8-97611-985-3 01 1 1501-
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0909-
155 RING; SEAL,EXH MANIF
EURO2 SPECIFICATION(NT2) (B) STAMP RH 		1-14149-151-0 01 1 0909-

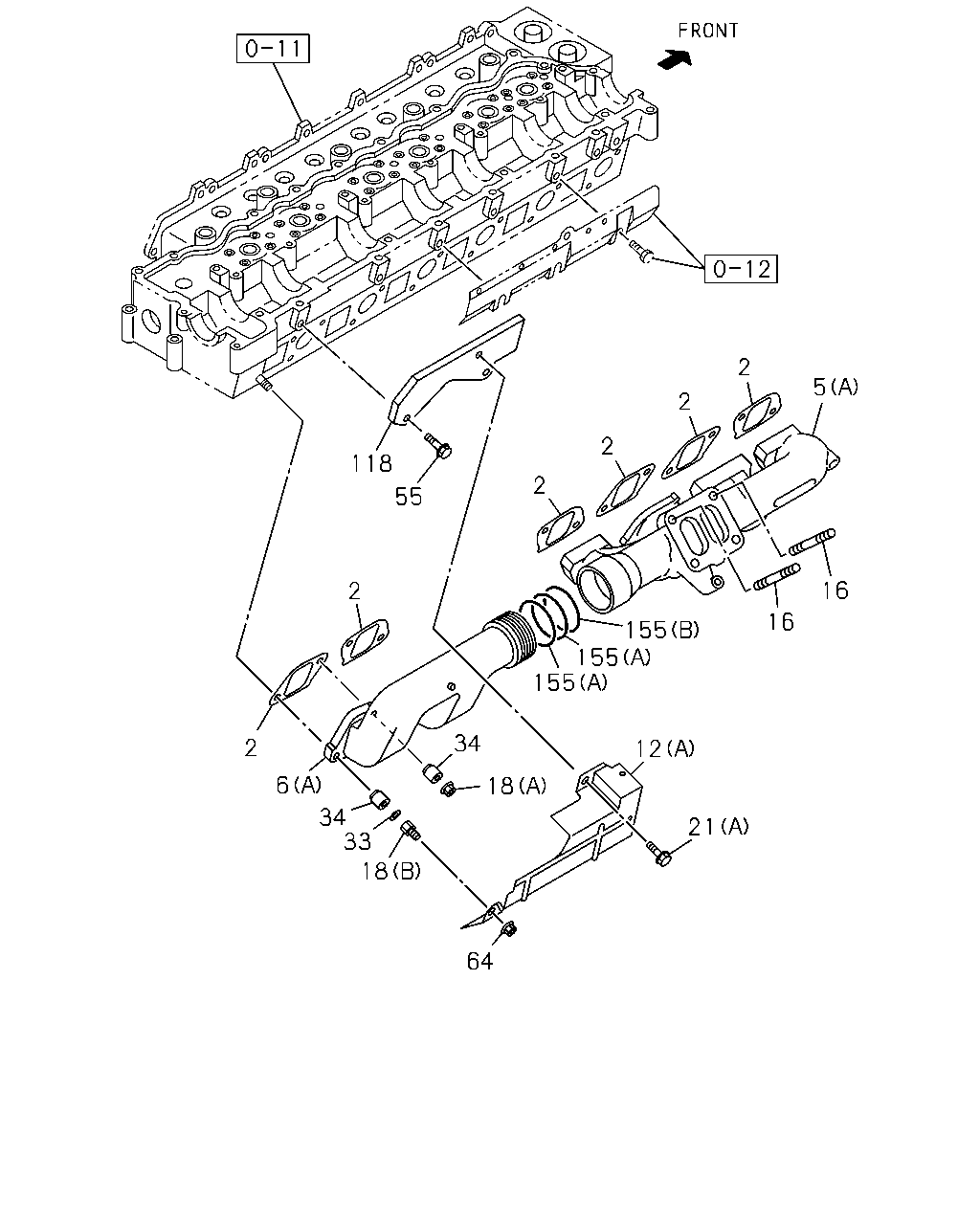

çizim 163217
118 55 2 2 2 2 2 2 6 34 33 18 64 34 18 21 12 155 155 155 16 16 5
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0909-
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION(NT3) (B) 		8-97604-942-1 01 1 0909-1412
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) 		8-97604-942-1 01 1 1501-
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION(NT2) (A) 		8-97602-056-0 01 1 0909-
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION(NT3) (B) 		8-97604-944-0 01 1 0909-1412
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) 		8-97604-944-0 01 1 1501-
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION(NT2) (A) 		8-97600-970-0 01 1 0909-
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION(NT3) (B) 		8-97610-717-3 01 1 0909-1412
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) 		8-97610-717-3 01 1 1501-
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION(NT2) (A) 		8-98150-449-0 01 1 0909-
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION(NT2) M10X25 L=40 		9-04731-025-0 02 1 0909-
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0909-
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0909-1202
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203-
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0909-1412
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (A) M8X16 FLANGE 		0-28050-816-0 02 1 1501-
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3) (B) M8X14 FLANGE 		8-97378-075-0 04 1 0909-1412
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION(NT3),EURO5 SPECIFICATION(NT5) (B) M8X14 FLANGE 		8-97378-075-0 04 1 1501-
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0909-
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0909-
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0909-
55 BOLT; BRKT
EURO2 SPECIFICATION(NT2) M8X16 FLANGE 		0-28050-816-0 02 1 0909-
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0909-
118 BRACKET; HEAT PROTECTOR
EURO2 SPECIFICATION(NT2) 		8-97603-366-0 01 1 0909-
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0909-
155 RING; SEAL,EXH MANIF
EURO2 SPECIFICATION(NT2) (B) STAMP RH 		1-14149-151-0 01 1 0909-
